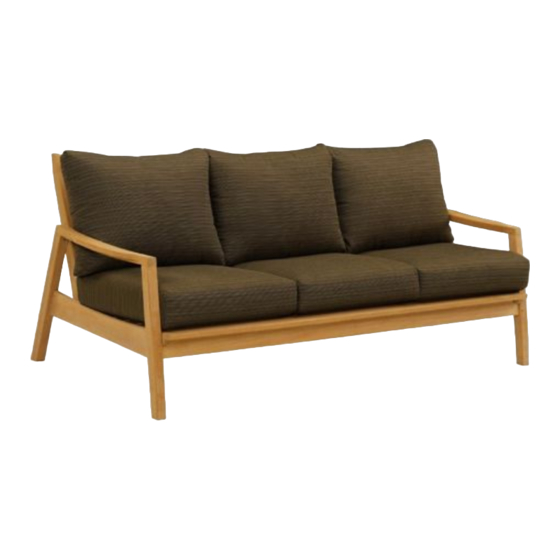

SIENA SOFA - S76
ASSEMBLY INSTRUCTIONS
COMPONENTS
Back
Quantity: 1
HARDWARE
Long Bolt
A
Quantity: 2
Dowels
E
Quantity: 4
FINISHING ITEMS
Medium Grit Sandpaper
NOTE: If the furniture is going to be placed on a concrete or tile patio, it should first be rinsed well
to remove the sawdust that may cause some staining.
15 Kingbrook Parkway, Suite 100 Simpsonville, KY 40067 p. 877.866.3331
Seat
Quantity: 1
Short Bolts
B
C
Quantity: 6
Wood Screw
F
G
Quantity: 2
3
Guiding Bolt
D
Quantity: 1
Allen Wrench
Quantity: 1
4
Barrel Nut
Quantity: 8
f. 502.719.8888 oxfordgarden.com
Ver. 06.30.20
