3. Connectors

In order for ACE-102 to operate, it must be supplied with +12VDC to +24VDC.
Power pins as well as pin outs are shown below.

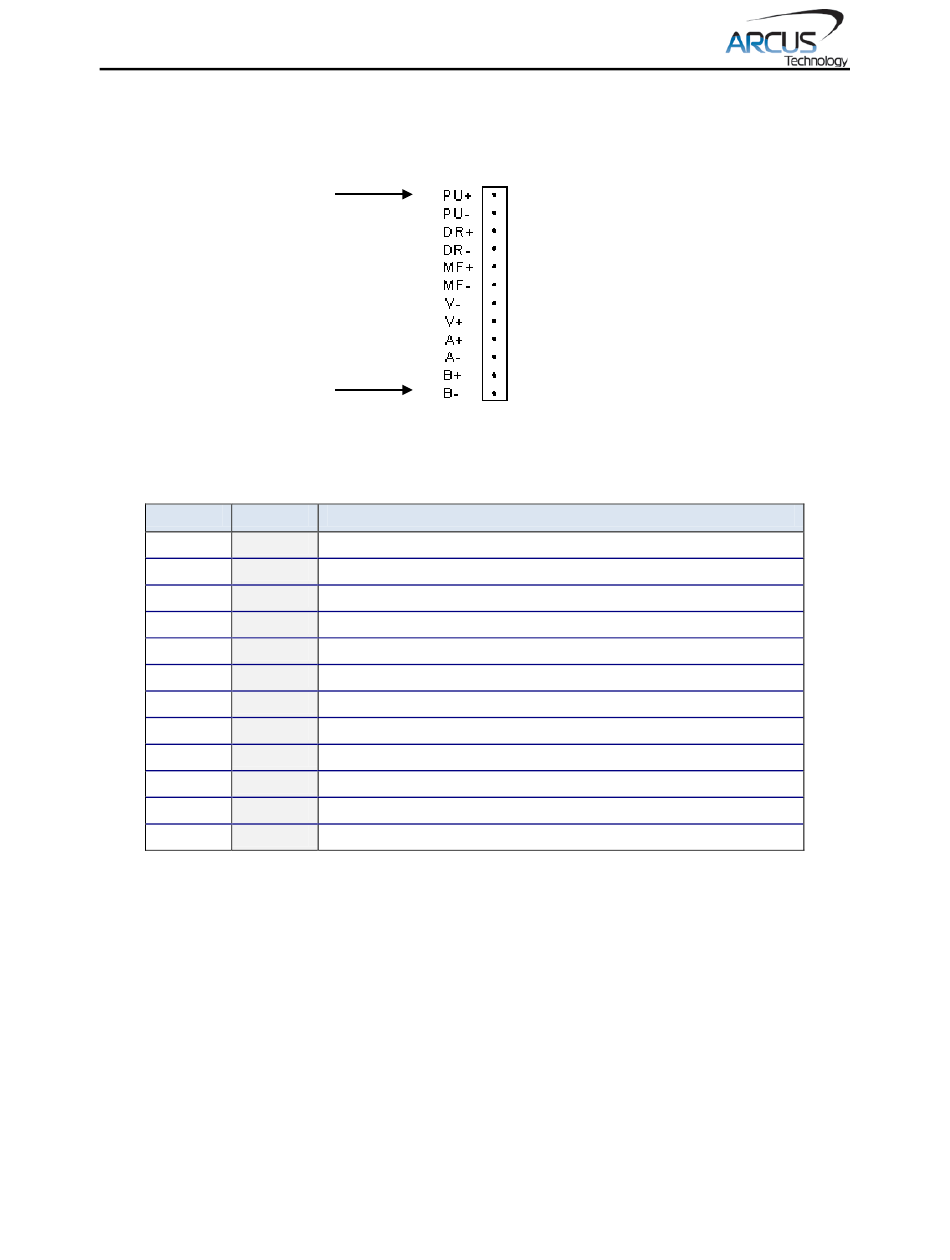

3.1. 12 pin Connector Information

Pin # Name
1 PUL+
2 PUL-
3 DIR+
4 DIR-
5 MF+
6 MF-
7 V-
8 V+
9 A
10 /A
11 B
12 /B
Mating Connector Description:
Mating Connector Manufacturer:
Mating Connector Manufacturer Part:
ACE-102 Manual
1
12
Figure 3.0
Pulse+ (CW+) Opto-isolated Input
Pulse- (CW-) Opto-isolated Input
Dir+ (CCW+) Opto-isolated Input
Dir- (CCW-) Opto-isolated Input
Enable+ Opto-isolated Input
Enable- Opto-isolated Input
Driver Power (24-80 VDC)
Phase A of Bi-polar Step Motor
Phase /A of Bi-polar Step Motor
Phase B of Bi-polar Step Motor
Phase /B of Bi-polar Step Motor
Table 3.0
12 pin 0.2" (5.08mm) connector
On-Shore
EDZ950/4
page 6
Description
GND
rev 1.07
