ASME A112.18.1 / CSA B125.1
ICC/ANSI A117.1
Model/Modelo/Modèle
65830LF
Virage
Series/Series/Seria
™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
For easy installation of your Brizo
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To complete the deck and valve rough-in prior to
installing this trim kit.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Para completar el borde y la instalación de
válvulas dentro de las paredes previa a la
instalación de la llave y sus accesorios.
Pour installer votre robinet Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Installez le corps du robinet et terminez le
pourtour du bain avant de poser les accessories
de finition.

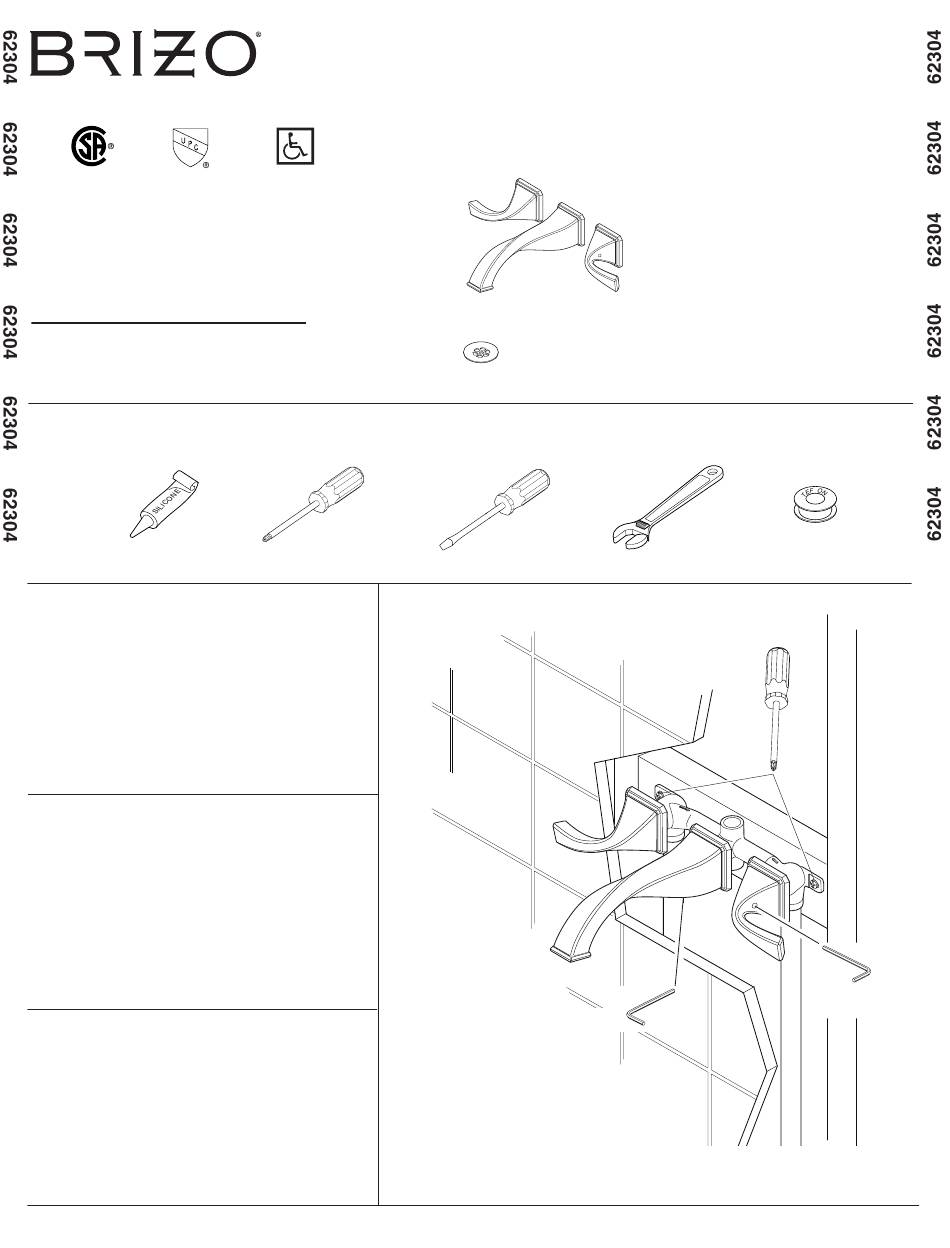

TWO HANDLE WALL MOUNTED LAVATORY FAUCETS
LLAVES DE AGUA - GRIFOS - DE DOS MANIJAS PARA
INSTALACIÓN EN LA PARED
ROBINETS MURAUX À DEUX MANETTES POUR LAVABO
®
®
1
3 mm
L
2.5 mm
(3/32")
12/4/09
Rev. B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Brizo Virage Series
Summary of Contents for Brizo Virage Series
- Page 1 Escriba aquí el número del modelo comprado. Inscrivez le numéro de modèle ici. You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin: For easy installation of your Brizo ® faucet you will need: • To READ ALL the instructions completely before beginning.
- Page 2 This warranty excludes all industrial, commercial & business usage, whose purchasers are parts may be obtained by calling 1-877-345-BRIZO (2749) (in the U.S. and Canada) or by hereby extended a five year limited warranty from the date of purchase, with all other terms of writing to: this warranty applying except the duration of the warranty.
- Page 3 RP61827 Spout Flange Nut Tuerca con arandela incorporada para el Surtidor RP62384▲ RP61829 Spout Flange and Gasket Spout Adapter Reborde del Surtidor y Adaptador del Surtidor Empaque Adaptateur de bec Embase de bec et joint RP61828 O-Ring Anillo “O” Joint Torique RP40119 Set Screw &...
- Page 4 (3 mm) 2.5 mm (3/32") MAINTENANCE – VALVES MAINTENANCE – SPOUT SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE OR SPOUT ASSEMBLIES SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE OR SPOUT ASSEMBLIES If your faucet leaks out of spout or around handle body, replace valve cartridge (1). A.
-
Page 5: Faucet Installation
Min. 11 1/2" Min. 11 1/2 po Min. 3" Min. 3 po 2 3/4" ± 1/2" 2 3/4 po ± 1/2 po WATER LINE CONNECTIONS FAUCET INSTALLATION Install 1⁄2" hot and cold supply piping (1) to the valve body. Construct a suitable stud brace for mounting of the valve body. Refer to the roughing-in Temporarily pull plaster guards (2) from valve body. - Page 6 4" (100 mm) 1 1/2" (38 mm) Diameter SPOUT FLANGE AND SPOUT INSTALLATION Pull off plasterguards (1) and discard them. COMPLETE WALL FINISH Complete finish wall with 1 1⁄2" diameter holes for handle and spout Install spout flange (1) and gasket (2). Option: If mounting surface is shanks.
- Page 7 Figure 1 Finished Wall 1 5/8"-1 11/16" Figure 2 (41.3 mm - 42.8 mm) 2.5 mm (3/32") HANDLE INSTALLATION Install stem extender (1) onto the cartridge. Mark the stem (1) between 1 5/8" and 1 11/16" from finished wall; remove and cut. Reinstall stem extender (1).
- Page 8 Grid Strainer Installation FLUSH YOUR SYSTEM Remove grid flange (1). Screw nut and washer (2) down as far as possible. Push gasket (3) down Remove aerator (1) using wrench (2) provided with your faucet. to nut and washer. NOTE: You may need to turn on cold water slightly to help push Remove tailpiece (1) and apply Teflon ®...
