Installation and Technical Information

Tools Required:

• 4mm hex head screwdriver
• 6mm hex head screwdriver

Overview:

LED Watts: 19.4W
System Watts: 24.0W
Controllability: 0-10V, TRIAC, and ELV dimmable
Weight: 10.1 lbs.
Protection Class: IP65

Notice to Installer:

1. See page 2 for specific product safety warnings.
2. In conformance with UL Standard 1598, a silicone based sealant must be used be-
tween luminaire and supporting surface.
3. For ceiling and wall applications only.
4. Luminaire mounts directly to finished surface over a standard vertical single gang wir-
ing box (by others)

84100 Installation:

1. Loosen the (4) 4mm hex screw on the fixture canopy to remove luminaire base.
2. Feed luminaire wiring through the luminaire base into wiring box.
3. Make supply wiring and luminaire wiring connections inside the wiring box:
MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE
GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE
Dimming (if applicable):
DIMMING CONTROL WIRE (+) TO POSITIVE DRIVER DIM CONTROL WIRE
DIMMING CONTROL WIRE (-) TO NEGATIVE DRIVER DIM CONTROL WIRE
4. Mount luminaire to ceiling or wall surface using appropriate hardware by others. Fix-
ture mounts directly to finished surface over recessed wiring box.
5. Place a small bead of silicone around the back side of the mounting plate that will
come in contact with the finished surface (exterior applications only).
6. Replace luminaire canopy (with luminaire attached) and tighten (4) 4mm hex head
screws to secure into place.
7. To adjust head angle, use 6mm hex key to loosen joint at the head and/or canopy of
the fixture. Adjust as needed and re-tighten to fix in place.

Accessories

Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2020
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com

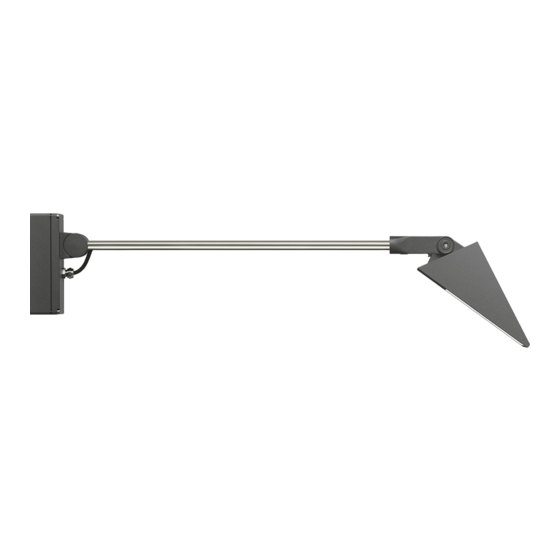

Surface washer floodlight - outrigger arm
B
D
A
C

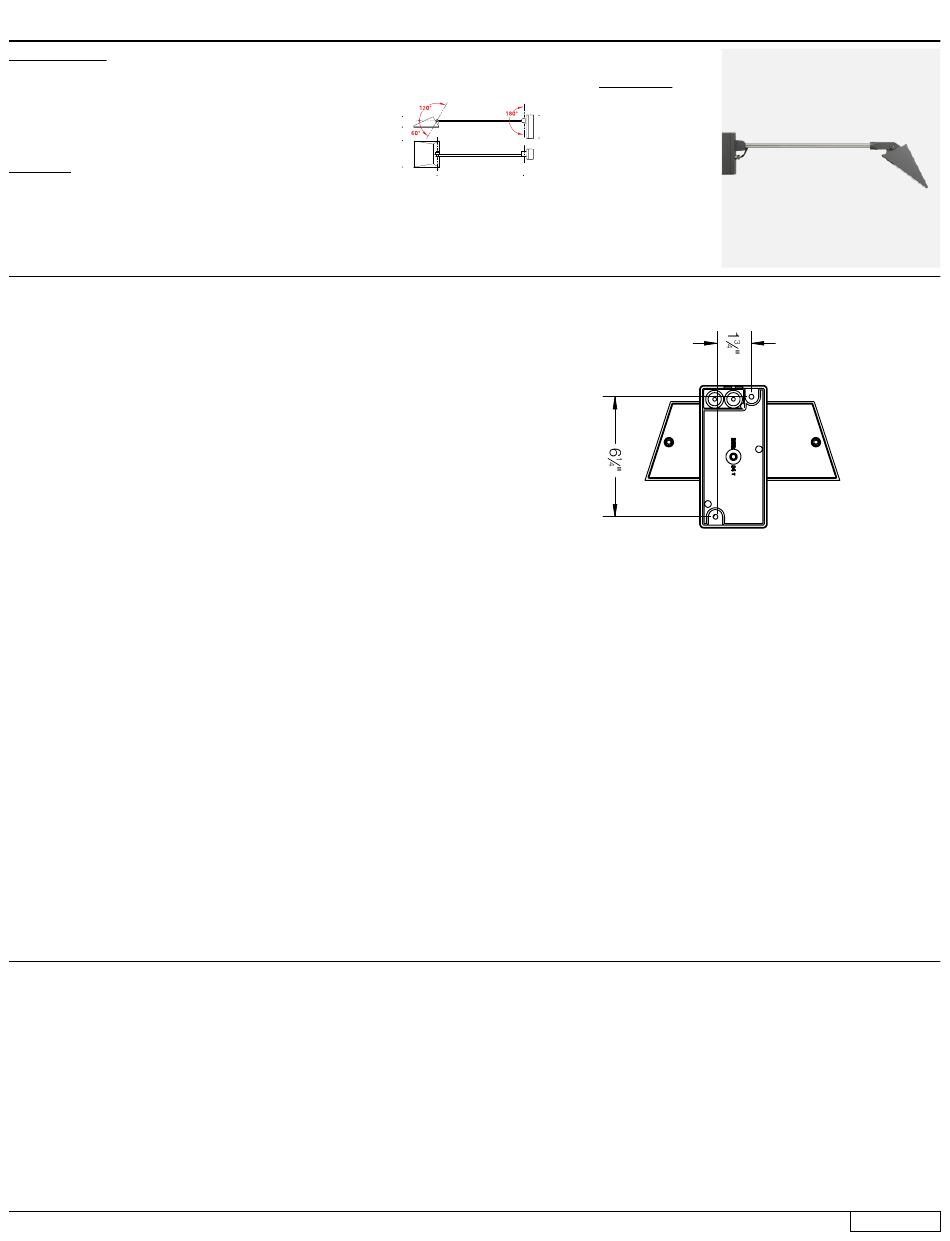

Figure 1:

Dimensions

A: 10-1/4"
B: 4-1/8"
C: 27-1/4"
D: 7-1/2"

Maintenance:

Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.

Replacement Parts

See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
84 100
Updated: 11/16/20
84 100 1 of 2
