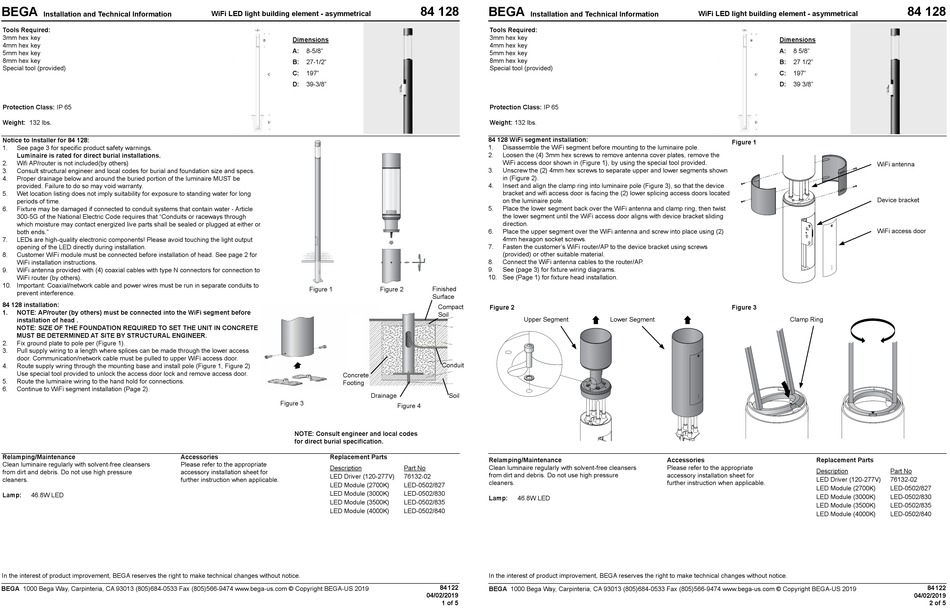

BEGA 84 128 Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
3mm hex key
4mm hex key
5mm hex key
8mm hex key
Special tool (provided)
Protection Class: IP 65
Weight: 132 lbs.

Notice to Installer for 84 128:

1. See page 3 for specific product safety warnings.
Luminaire is rated for direct burial installations.
2. Wifi AP/router is not included(by others)
3. Consult structural engineer and local codes for burial and foundation size and specs.
4. Proper drainage below and around the buried portion of the luminaire MUST be
provided. Failure to do so may void warranty.
5. Wet location listing does not imply suitability for exposure to standing water for long
periods of time.
6. Fixture may be damaged if connected to conduit systems that contain water - Article
300-5G of the National Electric Code requires that "Conduits or raceways through
which moisture may contact energized live parts shall be sealed or plugged at either or
both ends."
7. LEDs are high-quality electronic components! Please avoid touching the light output
opening of the LED directly during installation.
8. Customer WiFi module must be connected before installation of head. See page 2 for
WiFi installation instructions.
9. WiFi antenna provided with (4) coaxial cables with type N connectors for connection to
WiFi router (by others).
10. Important: Coaxial/network cable and power wires must be run in separate conduits to
prevent interference.

84 128 installation:

1. NOTE: AP/router (by others) must be connected into the WiFi segment before
installation of head .
NOTE: SIZE OF THE FOUNDATION REQUIRED TO SET THE UNIT IN CONCRETE
MUST BE DETERMINED AT SITE BY STRUCTURAL ENGINEER.
2. Fix ground plate to pole per (Figure 1).
3. Pull supply wiring to a length where splices can be made through the lower access
door. Communication/network cable must be pulled to upper WiFi access door.
4. Route supply wiring through the mounting base and install pole (Figure 1, Figure 2)
Use special tool provided to unlock the access door lock and remove access door.
5. Route the luminaire wiring to the hand hold for connections.
6. Continue to WiFi segment installation (Page 2).
Relamping/Maintenance Accessories
Clean luminaire regularly with solvent-free cleansers Please refer to the appropriate
from dirt and debris. Do not use high pressure accessory installation sheet for
cleaners. further instruction when applicable.
Lamp: 46.8W LED
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2019
WiFi LED light building element - asymmetrical
Dimensions
A: 8-5/8"
B: 27-1/2"
C: 197"
D: 39-3/8"
49.16 · Technische Änderungen vorbehalten · Technical amendments reserved · Modifications techniques réservées
Gebrauchsanweisung Lichtbauelement
Instructions for use Light building element
Fiche d'utilisation Profilé lumineux
Figure 1 Figure 2
Anwendung Application
Lichtbauelement mit rotationssymmetrischer Light building element with rotationally
Lichtstärkeverteilung für die Beleuchtung und symmetrical light distribution for lighting and
die Gestaltung von Plätzen, Zufahrten und designing squares, access roads and entrance
Eingangsbereichen. areas.
Lichtbauelemente sind Leuchten, die Light building elements are luminaires which
Außenräume gliedern und strukturieren können. can devide and structure areas in exterior
Sie haben eine orientierende, leitende und application. They have a orientating, directing
begrenzende Funktion. and demarcating function.
Produktbeschreibung Product description
Leuchte besteht aus Aluminiumguss, Luminaire made of aluminium alloy,
Aluminium und Edelstahl aluminium and stainless steel
Kunststoffzylinder klar Synthetic diffuser, clear
Reflektor aus eloxiertem Reinstaluminium Reflector made of anodised pure aluminium
Mast aus Aluminium Luminaire pole made of aluminium
Erdstücklänge 800 mm Length of anchorage section 800 mm
2 gegenüberliegende Kabeleinführungen 2 opposite cable entries 150 x 50 mm
150 x 50 mm 4m Connecting cableX05BQ-F 5 G 1@
Concrete
4m Verbindungsleitung X05BQ-F 5 G 1@ With inserted door made of aluminium alloy
Mit eingesetzter Tür aus Aluminiumguss Door latch square spanner
Footing
Türverschluss Vierkant wrench size 8 mm.
Schlüsselweite 8 mm C-clamp with earth conductor connection
Gerätesteg mit Schutzleiteranschluss und and 2 sliding nuts M6
Drainage
2 Schiebemuttern M6 mit eingebautem with built-in connection box 70632
Anschlusskasten 70632 for through-wiring – for 2 cables up to 5 × 4@
Figure 3
zur Durchverdrahtung – für 2 Kabel bis 5 × 4@ with fuse Neozed D 01 · 6 A
mit Schmelzsicherung Neozed D 01 · 6 A LED power supply unit
LED-Netzteil 220-240 V x 0/50-60 Hz
220-240 V x 0/50-60 Hz DC 170-280 V
DC 170-280 V Dimmable 1-10 V
Dimmbar 1-10 V SELV (safety extra-low voltage)
Nur mit SELV (Schutzkleinspannung) A basic isolation exists between power cable
Zwischen Netz- und Steuerleitungen ist eine and control line
NOTE: Consult engineer and local codes
Basisisolierung vorhanden Protection class IP 65
Schutzart IP 65 for direct burial specification. Dust-tight and protection against water jets
Staubdicht und Schutz gegen Strahlwasser Safety class I
r – Safety mark
Schutzklasse I
c – Conformity mark
r – Sicherheitszeichen
c – Konformitätszeichen Replacement Parts Weight Luminaire top: 5 kg
Gewicht Leuchtenoberteil: 5 kg Weight Pole: 30,2 kg
Gewicht Mast: 30,2 kg
Description
LED Driver (120-277V)
LED Module (2700K)
LED Module (3000K)
LED Module (3500K)
LED Module (4000K)
Überspannungsschutz
Die in der Leuchte verbauten elektronischen
Komponenten sind nach DIN EN 61547 gegen
Überspannung geschützt.
