Summary of Contents for LOWES B011DW802

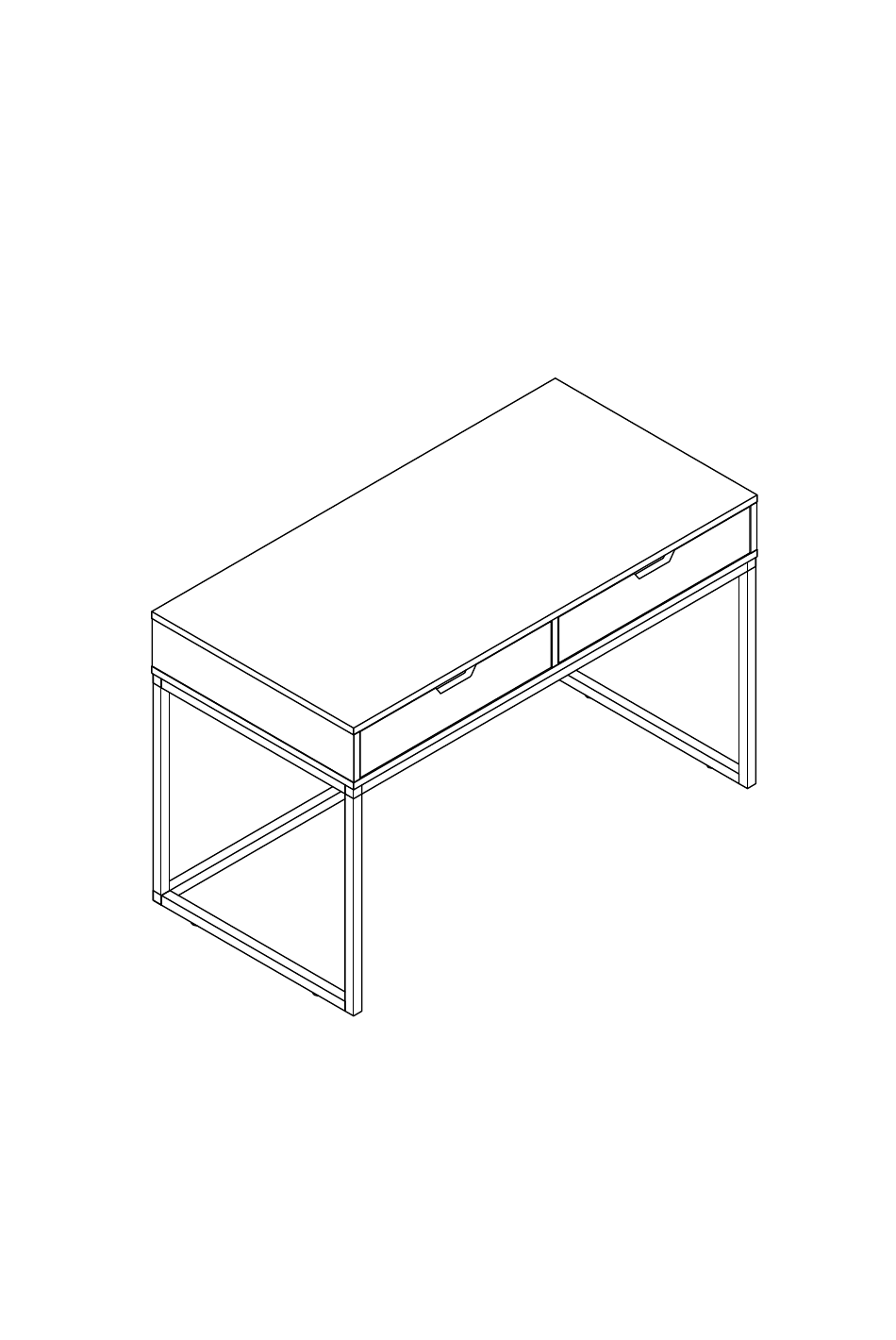

- Page 1 Assembly Instructions B011DW802 MADE IN CHINA...
- Page 2 Before Getting Started Read the instructions carefully prior to assembling the product. When you open the package with a sharp tool like a cutter knife, be careful not to damage the components inside. Carefully remove all packaging materials and retain for future use. Keep all hardware parts and packaging out of reach of small children.
- Page 3 Contents Before getting started, ensure the package contains the following components:...
- Page 4 SIZE(mm) SIZE(mm) 1200*530*16 350*76*12 1200*530*16 350*76*12 530*127*16 525*76*12 530*127*16 535*344*5 512*127*16 517*123*16 1176*137*5...
- Page 5 CUTLINE SIZE(mm) CUTLINE SIZE(mm) L=42mm M6*14 x 16 x 24 Ø15*13.5 Ø12*18 x 16 Ø8*30 x1 2 M3.5*12 300mm x 16 M4*30...
- Page 6 STEP1: 300mm 4pcs M3.5*12 4pcs Push down lever & pull apart The last hole The second hole...
- Page 7 STEP2: 300mm 4pcs M3.5*12 4pcs The last hole The second hole The tenth hole The third hole...
- Page 8 STEP3: L=42mm 8pcs Ø15*13.5 8pcs Ø8*30 6pcs...
- Page 9 STEP4:...
- Page 10 STEP5: L=42mm 8pcs Ø15*13.5 8pcs Ø8*30 6pcs...
- Page 11 STEP6: 300mm 4pcs M3.5*12 8pcs M4*30 8pcs Ø12*18 8set The second hole The last hole...
- Page 12 STEP7: 4set...
- Page 13 STEP8: M6*14 8pcs 1pcs...
- Page 14 STEP9: M6*14 8pcs 1pcs...
- Page 15 STEP10: M6*14 8pcs 1pcs...
- Page 16 STEP11: Finish...
