INSTALLATION INSTRUCTION
Please read this instruction carefully before installation .
Fits for most 26-55 inches Plasma, LCD and LED TVs .
Weight capacity: 45 kg (99 LBS) .
Thank you for purchase!We strive to provide products and services of exceptional quality.
We sincerely invite you to write a review with a good rating. For parts missed or installation problems,
please contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email
us by customerservice@mountingdream.com , so that we may solve the issue for you.
Max VESA:400X400 mm/16X16"

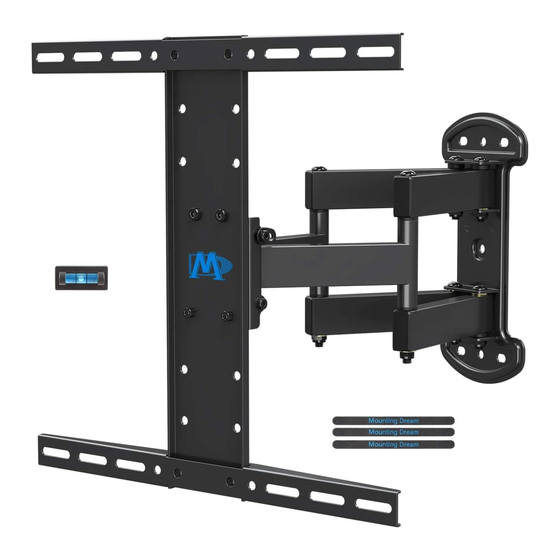

MODEL ： MD2381
(A3)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mounting Dream MD2381
Summary of Contents for Mounting Dream MD2381
- Page 1 INSTALLATION INSTRUCTION Max VESA:400X400 mm/16X16" MODEL ： MD2381 Please read this instruction carefully before installation . Fits for most 26-55 inches Plasma, LCD and LED TVs . Weight capacity: 45 kg (99 LBS) . Thank you for purchase!We strive to provide products and services of exceptional quality.
- Page 2 Avertissement de sécurité: bienvenue à choisir le support suspendu de téléviseur de la Vue Aérienne, pour garantir un usage sécurité du produit MD2381, préserver le risque contre vous-même et des tiers et éviter le dommage des biens, veuillez lire soigneusement ce manuel avant l'usage. Si vous ne pouvez pas comprendre cette notice ou en cas de doute sur la sécurité...
- Page 3 Before getting started, let's make sure this mount is perfect for you! Is your TV VESA equal to/greater than 200x200mm and equal to/less than 400x400mm? MAX:400mm Yes --- Perfect! MAX:400mm No --- This mount is NOT compatible. Does your TV (including accessories) weigh more than 99 lbs (45kg)? NO --- Perfect! 99 lbs...
-
Page 4: Part List
For parts shortage or damage, please contact us directly by customerservice@mountingdream.com. Attention: New delivery will be timely arranged to replace missed or defective parts. Installation tools: 2M 2M Socket wrench Band tape Stud finder Pencil Screwdriver 1/2"(13mm) Hammer 3/8" 5/32" Electrodrill Gifts ：... -
Page 5: Installation Hardware
Installation hardware ： --Lag bolt --4mm Allen key --5mm Allen key 4pcs For concrete wall installations ONLY CAUTION: Do not use in drywall or wood --M8X12 --M6X12 bolt Concrete Wall Anchor 4pcs 2pcs 4pcs Hardware for TV installation ： a--M4X12 bolt b--M5X12 bolt c--M6X12 bolt d--M8X25 bolt... - Page 6 Step 1 Wall plate installation : Option 1 Wall plate installation in wood stud To avoid potential body injury or property damage: 1. Wall mount must be installed into wood stud's center, not drywall alone. 2. Drywall covering the wood stud must not exceed 16 mm (5/8 in.). 3.
- Page 7 Option 2 Wall plate installation on concrete wall To avoid potential personal injury or property damage: 1. Make sure the BOLT HEAD on the wall plate is upward as the picture shows. 2. Solid concrete wall's thickness should be more than 100mm/4", and the wall must be CAUTION capable of supporting five times the weight of the TV plus the mount.
- Page 8 Step 2 Select TV hardware (diameter / length / combination) Bolt diameter: hand thread bolts into threaded inserts on the back of TV to determine correct bolt diameter (M4, M5, M6, M8). Bolt length: verify adequate thread engagement with bolts or bolts/spacers combination.
- Page 9 Step 3 Attach brackets to the bar According to your TV size, choose the suitable hole to assemble, use the bolts and Allen key to lock them. Choice 1 Choice 2 Choice 3 Bracket unit...
- Page 10 Step 4 Attach bracket unit to the back of TV ① For the TV with flat back, mount the bracket unit with bolt/washer/ spacer combination. Warning: Drive bolts a bit, then pull down brackets to reduce the gap between bolts and bolt holes to make two brackets parallel.
- Page 11 ② For TV with inset mounting holes, mount the bracket unit with bolt/washer/spacer combination. (Spacers are highly recommended to be added, thus enlarge the space between TV and brackets for better functionality.) Warning: Drive bolts a bit, then pull down brackets to reduce the gap between bolts and bolt holes to make two...
- Page 12 Step 5 Hang the pre-assembled TV unit on the wall plate unit, then fasten them with bolts and Allen key Attention: Cables are highly recommended to plug before hang the TV on the wall plate. Two people are recommended to hold and position the TV .
-
Page 13: Product Dimensions
Step 6 Level the mount (±4°): Loosen bolts to adjust the TV plate, and fasten TV plate by bolts with Allen key after adjustment. (figure 1) Tilting angle adjustment (+5°/-15°): Loosen the two tilting bolts to adjust TV to your desired angle. Please remember to fasten the bolts after adjustment.
