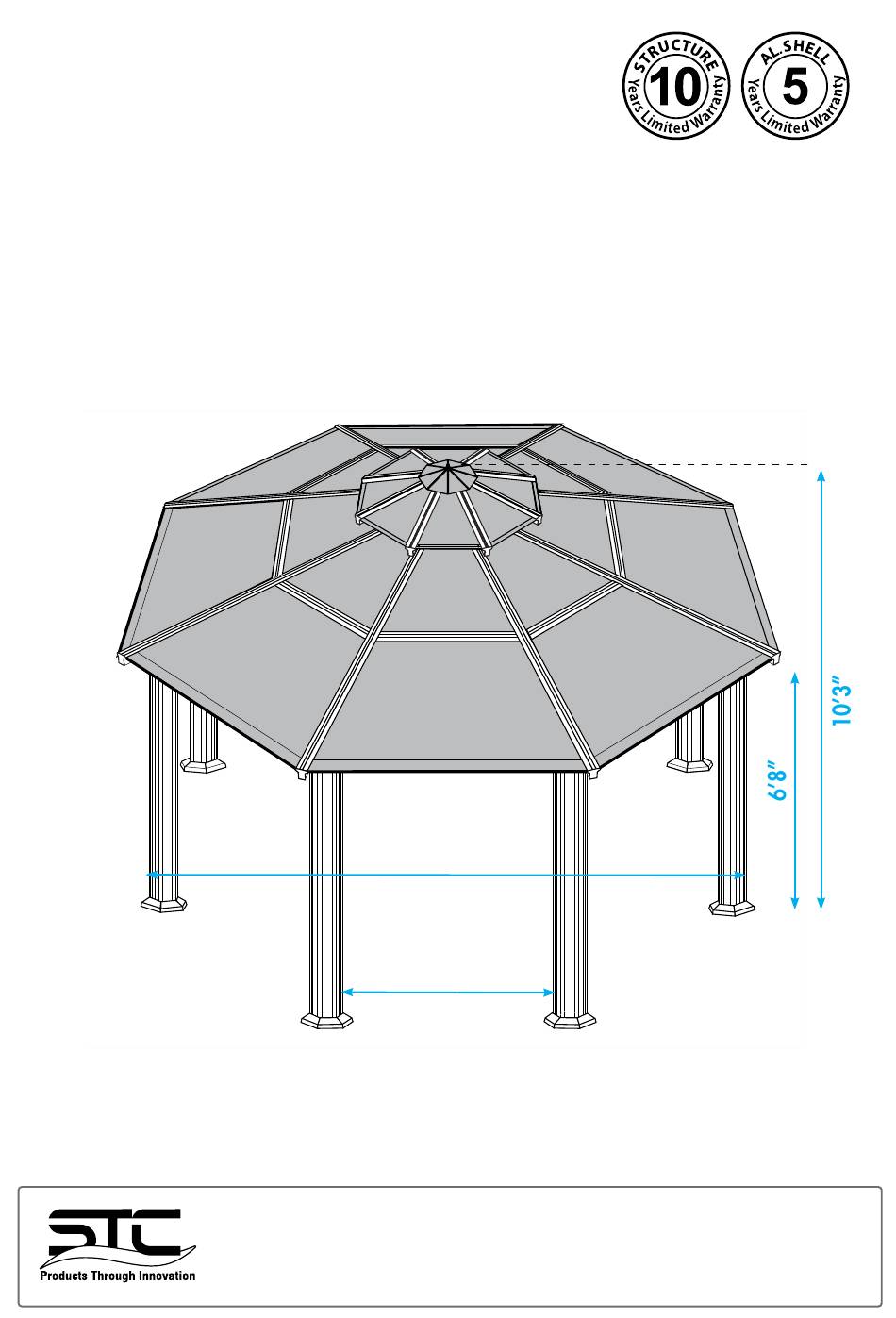

- Page 1 Gazebo GZ4 Monte Carlo Aluminium Composite Roof Panels Assembly Instructions 12’6” 4’6” Systems Trading Corporation 450 7th Avenue Suite 2809, New York, NY 10123 Customer service: (877)782 4482 Email: easygrow@stcaustin.com of 24 www.stcny.com...
-
Page 2: Introduction
Introduction Thank you for purchasing the Gazebo GZ4. When properly assembled and maintained, this gazebo will provide many years of enjoyment! These instructions include helpful hints and important information needed to safely assemble and properly maintain the gazebo. Please read these instructions completely before you begin. Our patented gazebo has been designed for easy assembly. -
Page 3: Table Of Contents
Table of Contents Safety Advice Introduction..........• The gazebo must be positioned and fixed Table of Contents......... on a flat level surface. List of Parts..........• Dispose of all plastic bags safely. Keep Step 1 Assembling the Corner Profiles....6 them out of the reach of children. -
Page 4: List Of Parts
List of Parts The gazebo is shipped in four cartons. These cartons are heavy. Be careful when lifting them. Wear proper safety gear including work shoes, gloves and goggles. The parts are identified by removable stickers. Place all the parts for each step in staging areas, checking that you have all parts as you go. If any parts are missing or damaged, contact STC customer service before beginning assembly: Customer service: (877)782 4482 Email: easygrow@stcaustin.com Profile... - Page 5 Profile Qty Step Profile Qty Step Screw M6*38 Upper Roof Connector Nut M6 Top Ring Screw ø4*8 Inner Roof Connector Concrete Bolt Top Center Rail Connector T-shaped Connector Magnetic Hex Key Ground Spike Plastic Cap #1 Outer Roof Connector Open Spanner We included some extra screws and bolts for your convenience.
-
Page 6: Step 1 Assembling The Corner Profiles
Assembling the Corner Profiles STEP 1 Place all the parts on a level surface. Make sure the pieces are in the correct positions before assembling. Carefully follow the order of assembly to ensure an easy installation. Wear proper safety gear including work shoes, gloves and goggles. Components Corner profile (1) Roof connector (14) - Page 7 Slide support frames (12) over lower end of corner profiles (1). Attach support plates (13) to corner profiles as shown, using four screws (29) for each plate. Leave support frames (12) about 10”over lower end of all eight corner profiles (1) until step 3 (Securing the gazebo to the ground) of 24 www.stcny.com...
-
Page 8: Step 2 Attaching The Rails To The Corner Profiles
Attaching the Rails to the STEP 2 Corner Profiles Components Magnetic Hex Key (34) Screw M6*12 (27) Screw M6*18 (28) Plastic Cap #2 (26) Outer Roof Connector (25) Rail (2) x 16 x 64 x 64 Attach one outer roof connector (25) to each rail at pre-drilled screw holes, using screws (27). VIEW FROM SIDE VIEW FROM THE TOP ATTENTION: Attach roof connectors... - Page 9 Attach one roof rail (2) to two corner profiles (1) as shown, using screws (28) and supplied mag- netic hex key (34) through holes in profile set. Close holes in profile set with plastic caps #2 (26). Repeat step 2.B and 2.C to create four sets.
- Page 10 Using 4 people, attach roof profile (2) to corner profiles (1). Fasten with four screws (28) and supplied magnetic hex key (34) on each side. Close holes in profile sets with plastic caps #2 (26). ILLUSTRATION Using 4 people, continue attaching roof profiles (2) to corner profiles (1) to create the octagonal gazebo base.
-
Page 11: Step 3 Securing The Gazebo To The Ground
Securing the Gazebo to the Ground STEP 3 Fasten the gazebo frame to the ground, using four spikes (35) for each support plate. Lower support frames (12) to cover support plates (13). Components Ground spike (35) x 32 Optional Securing the Gazebo to a Concrete Floor or Wood Deck Concrete Floor: Components 1. -
Page 12: Step 4 Installing The Lower Roof Gable Profiles
Installing the Lower Roof Gable Profiles STEP 4 Towards center Towards outer edge BOTTOM VIEW OF PROFILE (8) Components ATTENTION: DO NOT ATTEMPT TO ASSEMBLE THIS ALONE ! Roof Gable Profile (8) Screw (30) Nut M6 (31) x 16 x 16 2102mm Using screws (30) and nuts (31), connect roof gable profiles (8) to roof connectors (14) on top... -
Page 13: Step 5 Assembling The Roof Top
STEP 5 Assembling the Roof Top Components Roof Gable Profile (6) Roof Top Profile (3) Top Ring (20) Upper Roof Inner Roof 431mm 431mm Connector (19) Connector (21) BLACK SIDE Top Center Rail Roof Top Hook (16) Tube (17) Washer (18) Aluminium Composite Connector (22) Cover (15) - Page 14 Using screws (30) and nuts (31), connect the eight roof gable profiles (6), to upper roof connectors (19) as shown. ATTENTION: Roof profiles, roof panels and ga- bles must be aligned properly during assembly to minimize any possibility of leaking. Using screws (28), connect top center rail connector (22) to roof gable profiles (6) as shown.
