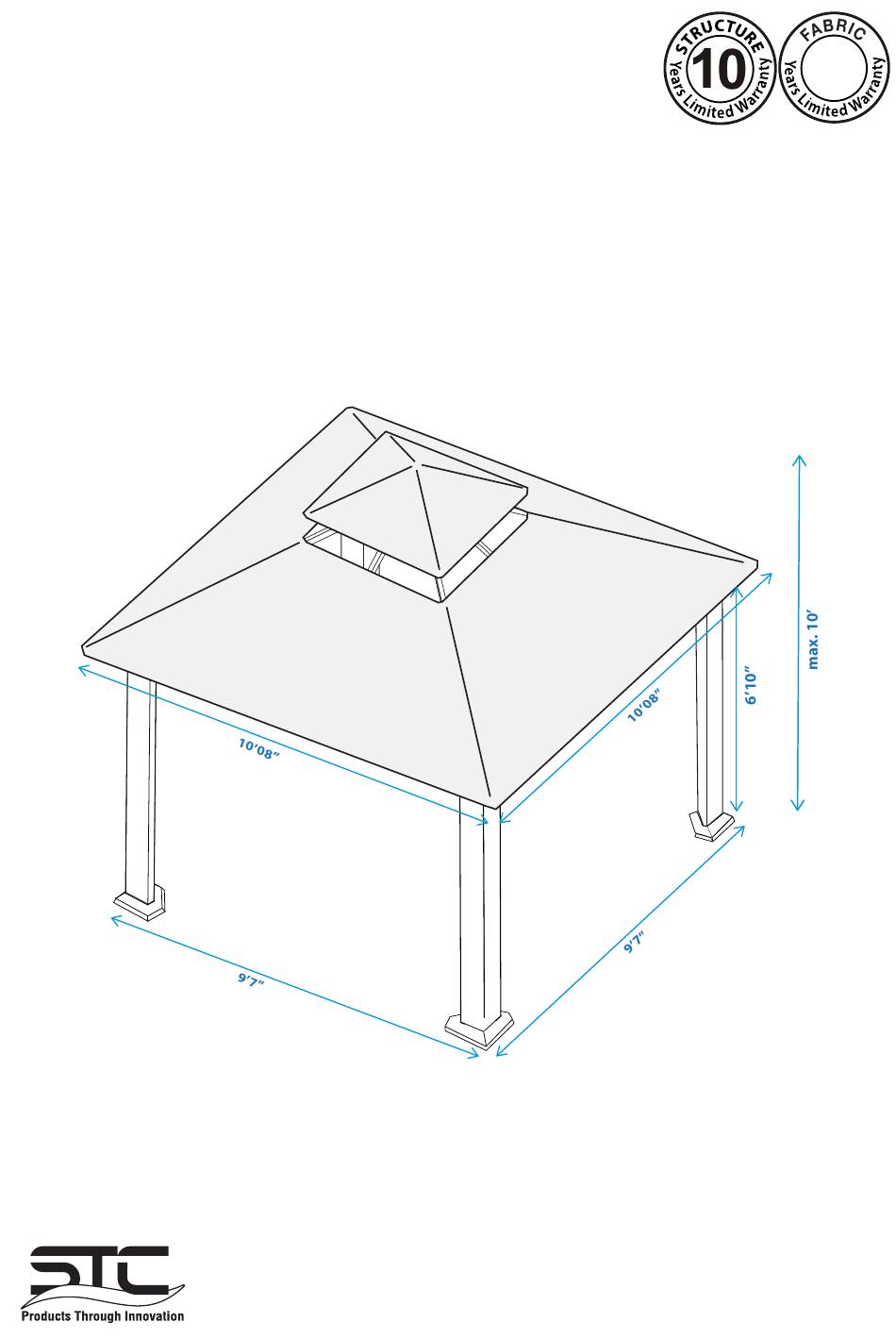

- Page 1 Gazebo GZT634 Assembly Instructions Systems Trading Corporation Customer service: (877)782 4482 of 18 www.stcny.com...
-
Page 2: Before Starting Assembly
Introduction Thank you for purchasing the Gazebo GZT634. When properly assembled and maintained, this gazebo will provide many years of enjoyment! These instruc- tions include helpful hints and important information needed to safely assemble and properly maintain the gazebo. Please read these instructions completely before you begin. -
Page 3: Safety Advice
Safety Advice Table of Contents Introduction................The gazebo must be positioned and fixed on a flat • Table of Contents..............level surface. List of Parts................Dispose of all plastic bags safely. Keep them out of • Step 1 Assembling the Corner Profiles......... 6 the reach of children. -
Page 4: List Of Parts
List of Parts The gazebo is shipped in two cartons. These cartons are heavy. Be careful when lifting them. Wear proper safety gear including work shoes, gloves and goggles. The parts are identified by removable stickers. Place all the parts for each step in staging areas, checking that you have all parts as you go. If any parts are missing or damaged, contact STC customer service before beginning assembly: Customer service: (877)782 4482 Part... - Page 5 Part Qty Step Part Qty Step 1/4” x 35 1/4” x 30 1,5,6 1/4” x 15 1,2,5 1/4” 1/4” 8.0 x 70mm We included some extra screws and bolts for your convenience. of 18 www.stcny.com...
- Page 6 STEP 1 Assembling the Corner Profiles Place all the parts on a level surface. Make sure the pieces are in the correct positions before assembling. Carefully follow the order of assembly to ensure an easy installation. Wear proper safety gear including work shoes, gloves and goggles. Components 1/4” x 30 1/4” x 15 Corner profile (1) Bolt (17) Bolt (14) Roof connector (16) Support frame (2)
- Page 7 Slide support frames (2) over lower end of corner profiles (1). Attach support plates (3) to corner profiles as shown, using two bolts (17) for each plate. Leave support frames (2) about 10”over lower end of corner profiles (1) until step 4. of 18 www.stcny.com...
- Page 8 STEP 2 Assembling the Roof Profiles Connect each roof profile (4A) to one roof profile (4B) by sliding protruding parts on profile (4A) into open side of profile (4B) as shown. Fasten with bolts (14). Components 1/4” x 15 Roof profile (4A) Wicker strap (18) Bolt (14) Roof profile (4B) Roof connector (16) x 12 Wrap wicker strap (18) around connection edges of roof profiles (4A, 4B) as shown and fasten. Attach roof connectors (16) to each roof profile (4A) through hole in wicker strap, as shown, using bolts (14).
- Page 9 STEP 3 Attaching Roof Profiles to Corner Profiles Attach one long roof profile set (4A+4B) to two corner profiles (1) as shown. Fasten with four bolts (13) on each side. Components NOTE: The end of profile (4B) protrudes from NOTE: The end of profile (4B) protrudes from corner profile (1) the distance of it’s own width. corner profile (1) the distance of it’s own width. 1/4” x 35 Bolt (13) x 32 Repeat step 3.A to create two sets. of 18 www.stcny.com...
- Page 10 Using at least 3 people, attach the two other roof profile sets (4A+4B) to corner profiles (1), connecting all four corner profiles (1). Fasten with four bolts (13) on each side. IMPORTANT: After this step you should place the gazebo frame in its desired location. Make sure all corners are squared at 90 degrees. www.stcny.com of 18...
-
Page 11: Securing The Gazebo To The Ground
STEP 4 Securing the Gazebo to the Ground Fasten the gazebo frame to the ground, using three spikes (21) for each support plate. Lower support frames (2) to cover support plates (3). Components Ground spike (21) x 12 Securing the Gazebo to a Concrete Floor Optional or Wood Deck Components... - Page 12 STEP 5 Attaching the Corner Roof Gables IMPORTANT: The roof gable profiles (5) have small protrusions (spring buttons) underneath. The end with the protrusions is connected to the top gable connector (10). The roof gable extension (6A) has a small protrusion underneath which will snap into one of the holes in roof gable extension (9) while stretching the canopy. Components 1/4” x 15 1/4”...
- Page 13 Connect one roof gable profiles assembly (5,6) and one roof gable profiles assembly (5,6A) to top gable connector (10) until the small protrusion on their undersides snap into the holes on the underside of top gable connector (10). ATTENTION: The tunnels of top gable connector (10) are marked, in order to avoid mistakes when inserting the roof gable profiles.
- Page 14 Using at least two people, slide the other two roof gable profiles (5,6 - 5,6A) into tunnels of top gable connector (10) until the small protrusion on their undersides snap into the holes on the underside of top gable connector (10). ATTENTION: The tunnels of top gable connector (10) are marked, in order to avoid mistakes when inserting the roof gable profiles.
- Page 15 Slide roof gable extension (9) over roof gable extensions (6A) until the small protrusion on its underside snaps into the third hole on the underside of roof gable extension (9). 50” 46.4” 11.4” 50” NOTE: You will need to extend profile (9) outwards to stretch the roof canopy into its final position. STEP 6 Attaching the Center Roof Gables IMPORTANT: The roof gable profiles (8) have small protrusions (spring buttons) underneath. The end with the protrusions is connected to the top gable connector (10). Components Insert ends with push buttons of roof gable profiles (8) into marked tunnels of top roof connector (10) until they snap into place.
- Page 16 Place the other ends of roof gable connectors (8) into roof connectors (16) on roof profiles (4B), align drill holes and fasten with bolts (17,15). STEP 7 Placing the Canopy WARNING !! : When inserting the roof profiles into the fabric pockets of the canopy, you MUST use both hands holding the large piece of roof fabric in order to stretch it. Don’t try to stretch it and pull it just by pulling the pockets! It will tear the pockets as canopy fabric is not elastic by nature. Components Place the upper fabric canopy (11) carefully over the higher part of roof gable profiles (5), stretch and slide profiles into fabric pockets in canopy (11).
- Page 17 Using at least two people, place the large canopy (12) carefully over the small canopy (11) and two roof gable profiles (5,6) as shown. Stretch the canopy and slide profiles into fabric pockets in large canopy rim (12). Use TWO hands to pull the fabric backward until the roof profiles slide firmly into the pockets. VIEW FROM BELOW Do NOT try to stretch and pull the roof fabric by pulling the pocket only. This will tear the pocket, as canopy fabric is not elastic by nature.
- Page 18 In order to prevent possible damage to fabric and/ or structure, fabric WARNING : roof should be removed before wind storms, or major inclement weather events. Systems Trading Corporation Customer service: (877)782 4482 www.stcny.com of 18...
