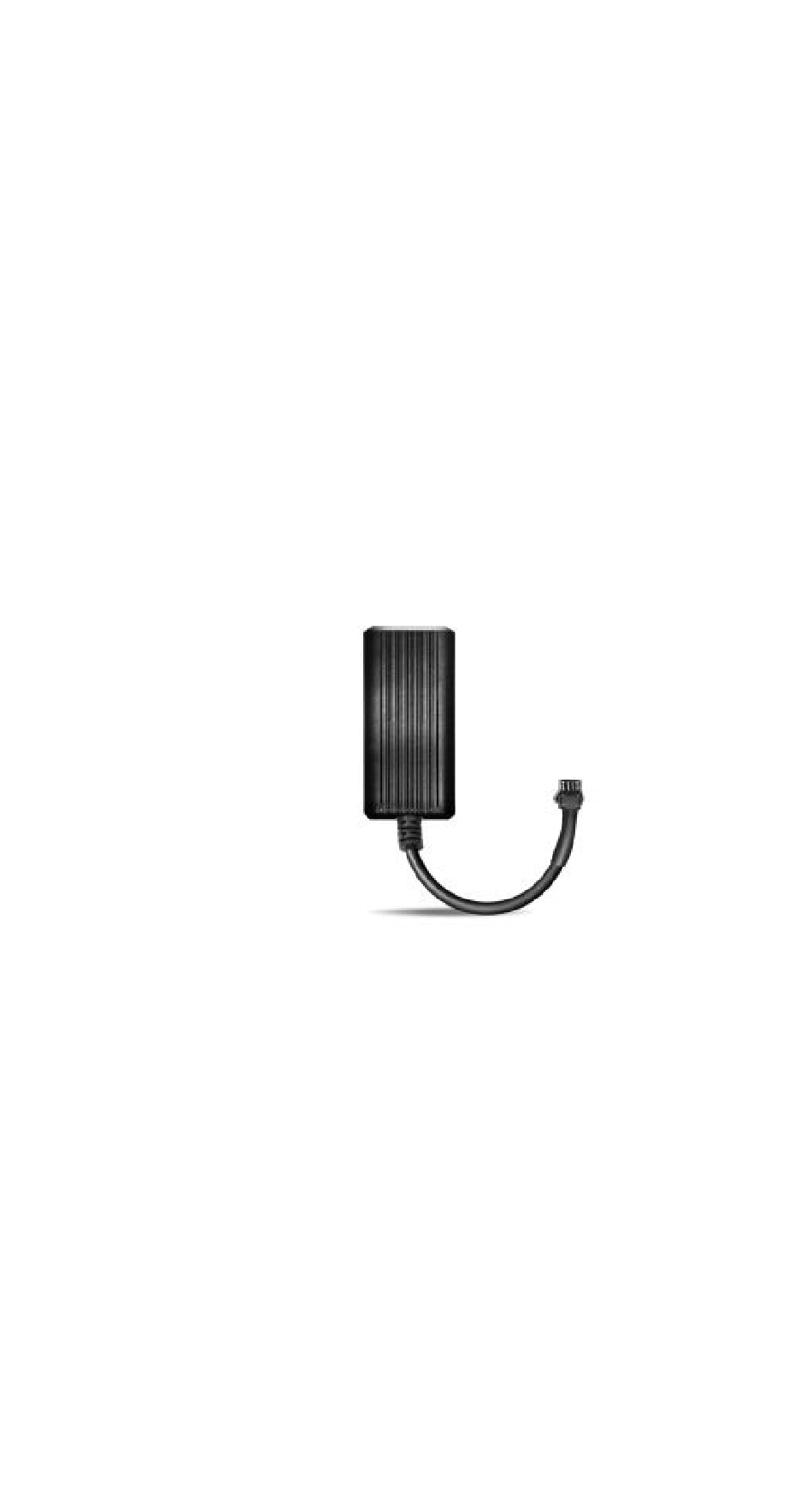

4G GPS Vehicle Tracker
(LTE-TDD/LTE-FDD/GSM/GPRS/EDGE LTE CAT1)
(GPS+AGPS+SMS)
GT08 User Manual
(Version 1.3)
Thank you for purchasing the tracker. This manual shows how to operate
the device smoothly and correctly. Please make sure to read this manual
carefully before using this product. Please note that specification and
information are subject to changes without prior notice in this manual.
Any change will be integrated in the latest release. The manufacturer
assumes no responsibility for any errors or omissions in this document.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DYTECH GT08
Summary of Contents for DYTECH GT08
- Page 1 4G GPS Vehicle Tracker (LTE-TDD/LTE-FDD/GSM/GPRS/EDGE LTE CAT1) (GPS+AGPS+SMS) GT08 User Manual (Version 1.3) Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Please make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
- Page 2 1. Summary Working Based on existing LTE-TDD/LTE-FDD/GSM/GPRS/EDGE LTE CAT1 network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. Overview of the characteristics: 1).LTE-TDD/LTE-FDD/GSM/GPRS/EDGE LTE CAT1. 2).GPS position. 3).Auto set APN. 4.Power-Cut alarm. 5).Motion detection, save flow and power.
- Page 3 2．Accessories： Power line: Relay: Manual: 3. Specs 1）. LTE-TDD/LTE-FDD/GSM/GPRS/EDGE LTE CAT1 2）.Working Voltage：9V-85V DC 4）.Working current：≈22mA (12VDC) 5）.Working current：≈12mA (24VDC) 6）.GPS locating time：Cold start≈38s（Open sky） Warm start≈32s Hot start≈2s（Open sky） 7）.GPS Precision：10m（2D RM） 8）.Working temperature：-20℃～+70℃ 9）.Working humidity：20%～80%RH 10）.Measurement：86（L）×39（W）×16（H）mm 4.Device status indicators 4.1 Connect DC 9V-85V power supply, the red LED and the blue LED will light continuously.
- Page 4 4.2 The blue LED light continuously when searching the GPS signal. Once GPS fixed, the blue LED will be flashing. 5.Installation Prepare for installation 5.1.1 Product Check. Open the packing box and check the device’s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
- Page 5 2) Avoid being placed with signal radiators like reverse sensor ； 3) The device has NETWORK antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover. Note: The metal cover will lessen the receiving of GPS signals.
- Page 6 light. The device will upload the data to the online platform. When the car is in static state for a long time, the device will be in energy saving mode. 7.2 Power off：Pull off the power plug then power off the device. 8.User Settings 8.1 SMS Commands instruction 1)Center Number...
- Page 7 Description Manager number. Command Successful Setting：Admin1: Feedback Admin2: 3)Authorized Number Set Text Parameter Sample command Authorized 101# number # 1：101#13800138000# 102# number # 2：102#12345678912# 103# number # 3：103#12345678912# Authorized D11# D11# D12# D12# D13# D13# Command 1) Authorization number for SMS control Description oil.
- Page 8 Text Parameter Sample command View C10# C10# authorized Command This directive is used to view the Description equipment authorization number Command Successful Setting： Authorization 1： Feedback Authorization 2： Authorization 3： 5)APN Setting Text Parameter Sample command 802#APN#username#passw 1：802#intenet#123#123# APN Setting ord# 2: 802#internet# APN differs according to the local telecom...
- Page 9 Feedback Server Text Parameter Sample command SERVER 1.803#www.trac123.com#7018# 803#SERVER#port# Parameter 2: 803#47.243.91.120#7018# View SERVER CIP# 1）CIP# Change the IP and port when move to a new Command server Description port：10~65535 Command Successful Setting：set IP OK! Feedback 7)Moving Time Interval Text Parameter Sample command...
- Page 10 Scope ： 0 ， 5~16960 seconds ； 0,no data Command uploading； Description 5~16960,means time interval；the default value is 30 seconds. Command Successful Setting：SET TIMER OK！ Feedback 8)Static Time Interval Text Parameter Sample command STATIC 731#5# 731#time interval# Command Scope：1~7936 seconds； Description The default time interval is 300 seconds.
- Page 11 Description to the platform If need again to restore the uploading, need to send upload time interval setting. Command SET OK！ Feedback 10)Oil-Cut Text Parameter Sample command RELAY 222# Cut off oil and 222# Parameter1 power RELAY 333# 333# Parameter2 Recover oil and power 1)RELAY control the start and closeness of the relay...
- Page 12 below 20KM/H. Successful Setting：Fuel cut has already Feedback been completed OK! 11)GMT Text Parameter Sample command 801#E8# 801#location time Zone# 801#W4# The default time zone is Beijing time. Command please operate according to the above Description command. Command Successful Setting：Set time zone ok! Feedback 12)Vibration Alarm Text command...
- Page 13 Alarm VIBRATION 123#sensitivity#alarming Parameter way# 123#2#3# Set into V123#2# Vibration V123#2# alarm time V123#1# Cancel vibration 910# 910# alarm The sensitivity value of the vibration is from 1 to 5，1is the most sensitive and o is close. Alarming ways: 1, Command calling 2, texting, 3 Calling and Description...
- Page 14 Text Parameter Sample command SPEEDING SSA#speed#alarm 1) SSA#120# Parameter way# 2) SSA#150#3# The speed scope is form 60-220, if the speed is not in this cope, the alarm is off. Command Alarming ：1. calling, 2. texting, Description 3.calling and texting. Need set the center number and receiving number.
- Page 15 15)Factory Text Parameter Sample command Parameter 940# 940# Restore the factory setting Only center number can initial this Description function Factory setting will recover to the original setting Feedback Successful Setting：FACTORY OK！ 16)Position Text command Parameter Sample command 666# 666# Command Check the location link of Google map Description...
- Page 16 17)Version Text Parameter Sample command VERSION V00# V00# Command The command is to check the software Description version Command VERSION:Xxxx Feedback BUILD:2012-07-05 10:12 18)Param Check Text Parameter Sample command PARAM 886# 886# Command The command is to check the settings and Description the default parameter.
- Page 17 LANG: language(CN/EN) GMT: time zone (E/W8) 19)Status Check Text Parameter Sample command STATUS 902# 902# Command The command is designed for checking the Description device’s working status. External power:ON/OFF GSM Signal:HIGH/MIDDLE/LOW Command GPS:FIXED/UNFIXED Feedback RELAYER:DISABLE/ENABLE Vibrate Warning:ON/OFF 8.2 Platform Website: http://www.trac123.com/ Login as Account or ID, ID is in the label on the tracker.
- Page 18 APP: Please search TRAC123 in Google store or Apple store. Or use mobile phone browser scan below QR code. In production, IP, port have been writed in, normally the tracker will be auto online, if the tracker offline, Please set APN by sms command.
- Page 19 please make deposit by the telecom operator. ● If you can connect to the device when calling, the SIM card has deposited and please check with your operator for NETWORK function. You also can check by searching the internet on your mobile phone. ●...
