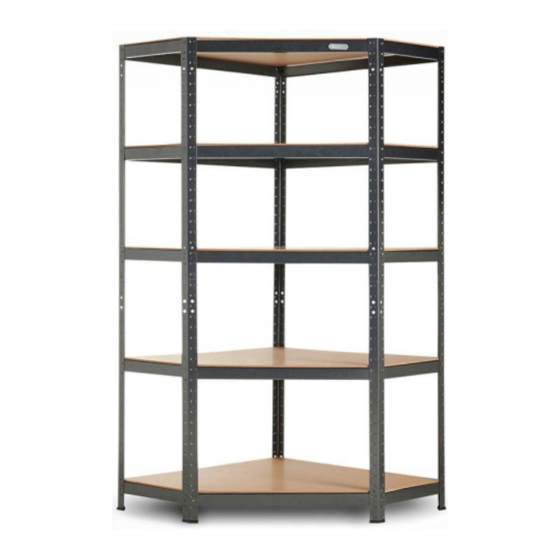

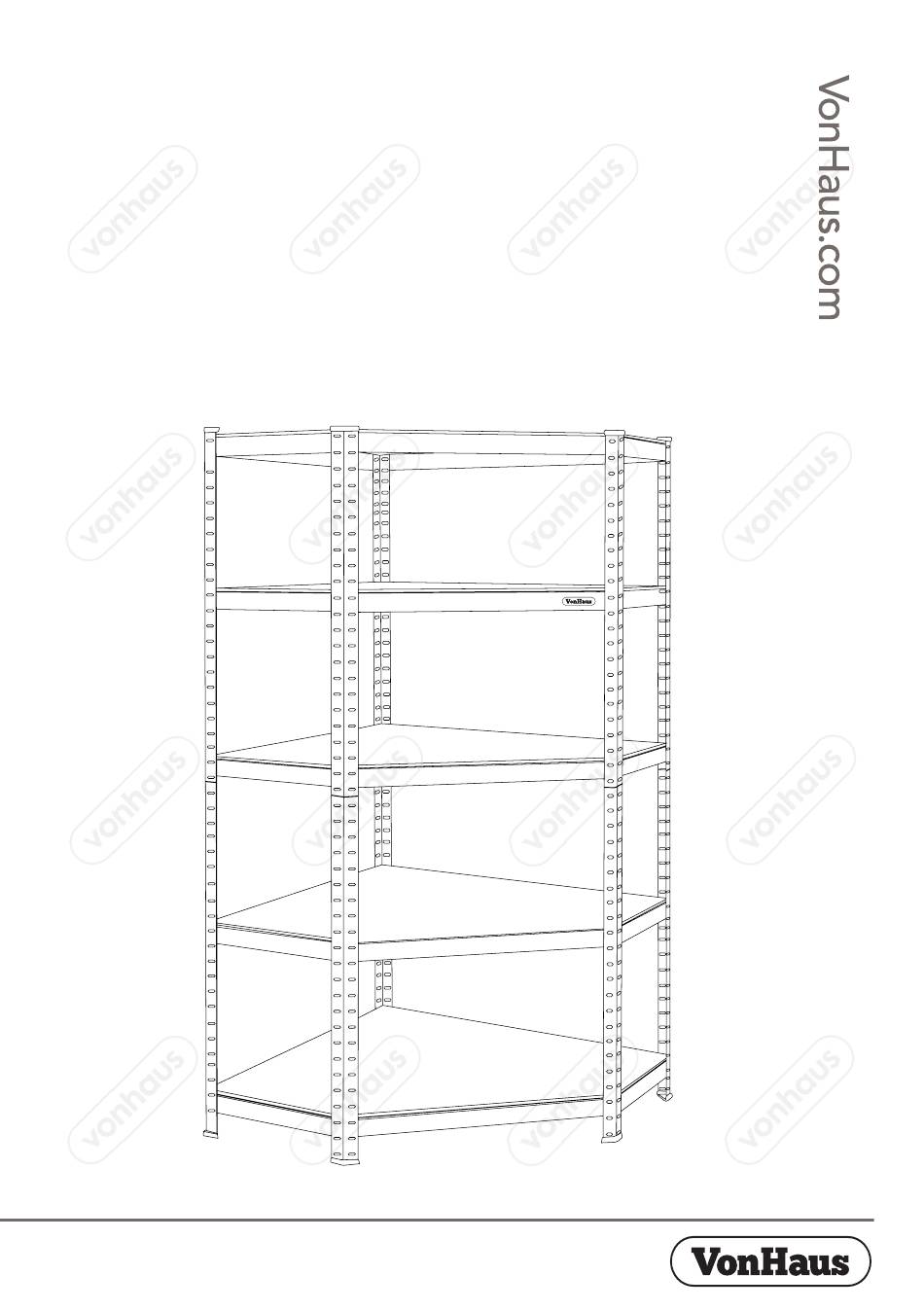

- Page 1 CORNER RACKING 3515372 - Instruction Manual...
- Page 2 CONTENTS Safety Instructions, Tools Required Components Assembly Assembly Assembly Using Bay Connectors Warranty...
- Page 3 WARNING PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE INTENDED USE. Take care to observe and adhere to the following weight capacities: The Corner Racking is designed and intended for domestic use only. Do not use outdoors or for commercial purposes. Weight Limit for Bottom Shelf: 175kg decresing weight towards the top.
- Page 4 COMPONENTS 900mm Beams with Tabs (x10) 695mm Beams with Tabs (x5) 400mm Beams with Tabs (x10) 120° Legs 90° Legs Tab Slots Upright Tab Slots Upright (x4) (x6) MDF Shelves (x5) 120° Upright Connectors 90° Upright Connectors Plastic Feet (x2) (x3) (x10) If you are having difficulty using this product and require support,...
- Page 5 ASSEMBLY STEP 1. ASSEMBLING THE LEGS Take 3 of the 90° Legs and 2 of 120° Legs and attach Plastic Feet to the bottom of each. 90° 120° STEP 2. Build the Corner Racking TIP: If necessary, use from the bottom upwards, selecting a screwdriver to guide the correct Beams (as shown).
- Page 6 ASSEMBLY STEP 3. Once the first 2 tiers have been assembled, take the 90° and 120° Upright Connectors (as appropriate) and secure onto the top angled part of the Legs. IMPORTANT: Ensure that the Upright Connectors are securely fastened to the lower Legs before attaching upper Legs.
- Page 7 ASSEMBLY STEP 5. Once the frame has been completed, attach the rest of the Plastic Feet to the top of the structure. Using two people, move the empty structure carefully into position. Resecure any parts if neccessary. CAUTION: Do not attempt to move the Corner Racking whilst objects are placed on the unit.
- Page 8 USING BAY CONNECTORS 15/023 (SOLD SEPARATELY) Using the Bay Connectors will improve the stability of multiple units when used together.
- Page 9 This does www.VonHaus.com/warranty not affect your statutory rights. Please retain a proof of purchase receipt or No rights are given under this warranty to a person statement as proof of the purchase date.
- Page 10 Thank you for purchasing the Corner Racking. VonHaus is a registered trademark of DOMU Brands Ltd Made in China for DOMU Brands Ltd M24 2RW...
