Sportsman GEN4000-SS Step-By-Step Quick Start Manual

Step-By-Step Quick Start
Guide To Using Your Generator
1

Remove Generator From Package

2

Add Oil

3

Add Fuel

4

Start The Generator

Use the generator OUTDOORS in a WELL VENTILATED AREA.
DO NOT CONNECT electrical devices until AFTER the generator
is started.
Turn Engine Switch to ON
Turn FUEL PETCOCK to ON (Figure A)
Adjust the CHOKE to CLOSED/CHOKE position (Figure B)
Start the generator manually with the Recoil (Pull) Start.
Once the engine has started, GRADUALLY move the choke lever
to the "RUN/OPEN" position until the engine levels off. Then let
the engine run approximately 5 minutes BEFORE adding
appliances or tools.
You can now connect electrical devices.
O
On
Fuel Petcock (Figure A)
Run/Open
Closed/Choke
Closed/Choke (Figure B)
TOLL-FREE NATIONWIDE HELP LINE! 866-460-9436
Visit our website for Troubleshooting & Frequently Asked Questions
SPORTSMAN SPORTSMAN
Oil Type: SAE10W-30 Oil (Must add BEFORE first use)
Oil Capacity: 20 fluid oz
Because this generator includes Low Oil Shut Off, the
generator will not start with low oil. Start out with 20 oz,
then fill until almost overflowing.)
Add Unleaded gasoline only octane rating of 87 or
higher. Maximum Capacity:
3.9 Gallon gasoline fuel tank. Do Not Use E85 Fuel
4
Recoil
Start
Need Help? Call Us First!
Monday-Friday 8:00-4:30 Central Time
www.sportsmanseriesbrand.com/generators

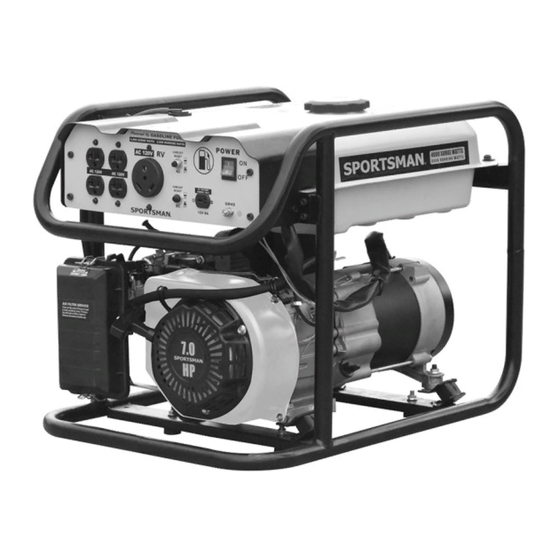

GEN4000-SS
4,000 Surge / 3,500 Running Watts
POWERED BY UNLEADED
GENERATOR SPECIFICATIONS:
• 7.0 HP Engine, 4 Stroke OHV
• Recoil Start
• 3.9 Gallon Fuel Tank
• Low Oil Shut Off
• AVR Automatic Voltage Regulation
• UL Listed Electrical Components
• Engine Shut Off Switch
• Circuit Breaker & Power Outlets
• 1 - 12V D/C Outlet
• 4 - 120V A/C Outlets
• 1 - 120V RV Outlet
• Complies with EPA emissions
• Run Time : 10 Hours at 50% Load (Gas)
• Decibel Rating < 69 db @ 0% load
• Warranty: 2 YEAR Limited Emissions
• Warranty: 1 YEAR Limited
OIL IS NOT INCLUDED WITH THIS
GENERATOR. IT IS SOLD SEPARATELY.
Read and understand instruction manual
before using generator.
Engine
4
Switch
GASOLINE FUEL
3
Add Gasoline
2
Add Oil
