  • Page 1 T E C H N I C A L M A N U A L...
  • Page 2 INDICE Pág. 1. ELECTRONIC VIDEO DOOR ENTRY SYSTEM • Description • Components • Video door entry system operation 2. TECHNICAL INFORMATION • Specifications & Standards • Monitors • Telephones • Tap-offs and splitters • Entrance panels - Entrance panel upper modules. External access video unit accessory - Entrance panel lower modules •...
  • Page 3 Pág. 6. DIAGRAMS • General points concerning installations • Configuration of a video door entry installation • Video door entry installations - Standard installation - Standard installation in distribution - Installation with two points of entry - Installation with two points of entry, 1 video and 1 audio - Installation with three points of entry - Installation on an estate with several buildings and a single external point of entry...
  • Page 4 The microprocessor-based technology that the ALCAD video door entry system uses allows any installation configuration to be The video door entry system described in this manual uses carried out in the most reliable and comfortable manner.

  • Page 5: Video Distribution

    The monitor must be accompanied by the connection bracket for its correct functioning. TELEPHONES The system also allows the use of ALCAD telephones with confidentiality feature in the interior of each house or flat, which enable users to receive the call from the entrance panel, speak with the visitor at the entrance panel and open the access door.

  • Page 6: Audio Unit

    ACCESS TO THE BUILDING push-buttons ENTRANCE PANEL Elements housed in the entrance panel Generally installed at the entry point of buildings, which permit the connection to each one this panel houses the video unit, audio unit and the of the houses or flats. The number of push- push-buttons.
  • Page 7 VIDEO DOOR ENTRY SYSTEM OPERATION The ALCAD video door entry system incorporates the confi- SYSTEM ACTIVE dentiality feature in both audio and video. The auto switch-on The system changes from stand-by to active when a monitor function is integrated, allowing the observation of the image...
  • Page 8 RECEPTION OF A CALL When a call is made to a house from the entrance panel the monitor of the corresponding house is activated, allowing the resi- dent to observe the image of the visitor, establish conversation and open the entry door. Timer: There is a limit of 30 seconds in which to answer the call.

  • Page 9: Technical Information

    EN60065 - Audio and Video Apparatus and Analogical Electronic Apparatus Safety Requirements EN50081-1 – Electromagnetic Compatibility – Generic Emission Standard. EN50082-1 – Electromagnetic Compatibility - Generic Immunity Standard. The ALCAD electronic video door entry system products bear the CE mark. MONITORS Code 9630000...
  • Page 10 Code 9630002 SCM-010 166 mm MONITOR CONNECTIONS BRACKET Bracket for the wall mounting of the video door entry monitor. Analogical 6+N+coaxial system with confidentiality of audio and video communication. It includes lift type connection terminals to assure correct connection. It has several fixing points allowing it to be fixed to a wall or to a standard 60 x 60mm elec- trical box.

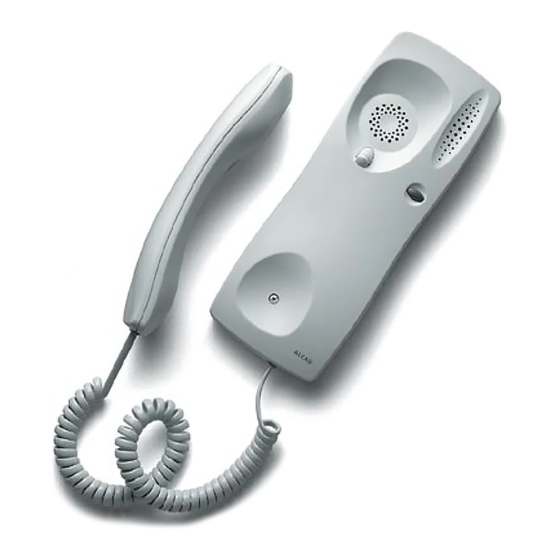

  • Page 11 TELEPHONES 84 mm Code 9600003 TES-001 ELECTRONIC TELEPHONE WITH PRIVACY OF COMMUNICATION Telephone for wall-mounting. Conventional 4+N connection system with confidentiality feature. The telephone remains inactive until a call is received. Electronic call system; once the call is made from the entrance panel, the call warning tone genera- ted by the audio unit sounds on the loudspeaker of the handset.
  • Page 12 TAP-OFFS AND SPLITTERS Code 9730031 DIV-024 88 mm COAXIAL VIDEO TAP-OFF WITH 4 OUTPUTS TO MONITORS Tap-offs with 4 tapped outputs without loss, for connection to monitors and 1 through output for 24 mm connection to the following tap-off (connection of Screw terminal tap-offs in series).

  • Page 13: Entrance Panels

    ENTRANCE PANELS The system of entrance panels consists of two modules, each with various models.These modules constitute the upper and lower part of the entrance panel that is to be installed. Any configuration of entrance panel can be achieved by the different combinations availa- ble.
  • Page 14 VIDEO UNITS Code 9640000 TCB-010 B/W COAXIAL VIDEO UNIT Black and white video unit with 1/3" CCD sensor, and a double output in composite video signal for a 75Ω coaxial cable. For use in standard installations, multiple access or estates (but only for those buil- dings inside the estate in this case) without the need for video selectors.
  • Page 15 Code 9640004 TCB-110 B/W COAXIAL VIDEO UNIT FOR EXTERNAL ACCESS Black and white video unit with 1/3" CCD sensor. For use on the gates or external access points of esta- tes that consist of several independent buildings. One video unit must be installed for each external access point;...

  • Page 16: Video Unit

    ENTRANCE PANEL. SINGLE UPPER MODULES 128 mm Code 9670007 MAN-041 ENTRANCE PANEL MODULE WITH AUDIO UNIT Module which houses the audio unit, GRF-104 12 mm model (1). Fitted with rubber strips for water-tightness and with rings (2) for hanging in the flush-mounted box.
  • Page 17 ENTRANCE PANEL. DOUBLE UPPER MODULES Code 9670043 MDN-041 128 mm ENTRANCE PANEL MODULE WITH AUDIO UNIT AND TCB-010 VIDEO UNIT Module which houses the audio unit (1), GRF- 104 model and the coaxial black and white video 12 mm unit (2), model TCB-010. Fitted with rubber strips for water-tightness and with rings (3) for hanging in the flush-mounted box.
  • Page 18 ENTRANCE PANEL - LOWER MODULES These are the modules which incorporate the push-buttons which allow communication with the houses or flats. They are made with an aluminium profile and incorporate stainless steel push-buttons to call the houses or flats, card-holders to identify each pushbutton and lights to illuminate the card-holders.
  • Page 19 ENTRANCE PANEL MODULES WITH DOUBLE push-buttons Modules with push-buttons arranged in two columns. Fitted with rubber strips for water-tightness and with 128 mm rings for hanging in the flush-mounted box. Available from 3 to 16 levels or rows of push-buttons, allowing the configuration of entrance panels with up to 32 call push-buttons.
  • Page 20 ENTRANCE PANEL ACCESSORIES FLUSH-MOUNTED BOXES The flush-mounted boxes allow 45 mm 114 mm the panel to be fixed in the de- sired place. ARRIBA HAUT The flush-mounted boxes have special plugs to protect from plas- ter or cement from the wall (1), with support axles to open the entrance panel to the right, left or downwards (2) and several points...
  • Page 21 FLUSH-MOUNTED BOX SEPARATOR Code 9740004 CEM-001 SET OF SEPARATORS FOR FLUSH-MOUNTED BOXES Elements which permit the assembly of a single unit made up from several flush-mounted boxes. For use when several entrance panels are installed in parallel, to assure the necessary separation between the boxes so that all the entrance panels will be correctly aligned.
  • Page 22 SURFACE WALL-MOUNTED BOXES The surface wall-mounted boxes are used to fix the entrance panel in the desired place by installing the panel on the surface of the wall. For use when the wall is made from a material that is difficult to work with (marble, granite, etc.) They are divided into single, double or triple surface wall-mounted boxes for the fitting of either one entrance panel (single surface wall-mounted box), two entrance panels in parallel (double surface wall-mounted box) or three entran- ce panels in parallel (triple surface wall-mounted box).
  • Page 23 DOUBLE SURFACE WALL-MOUNTED BOXES 280 mm Code 9740057 CSU-021 Code 9740062 CSU-026 Double surface wall-mounted box for 1 or 2 Double surface wall-mounted box for 11 or 12 of push-buttons and single upper module of push-buttons and single upper module rows rows Dimensions: 280 mm x 170 mm x 50 mm...
  • Page 24 RAIN-SHIELDS The rain-shields provide additional protection for the entrance panel against atmospheric elements such as rain, snow, etc. The rain-shield is fixed to the flush-mounted or surface wall-mounted box. They are divided into single, double or triple rain-shields to protect a single entrance panel (single rain-shield), two entrance panels in parallel (double rain- shield) or three entrance panels in parallel (triple rain-shield).
  • Page 25 DOUBLE RAIN-SHIELDS Code 9740084 VIS-021 Code 9740089 VIS-026 280 mm Double rain-shield for 1 or 2 rows Double rain-shield for 11 or 12 rows push-buttons and single upper module push-buttons and single upper module Dimensions: 280 mm x 410 mm x 42 mm Dimensions: 280 mm x 170 mm x 42 mm Code 9740085 VIS-022...
  • Page 26 REPLACEMENT OR COVER FRAMES A replacement frame is generally used in refurbishing or repair work, when an old entrance panel is replaced by a smaller, new entrance panel. These frames are also useful in installations where the wall in which the entrance panel is to be located, is uneven or out of true.
  • Page 27 ACCESSORIES 31 mm 25 mm Code 9730000 ABR-001 STANDARD ELECTRIC LOCK Device which permits the opening of the door when the 12 Vac voltage provided by the audio unit is received. The device remains activated as long as the lock release button of the monitor is pressed. Power supply: 12 Vac 3 mm 31 mm...

  • Page 28: Door Contact

    CNP-001 13.5 mm 8.6 mm Code 9730004 13.5 mm 22 mm DOOR CONTACT Accessory which is used together with an electric lock to permit the opening of a double door. 5 mm 5 mm Door contact - Male Door contact - female POWER SUPPLY UNITS Code 9620001 ALA-040...
  • Page 29 106 mm Code 9620011 ALM-040 AC-DC 25 VA 230/240 VAC POWER SUPPLY UNIT Power supply unit of great capacity with independent AC (12 Vac) and DC (15 Vdc) outputs. The DC out- put permits the feeding of the video system of the monitors of the installation (auto switch-on, visualisation of the image on the screen, etc.) to a maximum of 2 monitors per house or flat.
  • Page 30 KITS 64.3 mm 197 mm 128 mm 12 mm 166 mm Connections bracket SCM-010 Entrance panel (1 or 2 push-buttons depending on the kit) Monitor MVB-001 31 mm 25 mm 45 mm 114 mm 106 mm 60 mm ARRIBA HAUT 230 V 230 V Power supply ALM-040...
  • Page 31 RANGE OF PANELS The appropriate combination of the different entrance panel modules will allow you to carry out any type of installation: with one or several panels, for one or several entry points. Depending on the number of push-buttons in the chosen panel, the final entrance panel will be of a different height, its width, ho- wever, will remain constant.
  • Page 32 Entrance panel lower module Entrance panel upper module Single module MAN-041 MTN-000 MVN-001 MLN-000 128 mm MVN-101 Double MPD-004 MPS-004 MPD-003 MPS-003 128 mm module MDN-041 MMN-041 MCN-041 128 mm MDN-141 Single module MAN-041 MTN-000 MVN-001 MLN-000 128 mm MVN-101 Double module 128 mm...
  • Page 33 Flush-mounted box Surface wall-mounted box Entrance panel ARRIBA HAUT CMO-004 114 mm 128 mm CSU-012 152 mm ARRIBA HAUT CMO-006 114 mm CSU-013 128 mm 152 mm ARRIBA HAUT CMO-006 114 mm 128 mm CSU-013 152 mm ARRIBA HAUT CMO-008 114 mm 128 mm CSU-014...
  • Page 34 Entrance panel lower module Entrance panel upper module Single module MAN-041 MVN-001 MTN-000 MLN-000 128 mm MVN-101 Double module 128 mm MPS-011 MPS-012 MPD-011 MPD-012 MDN-041 MMN-041 MCN-041 128 mm MDN-141 Single module MAN-041 MTN-000 MLN-000 MVN-001 128 mm MVN-101 Double module MDN-041...
  • Page 35 Flush-mounted box Surface wall-mounted box Entrance panel ARRIBA HAUT ARRIBA HAUT CMO-012 114 mm CSU-016 152 mm 128 mm CMO-014 CSU-017 128 mm 114 mm 152 mm ARRIBA HAUT ARRIBA HAUT CMO-014 114 mm CSU-017 128 mm 152 mm CMO-016 CSU-018 114 mm 128 mm...

  • Page 36: Mechanical Assembly

    MECHANICAL ASSEMBLY FLUSH-MOUNTED BOX BREAKING THE PERFORATED HOLES The flush-mounted box has several perforated holes to pass the cables through. Break the ones you need. ASSEMBLING SEVERAL BOXES Break the side walls of the flush-mounted box. Assemble the flush-mounted boxes using the set of separators, model CEM-001.
  • Page 37 PLACE AND HEIGHT OF PANEL POSITION Choose a place for the flush-mounted box so that, when the entrance panel is fitted, rain, sun rays or strong light sources do not adversely affect the video unit. In this way you will avoid certain problems in the visualisation of images such as the ghosting effect caused by back- ground light;...

  • Page 38: Entrance Panel

    ENTRANCE PANEL EXPLODED VIEW OF PANEL COMPONENTS This figure shows the different components of a entran- ce panel made up from modules and a kit entrance panel. ASSEMBLY OF PANELS Insert the two tongues of the lower pushbutton module into the slots of the upper module and push. Make sure that the intermediate separator is correctly in place.
  • Page 39 Lever open the cover of the card-holder and insert the pushbutton’s identifying card. You may use the pre-prin- ted cards or the blank cards which are supplied with the lower pushbutton module. SUBSTITUTION OF DECORATIVE FITTINGS Completely separate the upper and lower decorative fittings of the entrance panel.
  • Page 40 ASSEMBLING THE AUDIO UNIT Position the light pushbutton of the audio unit and push firmly to fix the audio unit to the entrance panel. DISMOUNTING THE AUDIO UNIT Using a screwdriver, lever the audio unit until it sepa- rates from its base. ASSEMBLING THE VIDEO UNIT Insert the visor of the video unit and push to fix the video unit to the entrance panel.
  • Page 41 ASSEMBLING THE push-buttons Press firmly to fix the push-buttons to the entrance panel. DISMOUNTING THE push-buttons Using a screwdriver, lever the push-buttons until they separate from their base. POSITIONING THE ENTRANCE PANEL IN THE FLUSH-MOUNTED BOX Remove the two plugs from the flush-mounted box which protect its from cement or plaster.
  • Page 42 Introduce the rings of the panel onto the removed sup- port axles. In this way, the panel will be held in place and the connections can be easily made. Once the connections and adjustments have been made on the panel as indicated in the diagrams and connection instructions of this manual, separate the upper and lower decorative fittings.
  • Page 43 EXTERNAL ACCESS VIDEO UNIT ACCESSORY FIXING TO THE FLUSH-MOUNTED BOX Fix the video unit accessory to the flush-mounted box with the 4 screws supplied. Make sure that the place cho- sen is within reach of the connector which joins the video unit accessory to the audio unit.
  • Page 44 FIXING THE ENTRANCE PANEL TO THE SURFACE WALL-MOUNTED BOX Once the connections and adjustments have been made on the panel as indicated in the diagrams and connection instructions of this manual, separate the upper and lower decorative fittings. Fix the entrance panel to the surface wall-mounted box.
  • Page 45 RAIN-SHIELDS FIXING TO THE FLUSH-MOUNTED BOX Fix the rain-shield to the flush-mounted box by means of the supplied 4 self-screwing screws. Once the connections have been made, close the entrance panel and press it against the rain-shield (1) and fix it to the flush-mounted box and to the rain-shield with the entrance panel’s fixing screws (2).
  • Page 46 REPLACEMENT OR COVER FRAMES FIXING TO THE FLUSH-MOUNTED BOX Fix the frame to the flush-mounted box using the 4 screws which are supplied with the product. Once the connections have been made, close the entrance panel and press it against the frame (1) and fix it to the flush-mounted box and to the frame with the entrance panel’s fixing screws (2).
  • Page 47 TAP-OFFS AND SPLITTERS LOCATION The tap-offs and splitters should be located in a dry and warm place away from adverse atmospheric condi- tions (water, damp, ...). FIXING Lever off the protective cover of the equipment. Make the connections of the tap-offs and splitters as indicated in the diagrams and connection instructions of this manual.

  • Page 48: Wall Fixing

    CONNECTIONS BRACKET PLACE AND HEIGHT OF LOCATION Choose a place to locate the connections bracket where the wall is true, uniform and hard. To avoid unde- sired effects in the image (reflections, background light, etc.) and to preserve its working life, do not position the equipment near direct light sources or intense sources of heat, damp or steam.
  • Page 49 MONITOR FIXING TO THE CONNECTIONS BRACKET Connect the connector of the monitor to the connec- tions bracket. Clip the two top fixing tongues of the connections brac- ket in the guides on the base of the monitor. To do so, tilt the monitor slightly as shown in the diagram.
  • Page 50 DISMOUNTING THE MONITOR FROM THE CON- NECTIONS BRACKET Lightly press the fixing tongue downwards (1) and push the monitor downwards (2). Maintain this position and separate the lower part of the monitor from the connections bracket. In this way the monitor will be simply supported on the connections bracket.
  • Page 51 TELEPHONE POSITION Move the cover of the base of the telephone towards the right. Separate the bottom of the cover from the base of the telephone. Remove the cover of the base of the telephone.

  • Page 52: Mounting The Handset

    FIXING THE BASE TO THE WALL. The base has several fixing points. Using the four most convenient, fix the base of the telephone to the wall with the screws and wall plugs supplied. The use of the 4 cor- ner anchoring points is recommended. MOUNTING THE COVER OF THE BASE Once the connections have been made, close the tele- phone and fix the cover to the base using the fixing...

  • Page 53: Power Supply Units

    POWER SUPPLY UNITS Remember to protect the power supply units of the installation in compliance with the existing requirements governing electrical installations (keep away from strong magnetic fields, high temperature locations, ensure correct fusing, etc.) POSITION The power supply unit should be installed in a dry and well-ventilated place, away from direct sources of heat. This will ensure the correct functioning of the equipment and preserve its working life.
  • Page 54 CONNECTION AND ADJUSTMENT INSTRUCTIONS ENTRANCE PANEL CONNECTIONS AUDIO UNIT GRF-104 Make the terminal connections as shown. For more information consult the installation wiring diagrams at the back of this manual. Description of terminals: Power supply ground Power supply Monitor lock release GRF-104 Monitor common terminal cod.
  • Page 55 VIDEO UNIT TCB-010 Make the terminal connections as shown. For more information consult the installation wiring diagrams at the back of this manual. Description of terminals: Video signal to the monitors V2 M M Video signal ground Video signal multiple access Video signal multiple access ground Made in Spain TCB-010...
  • Page 56 ADJUSTMENT AUDIO UNIT GRF-104 Definition of main panel It is necessary to define the panel which will be acti- vated when the auto switch-on function is used from the GRF-104 cod. 9610015 monitor of the house or flat. This panel will be the main Made in Spain panel of the system and must have the J1 bridge insta- lled.
  • Page 57 VIDEO UNIT ACCESSORY Make the terminal connections as shown. For more information consult the installation wiring diagrams at the back of this manual. Description of terminals: TCB-130 cod. 9640006 Video signal multiple access Video signal multiple access ground Video signal estate Made in Spain Video signal estate ground Wiring diagrams:...
  • Page 58 TAP-OFF CONNECTIONS Make the terminal connections as shown. For more information consult the installation wiring diagrams at the back of this manual. Description of terminals: DIV-024 cod. 9730031 Video signal input Through output Outputs to monitors Video signal common Wiring diagrams: COAXIAL CABLE Internal...
  • Page 59 SPLITTER CONNECTIONS Make the terminal connections as shown. For more information consult the installation wiring diagrams at the back of this manual. Description of terminals: DIV-124 Video signal input cod. 9730032 Video signal output Video signal common Power supply ground Power supply (15 Vdc) Wiring diagrams: Video risers...
  • Page 60 CONNECTIONS BRACKET CONNECTIONS Make the terminal connections as shown. Use the guides of the bracket to pass the connection cables. For more infor- mation consult the installation wiring diagrams at the back of this manual. Description of terminals: Monitor connector Lock release Common terminal Microphone...
  • Page 61 ADJUSTMENT Configuration of the J1 bridge (tap-off feed) In installations where the distribution of the video signal is carried out through tap-offs the tap output of the corres- ponding tap-off should be fed through the coaxial cable so the monitors can receive the signal captured by the video unit.
  • Page 62 DIV-024 DIV-024 DIV-024 DIV-024 DIV-024 DIV-124 DIV-024 DIV-124...
  • Page 63 POWER SUPPLY UNITS POWER SUPPLY UNIT ALM-040 CONNECTIONS Make the terminal connections as shown. For more information consult the installation wiring diagrams at the back of this manual. Description of terminals: 230 V Mains voltage Ground (AC) Output voltage (AC) ALM-040 cod.
  • Page 64 DIAGRAMS GENERAL POINTS CONCERNING INSTALLATIONS Remember to protect the power supply units of the ins- between the different elements of the system and the tallation in compliance with the existing requirements number of monitors and/or telephones associated to the governing electrical installations (keep away from mag- same call line (maximum 4 devices).
  • Page 65 CONFIGURATION OF A VIDEO DOOR ENTRY INSTALLATION Steps to be carried out when configuring an installation: 1. Design of the general layout of the installation 2. Estimation of the necessary materials The following examples show in detail the choice of the necessary materials according to the installation that is to be made.
  • Page 66 2. ESTIMATION OF THE NECESSARY MATERIALS MVB-001 FLATS SCM-010 TES-001 MODEL PRODUCT DESCRIPTION MVB-001 Analogic video door entry monitor SCM-010 Monitor connection bracket TES-001 Telephone with privacy of conversation VIDEO DISTRIBUTION DIV-024 MODEL PRODUCT DESCRIPTION Video tap-off 4 tap outputs and path DIV-024 ACCESS MVN-001...
  • Page 67 Example 2 – Video door entry installation for 2 entry points and 8 houses or flats Special features: One house or flat with two monitors One house or flat with monitor and telephone 1. GENERAL LAYOUT DIAGRAM OF THE INSTALLATION SECTION TABLE Up to 100 m SCM-010...
  • Page 68 2. ESTIMATION OF THE NECESSARY MATERIALS: MVB 001 SCM 010 TES-001 FLATS MODEL PRODUCT DESCRIPTION MVB-001 Analogic video door entry monitor SCM-010 Monitor connection bracket TES-001 Telephone with privacy of conversation VIDEO DISTRIBUTION DIV-024 MODEL PRODUCT DESCRIPTION Video tap-off 4 tap outputs and path DIV-024 ACCESS ACCESO...

  • Page 69: Standard Installation

    VIDEO DOOR ENTRY INSTALLATIONS 6+N+COAXIAL SYSTEM STANDARD INSTALLATION 6+N+COAXIAL SYSTEM Time for conversation 60 seconds or until the handset is Standard wiring diagram for electronic video door entry replaced installations in buildings with a single entry point. Operation Auto switch-on When one of the push-buttons of the entrance panel is When the auto switch-on button is depressed, and pressed, the audio unit activates the video unit (connector...
  • Page 70 STANDARD INSTALLATION 6+N+COAXIAL DIV-024 75 Ohm 1 2 3 4 5 Call SCM-010 DIV-024 1 2 3 4 5 Call SCM-010 TCB-010 cod. 9640000 GRF-104 ALA-040 ALM-040 cod. 9610015 10 11 12 13 14 15 1 2 3 4 7 16 17 18 230 V 230 V...
  • Page 71 STANDARD INSTALLATION IN DISTRIBUTION 6+N+COAXIAL Standard wiring diagram for electronic video door electric lock, permitting the opening of the door. entry installations with the use of splitters in buildings All the signals are closed through the common wire (ter- with a single point of entry minal 2) of the monitor and of the audio unit.
  • Page 72 DIV-024 DIV-024 DIV-024 MVB-001 MVB-001 MVB-001 SCM-010 SCM-010 SCM-010 ALM-040 DIV-124 COAX COAX COAX 230 V SECTION TABLE Up to 100 m COAX MDN-041 ALA-040 0,6 mm 0,25 mm 1,1 mm 1 mm 230 V COAXIAL 75 Ω ABR-001 MPS-004 MATERIAL REQUIRED 9630000 MVB-001...
  • Page 73 STANDARD INSTALLATION IN DISTRIBUTION 6+N+COAXIAL DIV-024 75 Ohm 1 2 3 4 5 Call SCM-010 DIV-024 1 2 3 4 5 Call SCM-010 TCB-010 cod. 9640000 GRF-104 ALM-040 cod. 9610015 10 11 12 13 14 15 1 2 3 4 7 16 17 18 230 V 230 V...
  • Page 74 INSTALLATION WITH TWO POINTS OF ENTRY 6+N+COAXIAL SYSTEM Standard wiring diagram for electronic video door entry The monitor is also connected to the common wire (2) installations in building with two entry points, both with a and to the lock release wire (1). If the handset is picked video system.
  • Page 75 SECTION TABLE Up to 100 m 0,6 mm 0,25 mm 1,1 mm 1 mm DIV-024 COAXIAL 75 Ω MVB-001 SCM-010 ALA-040 ALM-040 COAX 230 V 230 V MDN-041 MDN-041 COAX ALA-040 ABR-001 ABR-001 230 V MPS-004 MPS-004 MATERIAL REQUIRED 9630000 MVB-001 Analogic B/W video door entry monitor 9630002...
  • Page 76 INSTALLATION WITH TWO POINTS OF ENTRY 6+N+COAXIAL SYSTEM DIV-024 75 Ohm 1 2 3 4 5 Call SCM-010 DIV-024 1 2 3 4 5 Call SCM-010 TCB-010 TCB-010 cod. 9640000 cod. 9640000 GRF-104 GRF-104 ALM-040 ALA-040 cod. 9610015 cod. 9610015 10 11 12 13 14 15 10 11 12 13 14 15 1 2 3 4 7...
  • Page 77 INSTALLATION WITH TWO POINTS OF ENTRY, 1 VIDEO AND 1 AUDIO 6+N+COAXIAL SYSTEM Standard wiring diagram for electronic video door Independently to the entrance panel from which the call entry installations in building with two entry points, one is made, the monitor is also connected to the common wire with a video system and the other with an audio system.
  • Page 78 TABLA DE SECCIONES Hasta 100 metros 0,6 mm 0,25 mm 1,1 mm DIV-024 1 mm COAXIAL 75 Ω MVB-001 SCM-010 ALM-040 COAX ALA-040 230 V MDN-041 230 V MAN-041 ALA-040 ABR-001 ABR-001 230 V MPS-004 MPS-004 MATERIAL REQUIRED 9630000 MVB-001 Analogic B/W video door entry monitor 9630002 SCM-010...
  • Page 79 INSTALLATION WITH TWO POINTS OF ENTRY. 1 VIDEO AND 1AUDIO 6+N+COAXIAL SYSTEM DIV-024 75 Ohm 1 2 3 4 5 Call SCM-010 DIV-024 1 2 3 4 5 Call SCM-010 TCB-010 cod. 9640000 GRF-104 GRF-104 ALM-040 ALA-040 cod. 9610015 cod. 9610015 10 11 12 13 14 15 1 2 3 4 7 16 17 18...
  • Page 80 INSTALLATION WITH THREE POINTS OF ENTRY 6+N+COAXIAL SYSTEM Standard wiring diagram for electronic video door entry the entrance panel, establishing conversation with the installations in building with three entry points. visitor. When the lock release button of the monitor is pressed, the audio unit detects the closing of the lock Operation release circuit (terminal 1 to ground).
  • Page 81 SECTION TABLE Up to 100 m 0,6 mm 0,25 mm 1,1 mm 1 mm DIV-024 COAXIAL 75 Ω MVB-001 SCM-010 ALA-040 ALA-040 ALM-040 COAX 230 V 230 V 230 V MDN-041 MDN-041 MDN-041 COAX COAX ALA-040 ABR-001 ABR-001 ABR-001 230 V MPS-004 MPS-004 MPS-004...
  • Page 82 INSTALLATION WITH THREE POINTS OF ENTRY 6+N+COAXIAL SYSTEM...
  • Page 83 INSTALLATION ON AN ESTATE WITH SEVERAL BUILDINGS AND A SINGLE EXTERNAL POINT OF ENTRY 6+N+COAXIAL SYSTEM Standard wiring diagram for electronic video door The monitor is activated and connected to the power entry installations on an estate with several estate buil- supply terminals (terminals -,+) when it receives the call.
  • Page 84 DIV-024 DIV-024 DIV-024 MVB-001 MVB-001 MVB-001 SCM-010 SCM-010 SCM-010 ALM-040 ALM-040 ALM-040 COAX COAX COAX 230 V 230 V 230 V MDN-041 MDN-041 MDN-041 ALA-040 ALA-040 ALA-040 230 V 230 V 230 V MPS-003 MPS-003 MPS-003 ABR-001 ABR-001 ABR-001 COAX COAX COAX ALA-040...
  • Page 85 INSTALLATION ON AN ESTATE WITH SEVERAL BUILDINGS AND A SINGLE EXTERNAL POINT OF ENTRY 6+N+COAXIAL SYSTEM...
  • Page 88 INSTALLATION ON AN ESTATE WITH SEVERAL BUILDINGS AND A SINGLE EXTERNAL AUDIO POINT OF ENTRY 6+N+COAXIAL SYSTEM Standard wiring diagram for electronic video door entry point of entry to the estate, then the monitor will not installations on an estate with several estate buildings and receive any video signal and its screen will remain a single external point of entry.
  • Page 89 DIV-024 DIV-024 DIV-024 MVB-001 MVB-001 MVB-001 SCM-010 SCM-010 SCM-010 ALM-040 ALM-040 ALM-040 COAX COAX COAX 230 V 230 V 230 V MDN-041 MDN-041 MDN-041 ALA-040 ALA-040 ALA-040 230 V 230 V 230 V MPS-003 MPS-003 MPS-003 ABR-001 ABR-001 ABR-001 ALA-040 230 V MAN-041 X 3 MPS-003 X 3...
  • Page 90 INSTALLATION ON AN ESTATE WITH SEVERAL BUILDINGS (VIDEO) AND A SINGLE EXTERNAL POINT OF ENTRY (AUDIO) 6+N+COAXIAL SYSTEM...
  • Page 93 INSTALLATION KIT - SINGLE POINT OF ENTRY 6+N+COAXIAL SYSTEM Standard wiring diagram for electronic video door up the audio wires (3 and 4) of the monitor are connected entry installations using the kit for a single house. to the entrance panel, establishing conversation with the visitor.
  • Page 94 INSTALLATION KIT - SINGLE POINT OF ENTRY 6+N+COAXIAL SYSTEM 1 2 3 4 5 1 2 3 4 5 SCM-010 Call ALM-040 TCB-010 cod. 9640000 GRF-104 cod. 9610015 230 V 10 11 12 13 14 15 1 2 3 4 7 16 17 18 230 V Call...
  • Page 95 INSTALLATION KIT – TWO HOUSES OR FLATS 6+N+COAXIAL SYSTEM pressed, the audio unit detects the closing of the elock rele- Standard diagram for electronic video door entry ins- ase circuit (terminal 1 to ground). The audio unit then tallations using the kit for two houses. sends an alternate voltage (terminals 11 and 12) to the Operation electric lock, permitting the opening of the door.
  • Page 96 INSTALLATION KIT – TWO POINTS OF ENTRY 6+N+COAXIAL SYSTEM 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 SCM-010 SCM-010 Call Call ALM-040 TCB-010 cod. 9640000 GRF-104 cod. 9610015 230 V 10 11 12 13 14 15 1 2 3 4 7 16 17 18 230 V...
  • Page 97 EXTENDING EXISTING INSTALLATIONS EXTENDING THE NUMBER OF MONITORS IN INSTALLATIONS 6+N+COAXIAL SYSTEM Operation It is possible to extend the installation in a house or flat The electronic call signal is common for all the moni- by adding more monitors, until a maximum of 4. Each tors.
  • Page 98 CONNECTIONS WIRING DIAGRAM Installation with tap-off Second monitor First monitor 75 Ohm SCM-010 SCM-010 DIV-024 Installation without tap-off ALM-040 230 V 230 V SCM-010 SCM-010 GRF-104 10 11 12 13 14 15 1 2 3 4 7 16 17 18...
  • Page 99 EXTENDING A SYSTEM WITH 3 ADDITIONAL MONITORS SINGLE WIRED DIAGRAM Installation with tap-off Fourth monitor Third monitor Second monitor First monitor DIV-024 COAXIAL COAXIAL COAXIAL MVB-001 SCM-010 ALM-040 ALM-040 230 V 230 V Installation without tap-off Fourth monitor Third monitor Second monitor First monitor COAXIAL...
  • Page 100 CONNECTIONS WIRING DIAGRAM...
  • Page 101 EXTENDING THE NUMBER OF TELEPHONES IN INSTALLATIONS 6+N+COAXIAL SYSTEM installation is higher as it is necessary to increase the section of the cables that must be used. Up to 4 devices It is possible to extend the installation in a house or flat by (monitors and telephones) can be installed following the adding more telephones, up to a maximum of 4 different indications regarding the different sections contained in...
  • Page 102 EXTENDING A SYSTEM WITH 3 ADDITIONAL TELEPHONES SINGLE WIRED DIAGRAM CONNECTIONS WIRING DIAGRAM...
  • Page 103 DOOR OPENING FROM INSIDE A HOUSE 6+N+COAXIAL SYSTEM the power voltage from the power supply unit (terminals 11 and 12), allowing the entrance door to be opened. It is necessary to have a pushbutton which activates the electric lock in order to be able to open the door from insi- It is advisable that the pushbutton is installed near the de the house if the entrance door does not have a door han- entrance door so that the door can be pushed open...

  • Page 104: Troubleshooting

    TROUBLE SHOOTING Check the connections of the different elements. To do The following situations may help you to solve problems so, check that the voltages on the different terminals coin- you may find: cide with those indicated in Section 2 "Technical Information".
  • Page 105 Check that the voltage between 11 and 12 in the audio Auto switch-on does not work on one moni- unit, when you press the lock release button, is 12 Vac. If tor. you cannot find the fault, the lock may be broken. Check that pushing the auto switch-on button the red The video system does not work in any moni- led flash.
  • Page 106 INSTALLATIONS WITH SEVERAL ENTRY POINTS. INSTALLATIONS ON ESTATES WITH SEVERAL INTERNAL BUILDINGS. 6+N+COAXIAL SYSTEM ket to the audio unit. If you cannot find the fault, there may Nothing works. be something wrong with the monitor. Check the mains voltage in the power supply unit that You can hear whistling in the panel.
  • Page 107 The video system does not work in any moni- Auto switch-on does not work on any moni- tor. tor: auto switch-on, screen doesn´t come on when receiving a call, ... Check that one entrance panel has been defined as In installations on estates, check connection 16 between the main one.
  • Page 108 KIT INSTALLATIONS Nothing works. Lower the sound level using the volume control on the audio unit. Check the mains voltage in the power supply unit. Check that the voltage between and V of the power The call tone doesn’t ring on any monitor. supply is 12 Vac.
  • Page 109 White picture in all the monitors Poor image quality on all the monitors: distor- ted picture, ghost images, loss of synchronisa- Check that the coaxial cable to the monitors is con- tion. nected to the M and V1 terminals of the video unit. Check that coaxial cable line has a 75 Ohm load: with Check the connection between the video and the audio two monitors in parallel cut the 75 Ohm resistance on the...
