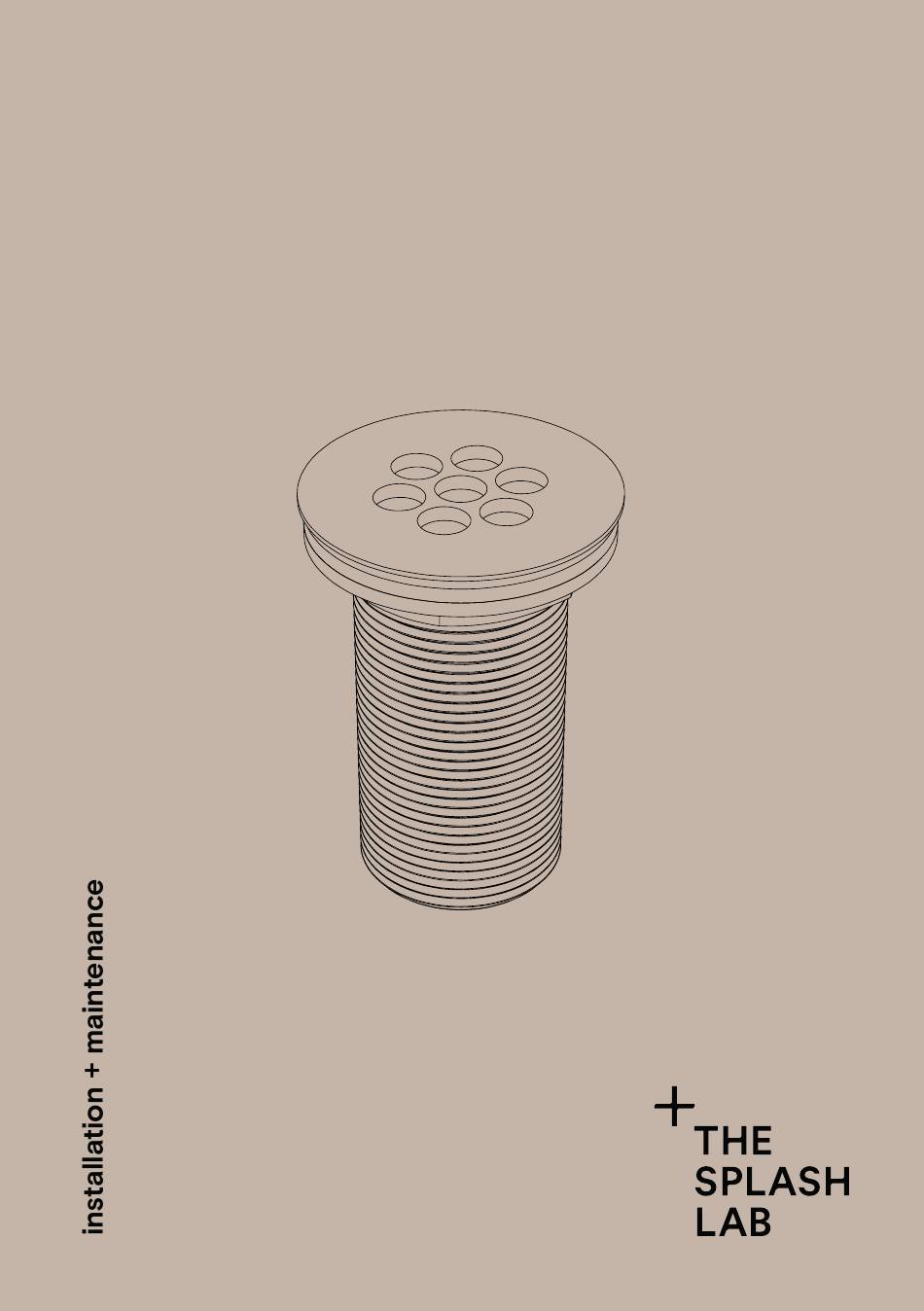

- Page 1 TSL.680 Waste Drain...
- Page 2 Safety and Warnings Box Contents Diagram Technical Data Before you install How to Install Maintenance Cleaning Warranty Contact Details TSL.680 WASTE GRATE MANUAL...
- Page 3 (see back page for more details). Ensure plumbing is installed correctly before activating water supply. All plumbing is to be installed in accordance with applicable codes and regulations. For more information contact: Tel: +44 (0)161 482 7000 Email: technical@thesplashlab.com TSL.680 WASTE GRATE MANUAL...
-
Page 4: Box Contents
Main body Rubber Washer Fixing Nut TSL.680 WASTE GRATE MANUAL... - Page 5 TSL.680 WASTE GRATE MANUAL...
-
Page 6: Technical Data
Body Material AISI 304 Stainless Steel Coating Type PVD (colours only) Weight 0.33Kg Stainless Steel Grade Flange Diameter 62mm Length 88mm Pipe Connection 1 1/4” BSP Spare Parts There are no user serviceable parts. Dimensions 40.8 TSL.680 WASTE GRATE MANUAL... -
Page 7: Before You Install
Caution The TSL.680 parts must be put together correctly before installation. All parts must be installed correctly before powering up the system. Ensure that connection is to 1 ¼” standard waste pipe. Ensure that the thread on the basin waste fitting is clear for trap to be screwed tight and connection sealed. -
Page 8: How To Install
Slide sealing washer over thread below basin, and the attached fixing nut and tighten. Take care not to over-tighten as damage may result to the basin. Fit waste trap to waste grate, following the trap installation guide. TSL.680 WASTE GRATE MANUAL... -
Page 9: Maintenance
The trap may be required to be removed to allow full access from the bottom of the waste grate. This should be done as required, if it is observed that water is not draining away sufficiently. TSL.680 WASTE GRATE MANUAL... - Page 10 If further information is required, contact The Splash Lab technical team for more detailed stainless steel care guidelines. TSL.680 WASTE GRATE MANUAL...
-
Page 11: Warranty
Waste Grate: 2 years parts & labour If a defect is found in normal use, The Splash Lab will, at their discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care and cleaning will void the warranty. - Page 12 General information info@thesplashlab.com +44 (0) 161 482 7000 Technical support technical@thesplashlab.com For further contact information visit: www.thesplashlab.com TSL.680 WASTE GRATE MANUAL...
