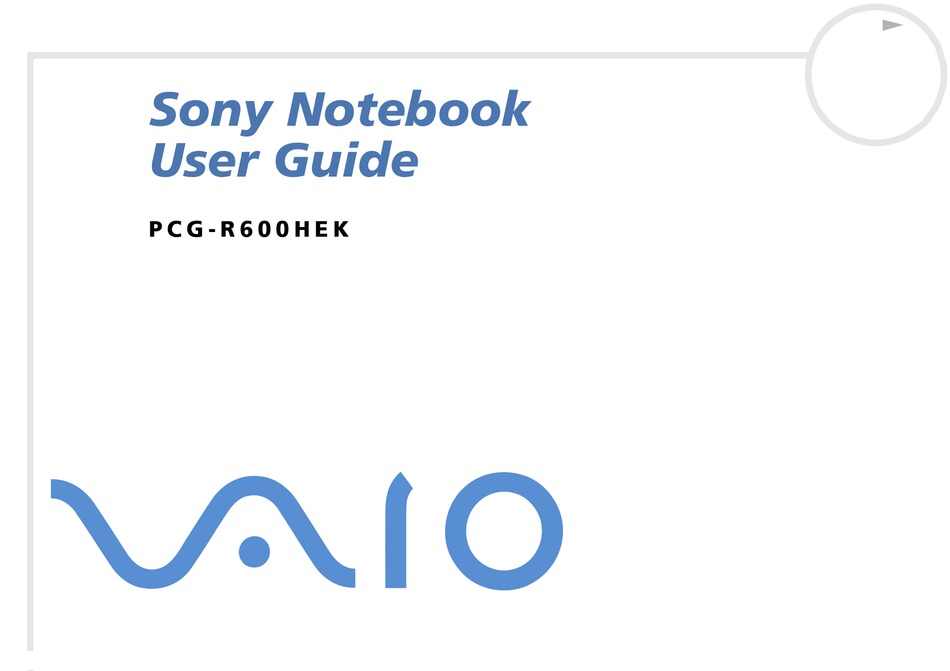

N
Sony Notebook
User Guide
P C G - R 6 0 0 H E K

Advertisement

Table of Contents
loading

Related Manuals for Sony VAIO PCG-R600HEK

Summary of Contents for Sony VAIO PCG-R600HEK

  • Page 1 Sony Notebook User Guide P C G - R 6 0 0 H E K...

  • Page 2: Read This First

    Macrovision Corporation. Reverse engineering or disassembly is prohibited. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.
  • Page 3 All other names of systems, products and services are trademarks of their respective owners. In the manual, the ™ or marks are not specified. Specifications are subject to change without notice. As an E Partner, Sony has determined that this product meets the E guidelines for energy efficiency. NERGY NERGY The International E...

  • Page 4: Safety Information

    Safety information Owner's record The model number and serial number are located on the bottom of your Sony notebook. Record the serial number in the space provided here. Refer to the model and serial number when you call VAIO-Link. Serial number:________________________...
  • Page 5 Read this first Connectivity Never install modem or telephone wiring during a storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Use caution when installing or modifying telephone lines. Use your notebook only with the supplied AC adapter. To disconnect your notebook completely from mains voltage, unplug the AC adapter.

  • Page 6: Regulatory Information

    3 metres (9.8 feet). The optical drive is classified as a CLASS 1 LASER PRODUCT and complies with the Laser Product Safety Standard EN 60825-1. Repair and maintenance only by authorized Sony technicians. Improper repairs and use can create safety hazards. CLASS 1...
  • Page 7 Read this first Disposing of lithium ion batteries Do not handle damaged or leaking lithium ion batteries. Dispose of promptly and properly at end-of-life. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
  • Page 8 Exceptional performance - Your PC includes a fast processor and an internal modem. Portability - The rechargeable battery pack provides hours of use without AC power. Sony audio and video quality - A high-resolution LCD screen enables you to take advantage of today’s advanced multimedia applications, games, and entertainment software.

  • Page 9: Documentation Pack

    Your Sony Guarantee conditions. Online documentation The Sony Notebook User Guide: Using Your Sony Notebook shows you how to use the standard components of your system. Connecting Peripheral Devices explains how you can add functionality by connecting various peripherals. Getting Help explains the support options available to you, and offers basic troubleshooting tips.
  • Page 10 Welcome Consult the Online Help files of the software you are using for detailed information on features and troubleshooting. Refer to the Microsoft Quick Start manual for more information on Windows. Your notebook and its accessories Remove the following hardware items from the box: main unit rechargeable battery pack product recovery CD-ROMs...

  • Page 11: Ergonomic Considerations

    Welcome Ergonomic considerations You will be using your notebook as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations to both stationary and portable environments: Position of your computer – Place the computer directly in front of you (1). Keep your forearms horizontal (2), with your wrists in a neutral, comfortable position (3) while using the keyboard, touchpad, or external mouse.
  • Page 12 Welcome Viewing angle of the computer’s display – Use the display’s tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness setting of the display as well. Lighting –...

  • Page 13: Using Your Notebook

    Using your notebook Using your notebook This section describes how to start using your computer and how to use your computer’s internal and external devices. Locating controls and connectors Right USB connector headphone connector microphone connector S400 i.LINK connector Phone cable and connectors are TNV (Telecommunications Network Voltage), according to EN60950. (page 61) PC Card slot (page 60)
  • Page 14 Using your notebook Left DC In USB connector ventilation slot AC adapter mains connector and power cord: hazardous voltage, according to EN 60950. All other connectors for this notebook are SELV (Safety Extra Low Voltage), according to EN 60950. (page 17) monitor connector (page 61) MagicGate...

  • Page 15: Table Of Contents

    Using your notebook Front power indicator battery indicator Memory Stick indicator docking station indicator hard disk drive indicator There is a ventilation slot located near the power switch. Do not cover the ventilation slot when your computer is on. (page 27) Num Lock indicator (page 27) Caps Lock indicator...
  • Page 16 Using your notebook Back battery connector Bottom battery lock lever battery release lever docking connector reset switch (page 18) (page 18) (page 18)

  • Page 17: Connecting A Power Source

    Using your notebook Connecting a power source You can use either an AC adapter or a rechargeable battery pack as a power source. Using the AC adapter To use the AC adapter, proceed as follows: Plug the cable attached to the AC adapter (1) into the DC In connector (2) on the computer. Plug one end of the power cord (3) into the AC adapter.

  • Page 18: Using The Battery Pack

    Using your notebook Using the battery pack You can use a battery pack as a source of power. The battery pack supplied with your computer is not fully charged at the time of purchase. Inserting the battery pack To insert the battery, proceed as follows: Move the lock lever (1) on the bottom of the computer to the Unlock position.
  • Page 19 Using your notebook Charging the battery pack To charge the battery pack, proceed as follows: Connect the AC adapter to the computer. Insert the battery pack. The computer automatically charges the battery (the battery indicator light flashes in a double blink pattern as the battery charges).
  • Page 20 Using your notebook Removing the battery pack To remove the battery pack, proceed as follows: Turn off the computer and close the cover. Slide the lock lever (1) to the Unlock position. Slide the release lever (2) to the Unlock position and slide the battery away from the computer. You can remove the battery pack without turning off the computer when it is connected to the mains voltage (AC adapter).

  • Page 21: Starting Your Notebook

    Using your notebook Starting your notebook To start your computer, proceed as follows: Slide the LCD lock lever (1) in the direction of the arrow, and lift the cover. Press the power switch (2) of the computer until the green power indicator (3) light turns on. If necessary, press <Fn>+<F5>...

  • Page 22: Shutting Down Your Notebook

    Using your notebook Shutting down your notebook It is important that you shut down your computer properly in order not to lose unsaved data. To shut down your computer, proceed as follows: Click the Start button on the Windows Click Shut Down. The Shut Down dialog box appears.

  • Page 23: Registering Your Notebook

    Using your notebook Registering your notebook You can take advantage of Sony’s commitment to quality customer support and receive the following benefits by registering your computer: VAIO-Link – If you are experiencing any problems with your computer, you can check the VAIO-Link web site for a possible solution: http://www.vaio-link.com...

  • Page 24: Using The Keyboard

    Using your notebook Using the keyboard Your keyboard is very similar to a desktop computer’s, but the keyboard has additional keys that perform specific notebook-related tasks. Keys Escape key (1) Function keys (2) Print Screen key (3) Correction keys (4) Fn key (5) Navigation keys (6) Descriptions...
  • Page 25 Using your notebook Keys Application key (7) Numeric keypad area (8) Operator keys (9) ® Windows key (10) Descriptions The Application key displays a shortcut menu; pressing this key is equivalent to clicking the right mouse button. Contains the keys found on a typical calculator. Use the numeric keypad area to type numbers or to perform mathematical calculations such as addition and subtraction.

  • Page 26: Combinations And Functions With The Windows Key

    Using your notebook Combinations and functions with the Windows key Combinations + F1 + Tab + Ctrl + F Shift + + Insert Functions Displays Windows Help. Switches the selected button on the taskbar. Displays Windows Explorer. Displays the Search Results window to find a file or folder. This is equivalent to selecting Search and then For files or Folders from the Start menu.
  • Page 27 Using your notebook Indicators Indicator power battery Memory Stick docking station Light hard disk Num Lock Caps Lock Scroll Lock Functions Power on: lights green. Standby mode: flashes umber. Hibernate mode: turns off. Indicates the status of the battery inserted in the computer. Turns on when the Memory Stick is in use.

  • Page 28: Monitor Connector

    Using your notebook Combinations and functions with the Fn key Combinations/ Feature (F3): speaker switch Fn + (F4): speaker volume Fn + (F5): brightness control (F7): switch to the external display Fn+F : change the display size (F12): Hibernate Some functions are not available until Windows is launched. Functions Toggles the built-in speaker on and off.

  • Page 29: Using The Touchpad

    Using your notebook Using the touchpad The keyboard contains a cursor-pointing device, your touchpad (1). You can point to, select, drag, and scroll objects on the screen using the built-in touchpad. Action Description point Slide one finger on the touchpad (1) to place the pointer (4) on an item or object.
  • Page 30 Using your notebook Using Center Jog Control Your computer is equipped with a Center Jog Control (1) between the right and the left buttons of your computer. You can turn (2) and/or press (3) the Center Jog Control to scroll the window, select a software, adjust the internal speaker volume, etc.
  • Page 31 Using your notebook The Center Jog Control window is always displayed on the screen. This window has two modes: Launcher mode or Guide mode. The Center Jog Control window is in Launcher mode until you start an application or the Center Jog Control window becomes active. When an arrow appears next to an item in the Center Jog Control window, you can display a submenu for that item by selecting it and pressing the Center Jog Control.
  • Page 32 To select another item, switch to Launcher mode and repeat this procedure. Software supporting Center Jog Control If the Sony software supporting the Center Jog Control is active, you can use Center Jog Control functions allocated to each software. Software not supporting Center Jog Control If the software in use does not support the Center Jog Control, you can scroll the window or adjust the window size.

  • Page 33: Using Pc Cards

    Gently push the card into the slot until the card is fixed into the connector. Some PC Cards may require you to disable idle devices when using the PC Card. You can use Sony Notebook Setup to disable devices. Be sure to use the most recent software driver provided by the PC Card manufacturer.
  • Page 34 Using your notebook Removing a PC Card If you unplug this device from the computer when turned on, your system might crash and you might lose data that you did not save before. If your computer is turned off, you do not have to follow these instructions. To remove a PC Card, proceed as follows: Double-click The Unplug or Eject Hardware window appears.
  • Page 35 Do not select and stop a USB disk drive, a Sony i.LINK CD-RW/DVD-ROM drive or a Sony i.LINK DVD-ROM drive. If you stopped a Sony i.LINK CD-RW/DVD-ROM drive or a Sony i.LINK DVD-ROM Drive by mistake, disconnect the docking station and connect it again.

  • Page 36: Using Memory Stick

    Using your notebook Using Memory Stick This new compact, portable, and versatile recording medium has a data capacity exceeding that of a floppy disk. The Memory Stick™ is specially designed for exchanging and sharing digital data with compatible products. Because it is removable, it can be used for external data storage. When the Memory Stick™...

  • Page 37: Magicgate Tm

    The recorded music is limited to private use only. The use of music for any purpose other than the intended use requires the permission of the copyright holders. Sony is not responsible for music files that are not saved on your computer due to unsuccessful recording from CDs or unsuccessful downloading of music.

  • Page 38: Inserting A Memory Stick

    Using your notebook Inserting a Memory Stick To insert a Memory Stick Insert it into the slot until the Memory Stick™ (1) is fixed into the connector. When the Memory Stick™ is connected properly, you can see the contents of the card by clicking the Removable Disk (S:) icon.

  • Page 39: Removing A Memory Stick

    Using your notebook Removing a Memory Stick To remove a Memory Stick Make sure the access light is off and push the Memory Stick™ in toward the computer. When it comes out, pull it out. The Memory Stick Always remove the Memory Stick It is recommended to remove the Memory Stick To prevent the possible loss of data, do not remove a Memory Stick require more time to store on a Memory Stick...

  • Page 40: Formatting A Memory Stick

    Using your notebook Formatting a Memory Stick Memory Sticks Memory Stick , use the Memory Stick Formatter software provided with your notebook. For more details about using Memory Stick Formatter, refer to the help files. To format a Memory Stick Insert the Memory Stick Click the Start button, point to Programs, click Memory Stick Utility and then click Memory Stick Formatter.

  • Page 41: Using The Modem

    Using your notebook Using the modem Your notebook is equipped with an internal modem. You need to connect a phone line to take advantage of online services and the Internet, to register your computer and software online, and to contact VAIO-Link. To connect a phone line, proceed as follows: Plug one end of the phone cable (1) into the phone line jack on the computer.

  • Page 42: Power Indicator

    Using your notebook Using power saving modes When you use a battery as the source of power for your computer, you can take advantage of power management settings to conserve battery life. In addition to the normal operating mode, which allows you to turn off specific devices, your computer has two distinct power saving modes: Standby mode and Hibernate mode.

  • Page 43: Using Hibernate Mode

    Using your notebook Using Hibernate mode The state of the system is saved on the hard disk and power is turned off. The power indicator light is off in this mode. To activate Hibernate mode, proceed as follows: Press <Fn>+<F12>. Use the PowerPanel utility.

  • Page 44: Connecting Peripheral Devices

    You can add functionality to your computer by connecting or using any of these peripherals and enjoy the software described in the About the software on your Sony Notebook user guide: Before you connect peripherals, turn off the computer and all peripherals.
  • Page 45 Connecting peripheral devices Locating the docking station controls and connectors Right & Front docking connector CD-RW/DVD-ROM drive or DVD-ROM drive All connectors are SELV (Safety Extra Low Voltage) according to EN60950. UNDOCK switch (page 51) release lever (page 49) (page 49)
  • Page 46 Connecting peripheral devices Left & Bottom i.LINK network switch release lever All connectors are SELV (Safety Extra Low Voltage) according to EN60950. (page 67) ventilation slot (page 49) floppy disk drive (page 54)
  • Page 47 Connecting peripheral devices Back DC In Ethernet network connector USB connectors S400 i.LINK connector All connectors are SELV (Safety Extra Low Voltage) according to EN60950. monitor connector (page 69) printer connector (page 61) serial port (page 64) (page 55) (page 63)
  • Page 48 Connecting peripheral devices Attaching your computer to the docking station To connect your computer to the docking station, proceed as follows: Plug the AC adapter cable into the DC In connector on the docking station and the other end to an AC outlet.

  • Page 49: Disconnecting Your Computer From The Docking Station

    Connecting peripheral devices You cannot connect the docking station when the notebook is in a power saving mode. Return to normal mode before docking. Do not connect the docking station when the battery is removed. If the battery is charged, you can connect the notebook to the docking station even when the notebook is on. Make sure all cables and peripherals are removed before connecting your main unit to the docking station.
  • Page 50 Connecting peripheral devices Release the notebook from the docking station. Click OK to the Windows 2000 has finished undocking the system. If you need to remove the system from the Docking Station, please do so now message if your notebook was on before undocking.
  • Page 51 Connecting peripheral devices Using the optical disk drive on the docking station The docking station is equipped with an optical disk drive*. From the docking station, you can listen to audio CDs or use the recovery CDs, play DVDs and burn CDs** * PCGA-DSM5 docking station: CD-RW/DVD-ROM drive / PCGA-DSD5 docking station: DVD-ROM drive ** PCGA-DSM5 docking station only.
  • Page 52 Connecting peripheral devices To achieve optimum performance when playing DVD-ROM disks, you should follow the following recommendations. You can play DVDs using the WinDVD software. See the help files in the WinDVD software for details. Close any open application before playing a DVD-ROM movie. When playing DVD movies on battery power, set the power management profile to DVD.
  • Page 53 Connecting peripheral devices To achieve optimum performance when writing data on a CD-RW/CD-R, follow these recommendations. A CD-RW (CD-ReWritable) disk is a data memory medium that can be used to write, erase and rewrite a program or other data. A CD-R (CD-Recordable) is a data memory medium that can be used to write a program or other data, but only once.
  • Page 54 Connecting peripheral devices Using the floppy disk drive on the docking station The docking station is equipped with an internal floppy disk drive. You can also use an external USB floppy disk drive on the undocked main unit. It is not possible to use any USB floppy disk drive when the notebook is docked.

  • Page 55: Connecting An External Display

    Connecting peripheral devices Connecting an external display You can connect an external display to your notebook. For example, you can use your computer with the following devices: Computer display (monitor) Projector Turn off your computer and the peripherals, unplug the AC adapter and the power cord before connecting the external display. Connect the power cord after connecting all other cables.
  • Page 56 Connecting peripheral devices Connecting a computer display You can connect a computer display either directly to your notebook or via the docking station. You may not be able to display the computer's LCD and the external display together, depending on the type of computer display and projector used.
  • Page 57 Connecting peripheral devices To connect a computer display to the docking station, proceed as follows: Plug the monitor plug (1) into the docking station monitor connector (2). Plug the power cord (3) into an AC outlet. If the main unit is docked, you can only use the monitor connector on the docking station...

  • Page 58: Connecting A Projector

    Connecting peripheral devices Connecting a projector You can connect a projector (such as the Sony LCD projector) directly to your notebook or via the docking station. To connect a projector to your notebook, proceed as follows: Plug the RGB signal cable (1) into the notebook monitor connector identified by the I/O symbol.
  • Page 59 Connecting peripheral devices To connect a projector to your docking station, proceed as follows: Plug the RGB signal cable (1) into the docking station monitor connector identified by the I/O symbol. Plug the audio cable (2) into the notebook earphone connector identified by the Connect the power cord (3) of the projector into an AC outlet.

  • Page 60: Connecting External Speakers

    Connecting peripheral devices Connecting external speakers You can enhance the sound quality of your computer by connecting external speakers. To connect external speakers, proceed as follows: Plug the speaker cable into the notebook earphone connector identified by the Turn down the volume of the speakers before you turn them on. Make sure your speakers are designed for computer use.
  • Page 61 Connecting peripheral devices Connecting a Universal Serial Bus (USB) mouse You can connect a USB device (e.g. mouse, floppy disk drive, printer…) to your notebook or to your docking station. If the main unit is docked, you can only use the USB connectors on the docking station. To connect a USB mouse to the notebook, proceed as follows: Plug the USB cable (1) into one of the notebook USB connectors (2) identified by the symbol.
  • Page 62 You do not need to shut down the computer before connecting or disconnecting a USB peripheral. You can connect the optional Sony USB mouse (PCGA-UMS1 series). As the driver for this mouse is preinstalled on your computer, you can use the mouse by just connecting it.

  • Page 63: Connecting A Printer

    Plug the printer power cord into an AC outlet. Before using the printer, you may need to change the Printer settings in the Sony Notebook Setup software. Turn off your computer and the printer, unplug the AC adapter and the power cord before connecting the printer.
  • Page 64 Connecting peripheral devices Connecting an i.LINK device Your computer includes an i.LINK™ (IEEE1394) connector, which you can use to connect to an i.LINK™ device such as a digital video camera recorder or to connect two VAIO notebooks in order to copy, delete or edit files.
  • Page 65 Connecting peripheral devices Connecting a digital video camera recorder To connect a digital video camera recorder to your notebook, proceed as follows: Plug one end of the i.LINK™ cable (1) into the i.LINK™ connector (2) of the computer and the other end into the DV Out connector (3) on the digital video camera recorder.
  • Page 66 On Sony digital video cameras, connectors labeled DV Out, DV In/Out or i.LINK™ are i.LINK™-compatible. The Sony digital video camera recorder is an example; your digital video camera recorder may need to be connected differently. If your digital video camera recorder includes a Memory Stick...
  • Page 67 Connecting peripheral devices Connecting two VAIO notebooks With Smart Connect you can copy, edit or delete files on another VAIO computer (equipped with Smart Connect) connected to your computer with an optional i.LINK You can also print a document on a printer connected to another VAIO computer. If the notebook is connected to the optional docking station, proceed as follows to exchange data with another computer using an i.LINK Disconnect your notebook from the docking station.
  • Page 68 Connecting peripheral devices When you use Smart Connect to connect two VAIO computers, you must assign each computer a unique name by which it can be identified when the two computers are networked. Do not set the i.LINK Set the i.LINK network switch on the docking station after removing all cables connected to the docking station.

  • Page 69: Connecting To A Network (Lan)

    Connecting peripheral devices Connecting to a network (LAN) You can connect your notebook or your docking station to 10BASE-T/100BASE-TX-type networks via an Ethernet network cable. For the detailed settings and devices needed to connect to the network, consult your Network Administrator. To connect your notebook to a LAN, proceed as follows: Connect the network cable to the ethernet network connector (1) on the notebook.
  • Page 70 Connecting peripheral devices To connect your docking station to a LAN, proceed as follows: Connect the network cable to the ethernet network connector (1) on the docking station. If the main unit is docked, you can only use the ethernet network connector on the docking station. For more information about connecting your notebook to the network, please consult the Hardware troubleshooting section of the Vaio-Link website: How to troubleshoot network problems Do not plug a phone cable into the ethernet network connector on your notebook.

  • Page 71: Getting Help

    Getting help Getting help This section describes how to get help and support from Sony, as well as troubleshooting tips for your computer. Sony support options Sony provides several support options for your computer. Printed documentation supplied with your notebook The Customer Guide explains how to start your computer and use the basic functions.

  • Page 72: Troubleshooting

    Getting help VAIO-Link Response Centre: Before contacting VAIO-Link Response Centre, try to solve the problem by reading the User Guides and help files for the peripherals or software. You need to plug in the phone line and configure your modem for use before using the communication features described in this manual. Troubleshooting This section describes how to solve common problems you might encounter when using your notebook.
  • Page 73 If the floppy disk drive is empty, proceed as follows to initialize the BIOS: Turn off the computer. Remove any peripheral devices connected to the computer. Turn on the computer and press <F2> when the Sony logo appears. The BIOS setup menu screen appears. Press the arrow keys to select the Exit menu.
  • Page 74 One of the buttons is assigned to the double-click action. My mouse does not work Check that the mouse is plugged into the USB connector. If you are using an optional Sony USB mouse, check that the appropriate driver and mouseware are properly installed. ®...
  • Page 75 Getting help About the display My LCD does not display anything Check that the computer is plugged into a power source and that it is turned on. Check that the power indicator on the front panel of the computer is on. Check that the battery packs are inserted properly and that they are charged.
  • Page 76 Getting help I cannot play a CD-ROM disk Make sure the label of the disk is facing up. If the disk requires software, make sure the software is installed according to the instructions of the program. Check the volume of your speakers. Clean the disk.
  • Page 77 Getting help Select Settings from the Start menu, then click Control Panel. Double-click System. Select the Hardware tab, then click Device Manager. Select Universal Serial Bus controllers, then Y-E Data USB Floppy. Select Operation, then Delete. Keep clicking OK until the message Confirmation of deletion of device appears. Perform the Scan to change hardware from Operation.
  • Page 78 Getting help About sound My speakers are not producing sound The built-in speakers may be turned off. Press <Fn>+<F3> to turn on the speakers. The speaker volume may be turned to the minimum. Press <Fn>+<F4>, and then press the volume. If your computer is powered by battery, check that the battery is inserted properly and that it is charged.
  • Page 79 Getting help Set the i.LINK network switch on the bottom of the docking station to the unmarked side with a thin pen tip. Connect the docking station to your notebook. Turn on your notebook. You can now operate the CD-RW/DVD-ROM drive or the DVD-ROM drive. Do not set the i.LINK network switch when the notebook is on.
  • Page 80 Getting help About the modem My internal modem does not work Check that the phone line is plugged into your computer. Check that the phone line is working. You can check the line by plugging in an ordinary phone and listening for a dial tone.
  • Page 81 The default setting for the printer port mode is correct for most printers. If you cannot print, try changing the printer port mode. In Sony Notebook Setup, select the Printer tab. If the printer port mode is set to ECP, change it to bi-directional. If the printer port mode is set to bi-directional, change it to ECP.

  • Page 82: Adding And Removing Memory

    Precautions Precautions This section describes safety guidelines and precautions to help you protect your computer from potential damage. Your notebook and memory modules use high precision components and electronic connectors technology. To avoid the invalidation of your guarantee by mishandling, it is recommended that: You contact your dealer to install a new memory module.
  • Page 83 Precautions Disconnect the system from its power source and from any telecommunication links, networks, or modems before you open the system. Failure to do so may result in personal injury or equipment damage. Electrostatic Discharge (ESD) can damage memory modules and other components. Install the memory Module only at an ESD workstation.
  • Page 84 Precautions Removing a memory module To remove a memory module, proceed as follows: Shut down your computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait until the computer cools down. Unscrew the two screws at the bottom of your computer. Slide the LCD lock lever and lift the cover.
  • Page 85 Precautions Remove the memory module: Pull the tabs in the direction of the arrows. The memory module is released. Pull the memory module in the direction of the arrow. Gently replace the keyboard, then press it into your computer. Be careful not to detach the cable when lifting the keyboard.
  • Page 86 Precautions Adding a memory module To add a memory module, proceed as follows: Shut down your computer and disconnect all peripheral devices. Unplug the computer and remove the battery packs. Wait until the computer cools down. Unscrew the two screws at the bottom of your computer. Slide the LCD lock lever and lift the cover.
  • Page 87 Precautions Lift the keyboard from the LCD display side, then gently turn it over the touchpad. Be careful not to detach the cable (1) when lifting the keyboard. Remove the existing memory module. Remove the new memory module from its packaging. Install the memory module.
  • Page 88 To view the amount of memory, proceed as follows: Turn on the computer. Click the Start button, point to VAIO, and click Sony Notebook Setup. The Sony Notebook Setup screen appears. Click the About this Computer tab to view the amount of system memory. If the additional memory...

  • Page 89: Other Precautions

    Precautions Other precautions On handling the LCD screen Do not leave the LCD facing the sun as it can damage the LCD. Be careful when using the computer near a window. Do not scratch the LCD or exert pressure on it. This could cause malfunction. Using the computer in low temperature conditions may produce a residual image on the screen.
  • Page 90 Precautions When the AC adapter is not used, unplug it from the AC outlet. Use only the supplied AC adapter. Do not use any other AC adapter. On handling your notebook Clean the cabinet with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.
  • Page 91 Precautions The computer uses high-frequency radio signals and may cause interference to radio or TV reception. Should this occur, relocate the computer a suitable distance away from the set. Use only specified peripheral equipment and interface cables; otherwise, problems may result. Do not use cut or damaged connection cables.
  • Page 92 Precautions If the disk is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disk from the center out. Wipe off any remaining moisture with a dry soft cloth. On using the battery pack Never leave the battery pack in temperatures above 60°C, such as in a car parked in the sun or under direct sunlight.
  • Page 93 Precautions On using earphones Road safety – Do not use earphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
  • Page 94 PCG-R600HEK specifications PCG-R600HEK specifications Product name Operating system Processor Hard disk drive Standard RAM Maximum RAM LCD screen L2 cache memory MPEG Graphics Display cache Sound capabilities Internal modem Telecommunication capabilities PCG-R600HEK Microsoft® Windows® 2000 Professional ® ® Mobile Intel Pentium III processor 850 MHz ®...
  • Page 95 PCG-R600HEK specifications Product name Expansion capabilities Built-in capabilities Special button Connection capabilities on notebook Supplied accessories Service Guarantee Power source Power management Battery Dimensions Width Height Depth PCG-R600HEK One PCMCIA type II Card and Cardbus support Stereo speakers, touchpad, Center Jog Control, Memory Stick Center Jog Control docking connector, VGA monitor, external speakers or headphone, microphone, 2xUSB, type II PC Cards, i.LINK™...
  • Page 96 PCG-R600HEK specifications Product name Weight With battery With battery & optional docking station Operating temperature Storage temperature Operating humidity Storage humidity ‡ See our special Guarantee extension conditions. Specifications are subject to change without notice. PCG-R600HEK 1.7 kg 2.7 kg +5°C to +35°C (temperature gradient less than 10°C/hour) -20°C to +60°C (temperature gradient less than 10°C/hour) 20% to 80% (not condensed), provided that humidity is less than 65% at...
  • Page 97 Docking station (optional) specifications Docking station (optional) specifications Optical drive Floppy disk drive Connectors Dimensions Weight Specifications are subject to change without notice. CD-RW/DVD Docking station (PCGA-DSM5) up to 24x max. CD-ROM reading speed up to 8x max. CD-R writing speed up to 4x max.

  • Page 98: Battery Indicator
