MANUFACTURED BY:

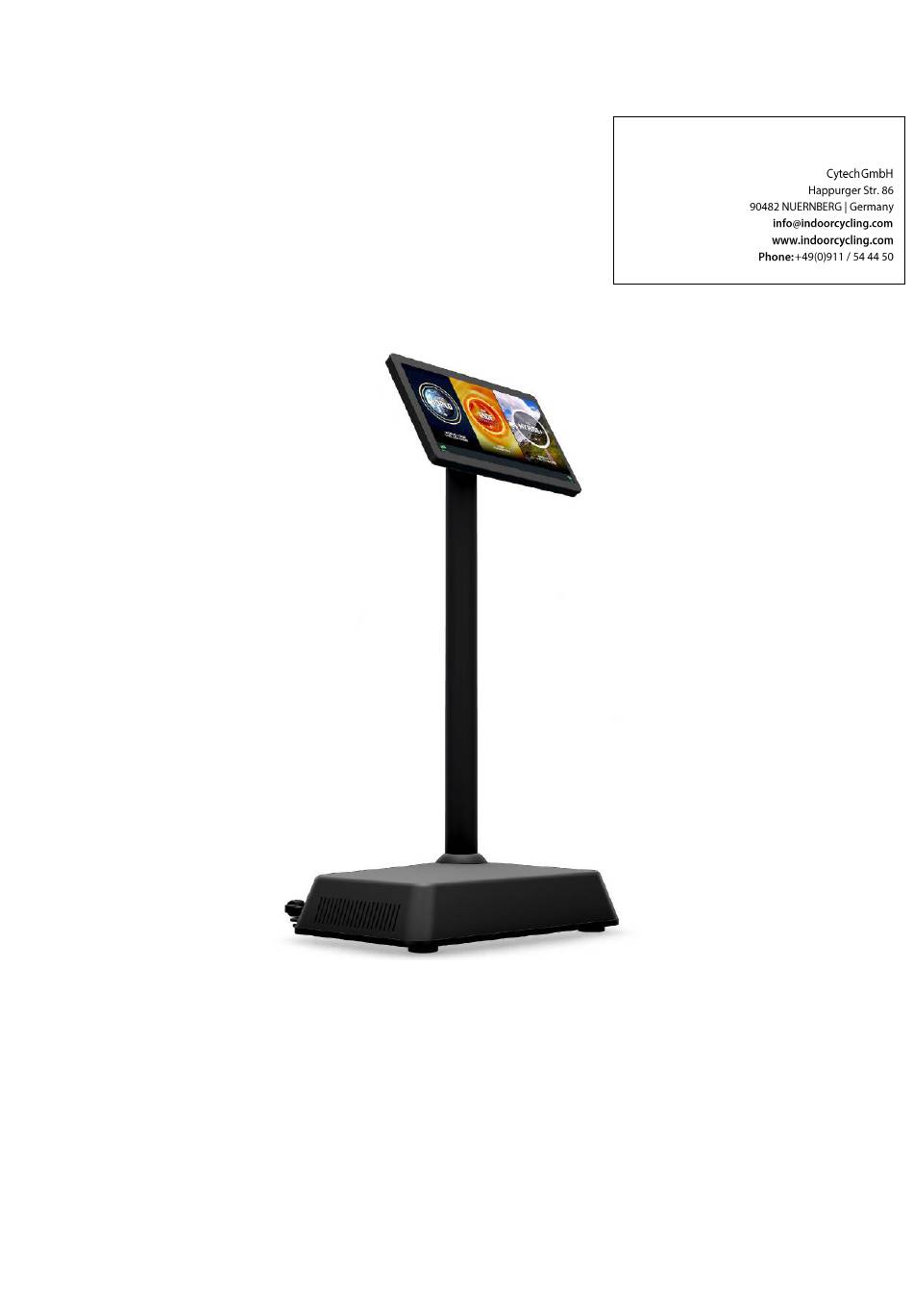

ICG CONNECT SYSTEM
INSTALLATION GUIDE
MODEL NO: VI-CON-SYS-01
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
ADDITIONAL MANUAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VI-CON-SYS-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Cytech VI-CON-SYS-01

Summary of Contents for Cytech VI-CON-SYS-01

  • Page 1 MANUFACTURED BY: ICG CONNECT SYSTEM INSTALLATION GUIDE MODEL NO: VI-CON-SYS-01 CAUTION! READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.

  • Page 3: Table Of Contents

    Table of Contents IMPORTANT PRECAUTIONS ......................4 SYSTEM SPECIFICATIONS ........................ 5 PACKAGE CONTENTS ........................5 INSTALLATION REQUIREMENTS ...................... 6 4.1. Power Outlets ......................... 6 4.2. Wasp installation ........................6 4.3. Example Indoor cycling area layout..................7 4.4. Drilling template ........................8 NOT INCLUDED WITH THE ICG CONNECT SYSTEM .................

  • Page 4: Important Precautions

    1. IMPORTANT PRECAUTIONS It is the sole responsibility of the owner/operator and his staff to ensure that all users are informed of all warnings and precautions prior to using the ICG CONNECT SYSTEM. Position the ICG CONNECT SYSTEM next to the Indoor Cycle on a level surface as recommended in the installation guide.

  • Page 5: System Specifications

    2. SYSTEM SPECIFICATIONS ASSEMBLED DIMENSIONS: 53.5 x 36 x 116CM / 22 x 14 x 46IN ASSEMBLED WEIGHT: 23KG / 51LBS OPERATING SYSTEM (OS): ICG Customized Linux OS COMPUTER: AMD Ryzen R1505 APU ASPECT RATIO: 16:9 (External Screen) SCREEN VIEWING POSITION: Adjustable - Tilt &...

  • Page 6: Installation Requirements

    4. INSTALLATION REQUIREMENTS The following requirements must be met for installation and use of the ICG CONNECT SYSTEM. 4.1. Power Outlets The ICG CONNECT SYSTEM requires one power outlet with 110/220V AC output 4.2. Wasp installation The ICG CONNECT SYSTEM requires installation of the Cat 5 or better network cables for optimal positioning of the supplied WASPS.

  • Page 7: Example Indoor Cycling Area Layout

    4.3. Example Indoor cycling area layout. Power Cable ICG CONNECT SYSTEM TV / External video device HDMI cable Trainer Bike WASP Network WASP Network cable cable WASP WASP...

  • Page 8: Drilling Template

    4.4. Drilling template The Wasps can be mounted according to the Drilling template (hardware not included). 5. NOT INCLUDED WITH THE ICG CONNECT SYSTEM Indoor Cycles The ICG CONNECT SYSTEM only works with IC5, IC6, IC7 & IC8 series bikes. External video device: TV or Projector Resolution: 1080P...

  • Page 9: Unboxing

    6. UNBOXING 1. Position the box on side and open it as shown below. Lift the ICG CONNECT SYSTEM from the box. Take note to remove any hardware taped to the Styrofoam inside the packaging. Open the box from the side and remove the Styrofoam and the unit from the box. Be careful not to damage the contents when opening.

  • Page 10: Assembly & Connection

    7. Assembly & Connection Remove the 3mm Hex screw from the rear of the base. The panel is hinged on the left side. Pull the panel from the right side.
  • Page 11 Slide the power cable for your region, HDMI cable, both network cables for the WASPs and the optional network cable for updates through the slot of the removable cover. REF. Description Power Cable CAT 5 or better RJ45 cables for the Wasps (max 50m /164 feet) CAT 5 or better RJ45 cable for the optional internet connection for...
  • Page 12 Remove the lid from the WASP (fig. 1) with a small flat head screwdriver and plug in the other end of the network cables from the ICG CONNECT SYSTEM to the WASPs (fig. 2). Cut the plastic of the WASP at the predetermined areas for routing the cable best suited for your installation.

  • Page 13: Connection Schematic

    8. CONNECTION SCHEMATIC WASP WASP REF. Description Power Cable CAT 5 or better RJ45 cables for the Wasps / Max length 50m (164 ft) CAT 5 or better RJ45 cable for the optional internet connection High Speed HDMI Cable / Max 10m (32ft)

  • Page 14: Turning On The Icg Connect System

    9. TURNING ON THE ICG CONNECT SYSTEM Make sure the system is connected properly (The Connect System must be connected to an external video device with 1080P). Turn on your external video device. Turn on the unit by flipping the power switch on the back of the base of the unit (fig. 1). Pushing the restart button will turn off the Mini Pc but we advise always using the main power switch (fig 1.) to turn off the system.

  • Page 15: Settings

    11. SETTINGS TIME AND DATE SETUP In the SETTINGS menu touch the Time button and make your local adjustments and leave the menu with the back button. LANGUAGE Touch the button to change your language preferences. METRIC The ICG CONNECT SYSTEM can be used with either Metric or Imperial units. When the button next to the Metric is green, Metric units are used.
  • Page 16 Software download: http://kb.cybexintl.com/Software/ICG_Connect_System/ICG_Connect_System.zip 1) Download the software file from the Life Fitness Service and Support homepage 2) Unzip and save the file to an empty USB Flash drive with min 1 – 10 GB Capacity 3) Make sure the system is connected to an external video device (TV) via HDMI cable and turn the external video device and ICG CONNECT SYSTEM on.
  • Page 17 5) The TV will indicate that an update was found on the USB flash drive. Once the countdown is completed, the unit will copy the update for the Kiosk and Tablet to the system. 6) Once the update is copied to the system, you will be prompted to remove the USB flash drive and the system will automatically reboot.
  • Page 18 7) To update the media server, tap the gear icon on the lower righthand corner of the home screen on the tablet. Please that the icon is barely visible. 8) Enter the code to access the system settings of the tablet. 4, 3, 2, 1. The code is the same for all systems and cannot be changed.
  • Page 19 9) Tap the update system on the screen (fig. 1) and the system update will begin (fig.2). Fig. 1 Fig. 2...
  • Page 20 10) Tap the install button when prompted and the update will start. Once completed, you will automatically be brought back to the home screen. 11) Confirm the update versions by going into the settings menu (steps 7 & 8) and tapping the system information button to display the software versions.
  • Page 21 12) Confirm that the update was successful. APP VERSION (Fig. 1) SERVER VERSION (Fig. 2) Leave the Settings screen by tapping the home icon (Fig. 3) 13) After the update, manually restart the system using the power switch on the back of the system.

  • Page 22: Update Via Ethernet Cable And Internet Connection

    12.2. Update via ethernet cable and internet connection. The system must be connected to the internet via ethernet cable. The internet connection must be free of restrictions and firewall. If such a connection is not available, please refer to updating via USB flash drive.
  • Page 23 3) Enter the code to access the system settings of the tablet. 4, 3, 2, 1. The code is the same for all systems and cannot be changed. 4) Tap the update system on the screen (fig. 1) and the system update will begin and restart the media server (fig.2).
  • Page 24 Fig. 2 5) After the installation on the media server, you will be prompted to confirm the update on the tablet. Once completed, you will automatically be brought back to the home screen.
  • Page 25 6) Confirm the update versions by going into the settings menu (steps 7 & 8) and tapping the system information button to display the software versions. 7) Confirm that the update was successful. APP VERSION (Fig. 1) SERVER VERSION (Fig. 2) Leave the Settings screen by tapping the home icon (Fig.

  • Page 26: Cleaning The Icg Connect System

    8) After the update, manually restart the system using the power switch on the back of the system. CLEANING THE ICG CONNECT SYSTEM Lightly dampen a section of a microfiber cloth with water and gently wipe the screen, then go over it again with a dry section of the cloth to wipe away any moisture.
