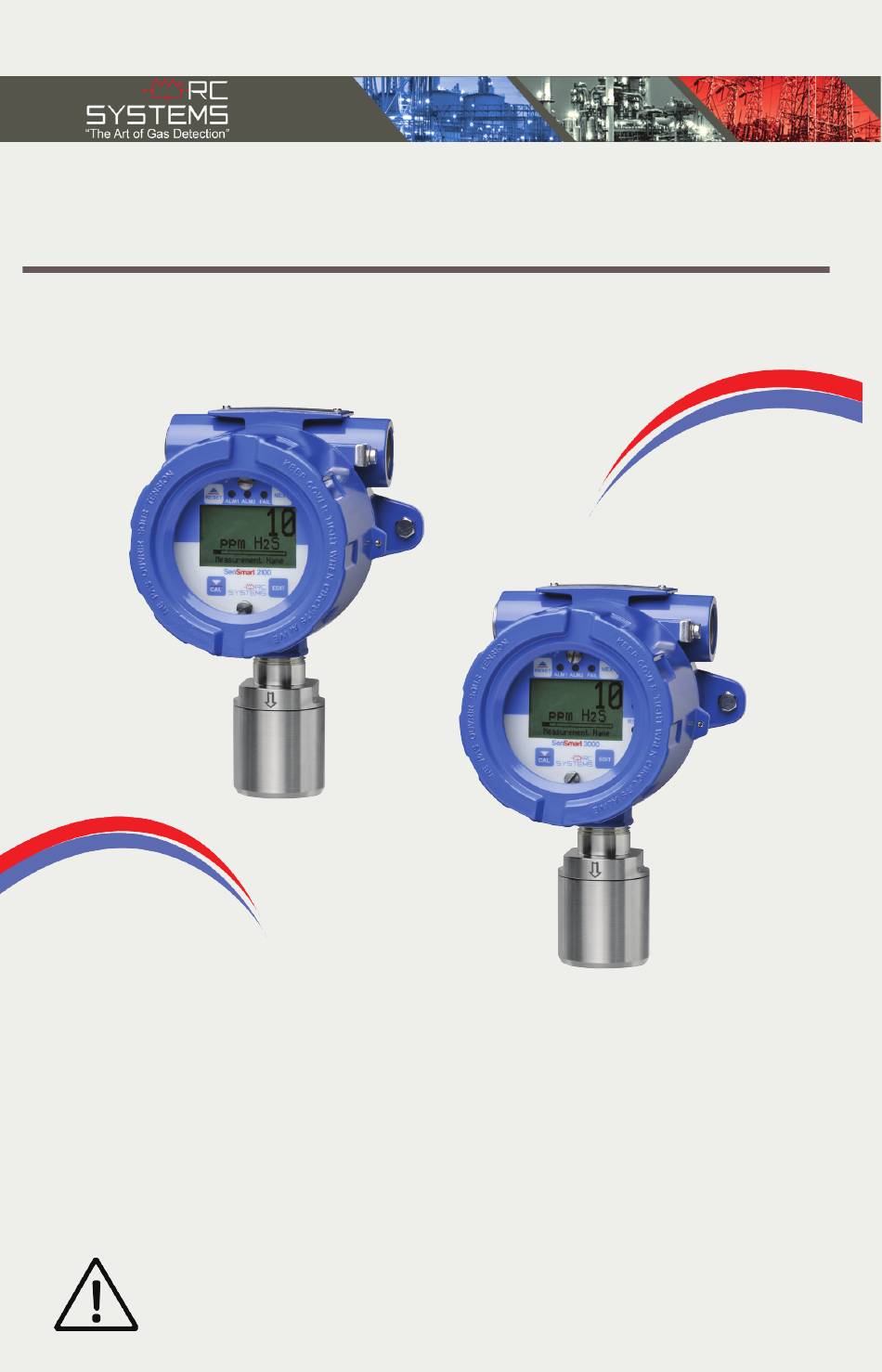

- Page 1 SenSmart 2000/3000 Installation Guide Flammable & Toxic Gas Detectors Smart Alarm Controllers Fire & Gas System Engineering Technical Service & Support Warning: Read & understand contents of this manual prior to operation. Failure to do so could result in serious injury or death.
-
Page 3: Getting Started
GETTING STARTED Gas Detector Installation and Power-up Installation of Gas Detector Mount the Gas Detector in desired location. (see Figure 1 for mounting dimensions.) Remove windowed lid from unit. 1. AL Enclosure unscrew lid and remove thumbscrew to access terminals 2. - Page 4 Figure 1 - mounting dimensions Aluminium Polycarbonate SenSmart 2000/3000...
- Page 5 GETTING STARTED Power Up/Standard Output Installation SenSmart 2000 Connect the +10-30VDC/4-20mA loop wires to terminals TB1.1 and TB1.2 (See Figure 2) SenSmart 3000 Connect 10-30VDC power lead to TB2.1 (See Figure 3) Connect Common lead to TB2.4 (See Figure 3) Connect signal lead to TB2.2 (Channel 1...
- Page 6 Figure 2 - SenSmart 2000 wiring Figure 3 - SenSmart 3000 wiring SenSmart 2000/3000...
-
Page 7: Finalize Installation
FINALIZE INSTALLATION Replace display and tighten screws. Apply power to unit and observe power up screen. After the warm up period, observe gas type and gas concentration on screen. Using appropriate magnet, swipe Down Key on the display. Follow on-screen prompts to perform calibration check. -
Page 8: Option Installation
OPTION INSTALLATION 10-0234 SenSmart 3000 RS485 Modbus/Relay Option RS485 Modbus Master Port – TB2 provides a Modbus Master/ Slave Port, which is programmable from the gas detector. Please refer to the SenSmart 3000 Manual for Communication Port setup. Relay Outputs - 3 programmable 5A SPDT Relays (RLY1, RLY2 and RLY3) (see Figure 4 ). -
Page 9: General Information
GENERAL INFORMATION SenSmart 2000 Low-power, 4-20mA loop powered gas detector for toxic and oxygen detection. Includes a 4-20mA output SenSmart 3000 10-30VDC powered gas detector for toxic, oxygen, combustible, VOC and CO2 detection. This model adds a backlit LCD display, and has Modbus and/or 4-20mA communications and relays available. -
Page 10: Specifications
SPECIFICATIONS SenSmart 2000 Loop Powered 10-30 VDC at <.75 watt Power Supply SenSmart 3000 Power Input 10-30VDC at < 6.5 watts with relay board (all relay energized) Standard 2-wire 4-20mA current sink . Max loop SenSmart 2000 Resistance is 600 ohms with nominal... - Page 12 R.C. Systems provides 24/7 superior technical support from experts right here in our local facility. If you are in need of any assistance during the setup of this product, you may contact our main office and your call will be directed appropriately. At R.C.
