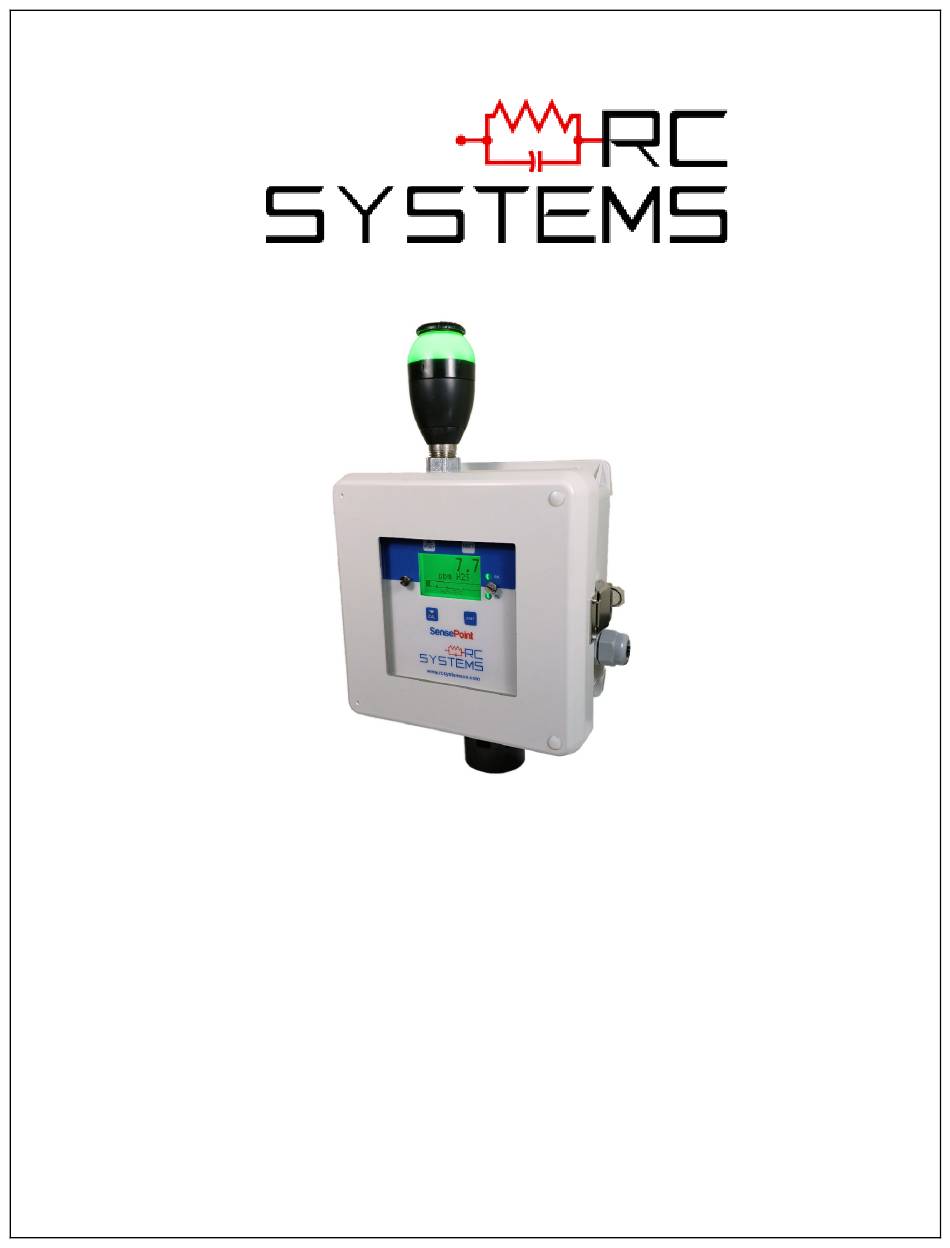

- Page 1 SensePoint Operations Manual 8621 Hwy 6 Hitchcock, TX 77563 409-986-9800 UM-1096 www.rcsystemsco.com Revision A...
-
Page 2: Table Of Contents
110-230VAC @15W Power Wiring ..................6 3.3.2 4-20mA Output Wiring ..................... 6 Option Board Wiring ..........................7 3.4.1 SensePoint RS 485 Option Board ..................7 3.4.2 SensePoint Relay Option....................8 Remote Sensor Installation........................9 3.5.1 SensePoint Remote Sensor ....................9 Sensor Installation and Replacement .................... - Page 3 Fault Condition ............................ 12 Alarm Conditions ..........................13 4.5.1 SensePoint ........................13 Chapter 5 Calibration Procedure ....................14 Preparation ............................14 Routine Calibration Procedure ......................17 Bump Test Procedure ........................... 18 Chapter 6 Maintenance Procedure ....................19 Regular Maintenance ........................... 19 Sensor Replacement..........................
- Page 4 Drawings................................44 UM-1096 Revision A...
-
Page 5: Table Of Figures
Figure 1 SensePoint Mounting Dimensions ....................4 Figure 2 Remote Sensor Enclosure Mounting Dimensions ................ 5 Figure 3 SensePoint Wiring ........................6 Figure 4 SensePoint Modbus Option Wiring ..................... 7 Figure 5 SensePoint Relay Option Wiring ....................8 Figure 6 Remote Sensor Option ....................... 9 Figure 7 Stainless Steel Sensor Head ...................... -
Page 6: Chapter 1 Safety Information
• Equipment not used as prescribed within this manual may impair overall safety. 1.2 Contacting RC Systems Inc. To contact RC Systems Inc., call, fax, email or write: 409–986-9800 FAX 409-986-9880 Email: info@rcsystemsco.com 8621 Hwy. 6 Hitchcock, TX 77563 Or visit us on the Web at www.rcsystemsco.com... -
Page 7: Chapter 2 General Description
10-30VDC, powered gas detector for toxic, oxygen, combustible, VOC and CO2 detection, with a color backlit LCD display, 4-20mA output, Modbus communications and relays. All models use RC Systems latest Generation II Smart Sensor technology, providing smarter gas detection with simplified solutions. UM-1096... -
Page 8: Chapter 3 Installation Instructions
Chapter 3 Installation Instructions 3.1 Selecting a Location Factors such as air movement, gas density in relation to air, emission sources and environmental variables affect correct sensor location. Air movement by fans, prevailing winds and convection should be carefully evaluated to determine if a leak is more likely to raise gas levels in certain areas within the facility. -
Page 9: Mounting The Enclosure
After you have determined the appropriate location for your gas detector, it is important to securely mount the gas detector using the predrilled mounting flanges on the enclosure (Figure1). Dimensions for the mounting holes can be found for both the aluminum and poly enclosures in Figure 2. Figure 1 SensePoint Mounting Dimensions UM-1096 Revision A... -
Page 10: Figure 2 Remote Sensor Enclosure Mounting Dimensions
Figure 2 Remote Sensor Enclosure Mounting Dimensions UM-1096 Revision A... -
Page 11: Power And Analog Outputs Wiring
3.3.1 110-230VAC @15W Power Wiring The SensePoint is powered by a 110-230VAC @ 15Watt power supply. Which has a full range AC Input along with short circuit, overload, over voltage and over temperature protections. The SensePoint can be ordered with the optional 2.3M AC power cord for ease of wiring and installation. -
Page 12: Option Board Wiring
TB2.SHLD. Note that there are two sets of terminals labeled TB2.A and TB2. B. This allows you to connect multiple SensePoint gas detectors in series. Each SensePoint represents an RS-485 slave and must have a unique Remote ID address (slave address). It is also important to note that wiring should be daisy chained as opposed to a star pattern for reliable operation. -
Page 13: Sensepoint Relay Option
3.4.2 SensePoint Relay Option The SensePoint Relay option (Figure 5) includes three programmable relays and a single programmable RS 485 Modbus master or slave port. The relay labeled “FAILSAFE” is set up as a failsafe Fault relay by default but can be configured as a programmable relay in the Relay Settings menu. It is possible to use only the relays, only Modbus or both. -
Page 14: Remote Sensor Installation
3.5 Remote Sensor Installation 3.5.1 SensePoint Remote Sensor Use of the Remote Sensor Option Board requires the SensePoint to be equipped with a RS 485 Option or Relay Option Board. The Remote Sensor Option Board communicates to the SensePoint by utilizing one of the RS-485 communication ports located on the option board. -
Page 15: Sensor Installation And Replacement
3.6 Sensor Installation and Replacement The SensePoint utilizes RC Systems’ Gen II Smart Sensors. These sensors come factory installed and provide our highest level of performance with increased accuracy and signal to noise ratio. The 8- conductor Smart Sensor interface connector attaches to the J1 connector on the base board, and the detector detects the type of sensor automatically. -
Page 16: Chapter 4 General Operating Instructions
Alarm levels for Alarm 1, 2 and 3 are set to the desired value Note: SensePoint gas detectors have standard relays, which should also be set up at this time. When no relays are installed, alarms are indicated only by the display color. -
Page 17: Normal Operation
To cycle through the data display screens, use a magnet and swipe the Next key until the desired screen is reached. Figure 8 SensePoint Data Display Screens 4.4 Fault Condition The Fault alarm is used to indicate a condition when there is a failure from the sensor or an out of range state has been reached. -
Page 18: Alarm Conditions
4.5.1 SensePoint The SensePoint allows the user to select the color associated with a certain alarm level. Options include yellow, orange, red, blue and purple. Alarm 1 is always set to yellow, and the Fault alarm is always set to Red. -
Page 19: Chapter 5 Calibration Procedure
Calibration Procedure 5.1 Preparation Calibration is the most important function for ensuring correct operation of the SensePoint Series of gas detectors. The CAL MODE is designed to make calibration quick, easy and error free, and a successful Zero and Span calibration requires only four keystrokes. The 4-20mA output transmits 3mA during the calibration, and 4mA during calibration purge to prevent alarms. -
Page 20: Figure 11 Calibration Diagram
Figure 11 Calibration Diagram Prior to beginning your calibration make sure you have the following items: 1. A cylinder of calibration gas with concentration equal to the SPAN GAS VALUE setting (RC Systems typically recommends choosing a value at 50% of full scale.) 2. - Page 21 5. Sufficient length of flexible tubing to connect the regulator to the calibration adaptor UM-1096 Revision A...
-
Page 22: Routine Calibration Procedure
Use the following step-by-step procedure to perform Zero and Span calibrations (Figure 13 may be used for reference to the Menus.): Note: The first three steps must be performed before the timer expires, 15 seconds, otherwise the SensePoint will exit back to the Data Display Screen. Cal Conf i r m Appl y : 0... -
Page 23: Bump Test Procedure
5.3 Bump Test Procedure Note: A bump test, when performed correctly, is meant to check both sensor and alarm functionality. This results in expected alarms, and proper precautions should be taken. Also known as a functionality test, a bump test is not meant to test the accuracy of the detector, and no calibration settings are changed during the test. -
Page 24: Chapter 6 Maintenance Procedure
RC Systems recommends performing calibrations at regular intervals to ensure proper functionality of the SensePoint. During routine calibration, RC Systems recommends a visual inspection of sensor head, enclosure and conduit entries to check for cleanliness and physical integrity. Cleaning the detector is recommended when necessary but be aware that some cleaning compounds may be detected by an operational detector depending on the sensor type. -
Page 25: Appendix 1 Gas Detector Specifications
(Inside) Width 6” (152 mm), Height 6” (152 mm), Depth 4.10” (104 mm)” Shipping weight 6.5 pounds (3 kg) Audible 94 dB at 1 meter Warranty Up to 5 years * see standard warranty clause on our website Figure 14 SensePoint Specifications Table UM-1096 Revision A... -
Page 27: Appendix 2 Sensor Specifications
Appendix 2 Sensor Specifications Relateive Gas Target gas Formula IDLH Min Span Max Span Density Acetaldehyde C2H4O 200ppm 2000ppm (Ca) 30ppm 1500ppm Acetylene C2H2 0.91 asphyxiant 0-100% LEL Ammonia 50ppm 300ppm 25ppm 1000ppm Ammonia 50ppm 300ppm 1250ppm 5000ppm Arsine AsH3 2.69 0.5ppm 3ppm... - Page 28 Relative Humidity (non- TYPE TEMP °F Application Notes condensing) <3 -40° to 131° 0 to 99% <5 <10 -40° to 158° up to 99% Millenium sensor <20 <60 -4° to 104° 15 to 90% <30 <90 -4° to 104° 15 to 90% <20 <60 -4°...
-
Page 29: Appendix 3 Modbus Table And Operations
The following table describes the SensePoint Modbus slave database. Any portion of this data may be read by a Modbus master device such as a PC, PLC, DCS or RC Systems ViewSmart controllers. Since the Modbus port is RS-485, multiple SensePoints may be multi-dropped onto the same cable. -
Page 30: System Registers
System Registers Input Registers Function Function Address Type Code to Code to Size Notes Read Write 0- OK 1- Alarm 1 2- Alarm2 3- Alarm3 4- Fault 5- Warmup 6- Inhibited 7- Zero Calibration 8- Calibration Span 9- Calibration Purge Unsigned 10- Calibration Mode Packed Status... - Page 31 Boot Date 32006 Date Last Power up date Boot Time 32009 Time Last Power up Time Holding Registers Command Alarm Reset 40001 write 1 to Write to acknowledge alarm activate Command Set Unity 40002 write 1 to 6/16 activate Command Start Inhibit 40003 write 1 to...
-
Page 32: Relay Registers
Comm 2 LED 0-No 40048 Selection 6/16 Enable 1-Yes Comm 2 Term 0-No 40049 Selection 6/16 Resistor 1-Yes Table 1 System Registers Relay Registers Input Registers Function Function Address Type Code to Read Code to Write Size Notes 0-Clear Standard Relay 1 State 32020 Selection 1-Triggered... - Page 33 0-Alarm 1 1-Alarm 2 3-Alarm 3 3-Fault Relay 2 Source 40116 Selection 6/16 4-Cal Mode 5-Cal Zero 6-Cal Span 7-Disabled 0-No Relay 2 Acknowledge 40117 Selection 6/16 1-Yes 0-No Relay 2 Failsafe 40118 Selection 6/16 1-Yes Relay 2 Refresh Time 40119 Integer 6/16...
-
Page 34: Sensor Registers
Sensor Registers Input Registers Function Function Code to Code to Address Type Read Write Size Notes 0-No Send Sensor Life 40153 Selection 6/16 1-Yes Packed 16 ASCII characters (2 per Contact Info String 40160 6/16 Character String register) 0-Unlocked Security 40182 Selection 6/16... -
Page 35: Channel Registers
Channel Registers Input Registers Function Function Address Type Code to Code to Size Notes Read Write 0-No Alarm 1 Status 33017 Selection 1-Yes 0-No Alarm 1 Flashing 33018 Selection 1-Yes 0-No Alarm Status 33019 Selection 1-Yes 0-No Alarm Flashing 33020 Selection 1-Yes 0-No... - Page 36 0-High Alarm 2 Trip 43012 Selection 6/16 1-Low Alarm 2 On Delay 43013 Integer 6/16 Activation delay in seconds Alarm 2 Off Delay 43014 Integer 6/16 Deactivation delay in minutes Alarm 2 Deadband% 43015 Integer 6/16 Percent of scale 0-Red Alarm 2 Color 43016 Selection...
- Page 37 Temperature Temp Comp -40C 43099 32-bit FP Gain ;32-bit FP Offset Comp Temperature Temp Comp -30C 43103 32-bit FP Gain ;32-bit FP Offset Comp Temperature Temp Comp -20C 43107 32-bit FP Gain ;32-bit FP Offset Comp Temperature Temp Comp -10C 43111 32-bit FP Gain ;32-bit FP Offset Comp...
-
Page 38: Appendix 4 Menu Navigation
Appendix 4 Menu Navigation M ai n M enu Out put Set t i ngs > I nput Set t i ngs > Com m Set t i ngs > Main Menus Secur i t y > Ev ent Log >... -
Page 39: Output Settings
Output Settings Output Settings Menus Out put Set t i ngs Anal og Out put > Rel ay 1 > Analog Outputs Rel ay 2 > Fault mA Rel ay 3 > I nhi bi t > Allows the user to configure the mA output when the detector is in the Fault condition. - Page 40 I nput Set t i ngs Al ar m 1 > Al ar m 2 > Al ar m 3 > Input Settings Menus Faul t Al ar m > Dat a Fr om > Conf i gur e > Setpoint (Alarm 1, 2, 3 and Fault) ...
- Page 41 Dat a Fr om Sour c e Sens or Rem ot e Sens or M i n Raw M ax Raw 4000 Input Settings Menus (cont’d) Rem ot e I D Al i as 31001 Data From (certain menu items only show up depending on the input type) ...
- Page 42 Comm Settings Menus Mode Determines the mode of operation for the communication port. Com m Set t i ng M ode M odbus Sl av e Remote Sensor Rem ot e Sens or > Radi o Set up >...
- Page 43 Comm Settings Menus (cont’d) Modbus Slave (when installed) Baud Rate allows users to set the data rate of the communication port. The options include 9600, 19200, 38400, 57600 and 115200. Parity is a bit that is added to ensure that the number of bits with the value "1"...
- Page 44 System Menus Sys t em Ver s i on v 1. 07 Version Nam e SenSm ar t Dat e 03/ 22/ 2017 The version of firmware installed on the gas detector Ti m e 15: 54: 22 Set Cont r as t >...
-
Page 45: Appendix 5 Ordering Information
(To configure your custom gas detector visit www.rcsystemsco.com) Part Number Description Reference 10-0517 SenSmart 5000 CPU Board 10-0519 SenSmart SensePoint Shield Board 10-0532 SenSmart Relay and RS-485 Modbus Option Board Accessories 10-0198 Sensor Head Splash Guard with Remote Cal Port 10-0203... -
Page 46: Appendix 7 Frequently Asked Questions
Appendix 7 Frequently Asked Questions How do I perform a calibration? To perform a calibration, please refer to Chapter 5. RC Systems recommends performing calibrations Immediately prior to placing a gas detector in service Any time a new sensor is installed ... - Page 47 Be sure to follow the calibration procedure. For Technical Support call 409-986-9800 x160 or email support@rcsystemsco.com. UM-1096 Revision A...
-
Page 48: Appendix 8 Channel States
Appendix 8 Channel States Priority Channel State Screen Color Description Green State when performing manufacturers checkout process Diagnostic White Not visible since it is a menu item Inhibit Green Used in PGA/Balance/Voltage screens Corrupted Sensor Memory is corrupted Sensor Error Sensor is found/valid, but failed to read information from the sensor Type Error Sensor mismatch, and user failed to accept the sensor... -
Page 49: Appendix 9 Drawings
Appendix 9 Drawings Drawings Figure 13 Mounting Dimensions UM-1096 Revision A... -
Page 50: Figure 14 10-0517 Cpu Board
Figure 14 10-0517 CPU Board Figure 15 10-0533 I/O Board UM-1096 Revision A... -
Page 51: Figure 16 10-0532 Modbus/Relay Board
Figure 16 10-0532 Modbus/Relay Board UM-1096 Revision A...
