Panel description

The panel consists of the following parts:
1. on/off switch
2. Fast/Slow switch for the speed control arm
3. Indicator light with alarm for correct positioning of the centrifuge arm
4. Button for lifting the heating coil(self)
5. voltage dimmer (for adjusting the alloy melting speed)
6. Switch for start of melting the alloy (fusion)
7. The indicator light for the start of melting operations
8. Injection switch indicating the start of alloy injection operations (operates
only when the top cover is placed in the closed position)
9. The indicator light for the start of ally injection
10. Stop switch
2

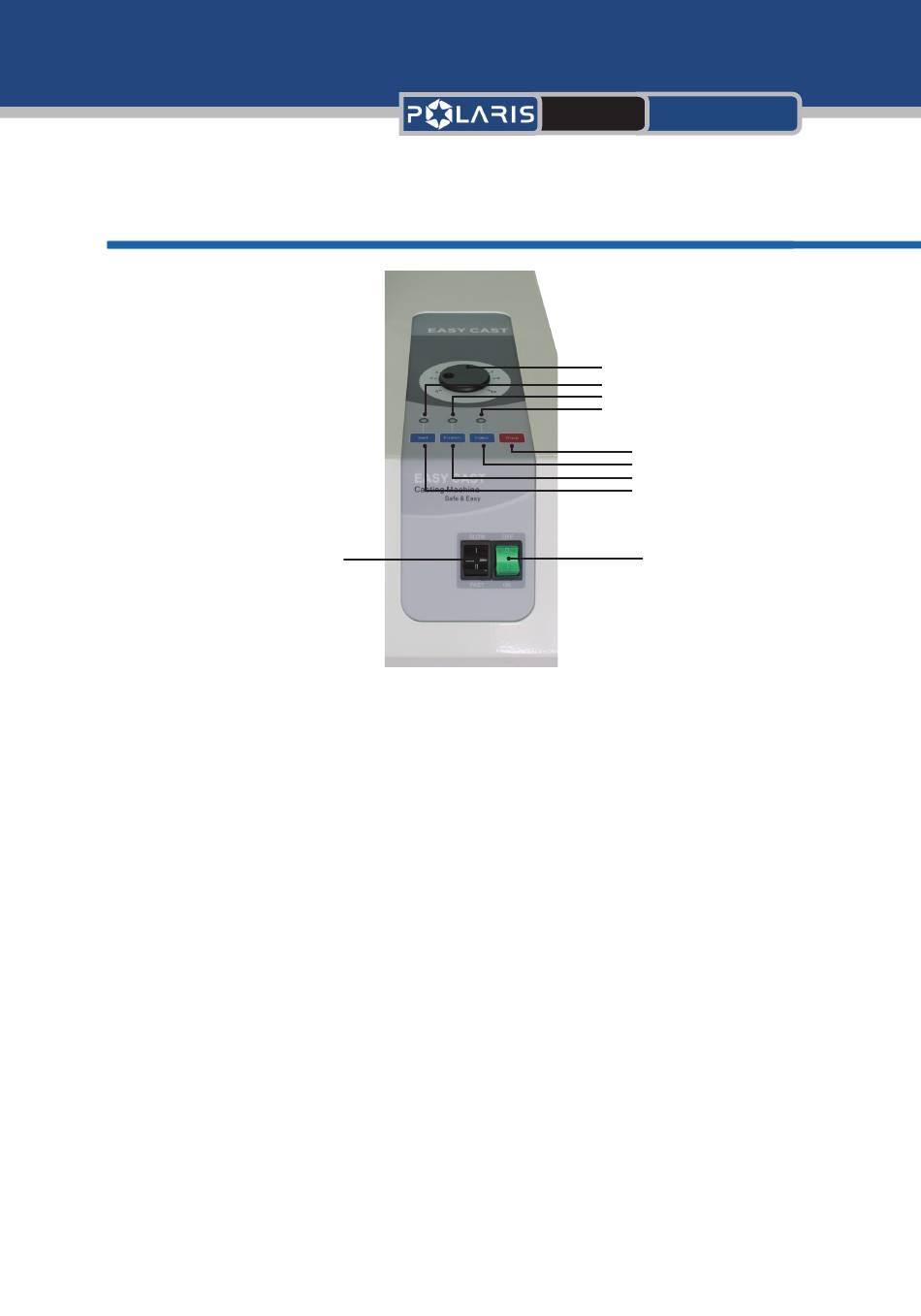

Fig. 2: The Easy Cast panel
Easy cast
Casting Machine
5
3
7
9
10
8
6
4
1
