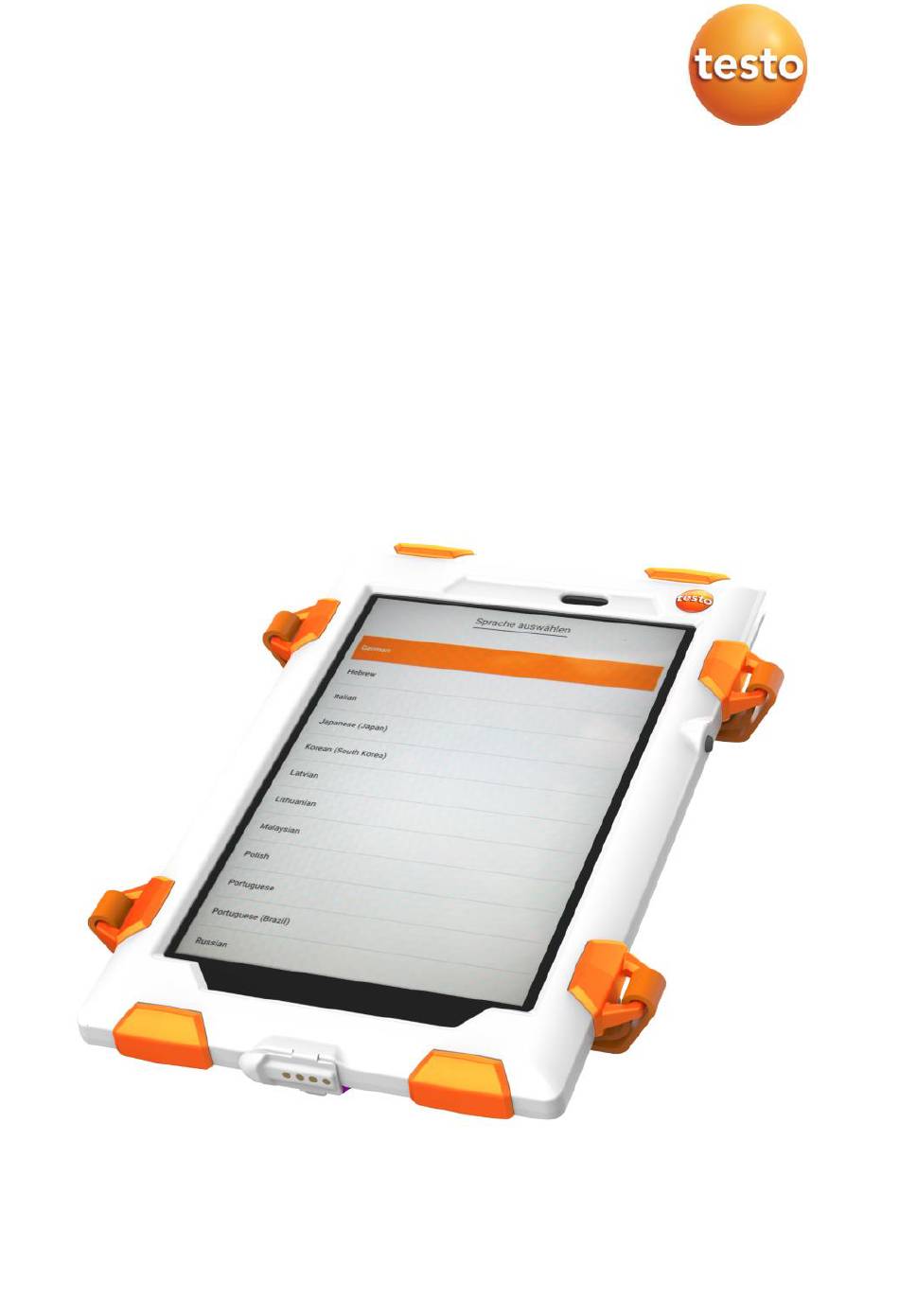

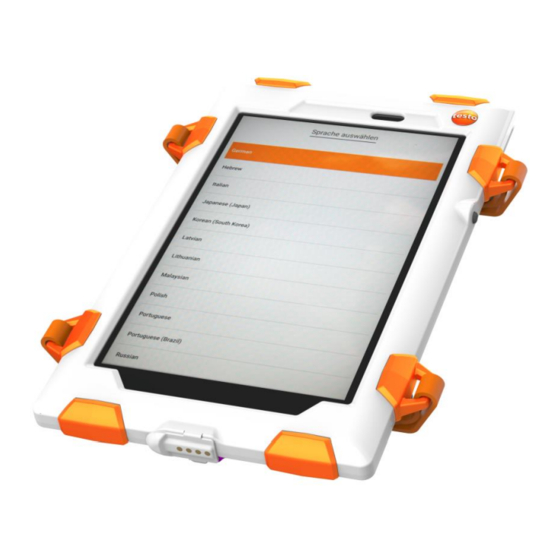

- Page 1 Saveris Control Unit 0573 2600 06 0573 2601 06 Instruction manual...
-
Page 3: Table Of Contents
6 Commissioning .................... 7 6.1 Switch on testo Saveris Control Unit ............8 6.2 Initial commissioning and set-up of the testo Saveris Control Unit ..8 6.3 User login for the testo Saveris App ............9 6.4 Overview of the testo Saveris App ............10 6.5 Pairing the testo Saveris multifunction handle / testo Saveris online data... -
Page 5: About This Document
> Action: one step or optional step Result of an action ✓ Requirement Menu Elements of the program interface [OK] Buttons of the program interface 2 Safety and disposal Please observe the Testo information document (enclosed with the product). -
Page 6: Product-Specific Approvals
Testo website at: www.testo.com. 5 Description of the instrument The main component of the testo Saveris Control Unit is a tablet with integrated application software. The integrated software guides the user quickly and easily through the quality controls that have been previously defined in the testo Saveris cockpit, with immediate prompting to take corrective actions. -
Page 7: Scope Of Delivery
5 Description of the instrument For infrared measurements, the testo 104 IR-BT (not included in the scope of delivery) can be paired with the testo Saveris Control Unit in the same way as the testo Saveris multifunction handle. (For the sake of simplicity, we will only deal with the testo Saveris multifunction handle as representative in the following.) - Page 8 5 Description of the instrument 5 Charging cable with USB connection 6 8 housing clips 7 Carrying strap 8 Charging cable with USB connector, type USB-C Mounting materials for the charging station wall bracket are not included in the scope of delivery. Please select suitable mounting materials that are appropriate for the required mounting location.
-
Page 9: Testo Saveris Control Unit Overview
6 Commissioning 5.2 testo Saveris Control Unit overview Element Element 1 On/off switch 2 Charger connection/USB port 3 Housing clip 4 Housing clip for wrist strap 5 Audio connection 6 Display 7 Main camera 8 Wrist strap 9 NFC detection area... -
Page 10: Switch On Testo Saveris Control Unit
6.2 Initial commissioning and set-up of the testo Saveris Control Unit In order to set up the testo Saveris Control Unit, you need to have successfully registered in the cockpit of the relevant solution (www.testo.com/login) and successfully created users for the testo Saveris Control Unit. -
Page 11: User Login For The Testo Saveris App
The testo Saveris App’s dashboard opens with the quality controls that need to be carried out. When you log into the testo Saveris Control Unit for the first time, the user password is by default: 0000. This must be changed following the first login. -
Page 12: Overview Of The Testo Saveris App
During the initial set-up, you can pair your testo Saveris multifunction handle with the testo Saveris Control Unit and your testo Saveris online data loggers with your account when the installation wizard finishes. Please follow the instructions of the testo Saveris App on the testo Saveris Control Unit for this. -
Page 13: Using Nfc Tags
Testo (order number 0554 2580). NFC tags are configured via the testo Saveris cockpit. The NFC tag detection area is located on the rear of the testo Saveris Control Unit. NFC tags can be assigned both to users who have already been created and also to quality checks. -
Page 14: Removing The Protective Case
ATTENTION Incorrect fitting of the protective case. Damage to the instrument. - Make sure the protective case is properly fitted on the testo Saveris Control Unit. If the charging cradle adapter has been removed, the testo Saveris Control Unit must be sealed using the cover included, in order to safeguard the IP65 IP classification. -
Page 15: Maintenance And Care
More detailed information can be found in the testo Saveris multifunction handle instruction manual. If you do not intend to carry out a measurement using the testo Saveris multifunction handle, or if this not possible, you can also enter the reading manually via the testo Saveris Control Unit keyboard. -
Page 16: Cleaning The Testo Saveris Control Unit
8 Maintenance and care Connect the mains unit to the charging cradle. Put the testo Saveris Control Unit carefully into the charging cradle. Always pay attention the contact between the charging cradle and the testo Saveris Control Unit. The charge status is indicated on the display and via the charging light. -
Page 17: Cleaning The Tablet
Use a dry, soft cloth for cleaning. 8.2.3 Cleaning the charging station Use a dry, soft cloth for cleaning. The charging station must not be subject to any damp or wet cleaning methods. 9 Technical data 9.1 testo Saveris Control Unit Feature Value Display type WUXGA Display characteristics illuminated, 16.7M, touch input - multi-touch... -
Page 18: Protective Case
236 x 149 x 16.5 mm (without clips) 590g (protective case + control unit) Weight Protection class IP65 10 Order numbers testo Saveris Control Unit Description Order no. testo Saveris Control Unit 0573 2600 06 testo Saveris Control Unit International 0573 2601 06... - Page 20 Testo SE & Co. KGaA Celsiusstr. 2 79822 Titisee-Neustadt, Germany Germany Phone: +49 (0)7653 681-0 E-mail: info@testo.de www.testo.com 0970 2614 en 01...
