Summary of Contents for TESTO Saveris 0573 2600 01

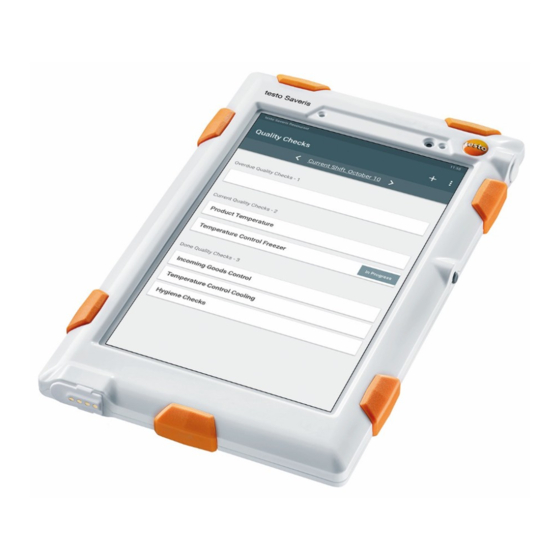

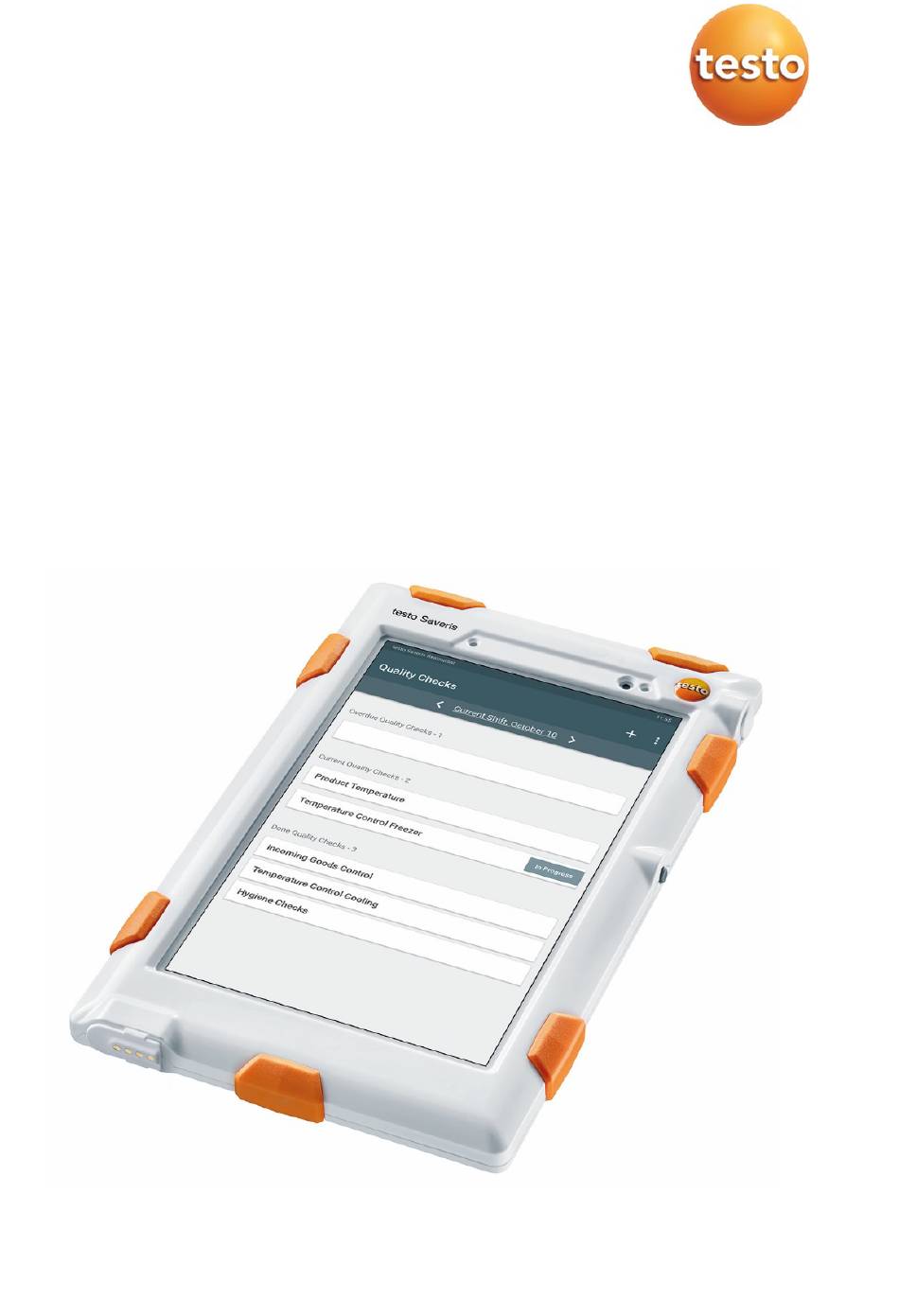

- Page 1 Saveris Control Unit 0573 2600 01 Instruction manual...
-
Page 2: Table Of Contents
Commissioning ..................7 Switch on testo Saveris Control Unit ..............7 Initial commissioning and set-up of the testo Saveris Control Unit ...... 7 User login for the testo Saveris App ..............8 Overview of the testo Saveris App ..............9 Pairing the testo Saveris multifunction handle / testo Saveris online data loggers ........................... -
Page 3: About This Document
Elements of the program interface [OK] Buttons of the program interface 2 Safety and disposal Please observe the Testo information document (enclosed with the product). 3 Product-specific approvals Please find the current country approvals in the attached Approval and Certification document. -
Page 4: Support
Testo website at: www.testo.com. 5 Description of the instrument The main component of the testo Saveris Control Unit is a tablet with integrated application software. The integrated software guides the user quickly and easily through the quality controls that have been previously defined in the testo Saveris cockpit, with immediate prompting to take corrective actions. -
Page 5: Scope Of Delivery
5 Description of the instrument Scope of delivery 1 testo Saveris Control Unit including protective housing (testo Saveris App already installed on the Control Unit) 2 Wrist strap with housing clips 3 Charging station with stand 4 Wall bracket for... -
Page 6: Testo Saveris Control Unit Overview
Mounting materials for the charging station wall bracket are not included in the scope of delivery. Please select suitable mounting materials that are appropriate for the required mounting location. testo Saveris Control Unit overview Element Element 1 On/off switch... -
Page 7: Commissioning
Initial commissioning and set-up of the testo Saveris Control Unit In order to set up the testo Saveris Control Unit, you need to have successfully registered in the cockpit of the relevant solution (www.testo.com/login) and successfully created users for the testo Saveris Control Unit. -
Page 8: User Login For The Testo Saveris App
The testo Saveris App’s dashboard opens with the quality controls that need to be carried out. When you log into the testo Saveris Control Unit for the first time, the user password is by default: 0000. This must be changed following the first login. -
Page 9: Overview Of The Testo Saveris App
During the initial set-up, you can pair your testo Saveris multifunction handle with the testo Saveris Control Unit and your testo Saveris online data loggers with your account when the installation wizard finishes. Please follow the instructions of the testo Saveris App on the testo Saveris Control Unit for this. -
Page 10: Using Nfc Tags
Testo (order number 0554 2580). NFC tags are configured via the testo Saveris cockpit. The NFC tag detection area is located on the rear of the testo Saveris Control Unit. NFC tags can be assigned both to users who have already been created and also to quality checks. -
Page 11: Removing The Protective Case
ATTENTION Incorrect fitting of the protective case. Damage to the instrument. - Make sure the protective case is properly fitted on the testo Saveris Control Unit. If the charging cradle adapter has been removed, the testo Saveris Control Unit must be sealed using the cover included, in order to... -
Page 12: Operation
More detailed information can be found in the testo Saveris multifunction handle instruction manual. If you do not intend to carry out a measurement using the testo Saveris multifunction handle, or if this not possible, you can also enter the reading manually via the testo Saveris Control Unit keyboard. -
Page 13: Cleaning The Testo Saveris Control Unit
8 Maintenance and care Make sure that the charging cradle adapter for the charging station is installed on the testo Saveris Control Unit. This must be removed manually by taking off the protective case for direct charging via the special charging cable. -
Page 14: Cleaning The Tablet
Cleaning the charging station 8.2.3 Use a dry, soft cloth for cleaning. The charging station must not be subject to any damp or wet cleaning methods. 9 Technical data testo Saveris Control Unit Feature Value Display type WUXGA Display characteristics illuminated, 16.7M, touch input - multi-touch... -
Page 15: Protective Case
Protective case Feature Value Dimensions 236 x 149 x 16.5 mm (without clips) 590g (protective case + control unit) Weight Protection class IP65 10 Order numbers testo Saveris Control Unit Description Order no. testo Saveris Control Unit 0573 2600 01... - Page 16 Testo SE & Co. KGaA Celsiusstr. 2 79822 Titisee-Neustadt Germany Phone: +49 (0)7653 681-0 E-mail: info@testo.de www.testo.com 0970 2602 en 03...
