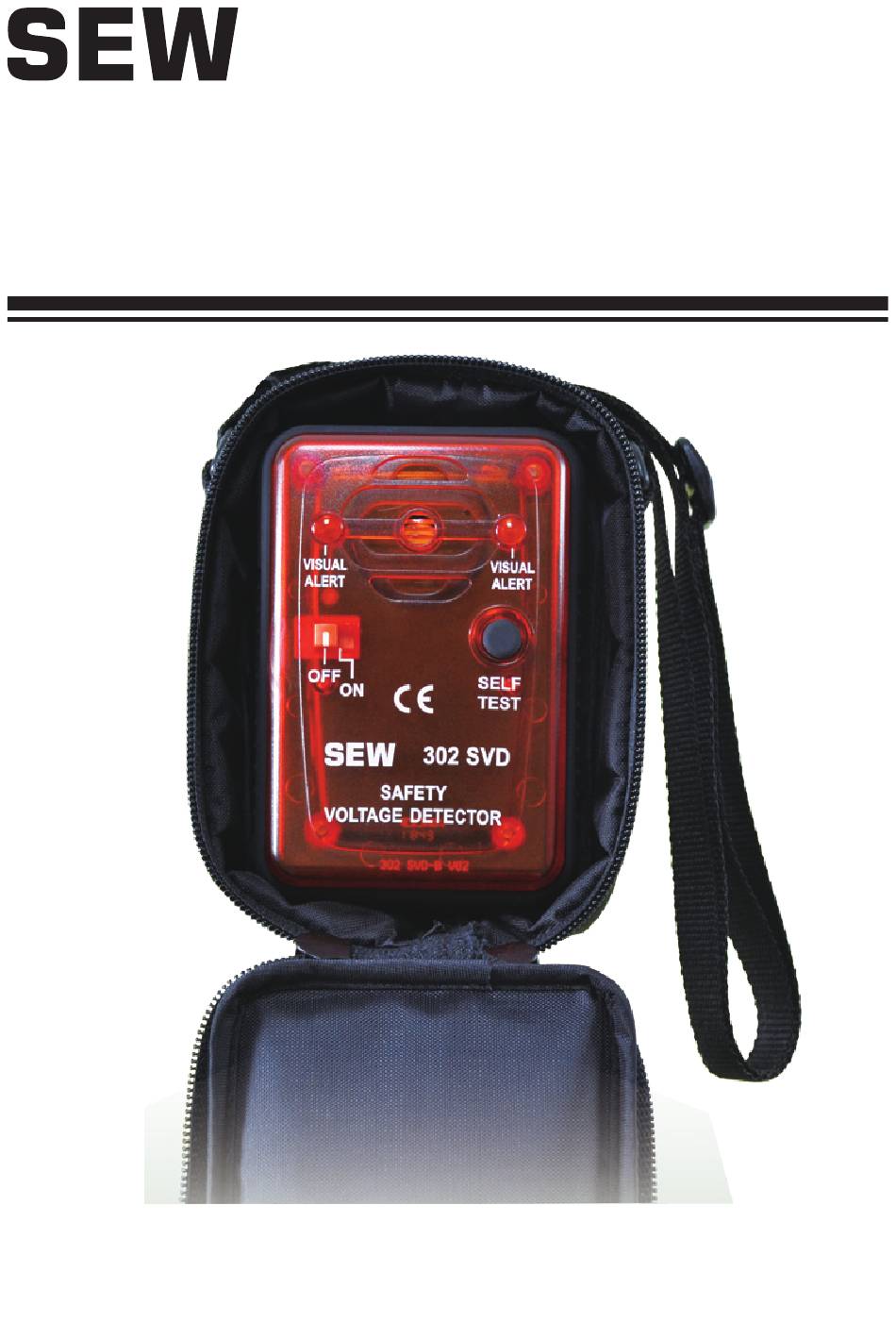

- Page 1 302 SVD SAFETY VOLTAGE DETECTOR INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
INDEX Page 1. Safety Rules ........1 2. General Description ......2 3. Features ..........3 4. Specifications ........4 5. Instrument Layout ......5-6 6. Method of use ........7-9 7. Battery replacement ......10 8. Cleaning and Storage ....... 10 Caution, risk of electric shock Caution, refer to the user manual... -
Page 3: Safety Rules
1. Safety Rules The safety voltage detector has been designed with safety in mind. However, no design can completely protect against incorrect use. Electrical circuits are dangerous and lethal through lack of caution or poor safety practice. The following rules should reduce the danger: ●... -
Page 4: General Description
2. General Description The safety voltage detector is a new instrument for checking the presence of AC voltages. The safety voltage detector detects AC voltages using the sensor plate. The sensor plate collects part of the radiated electric field (V/M). The safety voltage detector works by proximity. -
Page 5: Features
3. Features ● Bright LED visual indication ● Audible indication ● AC voltage detection: 100Vac ~ 50kVac ● Frequency range: 50/60Hz ● Easy-to-prove method ● Self-test function ● Power source: 1.5V(AA) alkaline battery × 3 ● Non-contact detection by proximity ●... -
Page 6: Specifications
4. Specifications AC Voltage detection 100Vac ~ 50kVac Frequency range 50/60 Hz Operating temperature 0°C ~ 40°C / 80% R.H. and humidity Max. Sound level > 99 dB Weight Approx. 205g (battery included) Dimension 107(L) x 73(W) x 33(D)mm 1.5V (AA) x 3 Power source (Alkaline battery) Safety standard... -
Page 7: Instrument Layout
5. Instrument Layout ① ② ⑧ ③ ④ ⑦... - Page 8 ⑤ ⑥ ① Buzzer High noise level buzzer triggered on voltage detection. ② VISUAL ALERT LED ③ ON/OFF switch ④ SELF TEST button ⑤ Clip ⑥ Battery cover ⑦ Soft pouch ⑧ Shoulder belt...
-
Page 9: Method Of Use
6. Method of use Important: It's necessary to put the safety voltage detector into the soft pouch for voltage detection. Please remember to put the 302 SVD into the soft pouch before doing the voltage detection. ● CHECKING AND PROOFING Turn the ON/OFF switch to the ON position, then press the SELFTEST button, the buzzer of the safety voltage detector should beep,... - Page 10 For example, the safety voltage detector has to be in the soft pouch, put the safety voltage detector on your chest with the shoulder belt around your neck. Please see fig1. VISUAL VISUAL ALERT ALERT SELF TEST 302 SVD SAFETY VOLTAGE DETECTOR...
- Page 11 The safety voltage detector could be sensitive to static build-up and may become charged. In this case, this could trigger the alarm. The safety voltage detector should be facing the direction of walking toward the AC power source. While facing the AC power source, this would be the front of your body.
-
Page 12: Battery Replacement
7. Battery replacement (1) Unscrew the battery cover and replace with new batteries. (2) Re-install the battery cover. Battery cover Battery 8. Cleaning and Storage Periodically, wipe the case with a damp cloth and Detergent. Do not use abrasives or solvents.
