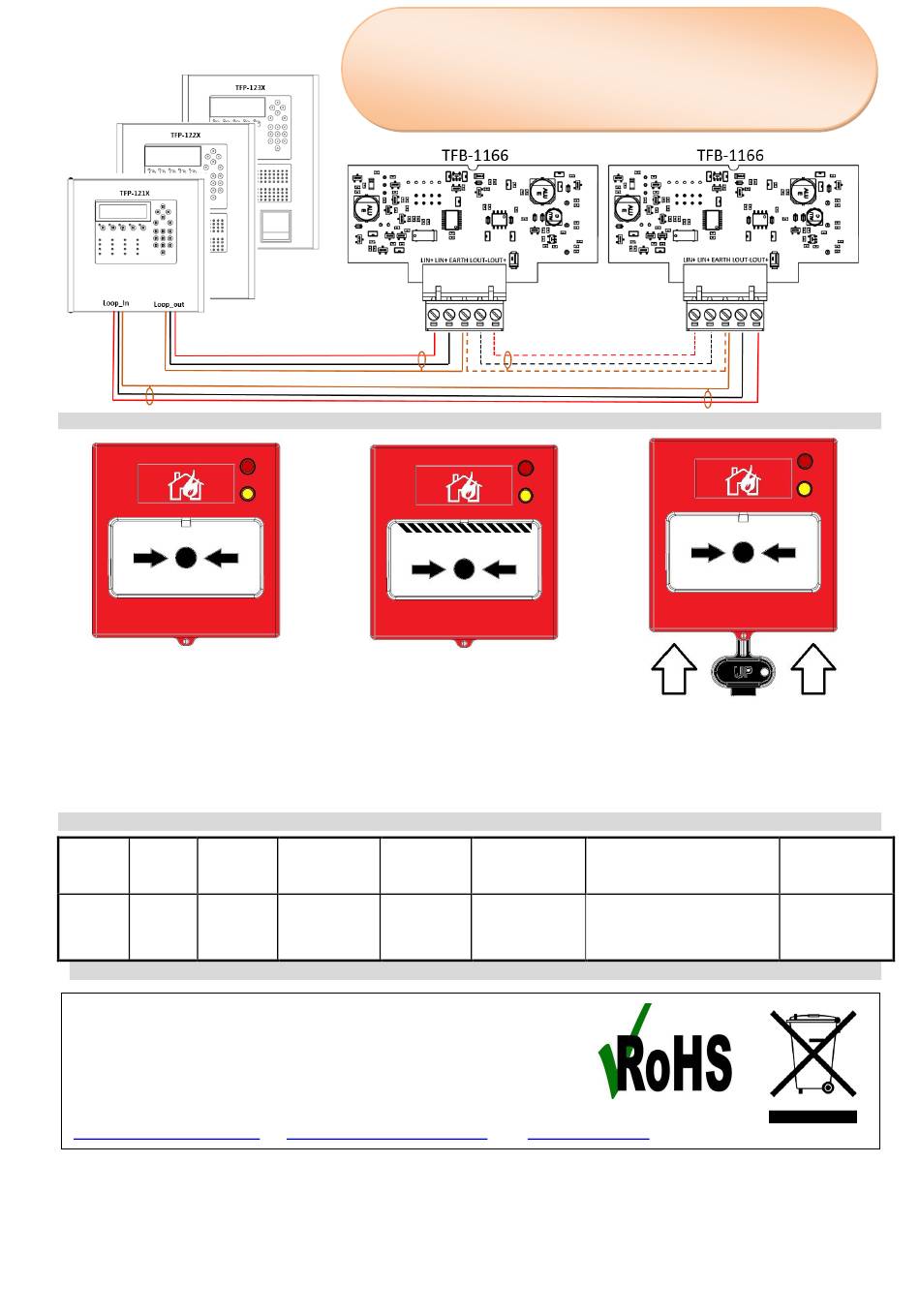

Teknim TFB-1166 Installation And User Manual page 4

TEST
1) Press the center point.
FEATURES
Operating
Model Voltage
Voltage
TFB- 1166 24 VDC 15-32 VDC
MANUFACTURER
Bilgi Elektronik San. ve Tic. A.Ş.
Dudullu Organize Sanayi Bölgesi 1. Cadde İsmet Tarman İş Merkezi
No:1 Kat:2 No:32 Ümraniye / İstanbul
Phone: +90 216 455 88 46 Fax: +90 216 455 99 06
www.bilgielektronik.com.tr
*Complies with WEEE regulations. This product is made of high-quality parts and materials which are recyclable and
reusable. Therefore, do not dispose of the product with household or other waste at the end of its service life. Take it to a
collection point for the recycling of electrical and electronic equipment.
This Product only works with Teknim TFP-12XX
Analogue Addressable Fire Alarm Panels
2) Alarm status is observed in
Fire Panel. In this case, the LED
on the button will turn solid RED.
Average /
Cable
Alarm
Selection
Consumption
100uA. / 0,8mm ~
4,5mA. 2.0mm
sales@bilgielektronik.com.tr
IMPORTANT WARNING!
3) Insert the key, push it upwards and
observe that the panel is reset after
resetting the button. In this case, the LED
on it starts flashing Blue light at 20 seconds
intervals.
Temperature and
Type of Frangible Element
Humidity
-10 ~ +70
A, Indoor Usage
≤93% @ +40°C
(Surface + Under Surface
www.teknim.com
.
Body Material,
Dimensions,
Weight
RED ABS
86x55x88mm
Mounted)
145 gr
