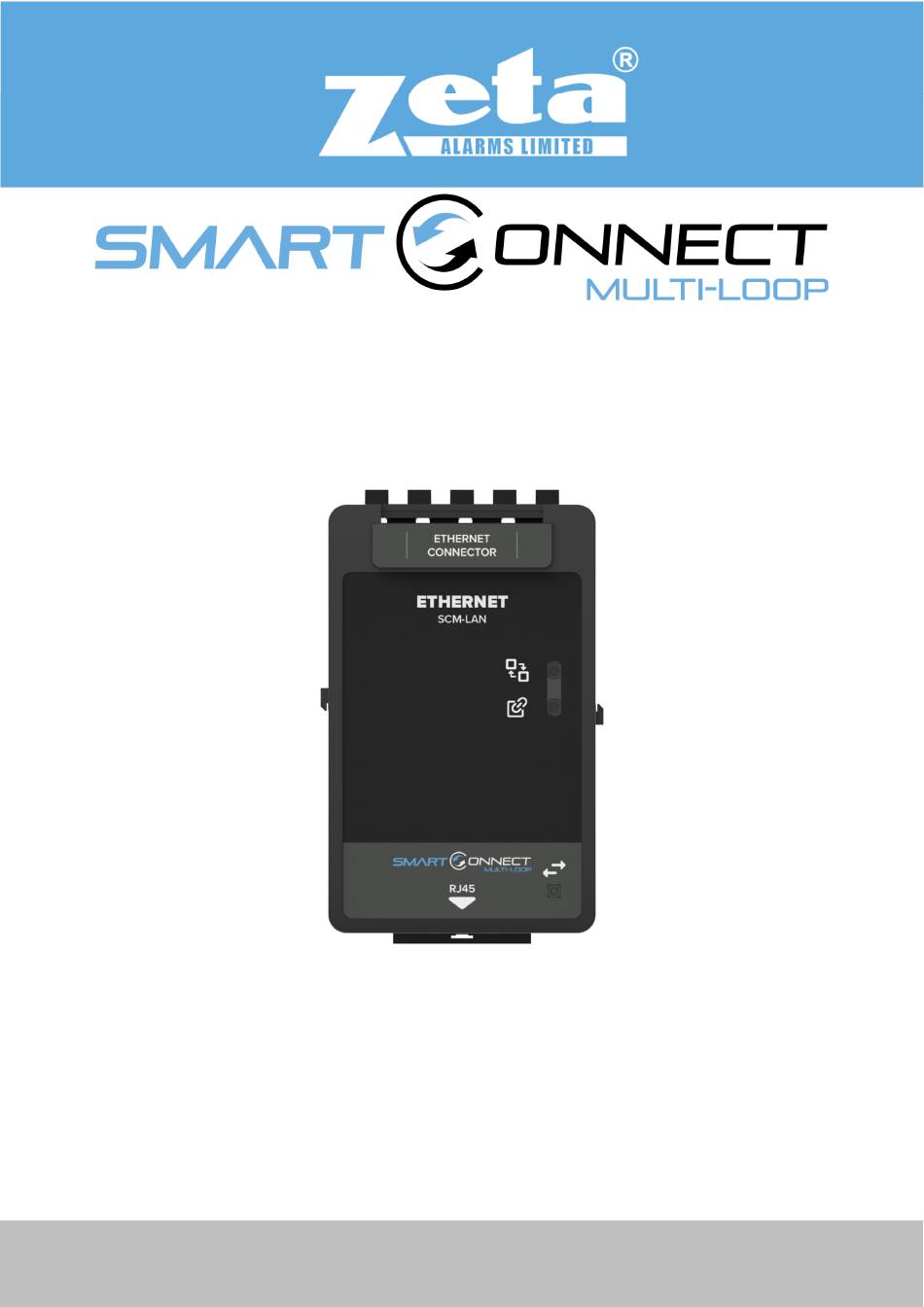

- Page 1 TCP/IP MODULE INSTRUCTION MANUAL SCM-LAN DOC: GLT-294-7-15 ISS: 001 DATE: 30.04.2021...

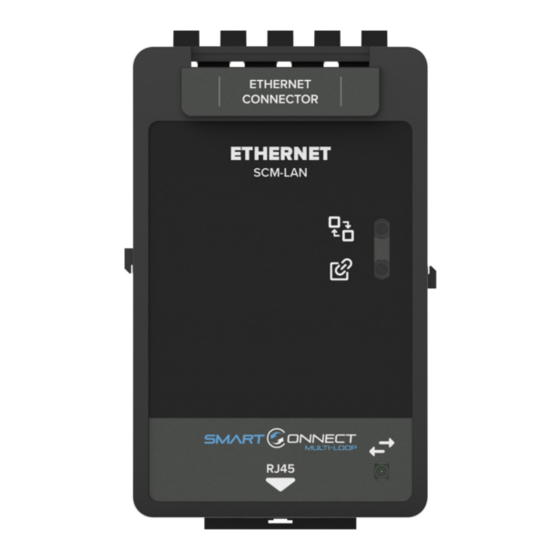

- Page 2 TCP/IP MODULE INSTRUCTION MANUAL General The SCM-LAN is a TCP/IP module that is designed to be DIN mounted inside of a Smart Connect Multi-loop control panel. It’s powered and is interfaced to the panel via a RJ45 connection. The module provides a Smart Connect Multi-loop CIE with a TCP/IP connection that allows the panel to report events to an external monitoring system, such as Datalog or Zeta Remote.
- Page 3 TCP/IP MODULE INSTRUCTION MANUAL TRM RJ45 Port Address Designation Each RJ45 port on the Smart Connect Multi-loop termination has its own unique port address. This port address is important to keep note of as it is displayed on Alarm/Fault messages and is used when configuring or setting up cause and effects on the panel (See SCM operation manual GLT-261-7-10).
- Page 4 TCP/IP MODULE INSTRUCTION MANUAL Power on Procedure 1. After the above has been completed, turn the panel on (Via AC Only). The panel will follow the same power up sequence described in initial power up section above 2. The panel will now display one of the following messages Message Meaning Panel has not detected any modules fitted...
- Page 5 TCP/IP MODULE INSTRUCTION MANUAL Check that the module configuration is as expected using the to navigate the through the port numbers. Press the icon to confirm the changes. The new module is now configured into the panel and is ready for use. Since the batteries are not connected, the panel will report them as removed, lighting the yellow “Fault”...
- Page 6 TCP/IP MODULE INSTRUCTION MANUAL Specifications Specification SCM-LAN Design Standard EN54 Approval LPCB (Pending) Quiescent current 46.5mA Alarm Current 46.5mA Connection RJ45 Connection Type CAT 5 Minimum Operating Temperature -5°C (23°F) to 40°C (104°F) Max Humidity 93% Non-Condensing Size (mm) (HxWxD) 103mm x 97mm x 46mm Weight 0.2KG...
