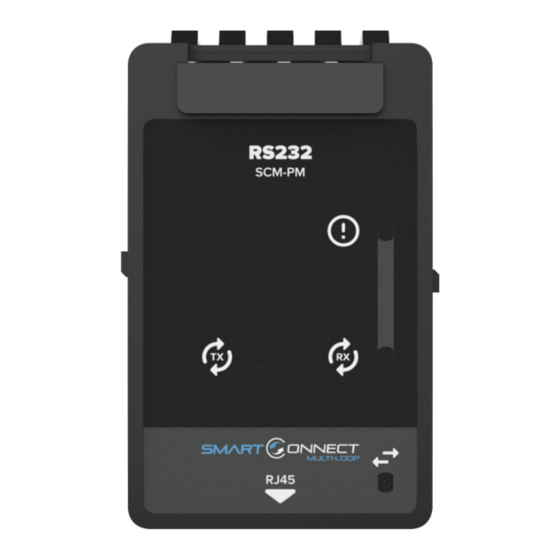

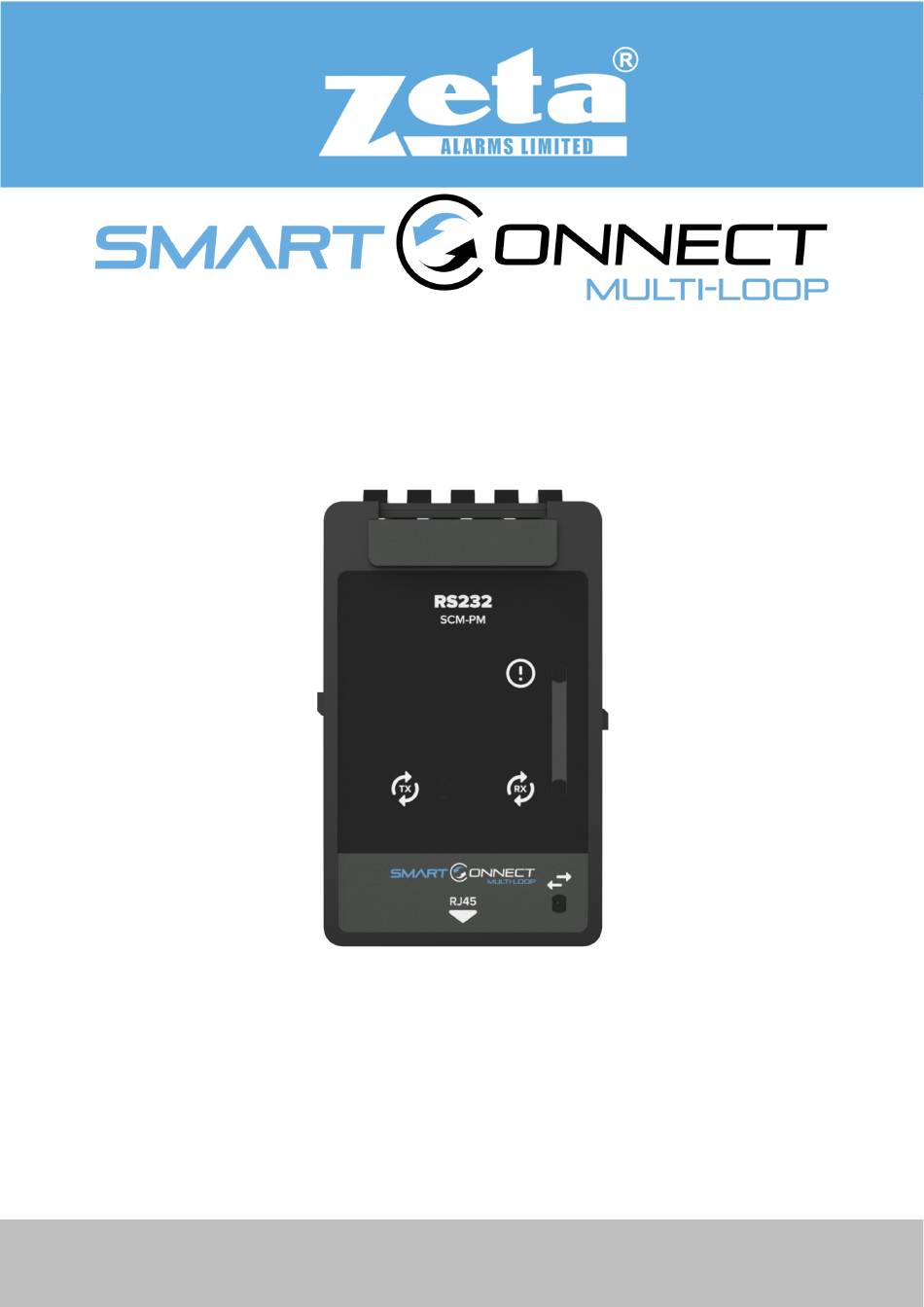

- Page 1 RS232 PRINTER DRIVER MODULE INSTRUCTION MANUAL SCM-PM DOC: GLT-294-7-14 ISS: 001 DATE: 10.02.2021...
- Page 2 PRINTER MODULE INSTRUCTION MANUAL General The plug-in RS232 module will give a Smart Connect Multi-loop panel the ability to interface to RS232 serial equipment and devices. This is used to connect the CUSTOM PLUS2 Panel Printer to the panel. The module also has a 5V aux output that is used to provide power to the printer.
- Page 3 PRINTER MODULE INSTRUCTION MANUAL TRM RJ45 Port Address Designation Each RJ45 port on the Smart Connect Multi-loop termination has its own unique port address. This port address is important to keep note of as it is displayed on Alarm/Fault messages and is used when configuring or setting up cause and effects on the panel (See SCM operation manual GLT-261-7-10).
- Page 4 PRINTER MODULE INSTRUCTION MANUAL Power on Procedure 1. After the above has been completed, turn the panel on (Via AC Only). The panel will follow the same power up sequence described in initial power up section above 2. The panel will now display one of the following messages Message Meaning Panel has not detected any modules fitted...
- Page 5 PRINTER MODULE INSTRUCTION MANUAL Check that the module configuration is as expected using the to navigate the through the port numbers. Press the icon to confirm the changes. The new module is now configured into the panel and is ready for use. Since the batteries are not connected, the panel will report them as removed, lighting the yellow “Fault”...
- Page 6 PRINTER MODULE INSTRUCTION MANUAL Front Unit LED Indications LED Indication Description LED Indication Description Flashing yellow when a fault on the Flashing green when the RS232 is RS232 circuit is detected. receiving information. Flashing green when the RS232 is Pulses to show communication between transmitting information.
