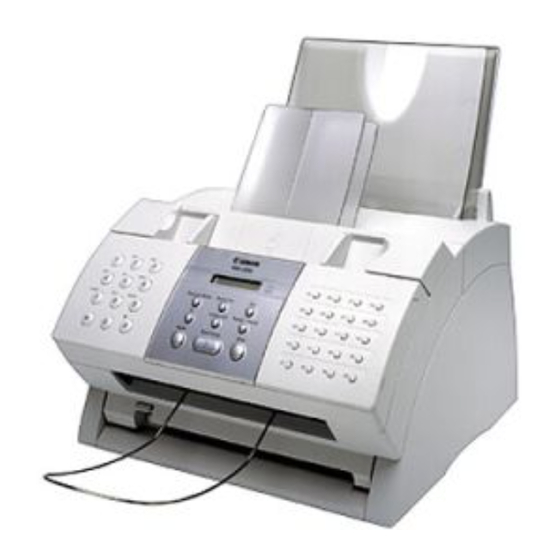

Canon FAX L200 Getting Started Manual

Canon faxmachine getting started guide l280, l200
Hide thumbs Also See for FAX L200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
FAX-L280/L200
Getting Started Guide
Please Read
This First!
The following pages have been copied from the FAX-L280/L200 User's Guide to
get you started. Please use the FAX-L280/L200 User's Guide for full details.
ENGLISH

Advertisement

Table of Contents
loading

Related Manuals for Canon FAX L200

Summary of Contents for Canon FAX L200

  • Page 1 FAX-L280/L200 Getting Started Guide Please Read This First! The following pages have been copied from the FAX-L280/L200 User’s Guide to get you started. Please use the FAX-L280/L200 User’s Guide for full details. ENGLISH...

  • Page 2: Table Of Contents

    Contents Unpacking the FAX ... Removing Shipping Materials ... Assembling the FAX ... Connecting the Telephone Line Cord and External Devices ... Connecting the Power Cord ... Installing the Toner Cartridge ... Loading Paper ... Operation Panel ... Special Function Buttons ... Entering the Date and Time ...

  • Page 3: Unpacking The Fax

    Unpacking the FAX (2-2) Before unpacking your FAX, be sure to choose a suitable location for it p. 1-5). Make sure you have the following items: DOCUMENTATION SUPPORT TRAYS FX-3 TONER CARTRIDGE MAIN UNIT If you have purchased the optional handset, see Appendix B for the items included.

  • Page 4: Assembling The Fax

    Assembling the FAX (2-5) Follow this procedure to assemble your FAX: Attach the paper loading warning label to the left of the multi-purpose tray. Insert the ends of the document support into the slots on the unit. For details on attaching the optional handset to your FAX, see Appendix B.

  • Page 5: Connecting The Telephone Line Cord And External Devices

    Connecting the Telephone Line Cord and External Devices (2-6) Connect the supplied telephone line cord to jack, then the other end to the telephone line jack on your wall. Connecting the Power Cord (2-8) Connect the supplied power cord to the power cord connector.

  • Page 6: Installing The Toner Cartridge

    Installing the Toner Cartridge (2-11) Make sure the FAX is plugged in. Lift the latch and open the front cover. Remove the new FX-3 toner cartridge from its protective bag. Save the protective bag in case you need to repack the toner cartridge at a later date.
  • Page 7 Hold the toner cartridge by its handle and insert it into the FAX as far as it will go, making sure that its tabs are aligned with the rails inside the unit. Hold the toner cartridge as shown. Use both hands to close the front cover.

  • Page 8: Loading Paper

    Loading Paper (2-14) Remove the multi-purpose tray cover from the FAX. Prepare a stack of paper by tapping it on a flat surface to even its edges. Open the paper guides to the approximate width of the stack. Insert the stack into the multi-purpose tray facing you and top edge first), then adjust the paper guides to...

  • Page 9: Operation Panel

    Operation Panel (2-10) Receive Mode Button Chapter 8) R Button ( Hook Button pp. 6-17, 7-6, 9-3) Numeric Buttons p. 3-2) Special Function Buttons Data Registration Button ( p. 14-3) Delayed Transmission Button ( pp. 7-14, 7-16, 7-17) Report Button pp.

  • Page 10: Entering The Date And Time

    Entering the Date and Time (3-6) Follow this procedure to set the current date and time: Open the one-touch speed dial panel. Press Data Registration. Press Set three times. The date and time currently set for your FAX are displayed. Use the numeric buttons to enter the correct day, month, year, and time in this order.
  • Page 11 TELEPHONE # Press Set. Use the numeric buttons to enter your fax/telephone number (max. 20 digits, including spaces). To enter a space, press Space. Spaces are optional but make the number easier to read. To enter a plus sign (+) before the number, press Tone/+.

  • Page 12: Sending Methods

    Sending Methods (7-5) This section explains the two main sending methods: Memory sending and Manual sending via the handset. Memory Sending (7-5) Memory sending is a quick and easy way to send a document. As the FAX scans the first page of a multipage document into its memory, it begins calling the other party and transmitting the information even as the remaining pages are being scanned.

  • Page 13: Manual Sending Via The Handset

    When you are ready to send your document, ask the other party to press the start button on their fax machine. When you hear the high-pitched signal of the other party’s fax machine, press Start/Copy and hang up to begin sending the document.

  • Page 14: Registering One-Touch Speed Dialling

    The numbers in parentheses indicate the pages in the FAX-L280/L200 User’s Guide on which you can find detailed information. to select TEL to select the one-touch p. 9-2). to delete the DATA REGSTRATION TEL REGISTRATION 1-TOUCH SPD DIAL TELEPHONE NUMBER TEL=_ TEL=20 545 8545_ DATA ENTRY OK NAME Canon EUROP_ A...

  • Page 15: Sending A Document With Speed Dialling

    Press Set. This completes the basic one-touch speed dialling settings. To continue registering other one-touch speed dialling buttons, press Data Registration and repeat the procedure from step 5. -or- To end registering one-touch speed dialling buttons, press Stop to return to standby mode.

  • Page 16: Receiving Faxes Automatically: Fax Only Mode

    Receiving Faxes Automatically: FAX ONLY MODE (8-3) If you have a separate telephone line for fax use only, connect your FAX to this line and set FAX ONLY MODE. Your FAX will answer all calls as fax calls. Setting FAX ONLY MODE Press Receive Mode to select FAX ONLY MODE.

  • Page 17: Receiving Both Faxes And Telephone Calls Automatically: Fax/Tel Mode

    Receiving Both Faxes and Telephone Calls Automatically: Fax/Tel Mode (8-5) Set this mode if you only have one telephone line for fax and telephone use and want your FAX to automatically switch between fax and voice calls. For this mode, you need to connect the optional handset or a telephone to your FAX ( p.

  • Page 18: Receiving Faxes Manually: Manual Mode

    Start your conversation. If the caller wants to send a document after talking to you, ask them to press the start button on their fax machine. When you hear a long beep, press Start/Copy on your FAX and hang up to begin receiving the document.

  • Page 19: Making A Quick Single Copy

    Making a Quick Single Copy (10-3) Follow this procedure if you want to make a quick single copy of a document without adjusting the resolution, contrast, or size: Load the document, face down in the ADF ( Press Start/Copy twice to begin copying.

  • Page 20: Notes

    NOTES...
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 24 Europe, Africa and Middle East Canon Europa N.V. P.O. Box 2262, 1180 EG Amstelveen, Netherlands LGSXA610 (91)LGSXA610 Specifications subject to change without notice. LGSXA610-0401 Canon Europa N.V. 2001 Printed in The Netherlands Canon (U.K.) Ltd. Woodhatch Reigate Surrey RH2 8BF United Kingdom...
