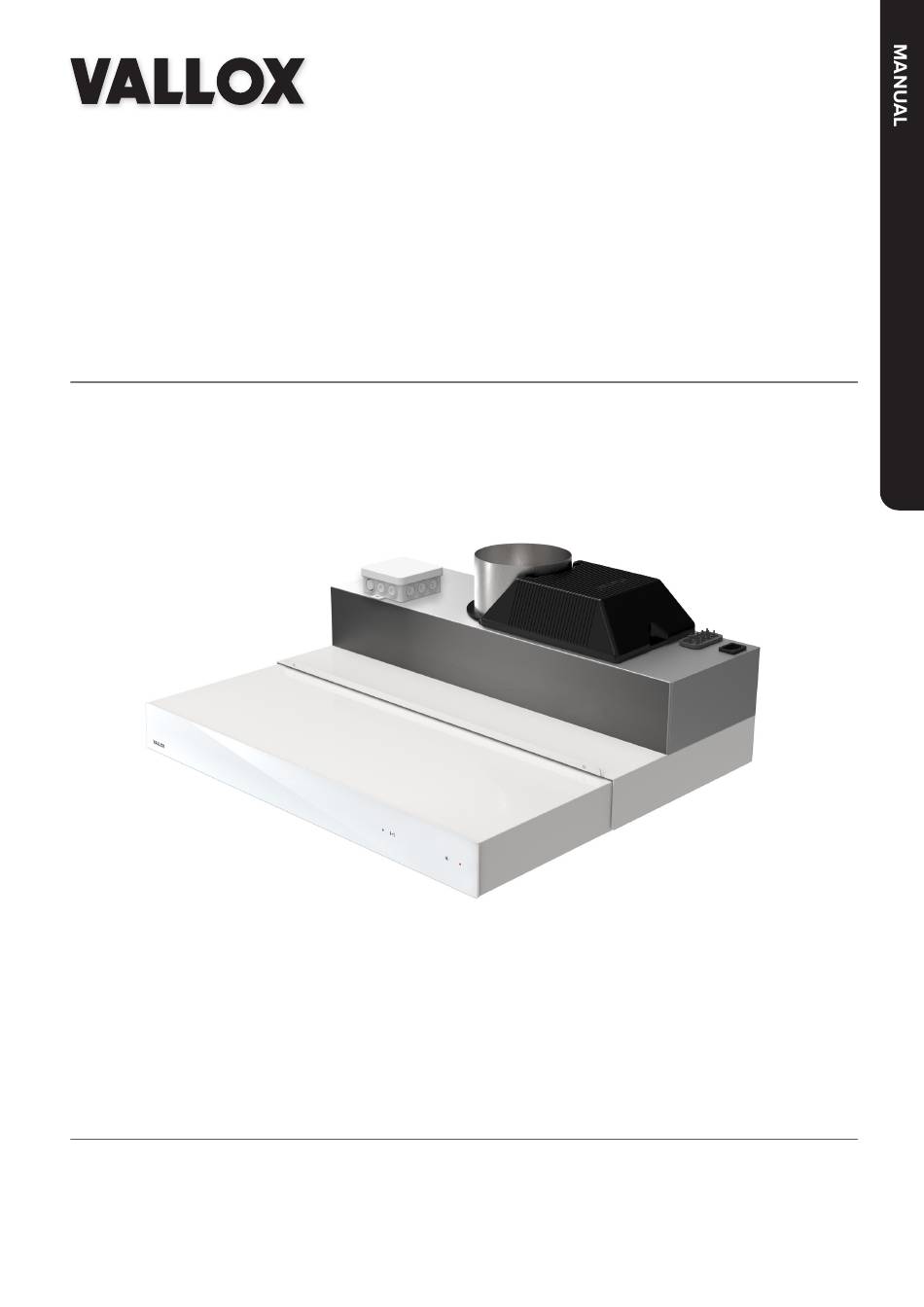

Vallox
Delico
Manual

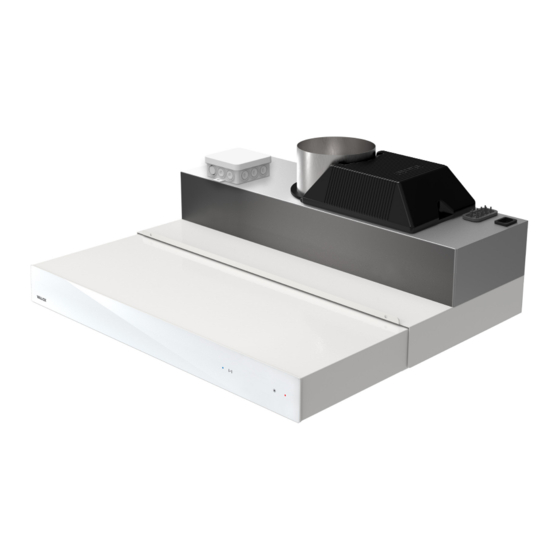

The Vallox Delico KTD A cooker hood is designed to be used above the cooker
top, or as a general extraction valve in the kitchen.
The hood has a timer damper and a guard function.
KTD A
Model
Document
Vallox Delico KTD A
D9520
Type
Valid from
A279842-1
01.11.2020
Updated
18.12.2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vallox Delico KTD A
Summary of Contents for Vallox Delico KTD A
- Page 1 Vallox Delico KTD A Manual The Vallox Delico KTD A cooker hood is designed to be used above the cooker top, or as a general extraction valve in the kitchen. The hood has a timer damper and a guard function.
- Page 2 Poten- tial-free contact data and 230 V 4 A supply voltage are provided of the position of the damper. When Vallox Delico KTD A is connected to the joint extraction system of a multi-storey building, a Vallox CAUTION Smoke Limiter must also be installed.
- Page 3 Mount the grease filter back in place. Push the front edge of the filter into the pins on the cooker hood, and click the rear edge in place. NOTE Ensure that the locking device points downwards. © Vallox Oy - All rights reserved...
- Page 4 Vallox Delico KTD A INSTALLATION L = Left Where needed, install a cover strip behind the cooker hood to R = Right cover the opening. ø 125 mm 293 - 310 311 - 333 duct connector Install the right mounting strip similarly to the left.
- Page 5 ACTIVATED GUARD FUNCTION = FLASHING POSITION OF THE DAMPER: DAMPER CLOSED = CONTACT OPEN DAMPER OPEN = CONTACT CLOSED 3 POTENTIAL FREE CONTACT DATA 24VDC/5A RS 485 A B GND IN OUT IN OUT IN OUT ALARM © Vallox Oy - All rights reserved...
- Page 6 Vallox Delico KTD A TOTAL PRESSURE LOSS AND SOUND VALUES Total pressure loss with standard ventilation (damper closed) Adjustment position bB(A) Total pressure loss with boost ventilation (damper open) Air flow dm /s...
- Page 7 Damper open accordance with the manual of the Smoke Limiter. K VALUES Adjustment Holes of K value position the damper open Damper open Air flow dm /s © Vallox Oy - All rights reserved...
- Page 8 Vallox Delico KTD A www.vallox.com Vallox Oy | Myllykyläntie 9-11 | 32200 LOIMAA | FINLAND Customer service +358 10 7732 200 | Technical support +358 10 7732 270...
