Manual

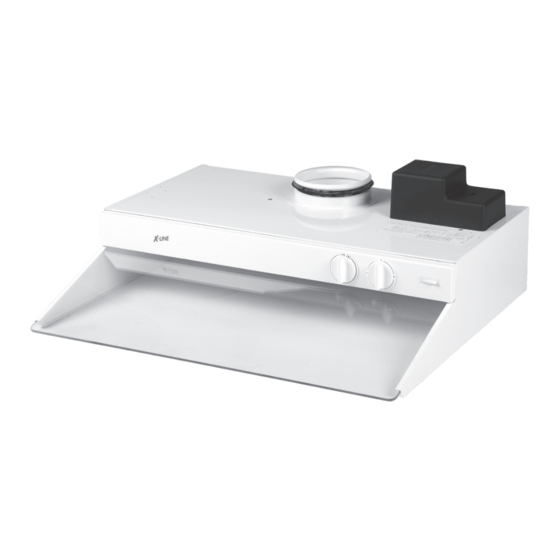

The Vallox X-Line PTXP control hood is suited to controlling AC roof fans and AC
ventilation units.
The cooker hood is designed to be used above the cooker top, as a general extraction
valve in the kitchen, and as a ventilation system control panel.
Model
Document
Vallox X-Line PTXP
D11207
Type
Valid from
27983-3
28.02.2020
Updated
28.04.2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vallox X-Line PTXP
Summary of Contents for Vallox X-Line PTXP

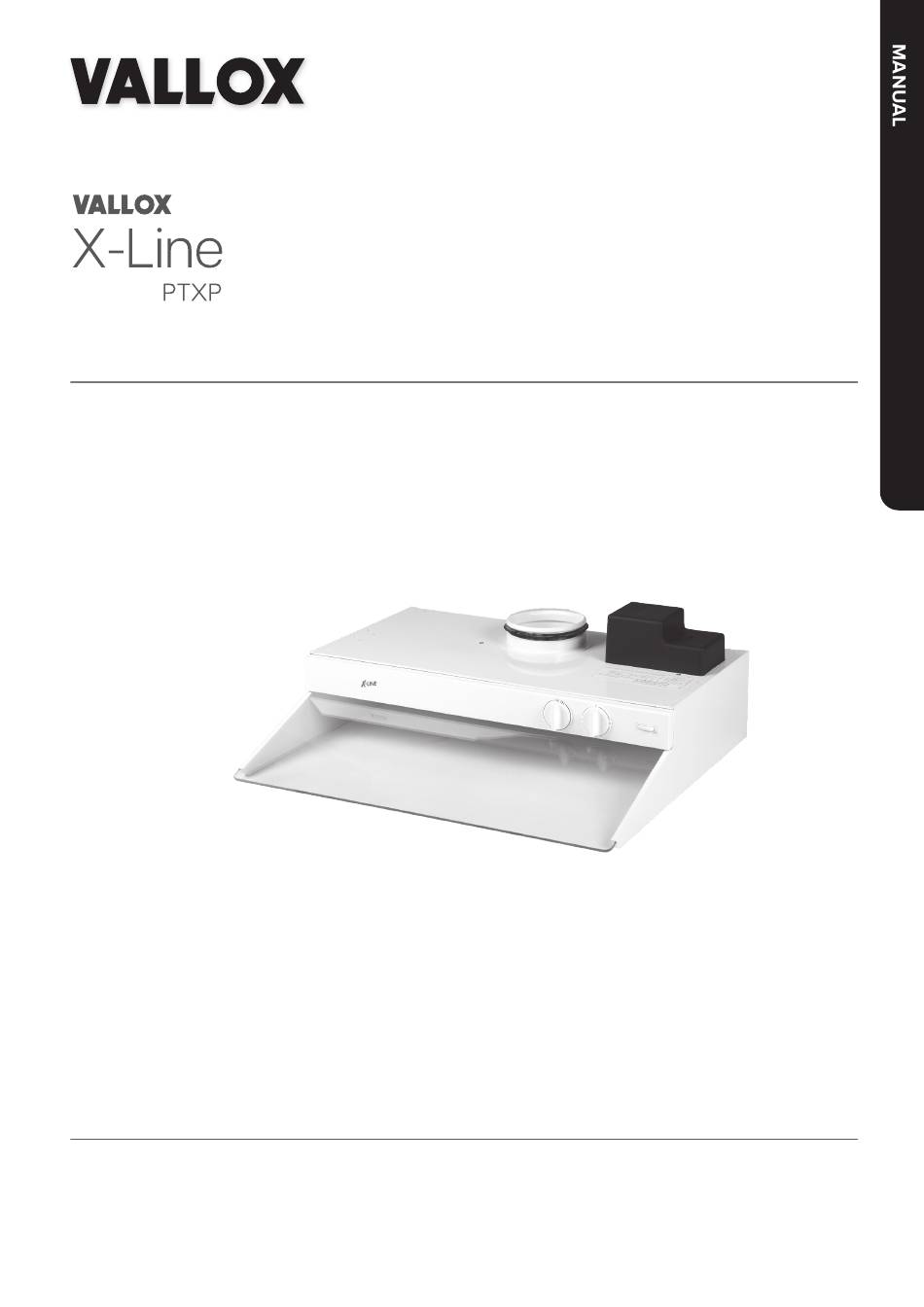

- Page 1 Updated 28.04.2023 Manual The Vallox X-Line PTXP control hood is suited to controlling AC roof fans and AC ventilation units. The cooker hood is designed to be used above the cooker top, as a general extraction valve in the kitchen, and as a ventilation system control panel.
- Page 2 VENTILATION CONTROL WARNING Apartment-specific ventilation units allows residents to If the ventilation of the apartment adjust the ventilation efficiency. Ventilation is controlled is turned off, the entry of fresh based on the need e.g. through the cooker hood, replacement air into the apartment ventilation control panel, or a separate control centre.
- Page 3 1. Shorten the extract air duct to be connected to the hood (125 mm spiral duct) to the correct length. 2. Where required, install a Vallox cover strip, for instance, (2142400 cover strip 500 or 2142500 cover strip 600) to cover the opening in the rear wall.
- Page 4 1. Damper closed (25 mm open) 2. Damper half open 3. Damper open L pA , dB(A) L pA , dB(A) L pA , dB(A) Air volume flow rate, dm3/s www.vallox.com Vallox Oy | Myllykyläntie 9-11 | 32200 LOIMAA | FINLAND...
