Summary of Contents for BROKIS Dome Nomad

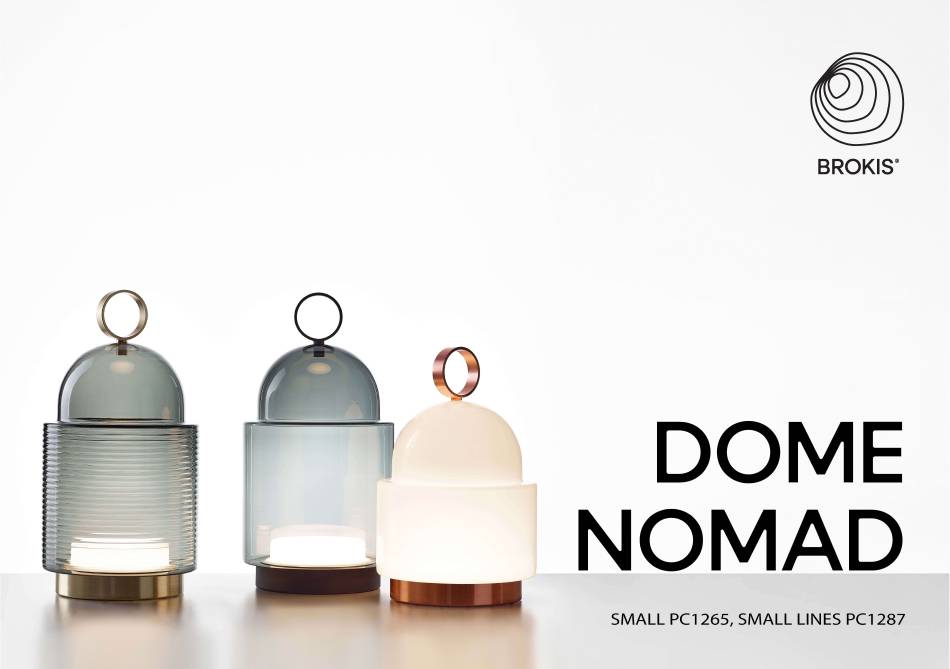

- Page 1 CM14132...
- Page 2 PICKED UP BY THE TOP RING ONLY. THE MANUFACTURER WILL NOT ACCEPT DAMAGE CLAIMS ARISING FROM INCORRECT HANDLING. Installation time: 5 minutes / 1 person BROKIS S.R.O. ORG. ID 64940799 TEL +420 567 211 517 ŠPANIELOVA 1315/25 VAT ID CZ64940799 TECHNICAL@BROKIS.CZ...
- Page 3 Cleaning information CLEANING THE GLASS: BROKIS upholds only the highest possible quality standards. Prior to shipping, the light undergoes several quality controls and stages of cleaning. Because transportation, storage, and the amount of time that passes between packing at our plant and subsequent unpacking by the client can affect the light in different ways, we strongly recommend cleaning it prior to assembly.
- Page 4 SWITCHING THE LIGHT ON AND OFF / DIMMING Place a finger on the side of the base to switch the light on and off or adjust the brightness. PAGE 4...
- Page 5 CLEANING / DISASSEMBLING THE LIGHT AND REPLACING THE GLASS 1/3 Prior to cleaning the internal parts, the light must be disconnected from all power sources. Place the light on its side on a soft surface to prevent damage to the glass. Use the supplied size 6 hex key to remove the M10 screw from the bottom of the light.
- Page 6 CLEANING / DISASSEMBLING THE LIGHT AND REPLACING THE GLASS 2/3 Holding the centre screw firmly to prevent damage to the light, use the supplied size 7 wrench to remove the M4 nuts around the circumference of the heat sink and then remove the stainless-steel ring. Do not let go of the screw! PAGE 6...
- Page 7 CLEANING / DISASSEMBLING THE LIGHT AND REPLACING THE GLASS 3/3 Holding the heat sink with light source in the upright position, move it into the glass shade, turn it sideways 90 degrees, and then pull it out through the indentations in the glass. After cleaning, reassemble the light by following the steps in reverse order.
- Page 8 CHARGING THE LIGHT Charge the light by placing the magnetic connector of the charging cable on the light. Charging is indicated by a blinking green diode, which changes to solid green when charging is complete. Time to full charge: 6.5 hours Battery life from full charge: 4.5 hours Recommended charging adapter: 5V / 1.4A PAGE 8...
