SERVICE MANUAL

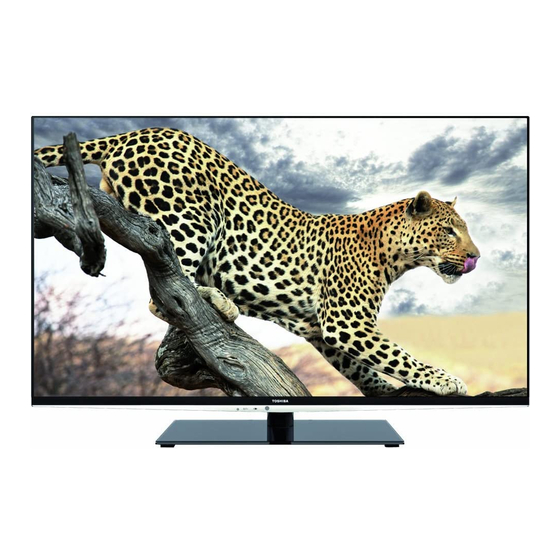

LCD Color Television
47VL963G
Ver. 1.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the 47VL963G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toshiba 47VL963G

Summary of Contents for Toshiba 47VL963G

  • Page 1 SERVICE MANUAL LCD Color Television 47VL963G Ver. 1.00...

  • Page 2: Entering Service Mode

    ADJUSTMENT Service Mode Entering Service Mode 1. Press button once on Remote Control. (Sound Mute display) ↓ 2. Press button again and keep pressing. (Sound Mute display is canceled) ↓ 3. While pressing the button, press button on TV control panel. (Service Mode display)
  • Page 3 TV control panel during Service Mode, Adjustment menu is switched off/on. Adjustment menu = Off button button ↑ ↓ on control panel on control panel Adjustment menu = ON >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.
  • Page 4 ADJUSTMENT Service Mode Key Function in the Service Mode The following key entry during display of adjustment menu provides special functions. CAUTION: Never try to perform initialization unless you have changed the memory IC. Button Function button (on Remote) Test signal selection (on Remote) Selection of the adjustment items Volume...
  • Page 5 ADJUSTMENT Service Mode Selecting the Adjusting Items While displaying the adjustment menu, press the P button to cycle through the adjustment items in the order of table. (P button for reverse order)
  • Page 6 ADJUSTMENT Service Mode Adjusting the Data While displaying the adjustment menu, press the VOLUME +/− button to change the value of data in the range from 00H to FFH. The variable range depends on the adjusting item.
  • Page 7 ADJUSTMENT Service Mode Exit from Service Mode Press the POWER button once to turn off the TV.

  • Page 8: Test Signal Selection

    ADJUSTMENT Service Mode Test Signal Selection While displaying the adjustment menu, every pressing of button on the Remote Control changes the built-in test patterns on screen as described below.

  • Page 9: Led Indications

    ADJUSTMENT Service Mode LED Indications SW Upgrade and Error conditions indicated by the PowerOn/Standby and ProgrammeTimer LEDs are described below. ProgramTimer LED PowerOn/Standby LED For Service SW Upgrade in Progress Green Orange For Service SW Upgrade in Failed For Service SW Upgrade in Successful Green Refer to the Owner's Manual about LED indications for general operations.
  • Page 10 ADJUSTMENT Service Mode Adjusting Items in the Service Mode Item Description RCUT RED CUTOFF GCUT GREEN CUTOFF BCUT BLUE CUTOFF RDRV RED DRIVE GDRV GREEN DRIVE BDRV BLUE DRIVE OSRC COOL R-CUTOFF-OFFSET for COOL OSRC NATURAL R-CUTOFF-OFFSET for NATURAL OSRC WARM R-CUTOFF-OFFSET for WARM OSGC COOL G-CUTOFF-OFFSET for COOL...
  • Page 11 OSGD 3D COOL G-DRIVE-OFFSET for COOL (3D) OSGD 3D NATURAL G-DRIVE-OFFSET for NATURAL (3D) OSGD 3D WARM G-DRIVE-OFFSET for WARM (3D) OSBD 3D COOL B-DRIVE-OFFSET for COOL (3D) OSBD 3D NATURAL B-DRIVE-OFFSET for NATURAL (3D) OSBD 3D WARM B-DRIVE-OFFSET for WARM (3D) OPT1 OPTION DATA 1 OPT2...
  • Page 12 BRTC HDMI PC STANDARD BRIGHTNESS CENTER HDMI PC STANDARD BRTC HDMI PC MOVIE BRIGHTNESS CENTER HDMI PC MOVIE BRTC HDMI PC PC BRIGHTNESS CENTER HDMI PC PC BRTC HDMI HD DYNAMIC BRIGHTNESS CENTER HDMI HD DYNAMIC BRTC HDMI HD STANDARD BRIGHTNESS CENTER HDMI HD STANDARD BRTC HDMI HD MOVIE BRIGHTNESS CENTER HDMI HD MOVIE...
  • Page 13 COLC HDMI SD MOVIE COLOR CENTER HDMI SD MOVIE COLC HDMI SD PC COLOR CENTER HDMI SD PC COLC ATV DYNAMIC COLOR CENTER ATV DYNAMIC COLC ATV STANDARD COLOR CENTER ATV STANDARD COLC ATV MOVIE COLOR CENTER ATV MOVIE COLC DTV DYNAMIC COLOR CENTER DTV DYNAMIC COLC DTV STANDARD COLOR CENTER DTV STANDARD...
  • Page 14 SHPC VIDEO STANDARD SHARPNESS CENTER VIDEO STANDARD SHPC VIDEO MOVIE SHARPNESS CENTER VIDEO MOVIE SHPC YPBPR HD DYNAMIC SHARPNESS CENTER YPBPR HD DYNAMIC SHPC YPBPR HD STANDARD SHARPNESS CENTER YPBPR HD STANDARD SHPC YPBPR HD MOVIE SHARPNESS CENTER YPBPR HD MOVIE SHPC YPBPR SD DYNAMIC SHARPNESS CENTER YPBPR SD DYNAMIC SHPC YPBPR SD STANDARD SHARPNESS CENTER YPBPR SD STANDARD...
  • Page 15 ADJUSTMENT Service Mode Convert from Bit (Binary) to Hex The table for converting from bit (D7-D0) to hex (0x**) BIT (Binary) High nibble Low nibble E.g. If Bit D7-0 = 0101 1010, Hex data is 0x5A.
  • Page 16 [Example] TV Model 40TL933K (B) If any shipout code has not been received, then (-) shall be shown for Shipout. Shipout will be implemented in running change. 2 TV Model ID No function of this change. 3 Toshiba App Version...
  • Page 17 This version corresponds to APP SW Version, but the depiction is different. The naming rule is as follows. 4 Boot Code Version Version information of boot code. 5 APP SW Version Version information of Application SW. 6 FRC SW Version Version information of FRC SW.
  • Page 18 The status of PVR key. CRC is used to judge whether the PVR key is valid, or invalid. If a valid PVR key is written in the set, then "OK xxxxxxxx" shall be displayed. "xxxxxxxx" represents CRC. If an invalid PVR key is written in the set, then "NG xxxxxxxx" shall be displayed.
  • Page 19 Serial number for HDCP2.0. CRC is used to judge whether HDCP2.0 key is valid, or invalid. If a valid HDCP2.0 key is written in the set, then the serial number shall be displayed with 8 hexadecimal digits. If an invalid HDCP2.0 key is written in the set, then 8 hexadecimal digits of the serial number and "NG"...
  • Page 20 ADJUSTMENT Service Mode Initialization of Main PCB Whenever replacing the Defective Main Board with new one, perform the Model ID installation. < Models > 32/40/46TL933, 32/40/46TL936, 32/40/46TL963, 32/40/46TL966, 32/40/46UL975, 23/32/40RL933, 23/32/40RL936, 23/32/40SL970, 32/40RL953, 42/47/55VL963, 42/47/55XL975, 40/46ML933 Model ID Installation < Preparation > Copy the required Model ID file on USB according to the model.
  • Page 21 40TL966 G/B/N 40TL963K_xxxxxx_WOAP.bin 75028637 40TL963C_xxxxxx_WOAP.bin 46TL966 G/B/N 46TL963K_xxxxxx_WOAP.bin 46TL963A_xxxxxx_WOAP.bin 32UL975 G 32TL963K_xxxxxx_WOAP.bin 32TL963C_xxxxxx_WOAP.bin 40UL975 G 40TL963K_xxxxxx_WOAP.bin 40TL963C_xxxxxx_WOAP.bin 46UL975 G 46TL963K_xxxxxx_WOAP.bin 46TL963A_xxxxxx_WOAP.bin 23RL933 G/F/B/N 23RL933L_xxxxxx_WOAP.bin 23RL936 G 75028638 23RL933L_xxxxxx_WOAP.bin 23SL970 G 23RL933L_xxxxxx_WOAP.bin 32RL933 G/F 32RL933K_xxxxxx_WOAP.bin 40RL933 G/F 40RL933K_xxxxxx_WOAP.bin 32RL936 G 32RL933K_xxxxxx_WOAP.bin 75028639 40RL936 G 40RL933K_xxxxxx_WOAP.bin...
  • Page 22 47VL963 G/R/F/N 47VL963L_xxxxxx_WOAP.bin 55VL963 G/R/F/N 55VL963L_xxxxxx_WOAP.bin 75030017 42XL975 G 42VL963L_xxxxxx_WOAP.bin 47XL975 G 47VL963L_xxxxxx_WOAP.bin 55XL975 G 55VL963L_xxxxxx_WOAP.bin For some models, there are 2 types depending on panel. K: Samsung, C: CMO, A: AUO, L: LG For those models, 2 kinds of Model ID setting file are prepared. "xxxxxx"...
  • Page 23 Figure.2...
  • Page 24 Panel Identification Panel vendor Marking Panel Vendor Marking Panel Vendor Marking Panel Vendor SHARP SAMSUNG LPL/LGD (Serial No. part printed on Rating Label) >> terms and conditions >> privacy policy TOSHIBA WEB-ZEUS Copyright © 1995-2012 TOSHIBA Corporation, All Rights Reserved.
  • Page 25 ADJUSTMENT Service Mode Setting Hotel Mode Hotel mode allows for customizing specified TV operations that are suitable for hotel use.
  • Page 26 ADJUSTMENT Service Mode Entering Hotel Mode Menu 1. Press button once on Remote Control. (Sound Mute display) ↓ 2. Press button again and keep pressing. (Sound Mute display is canceled) ↓ 3. While pressing the button, press "+" button on TV control panel. (Hotel Mode Settings Menu)
  • Page 27 4. To enable Hotel Mode, use the arrow keys while "Hotel Mode" item is highlighted to select "On". Once Hotel Mode is on, the Hotel Mode settings will be enabled for adjusting. 5. Use the arrow keys to access the hotel mode settings. Use the arrow keys to change the settings.
  • Page 28 ADJUSTMENT Service Mode Setting Hotel Mode Menu Settings Factory Gray Out Item Options Description settings Conditions Hotel Mode Disable Hotel Mode. All the settings of Hotel Mode are disabled. Enable Hotel Mode Control Panel Allow use of all Control panel - Grayed out buttons when "Hotel...
  • Page 29 be grayed out and forced to "Off". Setup Menu Allow access to SETUP - Grayed out menu when "Hotel Mode" = [Off] Prohibit access to the setup menu. SETUP menu icon is grayed out and it is prohibited to select (skip). (If gray-out of SETUP menu icon is difficult, skipping without gray-out is...
  • Page 30 does not exist on VIDEO1 VIDEO1 POS/VIDEO" = the model should [Off] VIDEO2 VIDEO2 not be shown. (eg. VIDEO3 VIDEO3 "DTV" is not shown on ATV models.) HDMI1 HDMI1 HDMI2 HDMI2 HDMI3 HDMI3 HDMI4 HDMI4 Change Volume TV volume level does not - Grayed out change when TV powers on when "Hotel...
  • Page 31 Position Change on RF tuning via P - Grayed out HDMI Input RETURN, and number when "Hotel buttons is allowed. (Normal Mode" = [Off] operation) When viewing HDMI input, RF tuning via P RETURN, and number buttons is disabled A/D Channel List TV shall conbine both - Grayed out Analogue &...

  • Page 32: Hotel Clone

    ADJUSTMENT Service Mode Hotel Clone The following settings can be copied between sets using the Hotel clone menu: • Hotel mode menu settings • DTV Channel Setup (DTV models only) • ATV Channel Setup ◦ Programme (position) ◦ System ◦ Colour System ◦...
  • Page 33 ADJUSTMENT Service Mode Copying the Settings From TV To USB Drive 1. Configure the hotel mode settings via the Hotel Mode Menu (see previous sections for instructions). 2. Setup channel list via Setup Menu. 3. Access the Hotel Clone menu using the following steps. a.
  • Page 34 4. Select "TV to USB" using the arrow keys. 5. Insert USB Drive and press OK to copy settings to the USB drive. 6. Wait for window that indicates the copying process is complete before removing the USB drive.
  • Page 35 ADJUSTMENT Service Mode Copying the Settings from USB Drive to TV 1. Access the Hotel Clone menu using the following steps. a. Press button once on Remote Control. (Sound Mute display) ↓ b. Press button again and keep pressing. (Sound Mute display is canceled) ↓...
  • Page 36 2. Select "USB to TV" using the arrow keys. 3. Insert USB Drive that settings have previously been saved to and press OK to copy settings to the TV. 4. Wait for settings to be copied. When the copying has finished successfully, the message "The TV will reboot when this window is closed."...
  • Page 37 ADJUSTMENT Service Mode TV Software Upgrade - From Boot Up 1. Unplug the TV. 2. Prepare a USB device which contains the software update. 3. Insert the USB device into the USB terminal of the TV. 4. Plug in TV and watch LED on the front of the TV. 5.
  • Page 38 Location Parts No. Description U01ZS 75030016 PC BOARD ASSY, PE1080A, MAIN(FOR SERVICE), VL963B/XL975B U02A 75029951 PWU, LED/RMT VL963 REFINE, B911PE1081A1 U03A 75029952 PWU, B/L EXTENSION REFINE VL963, B911PE1082A1 B001S 75030014 LCD PANEL ASSY, FOR SERVICE, 47VL963/47XL975 A320 75029959 PIECE CTRL ASSY_42VL963, PIECE CTRL ASSY_42VL963 A401 75029984 CABINET/RACK BC ASSY 47VL963, BC ASSY 47VL963 A421...
  • Page 39 PJ860 9 24V_LED PJ90 CN90 CN6510 CN651 8 24V_LED 1 12V 1 12V 1 VLCD 1 GND PE1080 7 24V_LED 2 12V 2 12V 2 VLCD 2 GND 6 GND_LED 3 12V 3 GND 3 VLCD 3 TE4+ Main 5 GND_LED 4 12V 4 GND 4 VLCD...
  • Page 40 D R A W I N G . N O . MAIN UNIT FA0466 O S A N A I I W A N O 基板へ渡す値 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 41 F A 0 4 6 6 M S t a r ( C o m p o n e n t V i d e o ) 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 42 1 s t F A 0 4 6 6 M S t a r ( C V B S , V I F ) 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 43 1 s t F A 0 4 6 6 M S t a r ( A u d i o , S I F ) 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 44 U N I T M s t a r ( C I ) 1 0 4 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 45 U N I T M s t a r ( T S ) 1 0 5 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 46 M s t a r ( H D M I 1 / 2 ) 1 0 6 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 47 M s t a r ( H D M I 2 / 2 ) 1 0 7 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 48 M S t a r ( L V D S 1 / 2 ) 1 0 8 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 49 M S t a r ( L V D S 2 / 2 ) 1 0 9 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 50 U N I T M S t a r ( D D R 1 1 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 51 U N I T M S t a r ( D D R 1 1 1 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 52 U N I T M S t a r ( D D R 1 1 2 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 53 M s t a r ( N A N D , F R C ) 1 1 3 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 54 M S t a r ( G P I O ) 1 1 4 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 55 M s t a r ( U S B , M I S C ) 1 1 5 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 56 M S t a r ( P o w e r 1 / 3 ) 1 1 6 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 57 M S t a r ( P o w e r 2 / 3 ) 1 1 7 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 58 M S t a r ( P o w e r 3 / 3 ) 1 1 8 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 59 F A 0 4 6 6 P E R I ( X T A L , S T R A P S ) 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 60 U N I T R E S E T , I 2 C 1 2 1 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 61 P E R I ( S E R I A L ) 1 2 2 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 62 U N I T D D R 3 S D R A M 1 2 6 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 63 F A 0 4 6 6 D D R 3 D a m p i n g R e s i s t o r s 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 64 F A 0 4 6 6 D D R 3 D a m p i n g R e s i s t o r s 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 65 U N I T D D R 3 S D R A M 1 2 9 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 66 F A 0 4 6 6 D D R 3 S e r i e s R e s i s t o r s 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 67 E B U S R E S I S T O R 1 3 1 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 68 U N I T S P I F L A S H 1 3 2 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 69 U N I T N A N D F L A S H 1 3 4 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 70 U N I T E T H E R P H Y 1 5 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 71 R J 4 5 C O N N E C T O R 1 5 1 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 72 F A 0 4 6 6 U S B C O N N E C T O R ( s i d e ) 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 73 E N D O A U D I O O U T P U T 3 1 0 F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 74 E N D O H e a d p h o n e A M P 3 2 1 F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 75 E N D O O P T I C A L O U T P U T 3 6 0 F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 76 A U D I O D - A M P ( M A I N ) 3 7 0 F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 77 C 3 7 4 3 C 3 7 4 2 5 0 V 3 3 0 n F ( K ) 5 0 V 3 3 0 n F ( K ) C 3 7 4 7 C 3 7 4 5 C 3 7 4 6 C 3 7 4 4 5 0 V...
  • Page 78 U N I T E N D O A U D I O M U T E 3 7 3 F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 79 U N I T E U R O S C A R T 6 0 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 80 6 0 1 1 s t F A 0 4 6 6 S H I B A T A / A u d i o 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 81 M A I N U N I T D S U B 6 0 2 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 3 TOSHIBA CORPORATION...
  • Page 82 6 0 3 1 s t F A 0 4 6 6 E U R O C O M P O N E N T 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 83 U N I T E U R O O U T 6 0 5 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 84 M A I N U N I T I N P U T 1 6 0 6 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 85 S H I B A T A / A u d i o M A I N U N I T 6 0 7 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 86 M A I N U N I T I N P U T 3 6 0 8 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 87 L V D S C O N N E C T O R 6 5 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 88 L V D S C O N N E C T O R 6 5 1 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 89 F A 0 4 6 6 B L _ C O N T R O L & D I M M I N G 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 90 H D M I C O N N E C T O R 6 6 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 91 U N I T H D M I 5 V P W R 6 6 1 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 92 U N I T H D M I H P D ( 1 ) 6 6 2 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 93 U N I T H D M I H P D ( 2 ) 6 6 3 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 94 U N I T H D M I D D C 6 6 4 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 95 [ M A I N ] K u w a t a 3 . 3 V _ H D M I 6 6 5 1 s t 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 96 U N I T H D C P K E Y R O M 6 6 9 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 97 M A I N U N I T L E D / I R 7 0 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 98 U N I T L E D / K E Y 7 0 1 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 99 T V M F A N C O N T R O L 7 0 4 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 100 M A I N U N I T T U N E R 7 5 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 101 T U N E R D V B - S / S 2 7 5 5 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 102 R . I Z U M I M A I N U N I T 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 103 D E M O D D V B - S 2 / S 7 7 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 104 1 s t F A 0 4 6 6 D i S E q C , L N B P O W E R 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 105 U N I T T U N E R P O W E R 7 8 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 106 U N I T R E S I S T O R 7 9 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 107 1 s t F A 0 4 6 6 P O W E R / C O N N E C T O R 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 108 7 9 3 1 s t F A 0 4 6 6 A D D R E S S B U F F E R 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 109 O S A N A I M A I N U N I T 7 9 4 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 110 7 9 5 1 s t F A 0 4 6 6 C O N T R O L B U F F E R 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 111 7 9 6 1 s t F A 0 4 6 6 O U T P U T B U F F E R 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 112 3 . 3 V S T A N D B Y 9 0 1 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 113 H A S U M I M A I N U N I T 9 0 2 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 114 9 0 3 1 s t F A 0 4 6 6 F R C P O W E R 1 . 2 6 V 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 115 H A S U M I M A I N U N I T 9 0 4 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 116 U N I T P O W E R 3 . 3 V D 9 0 5 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 117 M A I N U N I T P O W E R 9 0 6 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 118 1 s t F A 0 4 6 6 P A N E L I / F ( P O W E R ) 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 119 P O W E R C O N N E C T O R 9 5 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 120 U N I T E M C C O N T R O L 9 6 0 1 s t F A 0 4 6 6 2 0 1 1 . 0 9 . 0 5 1 4 : 0 4 TOSHIBA CORPORATION...
  • Page 121 O O N O I N T E R M E D I A R Y C O N N E C T O R 2 0 1 2 . 0 4 . 0 4 1 4 : 1 3 TOSHIBA CORPORATION...
  • Page 122 T . I M U R A 2 0 1 0 _ L E D _ R M T R M T ? ? ? 2 0 1 1 . 0 9 . 1 3 2 0 : 2 9 TOSHIBA CORPORATION 0 0 3...
  • Page 123 2 0 1 1 _ L E D _ R M T ? ? ? T . I M U R A L E D S E N S O R 2 0 1 1 . 0 9 . 1 3 2 0 : 2 9 TOSHIBA CORPORATION...
  • Page 124 D r i v e r T . I M U R A 2 0 1 0 _ L E D _ R M T 2 0 1 1 . 0 9 . 1 3 2 0 : 2 9 TOSHIBA CORPORATION...
