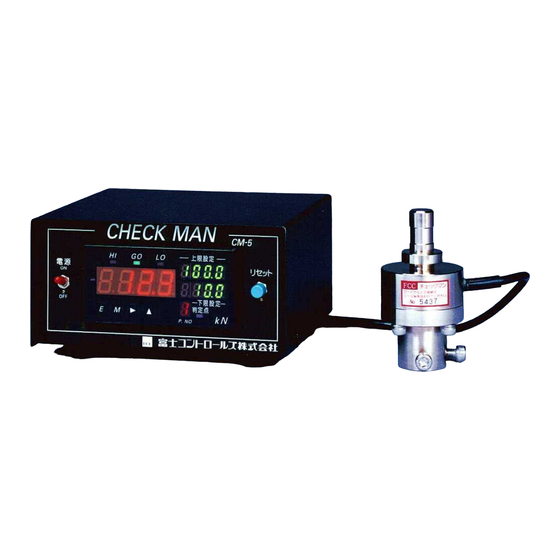

LOAD CHECKING DEVICE
CHECK MAN
Instruction Manual
Make sure to read this manual before using this unit. Then,
keep it in a safe location. The specifications of the system may
be changed without prior notice.
Model : Ｃ Ｍ － ５
CALIBRATION
(Ver. 2)
FUJI CONTROLS CO., LTD.
1-5-6, Iidabashi, Chiyoda-ku, Tokyo 102-0072
Phone: 03-3265-5437
Fax: 03-3265-5430
Advertisement
Related Manuals for FUJI CONTROLS CHECK MAN CM-5
Summary of Contents for FUJI CONTROLS CHECK MAN CM-5
- Page 1 Make sure to read this manual before using this unit. Then, keep it in a safe location. The specifications of the system may be changed without prior notice. FUJI CONTROLS CO., LTD. 1-5-6, Iidabashi, Chiyoda-ku, Tokyo 102-0072 Phone: 03-3265-5437 Fax: 03-3265-5430...
- Page 2 One of two types of load calibrations can be selected: Actual value calibration and Equal value calibration. Actual value calibration By the press machine or the weight that accurate weight can be confirmed, add the fixed load to Load cell of CHECKMAN. Then, you register the value of the power in the measurement device of CHECKMAN.
- Page 3 Equal value calibration To perform an equal value calibration, you need the latest data for the load cell that you will be using. Inputting the value of Rated Output and Rated Capacity on the calibration certificate of the Load cell, the measurement device computes amplification rate automatically and completes the calibration operation.
- Page 4 Digital load display → ↑ ↑ ↑ ↑ Notation in this １０ １０ １０ １０ ３ ２ １ ０ → manual 3.Membrane switches used for various settings, changing specified values, and to select functions. Specify and change the settings by using the four keys in different combinations. This system employs a double-key safety function* method that requires you to press two keys simultaneously to enter the operation mode.
- Page 5 LOAD CALIBRATION MODE First, enter the Load Clibration Mode using the double-key function. 1. Press the and keys. (Press the key, first.) ..During this operation, you cannot measure loads. Digital load display Lower-limit display ("...
- Page 6 FOR YOUR INFORMATION Press the key while holding down the key. The Lower-limit display will show the word " ." This means you have to select a setting mode. There are four modes, "", "", "", and "".
- Page 7 ACTUAL VALUE CALIBRATION Connect the load cell cable to the 5P connector on the back of the CM-5 housing, and lock it securely in place. Then, flip the lever of Power switch up to the power ON. Do not add the load to the load cell until the direction. 1.
- Page 8 ERROR displays Pressing the key, if values shown below displayed. Each value means that load cell is damaged and should be replaced. ZERO value ＜ －0.3mV/V ZERO value ＞ 0.3mV/V 6. Add the fixed power to Load cell of CHECKMAN. By the press machine or the weight that accurate weight can be confirmed, add the fixed load to Load cell of CHECKMAN.
- Page 9 7-2. Press the key. --- Then you can change the value of the 10 digit. The key is used to select a different digit place. Press this key once and the decimal point next to the 10 digit will flash. 7-3.
- Page 10 EQUAL VALUE CALIBRATION You need the latest data for the load cell that you will be using. Then, connect the load cell cable to the 5P connector on the back of the CM-5 housing, and lock it securely in place. You are ready to flip the lever of Power switch up to the power ON.
- Page 11 ERROR displays Pressing the key, if values shown below displayed. Each value means that load cell is damaged and should be replaced. ZERO value ＜ －0.3mV/V ZERO value ＞ 0.3mV/V SPIN Setting Operation Input the value of Rated Output on the calibrationcertificate of the load cell.
- Page 12 6-2. Press the key. --- Then you can change the value of the 10 digit. The key is used to select a different digit place. Press this key once and the decimal point next to the 10 digit will flash. 6-3.
- Page 13 9. Press the key. --- That completes the operation and you can measure loads. ERROR displays Pressing the key, if values shown below displayed. How to set it up is wrong. Please do it again. SPIN value ＜ Approx. 1.2 mV ...
