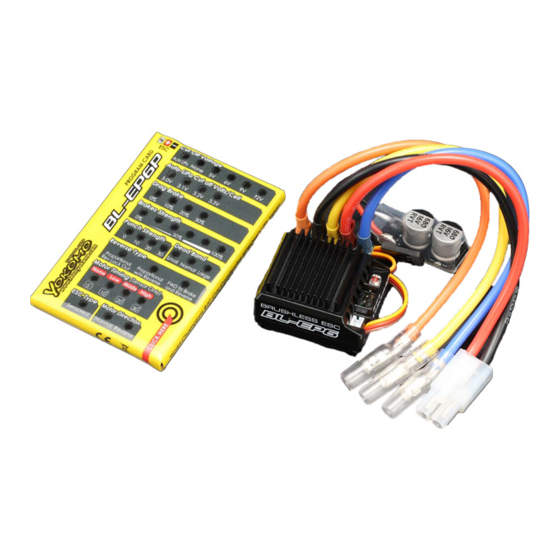

YOKOMO BRUSHLESS SPEED CONTROLLER BL-EP6 MANUAL
Thank you for purchasing BL-EP6 from YOKOMO LTD. Please read the Instruction Manual thoroughly
before you use the product. These operating instructions are designed to ensure that you quickly
become familiar with its features and functions and make full use of this product.
■ SAFETY NOTE
●It is not a toy and suitable for users older than 14 years old.
●Never allow water, moisture, oil or other foreign materials to get inside ESC, motor, or on the PC Boards. It may damage
the ESC completely.
●Never disassemble the ESC and modify the components on the PC Boards.
●Suggest using the original wires and connectors which are packed in the box.
●Never solder one part for more than 5 seconds as some components will get damaged by high temperature.
●Never run the ESC w/o load at full throttle and it may damage the bearings and other moving parts.
●Please make sure the location where to fi x the ESC has good airfl ow ventilating so that the heat could dissipate quickly.
●To avoid short circuit, please keep the ESC connectors far away from other metal parts.
●Never connect the battery in polarity in reverse.
●Please remove the pinion gear before performing calibration and programming functions with this system. Please keep
your hands, hair, cloth, clear from the gear train and wheels of an armed high performance
●Before you switch on the ESC, please make sure all the cables are well solder with the connectors (It is easy to get loose
when running) . What's more, make sure the cables not touch the moving parts.
●Electronic motor timing will increase the temperatures of ESC and brushless motor. Use extreme caution when setting
up and testing your application to avoid overloading and overheating.
●Incorrect timing setting may cause permanent damage to the ESC and motors. Please choose proper ratio and timing
setting according to motor's instruction.
●To avoid signal interference, please always turn on the transmitter fi rst THEN turn on the speed control. Do the opposite
when powering it off.
●Never use faulty accessories, e.g. motor which may damage the ESC. Always insulate exposed wiring with heat shrink
tubing or electrical tape to prevent short circuits, which can damage ESC too.
●Always disconnect the battery pack from the speed control when not in use to avoid short circuits and possible fi re
hazard. When the ESC is switched off, there is still small current and it may cause over discharge of the battery after
some time.
●The ESC can support 4-9 cells NiMH or 2-3 cells LiPo battery.
Note : We will not be responsible for any damage caused by non-compliance with above instruction.
