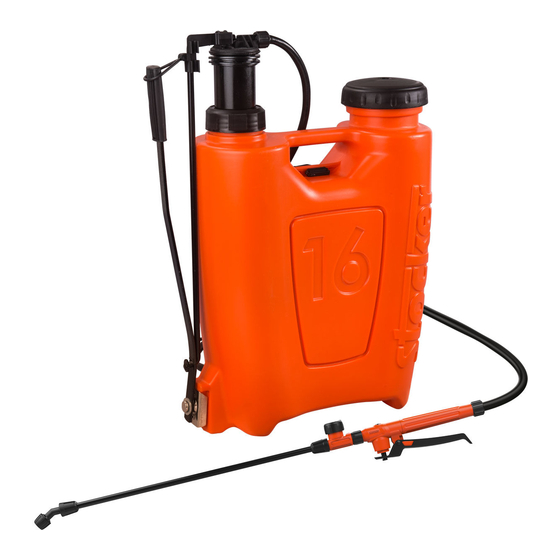

MANUALE DI ISTRUZIONI MANUAL DE INSTRUCCIONES BENUTZERHANDBUCH USER MANUAL Art. 248 Pompa zaino a pressione 16 L Bomba de mochila de presión 16 L Rückenspritze 16 L Pressure backpack sprayer 16 L Via Industria 1/7 Industriestraße - I-39011 Lana (BZ) Tel.
Art. 248 Art. 248 Pompa zaino a pressione 16 L Pompa zaino a pressione 16 L Indice Descrizione generale ....................4 Fornitura ........................5 Avvertenze per uso in sicurezza ..............6 Parametri tecnici Introduzione ....................... 9 Componenti e ricambi ..................
Art. 248 Art. 248 Pompa zaino a pressione 16 L Pompa zaino a pressione 16 L Descrizione generale Fornitura La pompa a zaino può essere utilizzata per la vaporizzazione di acqua, prodotti chimici e ormoni Cinghie destinati al controllo delle malattie di vari tipi di raccolti, fiori e piante da giardino, per la pulizia Serbatoio del verde pubblico così...
Art. 248 Art. 248 Pompa zaino a pressione 16 L Pompa zaino a pressione 16 L Avvertenze per uso in sicurezza Avvertenze per uso in sicurezza Siete tenuti a leggere questo manuale di istruzioni e a se- Persone in condizioni di salute non perfette o in stato di guirne le indicazioni di utilizzo, al fine di garantire il corretto gravidanza non devono maneggiare pesticidi.
Art. 248 Art. 248 Pompa zaino a pressione 16 L Pompa zaino a pressione 16 L Avvertenze per uso in sicurezza Parametri tecnici 1. Quantità di riempimento max.: ........... 16 litri La preparazione delle sostanze chimiche deve seguire sempre le indicazioni e la formula fornita dal produttore. Una 2.
Art. 248 Art. 248 Pompa zaino a pressione 16 L Pompa zaino a pressione 16 L Componenti e ricambi Componenti e ricambi Ricambi per la pompa Ricambi per la pompa 248/1 Serbatoio 242/8 Tappo e filtro 242/11 Tubo di mandata...
Art. 248 Art. 248 Pompa zaino a pressione 16 L Pompa zaino a pressione 16 L Montaggio Montaggio Mancino e destrimano Montaggio della cinghia La pompa a zaino può essere utilizzata sia da destrimani che da mancini. Infilare la parte superiore della cinghia nell’apposita apertura di plastica.
Art. 248 Art. 248 Pompa zaino a pressione 16 L Pompa zaino a pressione 16 L Utilizzo Pulizia e manutenzione Regolatore di flusso Al termine di ogni utilizzo la pompa a zaino deve essere pulita per evitare corrosioni e blocchi dello spruzzatore causati dai liquidi pesticidi.
Art. 248 Art. 248 Pompa zaino a pressione 16 L Pompa zaino a pressione 16 L Problematiche Problema Causa Soluzione Gli anelli di tenuta in un Mancanza o scarsa qualche punto possono Riavvitarli o sostituirli vaporizzazione essere svitati o danneggiati...
Page 10
Art. 248 Art. 248 Bomba de mochila de presión 16 L Bomba de mochila de presión 16 L Índice Descripción general ....................20 Suministro ........................21 Advertencias para un uso seguro ..............22 Parámetros técnicos Introducción ..................... 25 Componentes y recambios ................
Art. 248 Art. 248 Bomba de mochila de presión 16 L Bomba de mochila de presión 16 L Descripción general Suministro La bomba de mochila puede ser utilizada para la vaporización del agua, productos químicos Correas y hormonas utilizadas para el control de enfermedades de diversos tipos de cultivos, flores y Tanque plantas de jardín, para la limpieza del verde público, así...
Art. 248 Art. 248 Bomba de mochila de presión 16 L Bomba de mochila de presión 16 L Advertencias para un uso seguro Advertencias para un uso seguro Usted tiene la responsabilidad de leer este manual de inst- Personas en condiciones de salud no perfecta o mujeres rucciones y de seguir las indicaciones de uso para garantizar embarazadas no deben manipular pesticidas.
Art. 248 Art. 248 Bomba de mochila de presión 16 L Bomba de mochila de presión 16 L Advertencias para un uso seguro Parámetros técnicos 1. Capacidad max. del tanque: ............16 litros La preparación de las sustancias químicas debe siempre seguir las indicaciones y la formula provista por el fabricante.
Art. 248 Art. 248 Bomba de mochila de presión 16 L Bomba de mochila de presión 16 L Componentes y recambios Componentes y recambios Recambios para la bomba 248/1 Tanque 242/8 Tapa y filtro 242/11 Tubo de conexión R-253 Correa...
Art. 248 Art. 248 Bomba de mochila de presión 16 L Bomba de mochila de presión 16 L Montaje Montaje Zurdos y diestros Montaje correa La bomba de mochila se puede utilizar tanto por personas diestras que zurdas. Introducir la parte superior de la correa en la abertura de plástica correspondiente.
Art. 248 Art. 248 Bomba de mochila de presión 16 L Bomba de mochila de presión 16 L Utilizo Limpieza y mantenimiento Regulador de flujo Al finalizar cada uso la bomba de mochila deberá limpiarse para evitar la corrosión y el bloqueo del rociador causado por líquidos pesticidas.
Art. 248 Art. 248 Bomba de mochila de presión 16 L Bomba de mochila de presión 16 L Solución de problemas Problemas Causas Soluciones Las juntas en algun punto Falta o mala vaporización pueden ser desatornilladas o Apriete o reemplaze dañadas...
Page 18
Handbuch dienen nur zur Veranschaulichung und können vom gelieferten Produkt abweichen. Aufbewahrung ......................47 10. Störungsbehebung ....................48 Für weitere Informationen zum Produkt senden Sie uns bitte eine E-Mail an info@stockergarden.com. Abonnieren Sie unseren Newsletter um aktuelle Informationen von Stocker zu erhalten: www.stockergarden.com/newsletter...
Abnahme und Reinigung erlaubt. Mit Hilfe des Wasserfluss- Regulators kann der Sprühdruck ganz einfach verstellt werden. Für weitere Informationen zum Produkt senden Sie uns bitte eine E-Mail an info@stockergarden.com. Abonnieren Sie unseren Newsletter um aktuelle Informationen von Stocker zu erhalten: www.stockergarden.com/newsletter...
Bestandteile funktionieren. Vor der Vorbereitung der chemischen Substanzen sicherstellen, dass alles in Ordnung ist. Für weitere Informationen zum Produkt senden Sie uns bitte eine E-Mail an info@stockergarden.com. Abonnieren Sie unseren Newsletter um aktuelle Informationen von Stocker zu erhalten: www.stockergarden.com/newsletter...
örtlichen Recycling-Station gebracht werden. Nicht auf Oberflächen mit Temperaturen über +40°C oder auf offene Flammen sprühen. Für weitere Informationen zum Produkt senden Sie uns bitte eine E-Mail an info@stockergarden.com. Abonnieren Sie unseren Newsletter um aktuelle Informationen von Stocker zu erhalten: www.stockergarden.com/newsletter...
248/24 Pumpenhebel 248/25 Pumpvorrichtung mit Dichtung Ersatzteile der Lanze 242/29 Sprühlanze 242/30 Schalthebel 242/31 Wasserfluss-Regulator Für weitere Informationen zum Produkt senden Sie uns bitte eine E-Mail an info@stockergarden.com. Abonnieren Sie unseren Newsletter um aktuelle Informationen von Stocker zu erhalten: www.stockergarden.com/newsletter...
Um Druck herzustellen den Pumpenhebel ein paar Mal betätigen. Während der Arbeit den Druck durch Betätigung des Hebels regulieren. Für weitere Informationen zum Produkt senden Sie uns bitte eine E-Mail an info@stockergarden.com. Abonnieren Sie unseren Newsletter um aktuelle Informationen von Stocker zu erhalten: www.stockergarden.com/newsletter...
Nach Drücken des Knopfes, funktioniert der Sprühstrahl durchgehend, ohne dass der Hebel aufbewahrt werden. gedrückt gehalten werden muss. Für weitere Informationen zum Produkt senden Sie uns bitte eine E-Mail an info@stockergarden.com. Abonnieren Sie unseren Newsletter um aktuelle Informationen von Stocker zu erhalten: www.stockergarden.com/newsletter...
Die Dichtungsmanschette Dichtungsmanschette neu Druckhebels entsteht kein ist verrutscht oder hat sich positionieren Druck gelöst Für weitere Informationen zum Produkt senden Sie uns bitte eine E-Mail an info@stockergarden.com. Abonnieren Sie unseren Newsletter um aktuelle Informationen von Stocker zu erhalten: www.stockergarden.com/newsletter...
Page 26
Art. 248 Art. 248 Pressure backpack sprayer 16 L Pressure backpack sprayer 16 L Index General description ....................52 Included parts ......................53 Instructions for a safe use ................. 54 Technical data Foreword ......................57 Components and spare parts ................58 Assembly ........................
Page 27
Art. 248 Art. 248 Pressure backpack sprayer 16 L Pressure backpack sprayer 16 L General description Included parts This backpack sprayer is designed for spraying plant protection products in the stipulated Carrying strap concentrations. It fits especially for pest controlling of various crops, flowers and garden plants, Tank cleaning of public places as well as hygiene and disease control of fowl and livestock houses.
Page 28
Art. 248 Art. 248 Pressure backpack sprayer 16 L Pressure backpack sprayer 16 L Instructions for a safe use Instructions for a safe use You are required to read this manual and follow the Persons affected by fatigue, poor health, injury, pesticide instructions for purpose of proper operation.
Page 29
Art. 248 Art. 248 Pressure backpack sprayer 16 L Pressure backpack sprayer 16 L Instructions for a safe use Technical data 1. Max. filling amount: ..............16 litre The preparation of chemical shall follow the instructions and formula furnished by the pesticide manufacturer. Unauthorized 2.
Page 30
Art. 248 Art. 248 Pressure backpack sprayer 16 L Pressure backpack sprayer 16 L Components and spare parts Components and spare parts Spare parts of the sprayer 248/1 Tank 242/8 Lid and filter 242/11 Connection tube R-253 Belts 243/21 Ring nut and seal...
Page 31
Art. 248 Art. 248 Pressure backpack sprayer 16 L Pressure backpack sprayer 16 L Assembly Assembly Right and left hand use How to mount the carrying straps The backpack sprayer can be used right and left hand. For left hand use assemble the carrying Insert the upper end of the strap into the hole.
Page 32
Art. 248 Art. 248 Pressure backpack sprayer 16 L Pressure backpack sprayer 16 L Usage Cleaning and maintenance Flow regulator After every spraying operation, the sprayer shall be cleaned to avoid corrosion of tool and blocking of sprinkler caused by pesticide liquid. In addition, the cleaning can also avoid reducing...
Page 33
Art. 248 Art. 248 Pressure backpack sprayer 16 L Pressure backpack sprayer 16 L Troubleshooting Problems Causes Solutions Leakage or poor spraying Seal rings at various joints Fix the seal rings or replace performance may be loosened or damaged them...
