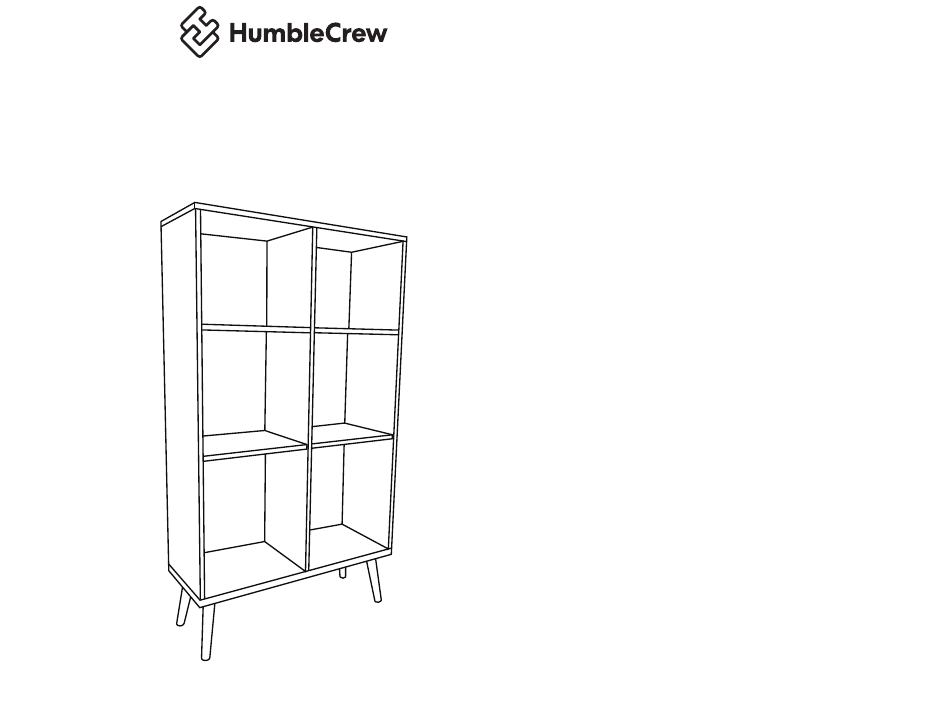

- Page 1 (844) 509-4888 www.humblecrew.com Bookcase Product info Made in Malaysia Model: BC8616 Collection: Seine Cleaning Wipe with a damp cloth and mild soap Dry with soft, lint free cloth...
- Page 2 PAGE: 1 ASSEMBLY INSTRUCTIONS MODEL : DAWN-BOOKCASE BC8616 PAGE: Before you begin, please follow assembly instructions carefully, then follow them step by step. Before you begin, please make sure all parts are included. Read instructions carefully. Before you begin, please make sure all parts are included. Read instructions carefully.
- Page 3 PAGE: 2 ASSEMBLY INSTRUCTIONS BC8616 MODEL : STEP 1 STEP 2 - Insert hardware A1 onto panel (5). - Insert hardware A1 onto panel (3) and (4) . (Repeat 2 times.) (Repeat 4 times.) - Insert hardware A2 onto panel (1).
- Page 4 PAGE: 3 ASSEMBLY INSTRUCTIONS BC8616 MODEL : STEP 3 STEP 4 - Attach panel (1) to panel (3), (4) and (5) . Connect panel (2) to panel (3), (4) and (5) - Insert all hardware A2 into A1. by using hardware C and D.
- Page 5 PAGE: 4 ASSEMBLY INSTRUCTIONS BC8616 MODEL : STEP 5 STEP 6 Fix hardware G into panel (2) by using hardware E. Assemble part 8 into hardware G. (Repeat 5 times for each hardware.) (Repeat 4 times.) ROTATE ROTATE SCREWDRIVER REQUIRED www.humblecrew.com...
- Page 6 PAGE: 5 ASSEMBLY INSTRUCTIONS BC8616 MODEL : STEP 7 STEP 8 Insert hardware F into mounting positions on panel (3), (4) and Assemble panel (7) to entire body with hardware H. (5) by hand. (Repeat 25 times.) (Repeat 16 times.)
- Page 7 PAGE: 6 ASSEMBLY INSTRUCTIONS BC8616 MODEL : STEP 9 STEP 10 Assemble panel (6) into between panel (3), (4) and (5). Assemble hardware I1 into panel (1) and (7) by using hardware I2. (Repeat 4 times.) (Repeat 2 times.) ROTATE...
- Page 8 PAGE: 7 ASSEMBLY INSTRUCTIONS BC8616 MODEL : STEP 12 STEP 11 HAMMER - Mark and use the power drill - Assemble hardware I1 to I3 REQUIRED to drill a hole on the wall. by using hardware I4 . - Hit hardware I3 into the wall.
- Page 9 PAGE: 8 ASSEMBLY INSTRUCTIONS BC8616 MODEL : STEP 13 - Connect both of the hardware I1 by using hardware I5 . - Tighten the hardware I5. (Repeat 2 times.) CONNECT TIGHTEN www.humblecrew.com (844) 509-4888...
