Summary of Contents for Humble Crew Seine ET8586

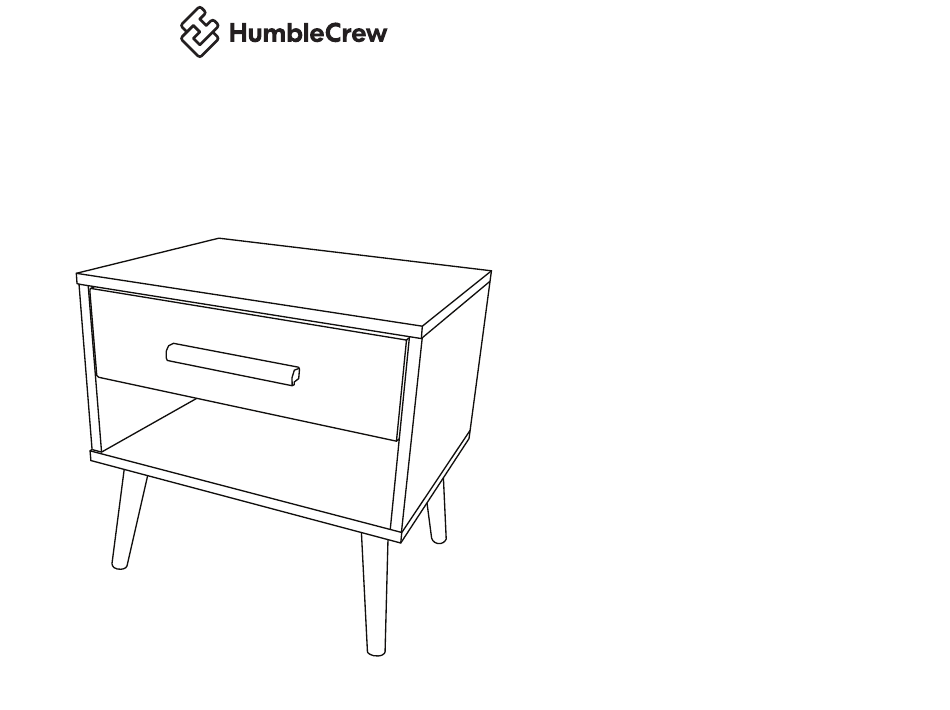

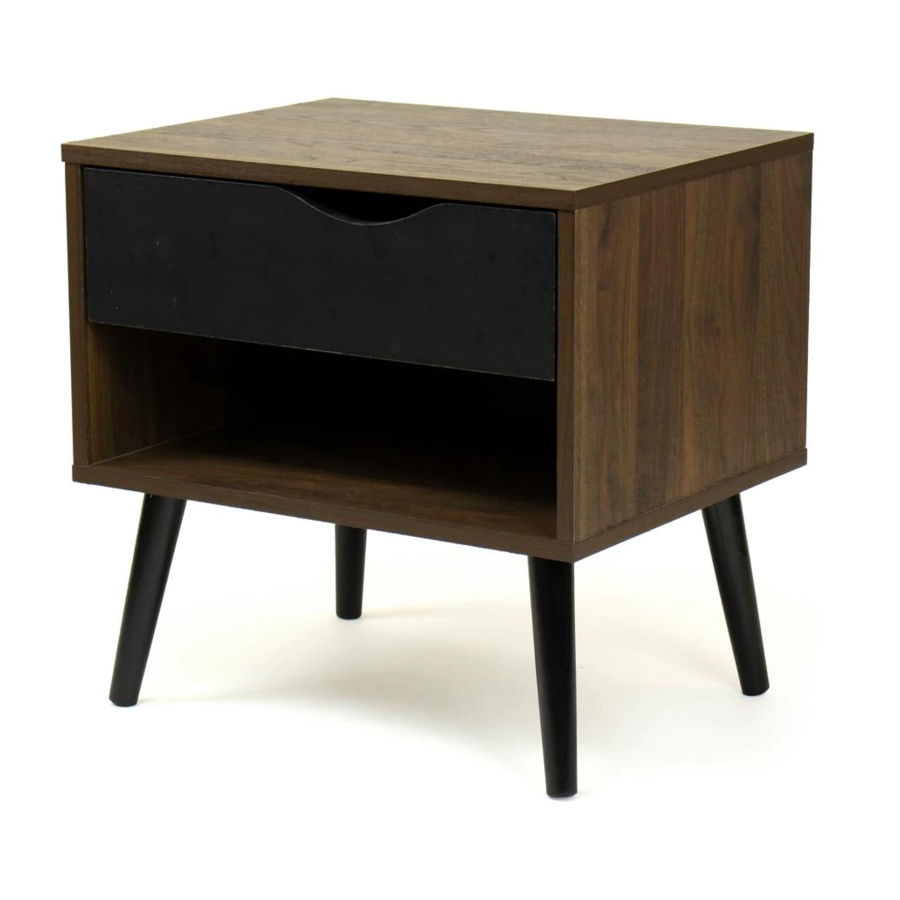

- Page 1 (844) 509-4888 www.humblecrew.com END TABLE Product info Made in Malaysia Model: ET8586 Collection: Seine Cleaning Wipe with a damp cloth and mild soap Dry with soft, lint free cloth...
- Page 2 PAGE: 1 ET8586 ASSEMBLY INSTRUCTIONS MODEL : DAWN-NIGHT STAND DR8593 ET8586 PAGE: Before you begin, please follow assembly instructions carefully, then follow them step by step. Before you begin, please make sure all parts are included. Read instructions carefully. Before you begin, please make sure all parts are included. Read instructions carefully. If a part is missing or damaged, call our toll-free customer service number (844-509-4888) for help.
- Page 3 PAGE: 2 ASSEMBLY INSTRUCTIONS ET8586 MODEL : STEP 1 STEP 2 Insert hardware A2 onto panel (1) . - Insert hardware A1 onto panel (3) . (Repeat 2 times.) (Repeat 4 times.) - Insert hardware B onto panel (3). (Repeat 4 times.) ROTATE PRESS PRESS...
- Page 4 PAGE: 3 ASSEMBLY INSTRUCTIONS ET8586 MODEL : STEP 3 STEP 4 - Insert hardware A1 onto panel (4) . Fix hardware H1 (L) into panel (3) with hardware E . (Repeat 2 times.) (Repeat 3 times for each hardware.) - Insert hardware B onto panel (4) . (Repeat 4 times.) SCREWDRIVER REQUIRED...
- Page 5 PAGE: 4 ASSEMBLY INSTRUCTIONS ET8586 MODEL : STEP 5 STEP 6 Fix hardware H1 (R) into panel (4) with hardware E . - Attach panel (1) to panel (3) and (4). (Repeat 3 times for each hardware.) - Insert all hardware A2 into A1. - Rotate all A1 until tight.
- Page 6 PAGE: 5 ASSEMBLY INSTRUCTIONS ET8586 MODEL : STEP 8 STEP 7 Connect panel (2) to panel (3) and (4) Insert the panel (5) along the slot. by using hardware C and D . (Repeat 1 times.) (Repeat 4 times.) ROTATE HARDWARE * In this step hardware B are pre-inserted.
- Page 7 PAGE: 6 ASSEMBLY INSTRUCTIONS ET8586 MODEL : STEP 9 STEP 10 Fix hardware G into panel (2) by using hardware E . Assemble part 10 into hardware G. (Repeat 5 times for each hardware.) (Repeat 4 times.) ROTATE ROTATE SCREWDRIVER REQUIRED www.humblecrew.com (844) 509-4888...
- Page 8 PAGE: 7 ASSEMBLY INSTRUCTIONS ET8586 MODEL : STEP 12 STEP 11 Assemble panel (7) to panel (6) and (8) by using hardware F . Insert the panel (9) along the slot. (Repeat 4 times.) (Repeat 1 times.) ROTATE www.humblecrew.com (844) 509-4888...
- Page 9 PAGE: 8 ASSEMBLY INSTRUCTIONS ET8586 MODEL : STEP 13 STEP 14 Assemble panel (7) to panel (6) and (8) by using hardware F . Assemble hardware H2 (L/R) to panel (7) by using hardware E . (Repeat 4 times.) (Repeat 3 times for each hardware.) SCREWDRIVER REQUIRED ROTATE...
- Page 10 PAGE: 9 ASSEMBLY INSTRUCTIONS ET8586 MODEL : STEP 15 Put all the drawer in place along the drawer slides. www.humblecrew.com (844) 509-4888...
