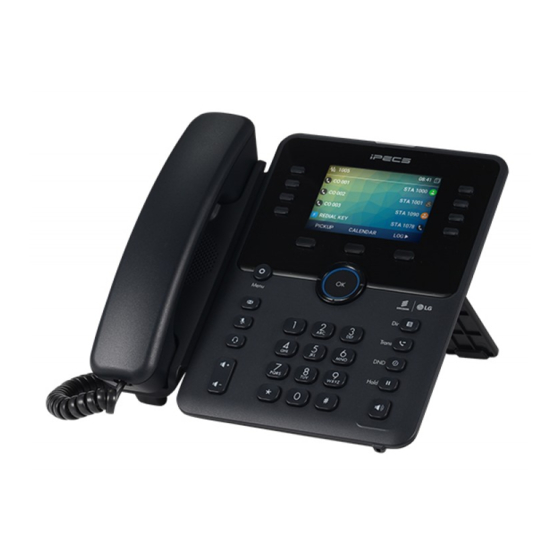

1000i IPKTS
Wi-Fi Setting Guide
Nov 02, 2021
Ericsson-LG Enterprise
© Ericsson-LG Enterprise Co., Ltd. 2018 | External | 2021. 11. 02 | Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the iPECS 1000i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG-Ericsson iPECS 1000i

Summary of Contents for LG-Ericsson iPECS 1000i

  • Page 1 1000i IPKTS Wi-Fi Setting Guide Nov 02, 2021 Ericsson-LG Enterprise © Ericsson-LG Enterprise Co., Ltd. 2018 | External | 2021. 11. 02 | Page 1...

  • Page 2: Revision History

    Revision History ISSUE DATE DESCRIPTION OF CHANGES May 23, 2021 Initial Release Added “Phone Entering Text “ Nov. 02, 2021 Added “How to enter the Wi-Fi Settings Menu” © Ericsson-LG Enterprise Co., Ltd. 2018 | External | 2021. 11. 02 | Page 2...
  • Page 3 Introduction  LCD MENU  - Soft Buttons and Wi-Fi Status Icon Contents - Phone Entering Text - How to set up Wi-Fi - How to enter the “Wi-Fi Settings” Menu - Turn-on Wi-Fi and Scan AP - Connect to the scanned AP - Connect to a saved AP - Connect by editing the saved AP - Connect by manually adding AP...
  • Page 4 Introduction The 1000i supports a USB port so you can connect to a wireless network using a Wi-Fi dongle and provides LCD or Web menu for Wi-Fi setting. In the LCD menu, setting is possible even if there is only an AP that can be connected. All network and server settings, except those related to Wi-Fi connection [“11.
  • Page 5 Wi-Fi dongle supported in 1040i/1050i • TP-LINK Archer T3U • TP-LINK Archer T4U AC1300 Mini Wireless MU-MIMO USB Adapter, Ver:1.0 AC1300 Wireless Dual Band USB Adapter, Ver:3.0 • D-Link DWA-182 Wireless AC1300 MU-MIMO Wi-Fi USB Adapter, Revision D © Ericsson-LG Enterprise Co., Ltd. 2018 | External | 2021. 11. 02 | Page 5...
  • Page 6 1000i IPKTS LCD Menu...
  • Page 7 Soft Buttons and Wi-Fi Status Icon [LCD] The button functions used in the Wi-Fi setup menu Buttons Functions BACK Return to the previous menu. Turn on the Wi-Fi Turn off the Wi-Fi CONNECT Attempt to connect to the selected AP. EDIT Change the information of the selected AP and connect.
  • Page 8 Phone Entering Text [LCD]  Input mode and character deletion To change the input mode, use the MODE on the soft menu or the TRANS button. Mode Indication Upper Case Lower Case Navi-Right and Left Symbols Numeric TRANS To delete a character, use the DELETE on the soft menu or the DND button. ...
  • Page 9 How to set up Wi-Fi [LCD] The Wi-Fi setting menu is only displayed when the Wi-Fi dongle is installed, so you must first plug the dongle into the USB port on the back of the phone. Procedure for setup : •...
  • Page 10 How to enter the “Wi-Fi Settings” Menu [LCD] Enter the “Network Settings” Menu - If already registered in the system and works normally. Enter Password : 1 4 7 * Select the “1. Profile” Cloud(CM) : MENU + 80 UCP : TRANS + 78 Select the desired profile If it is registered in the system but doesn’t work due to disconnection, restart and enter from the screen below.
  • Page 11 Turn-on Wi-Fi and Scan AP [LCD] 1. Select “11. Wi-Fi Settings” from the Network Settings – Profile – Network Configuration Scan 2.4G / 5G both 2-1 Turn-on Wi-Fi if it is off When Wi-Fi is off Searching AP… Scan 2.4G only Icons 2-2 Searching AP Very Poor...
  • Page 12 Connect to the scanned AP [LCD] 1. Move to the desired AP and press “CONNECT” Connecting Connected 2-1. Enter ID & Password Auth. Type : WPA-Enterprise means secured AP Success Failed to connect 2-2. Enter key Auth. Type : WPA-Personal ☞...
  • Page 13 Connect to a saved AP [LCD] 1. Move to the desired saved AP and press “CONNECT” Searching AP… Connecting means saved AP Failed to connect ☞ For APs that have already been saved, Connected attempt to connect without ID & Password. Success ©...
  • Page 14 Connect by editing the saved AP [LCD] 1. Move to the desired saved AP and press “EDIT” Connecting means saved AP ☞ If the information of saved AP has been changed, you can edit and reconnect from the EDIT menu. Connected 2-1.
  • Page 15 Connect by manually adding AP [LCD] 1. Press “ADD” on the AP list screen 4-1. Enter ID & Password Auth. Type : WPA-Enterprise 2. Enter SSID 3. Select auth. type 4-2. Enter key Auth. Type : WPA-Personal ☞ To change the input mode, press the soft key "MODE“...
  • Page 16 After connecting AP, set up the network and exit the menu [LCD] 1. Press “BACK” for other network settings. ☞ You can set up your network and server before setting up the Wi-Fi. If the Network, Server or Wi-Fi settings are changed, you must reboot. Even if the Wi-Fi is turned on and connected to the wireless AP, ☞...
  • Page 17 Disconnect the connected AP [LCD] 1. Press “DISCONNECT” in the connected AP Information. ☞ All data of the disconnected AP is maintained as the saved AP. ☞ If you perform 'DISCONNECT' in the wireless connection state, the network is disconnected, so be careful. Disconnecting Disconnected Failed to disconnect...
  • Page 18 Delete the connected AP [LCD] 1. Press “DELETE” ☞ All data of the deleted AP will be erased. On the connection information screen : ☞ If you perform 'DELETE' in the wireless connection state, the network is disconnected, so be careful. ☞...
  • Page 19 Delete the saved AP [LCD] 1. Move to the desired AP and press “DELETE”. Disconnecting Disconnected Failed to disconnect Searching AP… After deletion, the Saved Icon( ) disappears. © Ericsson-LG Enterprise Co., Ltd. 2018 | External | 2021. 11. 02 | Page 19...

  • Page 20: Turn-Off Wi-Fi

    Turn-off Wi-Fi [LCD] 1. Press “OFF” On the connection information screen : 2. To exit the menu or to finish settings, press ‘Speaker’ button. On the search results screen : ☞ If you press the Speaker button in all menus, the following screen is displayed.
  • Page 21 1000i IPKTS Web menu...
  • Page 22 Turn-on Wi-Fi [WEB] To turn on the Wi-Fi, connect to the web manager and select “Wireless” as the Interface in the Network menu of the Network configuration. If you select “Wireless”, a menu for searching and setting wireless APs is displayed as shown below, and if you select “Wired”, this menu disappears.
  • Page 23 Scan AP [WEB] Click "Scan" to search for connectable APs, and after completion, you can check the list in the AP List. 1. Click “Scan” 2. Search Complete Screen 3. Searched AP Lists Searching AP… The AP displayed in the list box is the status connected AP saved AP new searched AP...
  • Page 24 Connect to AP [WEB] If you select the AP you want to connect to from the searched AP list, the authentication screen appears as shown below. - Connecting to a saved AP ☞ The stored AP information is applied, and if you click “Connect”, the connection will proceed.
  • Page 25 After connecting AP, set up the network and exit [WEB] After connecting the AP, press “Save” after completing the network setup, and a reboot confirmation window will appear. ☞ For network setting, use the same setting value for wired and wireless. ☞...
  • Page 26 Delete the saved AP [WEB] You can delete the “saved” AP by selecting it from the AP List. 1. Select the AP you want to delete from the AP list and click “Forget”. 2. When the deletion is complete, the result is displayed as shown below. After deletion, the re-searched results are shown in the list.

This manual is also suitable for:

Ipecs 1040iIpecs 1050i
