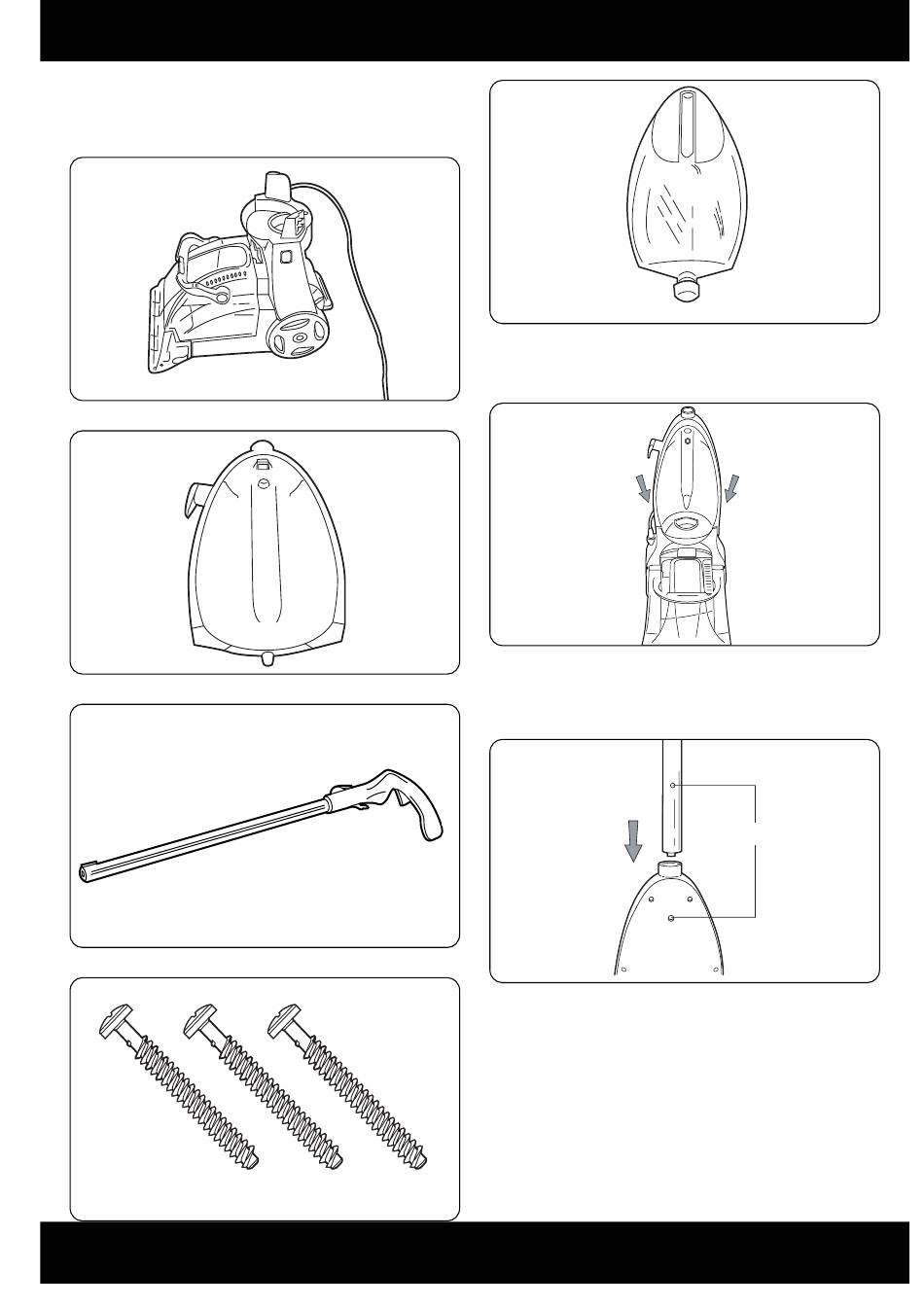

3. How to Assemble

Components
Fig.3/1 - Base Unit
Fig.3/2 - Mid-Section
Fig.3/3 - Handle
Fig.3/4 - 3 Screws
4
assembly
All manuals and user guides at all-guides.com
Fig.3/5 - Clean Water Tank
Assembly
Line up mid-section with base unit and slot into place (Fig
3/6).
Fig.3/6
Insert handle into mid-section ensuring that the solution
trigger is at the back of the machine and the screw hole
in the handle is lined up with the screw hole in the mid-
section (Fig 3/7).
Fig.3/7
Insert and tighten (Fig 3/8).
Align screw holes
