Vax Rapide Spring Fresh V-021T Instruction Manual

Upright carpet washer
Hide thumbs Also See for Rapide Spring Fresh V-021T:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
Vax careline
0870 6061248
Upright Carpet Washer
Vax model number:
V-021T
Please read carefully before using this cleaner.
www.vax.co.uk
Always fully extend the mains cable before use.
Retain for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Vax Rapide Spring Fresh V-021T

Summary of Contents for Vax Rapide Spring Fresh V-021T

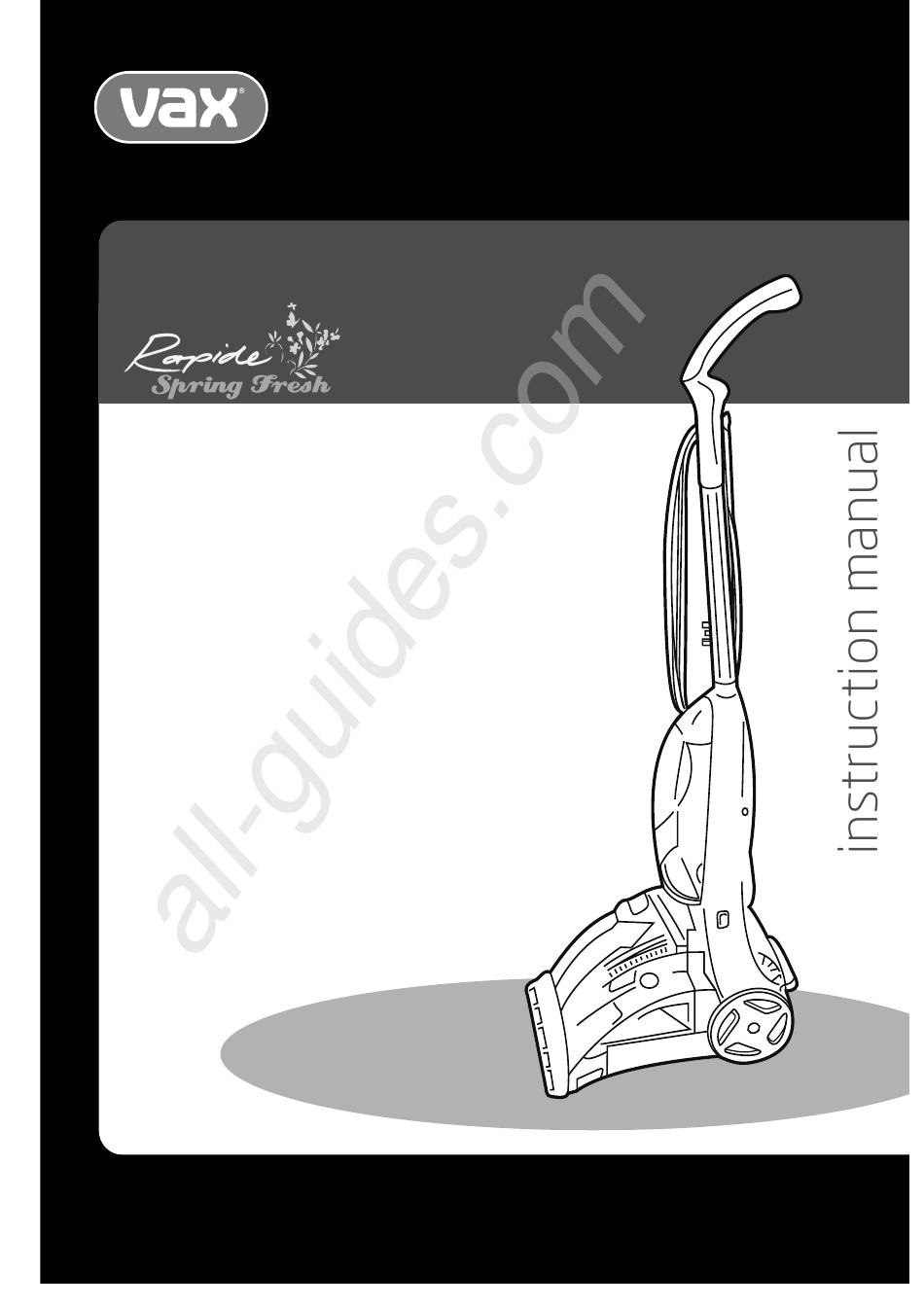

  • Page 1 All manuals and user guides at all-guides.com Vax careline 0870 6061248 Upright Carpet Washer Vax model number: V-021T Please read carefully before using this cleaner. www.vax.co.uk Always fully extend the mains cable before use. Retain for future reference.
  • Page 2 All manuals and user guides at all-guides.com www.vax.co.uk 1. Diagram V-021T spring I N C L U D E S A N T I A L L E R G E N A D D I T I V E carpet cleaner Fig.1/1...

  • Page 3: Safety Information

    For Household Use Only NOTE: If the supply cord is damaged, it must be replaced by the manufacturer, a Vax service agent or When using the vacuum cleaner, basic safety precautions similarly qualified persons in order to avoid hazard.

  • Page 4: How To Assemble

    All manuals and user guides at all-guides.com www.vax.co.uk 3. How to Assemble Components Fig.3/5 - Clean Water Tank Assembly Line up mid-section with base unit and slot into place (Fig Fig.3/1 - Base Unit 3/6). Fig.3/6 Fig.3/2 - Mid-Section Insert handle into mid-section ensuring that the solution...

  • Page 5: Before Cleaning

    Fig.3/8 Twist cord holder until it is facing upwards (Fig 3/9). Helpful hints for cleaning carpet: Only use Vax AAA Carpet Cleaner with this carpet washer. Do not oversaturate carpet with cleaning solution while using the carpet washer.

  • Page 6: Preparing The Machine

    1 capful of solution per full tank). Pour into clean water tank (Fig 5/2). Fig.5/4 Fig.5/2 IMPORTANT: Use only Vax AAA Carpet Cleaner solution. Using other cleaning solutions may cause excess foaming. Excessive foam will prevent the machine from working effectively. Using other solutions will void the warranty.
  • Page 7 All manuals and user guides at all-guides.com Vax Careline 0870 606 1248 6. Usage Plug cord into electrical socket. Turn on the machine by using the on/off switch located on the side of the machine. IMPORTANT: Never leave unit unattended with power on.

  • Page 8: Troubleshooting

    8.00am to 8.00pm Saturday-Sunday 9.00am to 5.00pm Problem: The cleaner won't run Any queries or concerns about using the Vax, call the Vax Cause: Not properly plugged into electrical outlet. Careline. Calls are charged at the UK national rate. Solution: Plug in firmly.

  • Page 9: Technical Specification

    All manuals and user guides at all-guides.com Vax Careline 0870 606 1248 9. Technical Specification Voltage: 220 ~ 240V 50Hz Motor Power: 550W Clean water tank volume: 2.6 litres Dirty water tank volume: 2.4 litres Cord length: 6.1m Weight: 5.7kg Subject to technical change without notice.
  • Page 10 All manuals and user guides at all-guides.com www.vax.co.uk This page has been left intentionally blank...
  • Page 11 All manuals and user guides at all-guides.com Vax Careline 0870 606 1248 This page has been left intentionally blank...
  • Page 12 All manuals and user guides at all-guides.com EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the V-021T is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive EMC: 2004/108/EC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
