DEVICE RESET PROCEDURE
③ Power cycle the switch with the loop-back
cable in place and the switch will reboot and
apply the factory default configuration settings.
④ Remove the loop-back cable and re-connect
the existing Ethernet and optical patch cables.
CONNECTING TO THE SWITCH
To access the full software user guide for this product
please visit the product page using the QR code
opposite or the direct link below:
amg-support.com/AMG510-16G_Series
AMG Systems Ltd. 3 The Omega Centre, Stratton Business Park, Biggleswade, Bedfordshire, SG18 8QB, UK
T :: +44 (0) 1767 600 777 E :: sales@amgsystems.com
D39208-00
www.amgsystems.com
① Remove all connections from
the RJ45 & SFP ports.
② Insert an Ethernet patch cable
between ports 1 & 2 on the switch.
Web GUI
Default IP Address:
192.168.1.101
Username:
admin
Password:
admin
Console CLI
RJ45 to DB9 Cable
115200,8,N,1

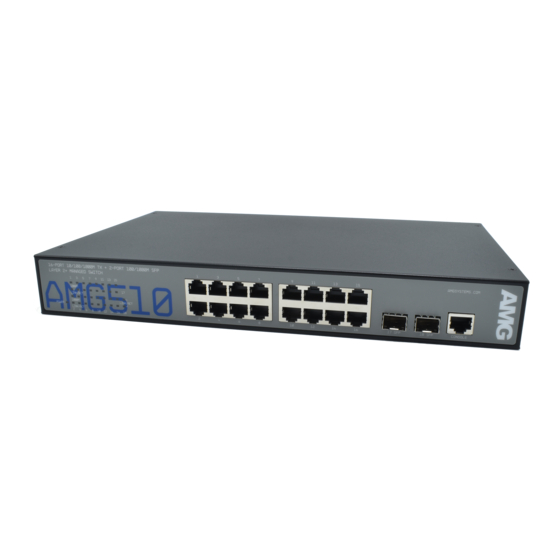

AMG510-16G Series
1Gb Layer 2+ Ethernet Switch
Installation Manual - Hardware
amgsystems.com
Advertisement
Table of Contents
Related Manuals for AMG AMG510-16G Series
Summary of Contents for AMG AMG510-16G Series
- Page 1 QR code opposite or the direct link below: amg-support.com/AMG510-16G_Series AMG Systems Ltd. 3 The Omega Centre, Stratton Business Park, Biggleswade, Bedfordshire, SG18 8QB, UK amgsystems.com T :: +44 (0) 1767 600 777 E :: sales@amgsystems.com D39208-00 www.amgsystems.com...
- Page 2 AMG510-16G SERIES MODELS DESKTOP INSTALLATION AMG510-16G-2S AMG510-16GAT-2C-P290 ① Attach the rubber feet supplied Model Description as shown to prevent scratches. AMG510-16G-2S 16 x 10/100/1000T(x) Ports + 2 x 100/1000Fx SFP Ports PORTS & LED INDICATORS 16 x 10/100/1000T(x) Ports With 30W PoE+ (290W Budget)
