DEVICE RESET PROCEDURE
③ Power cycle the switch with the loop-back
cable in place and the switch will reboot and
apply the factory default configuration settings.
④ Remove the loop-back cable and re-connect
the existing Ethernet and optical patch cables.
CONNECTING TO THE SWITCH
To access the full software user guide for this product
please visit the product page using the QR code
opposite or the direct link below:
amg-support.com/AMG510-8GBT-16GAT-4XS-P460
AMG Systems Ltd. 3 The Omega Centre, Stratton Business Park, Biggleswade, Bedfordshire, SG18 8QB, UK
T :: +44 (0) 1767 600 777 E :: sales@amgsystems.com
D39214-00
www.amgsystems.com
① Remove all connections from
the RJ45 & SFP ports.
② Insert an Ethernet patch cable
between ports 1 & 2 on the switch.
Web GUI
Default IP Address:
192.168.1.101
Username:
admin
Password:
admin
Console CLI
RJ45 to DB9 Cable
115200,8,N,1
AMG510-8GBT-16GAT-

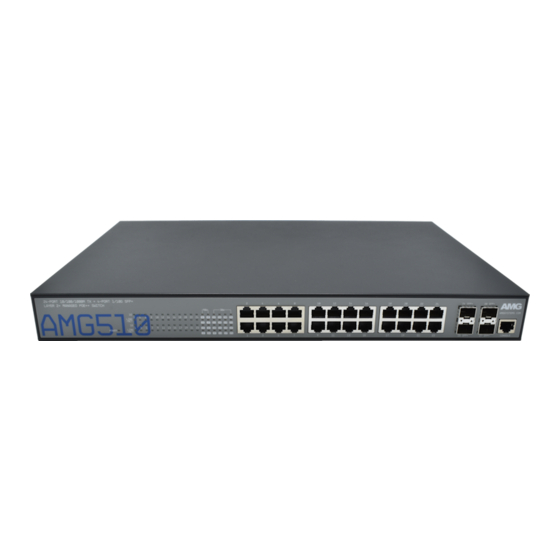

10Gb Layer 2+ Ethernet Switch
amgsystems.com
4XS-P460
Installation Manual - Hardware
Advertisement
Table of Contents
Related Manuals for AMG AMG510-8GBT-16GAT4XS-P460
Summary of Contents for AMG AMG510-8GBT-16GAT4XS-P460
- Page 1 QR code opposite or the direct link below: amg-support.com/AMG510-8GBT-16GAT-4XS-P460 AMG Systems Ltd. 3 The Omega Centre, Stratton Business Park, Biggleswade, Bedfordshire, SG18 8QB, UK amgsystems.com T :: +44 (0) 1767 600 777 E :: sales@amgsystems.com D39214-00 www.amgsystems.com...
- Page 2 AMG510-8GBT-16GAT-4XS-P460 MODEL DESKTOP INSTALLATION AMG510-8GBT-16GAT-4XS-P460 Model Description ① Attach the rubber feet supplied 8 x 10/100/1000T(x) Ports With 90W PoE++ & 16 x as shown to prevent scratches. AMG510-8GBT-16GAT- 10/100/1000(Tx) Ports With 30W PoE+ (460W Budget) 4XS-P460 + 4 x 1/2.5/10Gb SFP+ Ports PORTS &...
