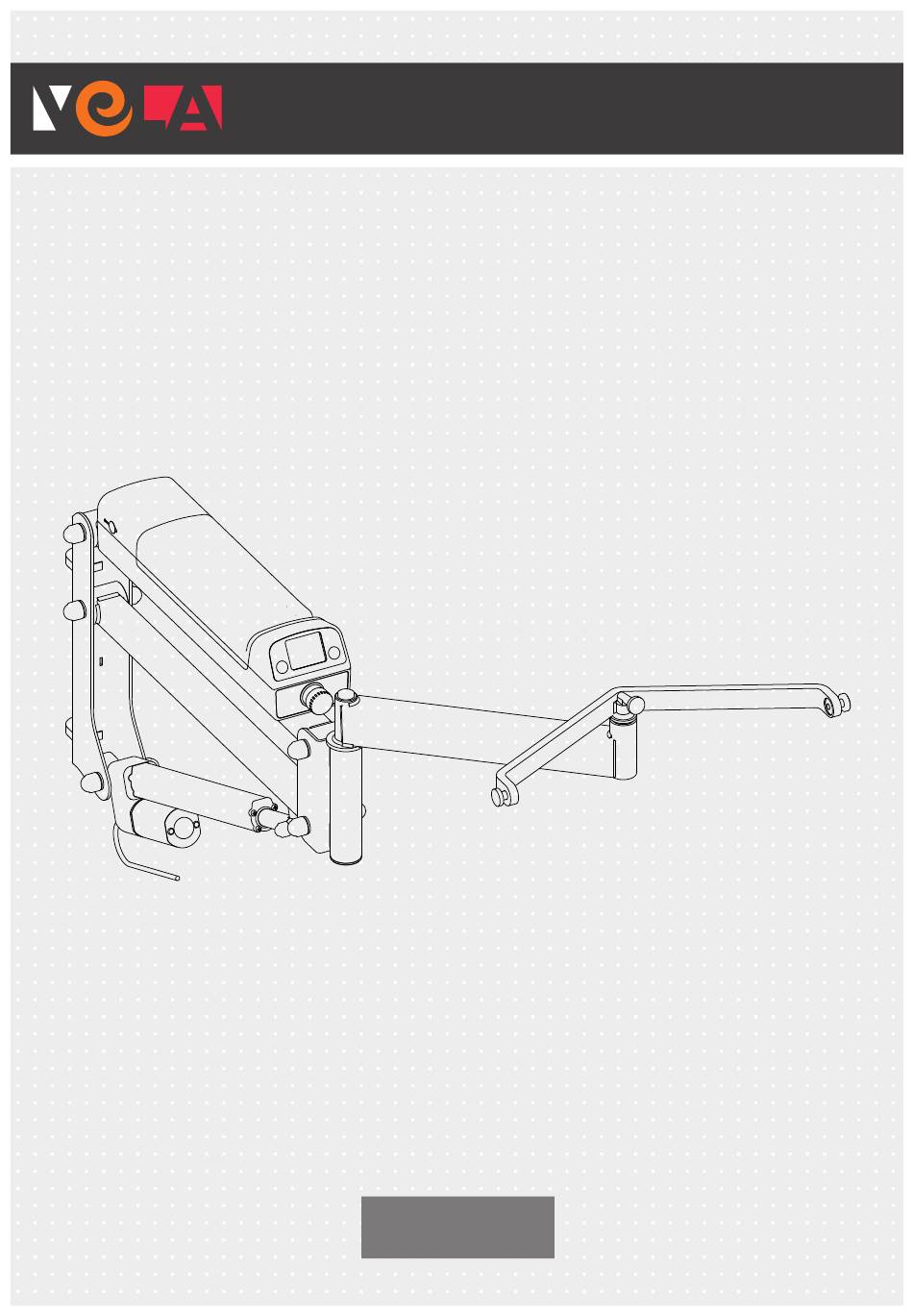

- Page 1 I N S T R U C T I O N F O R U S E VELA Person Lift Manual no. 106953 VELA Person Lift...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.0. INTRODUCTION 1.1. WARNINGS 1.2. TROUBLESHOOTING 1.3. SAFETY AND ELECTRONICS 1.3.1. Dimensions 1.4. LABELS USED ON THE LIFT 1.5. SAFETY 1.5.1. Load limits 1.5.2. Purpose 1.5.3. Prerequisites 1.5.4. Transport and storage 1.6. WARRANTY 1.7. UNPACKING AND PREPERATION 1.8. -
Page 3: Introduction
1.0. INTRODUCTION DEAR CUSTOMER Congratulations on your new VELA Person Lift! We are sure this lift will be of great use for you. This user manual provides useful information on adjusting, operating and maintaining your VELA product. Important Please read this user manual carefully and keep it safe for when you need to refer to it. -
Page 4: Warnings
Check that all lifting brackets and straps are placed correctly before the lifting function is activated. If an error occurs on the lift during use, you must discontinue using the lift and contact VELA/your VELA dealer for reparations. -
Page 5: Troubleshooting
2. Service is needed 2. The bushings are worn New, irregular sounds are The joints or actuator are Service is needed coming from the lift broken If the above does not solve your problem, you should contact your VELA supplier. -
Page 6: Safety And Electronics
1.3. SAFETY AND ELECTRONICS Emergency stop On/off Automatically when the VELA Person Lift is used Protection against overload Automatic Protection against deep discharge of battery Automatic Power supply 24V DC, 10A Charger Input: 100-240V – 50/60Hz,0,5A Output: 28V 0,8A Battery 24VDC/2.9Ah (corresponding to approximately 50 operation... -
Page 7: Labels Used On The Lift
1.4. LABELS USED ON THE LIFT Icon Read ”Instruction For Use” before use Labels on body support Label on lifting Labels on VELA 60 x 22,5 mm <Model name> <Model ref. no.> Person Lift <Manufacturer> MEDICO <Safe working load> <Adress>... -
Page 8: Safety
Daily use temperatures +5°C to + 1.5.3. PREREQUISITES When the VELA Person Lift is used, it 45°C is a prerequisite that: :: The VELA Person Lift is used by qualified personnel/users. -
Page 9: Unpacking And Preperation
VELA. On delivery you have received: The inspection must be done :: The VELA Person Lift frame with a accordingly to our instructions by battery pack trained personnel. A service agree- ment can be made with VELA. -
Page 10: Cleaning
:: An inspection log can be found at 1.8.2. AVOID DEEP DISCHARGE point 2.2 in this user manual. If the VELA Person Lift is taken out of operation for a prolonged period, the emergency stop must be activat- 1.8.1. CLEANING... -
Page 11: Recycling And Disposal
1.9. RECYCLING AND DISPOSAL This product contains recyclable ma- terials. Therefore, the product must be disposed of according to the local legislation, and not disposed along- side regular household waste. Correct disposal and recycling contribute to the prevention of the negative environmental effects. -
Page 12: Installation
Scan the QR kode to download the 2.0.3. OTHER ELECTRONIC DEVICES instruction for customisation of the The VELA Person Lift can affect other mounting kit to a specific veichle. electrical apparatuses and hence should not be closer than 30 cm to other electrical apparatuses, such as mobile phones etc. -
Page 13: Installation Of Body Support
In the case of lifting from a manual wheelchair, the wheelchair must be placed as close as possible to the VELA Person Lift which is mounted onto the car’s door hinge, and the wheelchairs brakes must be engaged. :: The lifting bar must be at same... - Page 14 :: Do not let the user sit in the body support unattended. The VELA Person Lift is a powerful lifting module. Before lifting, you must ensure that the user cannot be pinched. The user’s head, arms, hands and feet must not be prone to pinch- ing or getting stuck.
-
Page 16: User Manual
2.1. USER MANUAL 2.1.1. LAMPS AND SOUND SIGNALS The battery will make a sound signal once it needs charging (60dB). The battery will make a constant, beeping sound until it is put to charge. Check the battery indicator on the battery before every lift. -
Page 17: Charging/Connection
Use the included charger which must be connected to the power grid. The battery can be charged directly in the VELA Person Lift, or you can dismount the battery and bring it to the charging cradle, where the battery can be placed standing. -
Page 18: Inspection Log
The VELA Person Lift must be inspected once a year according to the instructions provided by VELA. The VELA Person Lift is initially inspected by VELA – the week/year for the control is stated on the lifts id label. Inspection of VELA Person Lift:... - Page 19 The body support is inspected before each use and least every 6th month. Inspection of body support: Inspection Notes Date and signature...
- Page 20 VELA :: Gøteborgvej 8-12 :: 9200 Aalborg SV :: Denmark :: +45 96 34 76 00 :: mail@vela.dk vela.eu...
