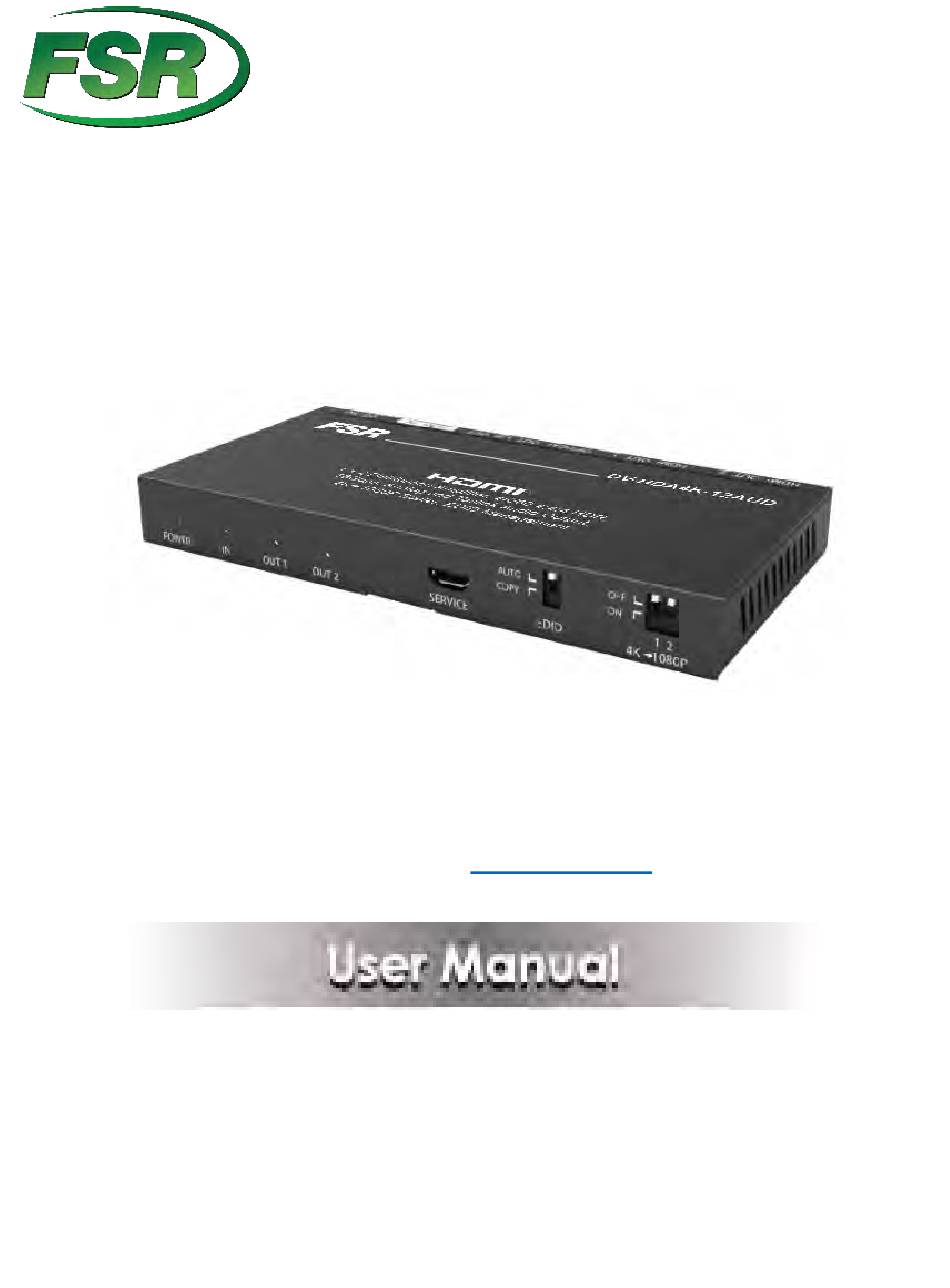

- Page 1 DV-HDA4K-12AUD 1x2 HDMI 2.0 Splitter with Scaler/Audio Extract 244 Bergen Blvd Woodland Park NJ 07424 973-998-2300 www.fsrinc.com VER 1.0 43382 LIT1842...
- Page 2 Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............2 2. Features ................3 3. Package Contents ............4 4. Specifications ..............4 5.Operation Controls and Functions ........6 5.1 Front Panel ............. 6 5.2 Rear Panel .............. 8 6. Application Example ............9 Introduction The 1x2 HDMI 2.0 Splitter simultaneously routes one HDMI source to two HDMI displays. -
Page 4: Features
extraction from an HDMI source as optical and analog audio. Output supports bypass and downscaling(4K->1080P). 1. Features ☆ HDMI 2.0b, HDCP2.2/HDCP1.4 compliant. ☆ Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:4:4) ☆ Supports digital and analog audio extraction from an HDMI source. -
Page 5: Package Contents
☆ Supports HDMI audio format LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD 2. Package Contents ① 1× 1×2 HDMI 2.0 Splitter ② 1× 5V/1A Power Adapter ③ 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b... - Page 6 Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD L/R Audio Formats PCM 2.0 Optical Audio Formats LPCM [2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1 ESD Protection...
-
Page 7: Operation Controls And Functions
Weight 166g Power Supply Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption 2.8W (max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 5.Operation Controls and Functions 5.1 Front Panel... - Page 8 Number Name Function description This blue LED will illuminate when the unit is POWER LED powered. This blue LED will illuminate when the HDMI HDMI IN is connected to an active HDMI source INPUT LED device with a HDMI cable. HDMI These blue LEDs will illuminate when the HDMI OUT port has been connected to an...
-
Page 9: Rear Panel
5.2 Rear Panel Number Name Function description HDMI Connect to HDMI display device such as TV or OUTPUT monitor. OPTICAL Optical audio output. L/R OUT Analog audio output. HDMI IN Connect to HDMI source device such as DVD player or PC… DC 5V Plug the 5V/1A DC power supply into the unit and connect the adapter to an AC outlet. -
Page 10: Application Example
6. Application Example CONTACT INFORMATION FSR INC. 244 Bergen Blvd. Woodland Park, NJ 07424 Phone: (973) 998-2300 Order Desk Fax: (973) 785-4207 E-mail: sales@fsrinc.com Web: http://www.fsrinc.com...
