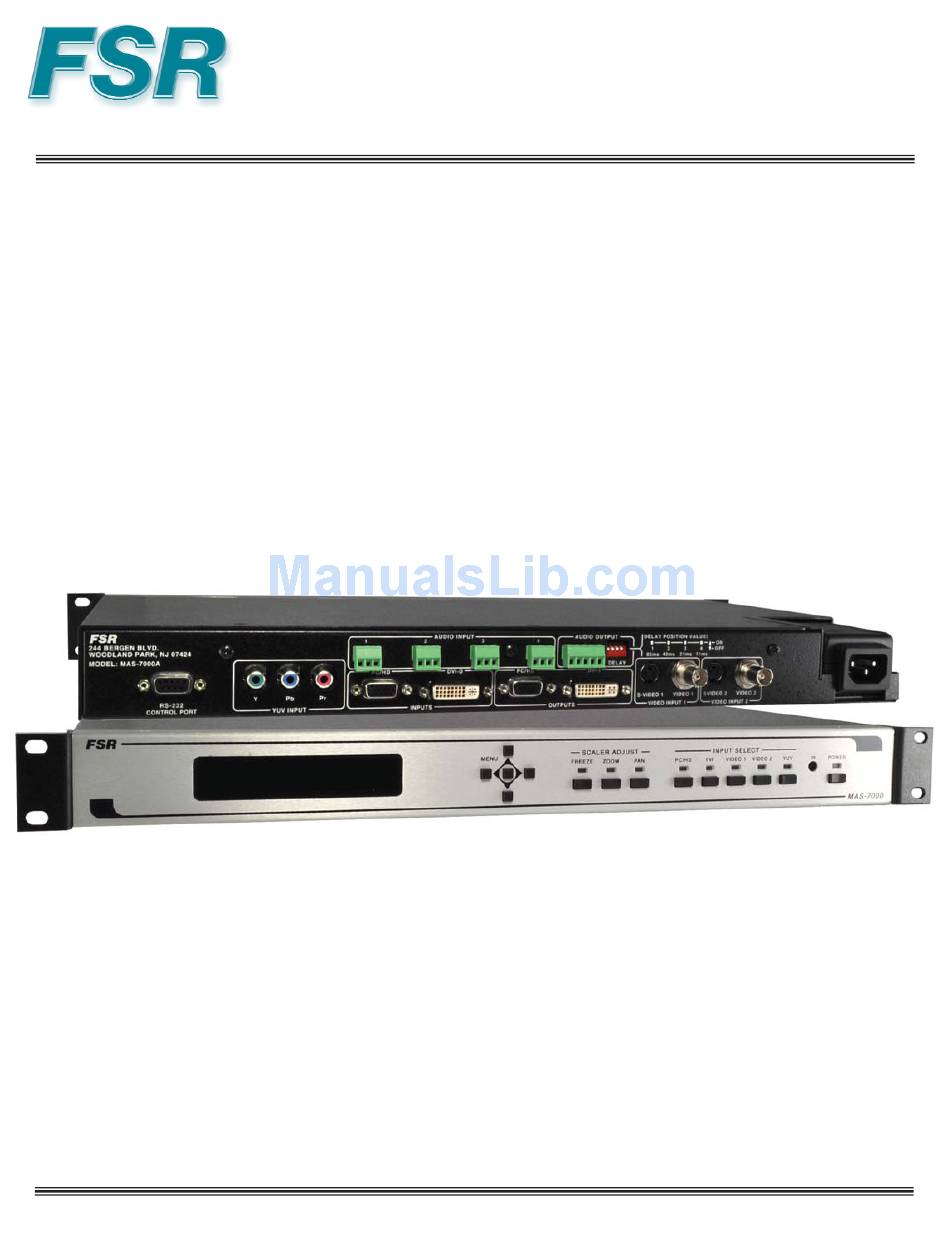

- Page 1 MAS-7000 MAS-7000A Video Products Group AV SWITCHER SCALERS INSTALLATION AND OPERATING GUIDE BASED ON FIRMWARE REV 370 43950 LIT1337 D10...
-
Page 2: Compliance And Safety
COMPLIANCE AND SAFETY PROPRIETARY INFORMATION All information in this manual is proprietary to and the property of FSR Inc. This publication is protected by the Federal Copyright Law, with all rights reserved. No part of this document may be reproduced, transcribed, or transmitted, in any form or by any means, without prior explicit written permission from FSR Inc. -
Page 3: Table Of Contents
SPECIAL BUTTON COMBINATIONS AND THEIR FUNCTIONS ..................9 REAR PANEL CONTROLS .................................9 ACCESSING AND USING THE ON SCREEN MENUS ................10 MENU NAVIGATION BUTTONS .............................10 MAS-7000 MENU TREE ................................11 THE ROOT MENU STRUCTURE ............................12 ADJUST PRESET ..................................12 OUTPUT ADJUST GROUP ...............................12 SCALER ADJUST GROUP ................................14 INPUT ADJUST GROUP ................................18... - Page 4 MAS-7000 RS232 CONTROL SPECIFICATION ....................39 COMMUNICATION PROTOCOL BASICS ..........................39 PACKET FORMAT ..................................40 FRONT PANEL BUTTON EXAMPLES ..........................42 FUNCTION LIST ..................................45 MAS-7000 SPECIFICATIONS ...........................49 WARRANTY AND RETURN INFO ........................51 WARRANTY POLICY ................................51 SERVICE AND RETURN AUTHORIZATION .........................51 CONTACT INFORMATION ..............................51 MAS-7000...
-
Page 5: Introduction
RS-232 serial port or the IR Port. To make IR control easy and painless, all IR codes are provided in a CCF format and are available on the FSR web site. These can be used in nearly any universal remote control or from any control system with IR output. -
Page 6: Installation
INSTALLATION The MAS-7000 mounts easily into a standard 19” rack. It should be placed in an area where the user can easily access the front panel controls. The units are designed to be rack mounted and are supplied with front rack- mount hardware. -
Page 7: Mechanical Dimensions
MECHANICAL DIMENSIONS (MAS-7000A MODEL SHOWN) MAS-7000... -
Page 8: Front And Rear Panel Operation
FRONT PANEL CONTROL BUTTONS POWER ON OFF Pressing the power button will power up the MAS-7000. The unit will run a brief diagnostic sequence and be operational in a few seconds. Pressing and holding the power button for two seconds and releasing will power down the unit. -
Page 9: Special Button Combinations And Their Functions
The silk-screening lists the various time delay settings in milliseconds. The dip switch values are 85ms, 43ms, 21ms, and 11ms. When a switch is moved to the “UP” position the delay is added to the audio. MAS-7000... -
Page 10: Accessing And Using The On Screen Menus
The ARROW LEFT button is used to move backward or decrement a value. Here are the eight root menu main group headings in the order they appear: • MODEL DISPLAY (FSR MAS-7000) • VIEW THE VERSION NUMBER •... -
Page 11: Mas-7000 Menu Tree
MAS-7000 MENU TREE Only active when "Advanced" menu is "on" under system settings. Adjust Preset System Settings Adjust Resolution Menu Select Menu Select Menu Select Menu Select www.fsrinc.com [1] [Load] [Store] Advanced Menu WARNING - FSR MAS-7000 Output Adjust Scaler Adjust... -
Page 12: The Root Menu Structure
This menu group allows adjustments to be made that specifi cally affect the output of the unit, including output resolution and locking/overlaying onto a computer or video source. 1024 x 768 60Hz 1024 x 768 60Hz Output res. Output res. [61] [61] MAS-7000... - Page 13 CV, YC, YUV or RGBHV) will function – since they are not encrypted. Output Adjust Output Adjust Output type Output type [RGBHV] [RGBHV] This menu item allows you to select the type of signal output your unit will provide. Types of output vary MAS-7000...
-
Page 14: Scaler Adjust Group
Zoom level % [ 100] [ 100] Changing this option, sets the amount of picture magnifi cation you wish to use for the window Source. You are provided with the options to zoom the image from 100% to 1000% (10x zoom). MAS-7000... - Page 15 By adjusting the H/V values, you can crop out the black areas to correct the size on the fi nal output screen. Note that cropping does not change the shape or aspect ratio of the image –but just removes the parts of the im- age that are not required. MAS-7000...
- Page 16 It will not let you move the image off the screen, so certain values will appear to have no effect (unless you use a MAS-7000...
- Page 17 60Hz to 50Hz (i.e. it has to drop every 6thframe). When ‘On’, smooth blending is applied so that frames are not lost, but blended together at the appropriate times. Scaler Adjust Scaler Adjust Image smoothing Image smoothing [Auto] [Auto] MAS-7000...
-
Page 18: Input Adjust Group
RGB inputs. The menu discussions that follow relate fi rst to RGB inputs, then to CV / YC type inputs. RGB / YUV INPUT SUB MENU ITEMS Input: RGB1 Input: RGB1 Autosetup status Autosetup status [Inactive] [Inactive] Once the Autoset sense setting has been made, this menu item is accessed and activated. The Autoset sense MAS-7000... - Page 19 This menu item allows manual positioning of the Bottom and Right portion of the image. These settings are often used to correct the position of a PC signal on an input, or to eliminate any undesired noise at the top or bottom of a PAL or NTSC video input. MAS-7000...
- Page 20 (noisiest/softest) image, and then add or subtract 16 to get the optimum value. Note that the AUTOSET function (for RGB inputs only) will attempt to automatically work out the best value for this setting. MAS-7000...
- Page 21 fi elds are simply combined together. The most common artifact is a blurring at the point of maximum movement within an image. Your unit provides some tools to minimize the effects of de-interlacing of an image MAS-7000...
- Page 22 [Off] Offset [-4-+3] This menu item is only available when “Advanced menus” in the System Settings Group is turned on. It can correct for an interlaced source with abnormal odd/even fi eld characteristics. With F. swap “ON”, the odd and MAS-7000...
- Page 23 fi elds will be swapped. The “OFFSET” adjusts the video line offset for the odd fi eld relative to the even fi eld. These setting options may be useful with certain graphics cards where odd and even fi elds are swapped. Normal video sources will not require the use of this adjustment and should be left “OFF”. MAS-7000...
-
Page 24: Dvi-D Sub Menu Items
‘shown’ to PC or other DVI/HDMI source. (It does not affect any other input.) Note that some graphic cards will usually only read the EDID data when the cable is fi rst connected, or on power-up. See the chart on the following page). MAS-7000... - Page 25 (you may need to re-boot your computer as well). Using the above, up to 4 custom EDID settings can be stored in the unit, ready for recall later. This is useful to simulate another display being attached to a graphic card. MAS-7000...
-
Page 26: Cv & Yc Input Sub Menu Items
Phase Delay. Fortunately, your unit provides a way for you to make the two signals occur at the same time on the selected image. The adjustment range provides both positive and negative levels of delay with 0 being the default. MAS-7000... - Page 27 Input: YC1 Input: YC1 [ PAL / NTSC 4.43 60] [ PAL / NTSC 4.43 60] Used to select the input format type such as NTSC, SECAM PAL etc. MAS-7000...
-
Page 28: Adjust Resolutions Group
800 x 600 60 Hz 800 x 600 60 Hz Interlaced Interlaced Off] Off] This adjustment specifi es whether the image is interlaced or progressive scan. It toggles simply On or Off, so there are no fl ashing brackets. MAS-7000... - Page 29 The well-known 800 x 600 computer resolution standard simply means that there are 800 pixels/line visible horizontally and there are 600 lines visible vertically. This item provides a way to change the number of active pixels and lines. MAS-7000...
- Page 30 Sync can be either negative polarity or positive polarity. To further complicate things, it is possible that you may want to make the Horizontal Sync polarity different from the Vertical Polarity. This control allows you to make that change. There are four possible selections: +H+V -H+V +H-V -H-V MAS-7000...
-
Page 31: System Settings Group
System Settings System Settings FSR version # xxx FSR version # xxx This screen is an informational screen. Should you require technical assistance with your unit, the technical support personnel may request that you read the contents of this screen to them during the support call. - Page 32 [ On] The screen labelled ‘Buzzer’ is actually the control for turning the “Beep” “On” or “Off”. Normally this is left in the “On” position to provide positive feedback that your data entries and parameter changes have been accepted. MAS-7000...
- Page 33 1, as a unit undergoes numerous tests during production. System Settings System Settings Hours in Use Hours in Use This is another informational display for usage audit purposes It displays the number of hours the unit has been in operation. MAS-7000...
-
Page 34: Ir Remote Control Commands
AMX and Crestron Control systems. A pre-made template for FSR Room Navigator control of the MAS-7000 is also available on the FSR website along with serial commands. The IR receiver port is located to the far right of the MAS-7000 front panel and is labeled “IR”. MAS-7000... -
Page 35: Pinouts And Cabling
12.SDA (input & output linked) 13.H sync (or composite sync for RGBS) 14.V sync 15.SCL (input & output linked) 4 PIN MINI-DIN S-VIDEO CONNECTOR (YC) INPUT Cable Type: Standard 4 pin S-Video to two BNC male cable. Maximum Recommended Length: 35 ft MAS-7000... -
Page 36: Dvi-I Connector Pinout
DVI-I CONNECTOR PINOUT MAS-7000... -
Page 37: Audio Wiring
SOURCE MAS-6200 AUDIO OUTPUT CONNECTOR WIRING 7000 TO A STEREO UNBALANCED TO A MONO UNBALANCED PREAMP INPUT PREAMP INPUT SIGNAL SIGNAL FLOW FLOW TO A STEREO BALANCED TO A MONO BALANCED PREAMP INPUT PREAMP INPUT SIGNAL SIGNAL FLOW FLOW MAS-7000... -
Page 38: Db9 Connector
DB9 CONNECTOR Please see the MAS-7000 serial protocol manual included with the product for serial commands and other details on RS-232 control. RS232 / D9 socket 1.N/C 2.TX (Transmit data) 3.RX (Receive data) 4.N/C 5.GND (Signal return) 6.N/C 7.CTS (Clear to send) 8.RTS (Request to send) -
Page 39: Mas-7000 Rs232 Control Specification
MAS-7000 RS232 CONTROL SPECIFICATION This section outlines how to control a unit via an RS232 or Ethernet link, using ASCII-based commands. It details how to send and receive serial data to perform many of the functions that a user has access to on the unit. -
Page 40: Packet Format
Carriage Returns Each packet that is sent to or received from the MAS-7000 is terminated with a carriage return. Carriage return has a value of 13 decimal, but is sent as a hex byte 0x0D. It will be represented in this document as <CR>. - Page 41 A series of three ASCII-hex bytes carrying the data to send, MSB fi rst. PAYLOAD Example: ‘000001’ is 1 in decimal, ‘010000’ is 65536 in decimal, and ‘FFFFF0’ is -16 in x 3 bytes decimal. ASCII-hex, see above. <CR> MAS-7000...
-
Page 42: Front Panel Button Examples
FRONT PANEL BUTTON EXAMPLES If the user is using the serial commands to simulate the front panel of the MAS-7000, the following commands are provided. They have been tested. The commands are to be sent out in the following manner, with no spaces between the fi elds. - Page 43 41, Window “A” 00, Output 1 82, Change Program source 000041, Source S-VID2 ??, test checksum Source = VIDEO1 000030 <CR> Where: 04, Write command 41, Window “A” 00, Output 1 82, Change Program source 000030, Source S-VID2 ??, test checksum MAS-7000...
- Page 44 <CR> Where: 04, Write command 41, Window “A” 00, Output 1 9C, Freeze 000001, On ??, test checksum FREEZE OFF 000000 <CR> Where: 04, Write command 41, Window “A” 00, Output 1 9C, Freeze 000000, Off ??, test checksum MAS-7000...
-
Page 45: Function List
3 = 14:9 Letterbox top PAL WSS 4 = 16:9 Letterbox centre 5 = 16:9 Letterbox top 6 = >16:9 Letterbox centre 7 = 14:9 Full format 8 = 16:9 Full format Take 0->1 = Perform a Preview -> Program transition MAS-7000... - Page 46 TL pos. adj. (top) 10..FF -100..100 BR size adj. (right) 10..5F -100..100 BR size adj. (bottom) 10..5F -100..100 Audio input 10..FF 0..3 = Channels 1 .. 4 Audio vol 10..FF -16..15 (-16=Mute) 10..FF -15..15 Input pixel phase 10..5F 0..31 MAS-7000...
- Page 47 OSD on Power up 0..1, Off, On Store Set to 1 to store Buzzer 0..1 = Off, On Power cycles Read only Firmware updates Read only Hours in use Read only Resolutions Read only Number of Testcards Read only MAS-7000...
- Page 48 TAC number 1 Read only TAC number 2 Read only TAC number 3 Read only TAC number 4 Read only TAC number 5 Read only Not part of menu system Front panel lock 0 = unlocked, 1 = locked MAS-7000...
-
Page 49: Mas-7000 Specifications
Image Size User-Defi nable Presets Image Freeze One Video Frame Product Item Number Settings Memory Non-Volatile MAS-7000 Video Switcher/Scaler Zoom Range Variable to 10X Zoom MAS-7000A Video Switcher (Audio Version) Shrink Range Variable to 10% Image Mirroring Horizontal and/or Vertical... - Page 50 MAS-7000...
-
Page 51: Warranty And Return Info
This product is warranted against failures due to defective parts or faulty workmanship for a period of three years after delivery to the original owner. During this period, FSR will make any necessary repairs or replace the unit without charge for parts or labor. Shipping charges to the factory or repair station must be prepaid by the owner, return-shipping charges, via UPS / FedEx ground, will be paid by FSR.
