Summary of Contents for FSR MAS 4100A

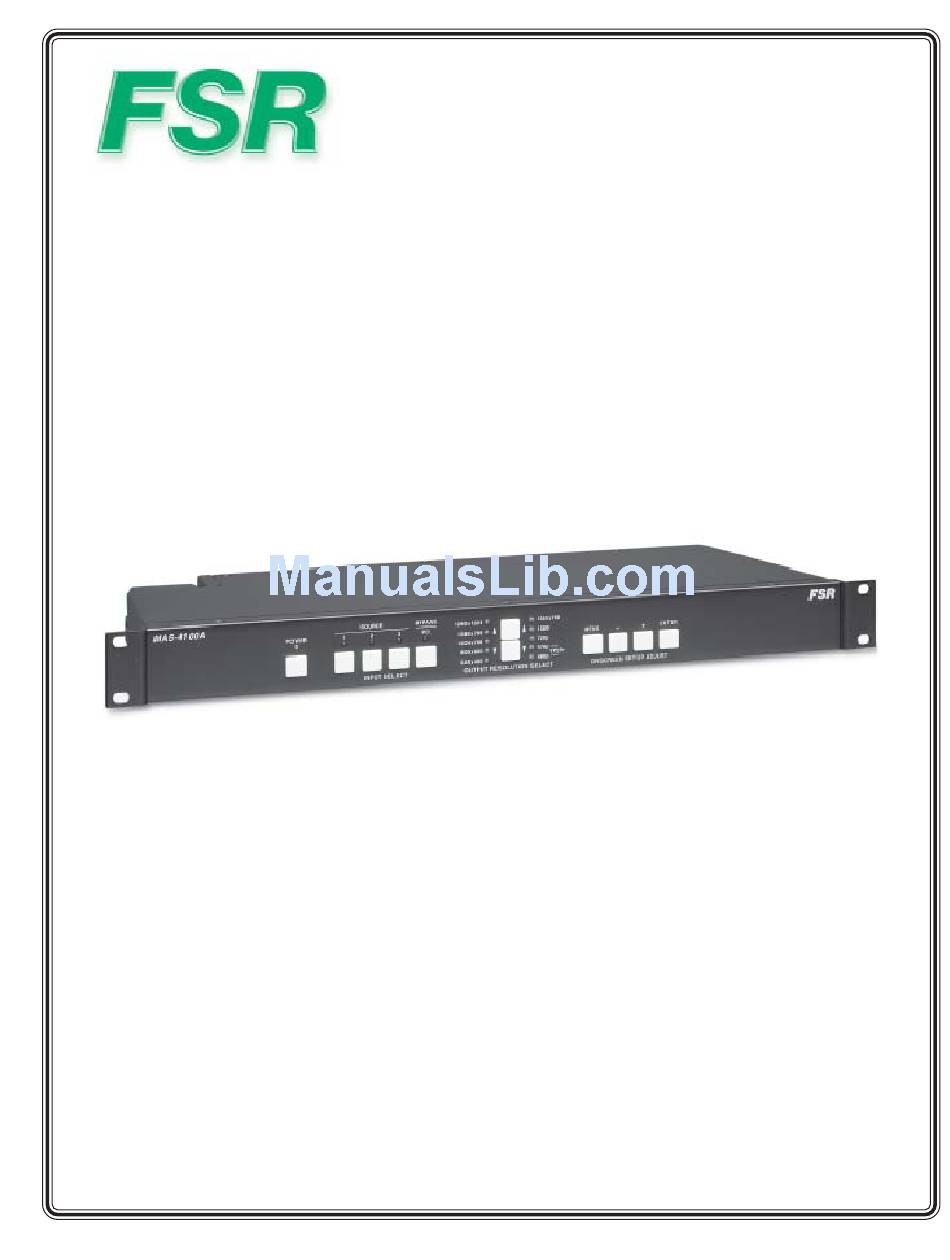

- Page 1 INSTALLATION AND OPERATOR’S MANUAL Model MAS 4100A 4x1 Scaler/Switcher 244 Bergen Boulevard, West Paterson, NJ 07424 • Tel 9737854347 • Fax 9737853318 • Web www.fsrinc.com 43864 LIT1022A...
- Page 2 PROPRIETARY INFORMATION All information in this manual is proprietary to and the property of FSR inc. This publication is protected by the Federal Copyright Law, with all rights reserved. No part of this document may be reproduced, transcribed, or transmitted, in any form or by any means, without prior explicit written permission from FSR inc.
- Page 3 Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at the users own expense. MAS 4100A Switcher/ Scaler...
-
Page 4: Table Of Contents
Output Selection Operational adjustments------------------------------------------------------------------------------11 Navigating Video Adjust Vertical Frequency Adjust OSD Display Output Terminal Front Panel Lockout 4. RS-232 CONTROL OF THE MAS 4100---------------------------------------------------------------13 Command Response Codes 5. TROUBLESHOOTING-----------------------------------------------------------------------------------16 6. REGULATORY COMPLIANCE------------------------------------------------------------------------17 7. WARRANTY POLICY------------------------------------------------------------------------------------17 8. SERVICE---------------------------------------------------------------------------------------------------17 MAS 4100A Scaler/Swicher... -
Page 5: Introduction
Thanks for purchasing the FSR Magellan MAS 4100A, a 4x1 audio and video switcher with integrated scaling. In addition to scaling switchers, such as the MAS-4100, FSR offers a full line of interfaces, line drivers, distribution amplifiers, down converters, power sequencers and more. -
Page 6: Applications
The following items are contained in the shipping carton: 1. The MAS 4100A Scaler/Switcher 2. A disc to permit operation of the MAS 4100A from any Window compatible computer 3. A manual for the MAS 4100A Unit MAS 4100A Scaler/Swicher... -
Page 7: Specifications
Dimensions - Desktop Version 1.75"H x 17.25"W x 7"D (44 x 438 x 178mm) Dimensions - Rackmount Version 1.75"H x 19"W x 7"D (44 x 482 x 178mm) Power Source 100-240VAC, 50/60Hz Power Consumption Approximately 12 Watts MAS 4100A Switcher/ Scaler... -
Page 8: Connecting The Hardware
Rear Panel Connectors The first step is to connect a video source to the input of the Video Scaler and to connect its output to a display device. Below is a photo of the MAS 4100A rear panel. DVD DECK... -
Page 9: Connecting The Video Output
(Bypass) Mode. Connecting the Video Output Connect the MAS 4100A’s RGBHV or YPbPr output to the destination Computer Monitor, HDTV Display, Video Projector or other display device via the HD15 connector on the back labeled “HD-15” or via the 5 BNC connectors labeled “R/Pr, G/Y, B/Pb, H, V”. -
Page 10: Front Panel Controls
FRONT PANEL CONTROLS The MAS 4100A is controlled via Front Panel Push Buttons, Infrared Remote Control or RS-232. Front Panel LED’s and an On Screen Display provide status indications. The following photo shows the Control Buttons and LED Indicators. NOTE: A “No display”... -
Page 11: Operational Adjustments
Navigating the Menu Structure Pressing the MENU button calls up an OSD, which will be visible at the MAS 4100A’s scaled output. The upper text block is a Status Line and indicates which Video Input is selected, the Output Resolution selected and Vertical Refresh Rate selected. The lower text block has four lines, labeled Video Adjustment, Vertical Frequency Adjustment, OSD Display and Output Terminal. -
Page 12: Osd Display
The procedure below can return the unit to the previous output setting. Press and hold the "MENU" button for 5 seconds to activate the HD-15 VGA output Press and hold the "ENTER" button for 5 seconds to activate the 5 BNC VGA output MAS 4100A Scaler/Swicher... -
Page 13: Rs-232 Control Of The Mas 4100
4. RS-232 CONTROL OF THE MAS 4100A The Video Input selection and signal parameter settings for the MAS 4100A can also be controlled via an external control system by using the RS-232 port on the unit. If information for this control method is required, beyond the scope of the instructions provided in this section, please contact FSR Technical Support. -
Page 14: Command Response Codes
= 0:60hz 1:72hz 2:75hz 3:85hz ‘ZX’+value xga vert freq value = 0:60hz 1:70hz 2:75hz ‘IR’+0 IR sensor OFF ‘IR’+1 IR sensor ON ‘FP’+0 PANEL front panel lockout ON ‘FP’+1 front panel lockout OFF MAS 4100A Scaler/Swicher... - Page 15 The procedure below can return the unit to the previous output setting. Press and hold the "MENU" button for 5 seconds to activate the HD-15 VGA output Press and hold the "ENTER" button for 5 seconds to activate the 5 BNC VGA output MAS 4100A Switcher/ Scaler...
-
Page 16: Troubleshooting
5. TROUBLESHOOTING If the recommended actions listed below do not result in satisfactory operation, please consult your Dealer or contact the FSR Technical Support Department directly by phone at 973-785-4347 or by email at sales@fsrinc.com. Problem Possible Solution If pressing the power switch does not cause the... -
Page 17: Regulatory Compliance
6. REGULATORY COMPLIANCE The MAS 4100A Power Supply is UL listed as well as carrying CSA and CE approvals. 7. WARRANTY POLICY This product is warranted against failures due to defective parts or faulty workmanship for a period of one year after delivery to the original owner. During this period, FSR will make any necessary repairs or replace the unit without charge for parts or labor. - Page 18 MAS 4100A Scaler/Swicher...
