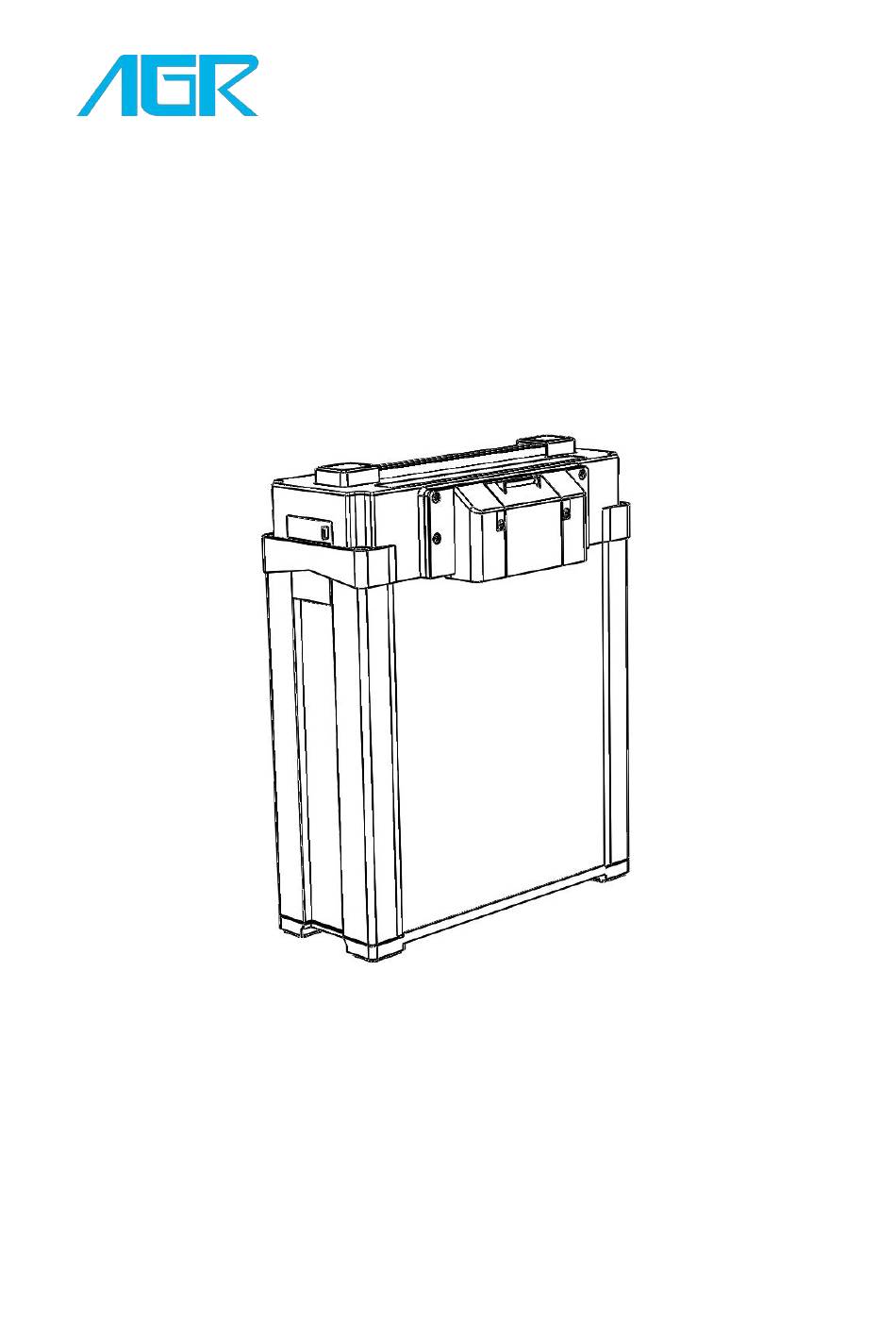

- Page 1 A16 2020 Agriculture Drone V1.0 Intelligent Flight Battery Manual Making Agriculture Easier, Safer and More Efficient. 2020.03...
-
Page 2: Brief Introduction
Brief Introduction A16 2020 Intelligent battery QF14190 is a smart battery with a capacity of 19000mAh and a voltage of 51.8V with metal case, which has the advantages of efficient heat dissipation and wear resistance.Adopting high energy density and long life battery cells to ensure the high quality and high performance of the battery while providing abundant power for the aircraft. - Page 3 Battery Indicator Description LED1、LED2、LED3、LED4 Battery LED1 LED2 LED3 LED4 0%——12% blinking 13%——24% 25%——37% blinking 38%——49% 50%——62% blinking 63%——74% 75%——94% blinking 95%——100% Life Indicator Description When the battery is off, long press the button 5s, LED1, LED2, LED3, LED4 display the battery life Remainder Life LED1...
- Page 4 Abnormal Status Indicator LED5 Red, LED6 Orange, LED7 White Orange White Status Processing LED5 LED6 LED7 Battery voltage difference Primary alarm： Please balance before Voltage Difference≤300mv using Battery voltage difference Secondary alarm： Please balance before Voltage Difference≥300mv using Battery voltage is too low Please charge immediately blinking...
- Page 5 and other status of batteries, reducing the workload of battery management. View Steps : Open AGR APP——Click the user information icon on the main interface ——Click on my battery to enter my battery interface so as to filter and view the last online power and cycle times of each battery.
- Page 6 Plant Protection Platform Battery Curve Analysis （Available in Mainland China only） If using a charger with 4G network function and adding a charger,You can view the battery charge and discharge curves on the AGR plant protection platform,The graph can analyze the battery voltage, current, pressure difference, temperature and other information intuitively and quickly, which greatly facilitates the analysis of battery failure.
- Page 7 Battery Use of Caution 1. Never disassemble the battery 2. Never put the battery into water or fire. 3. Please use special charger to charge and keep away from high temperature environment. 4.Do not Use batteries that are damaged,leaking. 5. It is forbidden to squeeze, bump and short-circuit the battery, so as not to cause unnecessary losses and safety risks.
-
Page 9: Battery Parameters
Battery Parameters Item Parameter Voltage 50.4V Capacity 19000mAH Charging voltage 58.8V Recharging current Max≤57A（3C） Discharge voltage 49V—58.8V Working temperature -10℃－+60℃ (discharge) Working temperature 0℃－+45℃ (charging) Storage temperature -10℃－+35℃ Weight 8.0±0.3KG Size (length, width and 236.3mmx115.7mmx290.8mm height) Packing box size 350mmx295mmx215mm Fast charge time Full charge in 20 minutes Slow charge time...
