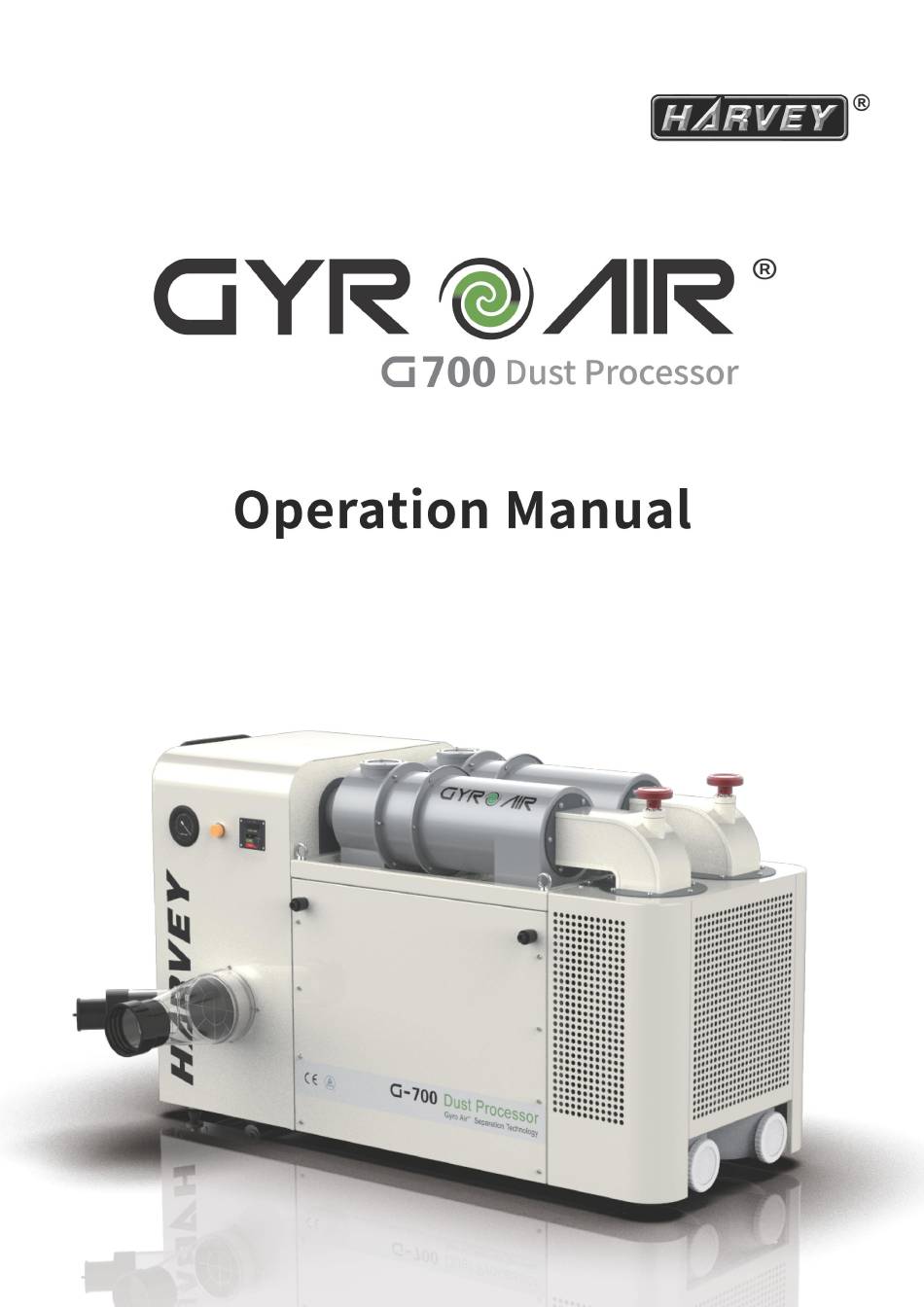

  • Page 1 Revision A (2021-01-30) 298002912...

  • Page 2: Table Of Contents

    Index of Contents Contents ..............................2 1. Foreword..............................3 2. Machine Description..........................3 2.1 Feature Identification........................3 2.2 Specification...........................4 2.3 Requirement of electrical power....................5 3. Safety Regulations..........................7 3.1 General Safety Instructions......................7 3.2 Specific Safety Instructions for Dust processor................8 4.

  • Page 3: Foreword

    1. Foreword This manual was developed as an integral part of this machine. It contains basic information for qualified operating staff. It also contains all necessary information for the correct and safe operation. These regulations, however, cannot cover all other safety aspects. Operator must peruse and make sense of this manual before starting to use the machine.

  • Page 4: Specification

    2.2 Specification Imperial Metric Model ： G-700 Electrical Power Requirement: 220V,Single Phase,50/60Hz Breaker Size: Inverter Type: INOVANCE MD200 Motor Type: TEFC Induction Power: 1.5Kw(2HP) Phase: 3Phase Rated Amps: 5.8A Speed: 2280-4275rpm Variable Product Dimensions 56-1/4x23-1/2x33-7/8" 1430x579x858mm Overall Dimension: 59x28-1/2x42-1/4" 1500x725x1072mm Packing Size: Product Weight Net Weight:...

  • Page 5: Requirement Of Electrical Power

    2.3 Requirement of electrical power Power requirement: 220VAC / 1PH The machine needs no further electrical installation. Equipment comes with 1.8 meters of cable with a plug. For longer runs, please use an appropriate extension cord meeting your local area codes.
  • Page 6 2.3.3 Electrical diagram (Fig.2) Fig.2...

  • Page 7: Safety Regulations

    3. Safety Regulations 3.1 General Safety Instructions 1. Read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as its specific potential hazards. 2. The power supply socket or terminals need reliable grounding. 3.

  • Page 8: Specific Safety Instructions For Dust Processor

    3.2 Specific Safety Instructions for Dust Processor 1. CLEAN ENVIRONMENT Once you are ready to commence work, remove any tools, objects or items that could inadvertently get ‘sucked up’ by the machine and place safely out of the way. 2. INTENDED USE Don't use this machine as a vacuum cleaner, avoid stones, nails, etc., as it may produce a spark and cause fire or explosion.

  • Page 9: Installation Of The Machine

    4. Installation of the machine This machine need a little assembly, almost can be used directly. 4.1 Transportation of machine 4.1.1 Transportation and store Anti-rust and shock proofing measures have been taken during packing. The machine should be transported and stored in -25~55°C ambient temperature. Take care not to allow the machine to be exposed to rain or damage to the packing during transportation and storage.

  • Page 10: Unpacking

    4.2 Unpacking This machine was carefully packaged for safe transportation, remove the package materials from your machine and inspect it. If you find the machine damaged, please immediately call Customer Service for advice. Save the containers and all packing materials for possible inspection by the carrier or its agent. Otherwise, filing a freight claim can be difficult.

  • Page 11: Positioning The Machine

    4.3 Positioning the machine (Fig.5) Fig.5 The machine should be placed at least 0.5 meter (18 inches) away from the wall to ensure that the motor heat dissipation is good. 4.4 Assembly 4.4.1 Moving & Placing Base Unit This machine is very heavy, serious personal injury will happen if safe moving methods are not followed! To be safe, you will need assistance and power equipment when moving the shipping crate and removing the machine from the pallet! 1.
  • Page 12 2. Rotating the knobs as arrow indicated (see Fig.6) to open the door. Then release the dust bin (see Fig.7) , you can slide the dust bin out. Fig.7 3. After you sliding out the bin, you need to remove transportation screws. Step 1: As Fig.8 indicated, you can find four Hex head screws at the bottom, remove these screws.
  • Page 13 Step 2: As Fig.9 indicated, at the bottom, you can find two support legs, turn the red handles to raise legs up about 25mm (1 inch). Fig.9 4. Use four eyebolts (see Fig.10) to lift this machine and remove the pallet. Fig.10...
  • Page 14 5. Install the handle as Fig.11. (Side cover plate need to be removed.). Re-install the dust bin. Fig.11 6. When the equipment is in place, turn the red handles (see Fig.9) to make the support legs touch the ground.

  • Page 15: Installation Of Dust Extractor Adaptor

    4.4.2 Installation of dust extractor adaptor Open the front door and pull out the dust bin, take out the dust extractor adaptor and fix the dust extractor adaptor to the main unit. as Fig.12. 2’’(50mm), 4’’(100mm) and 6’’ (150mm) hoses can be used, see Fig.12. When you choose 6’’(150mm) hose, connect hose to the main unit directly.

  • Page 16: Operations

    5. Operations 5.1 The operating and instructions of electrical components （ Fig.13 ） A: Power Switch: Connect or disconnect the power. B: Control panel: RUN: Start this machine. the indicator light "RUN" is always on. STOP: Stop this machine. M/R: Manual and REMOTE control switch button, switch to REMOTE control state, the indicator "REMOTE"...

  • Page 17: Clean The Dust Bin

    5.4 General operation Please follow these steps each time you start operating the machine: 1. Check the machine, make sure the dust bin is locked. 2. Connect the machine to the power 220V/1PH/60Hz. 3. Turn on power switch, the buzzer will sound and the screen of the control panel will be lighted. 4.

  • Page 18: Maintenance

    6. Maintenance Always disconnect power to the machine before doing maintenance. Failure to do this may result in serious personal injury. Cleaning filter: Turn two “handles” (see Fig.14) right or left for several turns to clean the filter. Once a week. Deep clean: Connect inlet port and cleaning port via 100mm flexible hose as Fig.

  • Page 19: Trouble Shooting Guide

    7. Trouble shooting guide 7.1 Electrical and motor problems Trouble Possible Cause Correction 1. Cord unplugged from the power source. 1. Plug in power cord. 2. Cord damaged. 2. Replace cord. 3. Machine circuit breaker has tripped. 3. Let motor cool and improve ventilation. Machine will not 4.
  • Page 20 7.2 Performance problems 1. Filters are dirty. 1. Clean filters. 2. Remove dust line from collector inlet and 2. There is a restriction in the duct line. unblock the restriction in the duct line. A plumbing snake may be necessary. 3.

  • Page 21: Breakdown & Parts List

    8. Breakdown & Part List Cabinet Assembly Exploded View...
  • Page 22 DESCRIPTION DESCRIPTION Main base Rubber retainer Back cover Electrical box bracket Mecanum wheel Strain relief M25-1.5 Directional wheel Strain relief PG11 Hex screw M6 Button box cover Spring washer 6 Inlet 6'' Flat washer 6 Clamp 6” Hex bolt M6x20 Corrugated pipe 6"...
  • Page 23 Blower Assembly Exploded View DESCRIPTION DESCRIPTION Centrifugal blower Hex screw M10 Cushioning Flat washer 10 Flat washer 12 Adjust bracket Spring washer 12 Y separator Hex bolt M12x40 Pan HD screw M5x10 Pan HD screw M6x10 Flat washer 6 Sealing ring Spring washer 6 Gasket 3# Clamp 5”...
  • Page 24 Front door Assembly Exploded View DESCRIPTION DESCRIPTION Pan HD screw M5x10 Flat washer 10 Flat washer 5 Lock nut M10 Locking dog Front cover Special gasket Support seat for right guide rail Disc spring Right guide rail Left guide rail Nylon spacer 12 Lock shaft Steel ball S6...
  • Page 25 Dust Bin Assembly Exploded View DESCRIPTION DESCRIPTION Sealing strip 209-0220 3.25m Hex screw M6 Cap screw M5x16 Lock pin Spring washer 5 Lock nut M6 Flat big washer 5 Pan HD screw M6x16 Lock shaft Revolving bar Bearing 69012 Lock handle Lock washer Plastic bag 750x910 Flat HD screw M5x10...
  • Page 26 Separation Assembly Exploded View DESCRIPTION DESCRIPTION Pan HD screw M5x16 Gasket 2# Window cover Acorn nut M6 Window Rear separate core Gasket 1# Rear separate cover Front separate cover Gasket 6# Pan HD screw M6x10 Grounding washer 6 Front separate core Gasket 10#...
  • Page 27 Filter Assembly Exploded View DESCRIPTION DESCRIPTION Filter connector Hex screw M6 Clean handle Rubber plectrum Set screw M5x10 Grounding washer 6 Pan HD screw M5x20 Pan HD screw M6x16 Seal cover for clean rod Nylon spacer 8 Gasket 5# Gasket 11# O- ring 2.65x11.8 Filter Gasket 4#...
  • Page 28 Electric box Exploded View REF DESCRIPTION REF DESCRIPTION 701 Electrical box 721 Yellow cable 2.5x1C 0.6m 702 Electrical installation plate 722 Cable 1.5x2C 703 Cover for electrical box 723 Cable 2.5x4C 0.6m 704 Heat-sink window 724 Power cable 3C 705 Strain relief PG13.5 double hole 725 Blue cable 1x1C 1.8m 706 Strain relief M25-1.5...
  • Page 29 Y Adapter Exploded View REF DESCRIPTION REF DESCRIPTION 801 Silicone 150mm 804 Adapter 4"-2" 802 Y type inlet 805 Seal cover 803 Adapter 4" 806 Chain...
  • Page 30 Dust Processor Harvey Industries Co., Ltd 68-10 Suyuan Avenue, Jiangning District, Nanjing 211100, China www.harveymachinery.com Harvey Industries International Inc. 10830 Ada Ave. Montclair, CA. 91763 TEL: 1-800-253-3332 E-mail: info@harveywoodworking.com...
