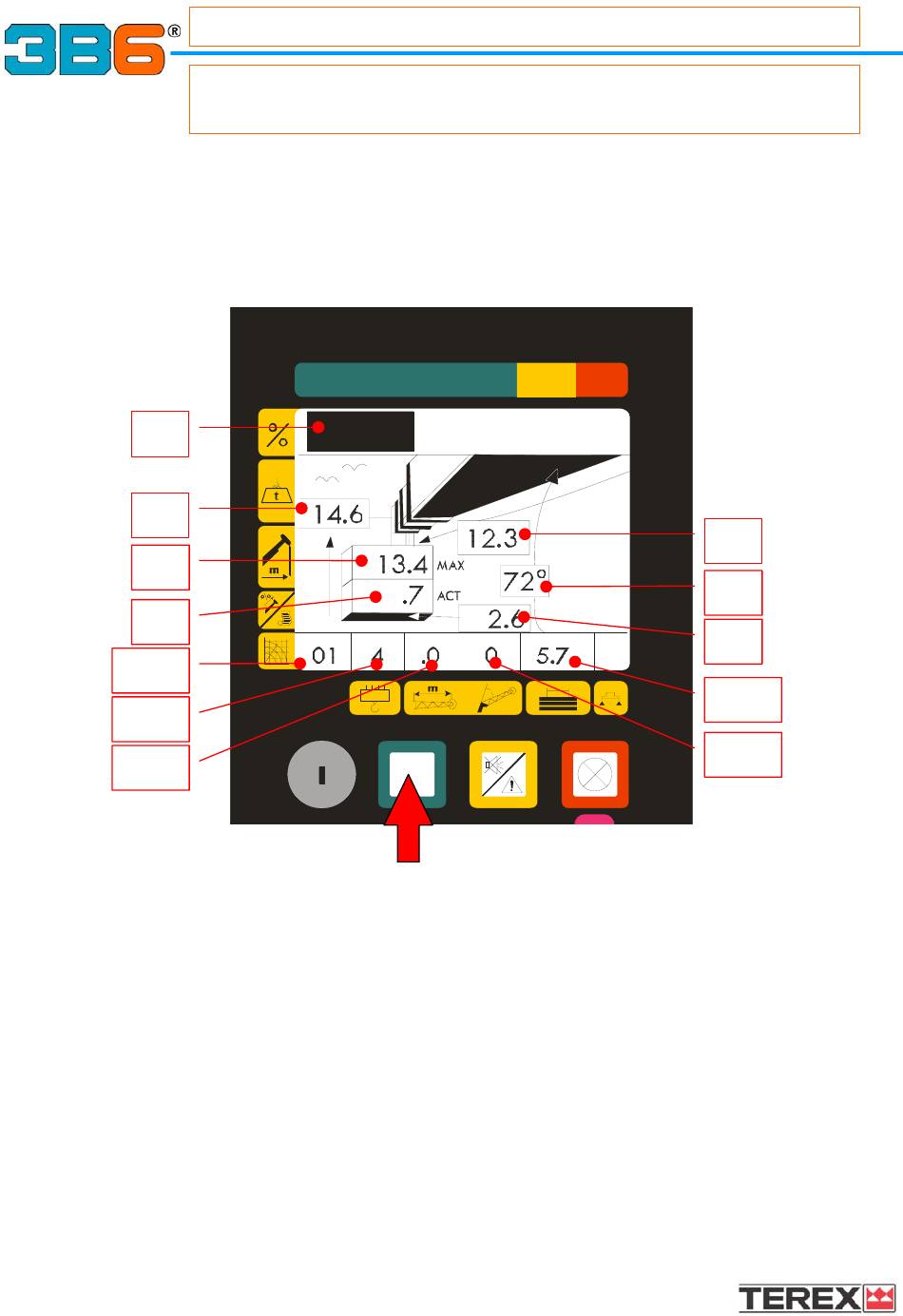

- Main working data reading through graphics
By pressing the green button, it's possible to visualize the working data through graphics.
1.1
1.7
1.3
1.2
1.9a
1.9b
1.9c
1.1) LCD bar showing the percentage of the load lifted at this moment.
1.2) LIFTED LOAD
1.3) MAXIMUM ADMITTED LOAD
According to the selected load table
1.4) WORKING RADIUS
1.5) MAIN BOOM ANGLE
1.6) BOOM LENGTH.
1.7) HEIGHT FROM GROUND
1.9a) OPERATING MODE SELECTED CODE :
Corresponds to the load charts table which must be selected related to the crane configuration.
1.9b) PART OF LINES manually selectable.
1.9c) JIB LENGTH : Corresponds to the jib's extension related to the table chart selected
1.9d) JIB ANGLE : Corresponds to the jib's angle referred to the table chart selected
1.9e) COUNTERWEIGHT VALUE : Indicates the counterweight value referred to the table chart
selected
Is the control panel giving useful information to work?
Yes! It shows on the display all data related to the lifted load
and the boom position through graphic.
PANEL MONITORING
Reading in "Tonnes" or "Lbs", with a decimal point
Reading in "Tonnes" or "Lbs", with a decimal point
Reading in "Metres" or "Feet", with a decimal point
Reading in "Degrees"
Reading in "Metres" or "Feet", with a decimal point
Reading in "Metres" or "Feet", with a decimal point
14
1.6
1.5
1.4
1.9e
1.9d
