Summary of Contents for Thermasol TT10 Series

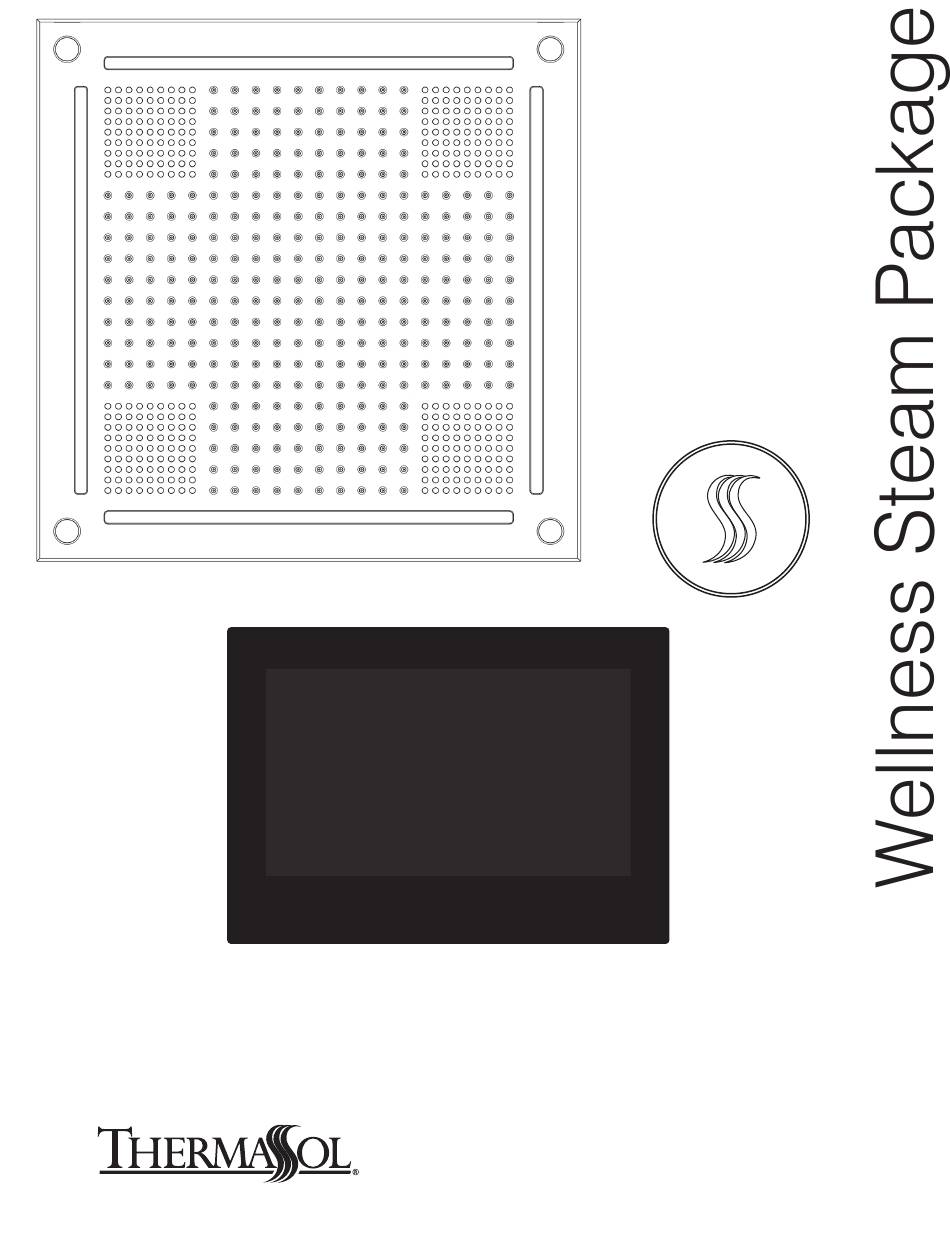

- Page 1 Installation Manual For Tutorials and Troubleshooting visit www.thermasol.com/solutions OVER 60 YEARS OF STEAM SHOWER INNOVATION...
- Page 2 ThermaTouch Control 10 Inch Screen Installation Manual For Tutorials and Troubleshooting visit www.thermasol.com/solutions TT10-XX OVER 60 YEARS OF STEAM SHOWER INNOVATION...
- Page 3 NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAMHEAD WHEN UNIT IS IN THE "ON" POSITION. SEVERE BURNS WILL OCCUR. DO NOT USE THERMASOL AROMATHERAPY OILS, SKIN CARE PRODUCTS OR ANY PRODUCT ASSOCIATED WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
-
Page 4: Tools And Materials
(Router and Ethernet Cable not supplied). Mud Ring Application Finished wall must be flush with the mud ring. Shower wall Shower wall Mud Ring goes inside wall opening 7.5" W by 5.8" opening for recessed mount TT10-XX Mud Ring THERMASOL.COM 800.776.0711... - Page 5 • Do not force plug • Hand tighten only Connect to PDM PDM requires 110V power Connect the data cable to Power Distribution Module (PDM). (The other end of the cable runs to the back of the control in the shower location.) THERMASOL.COM 800.776.0711...
- Page 6 Be careful not to harm the wall or control with the tape. Let dry for 24 hours before using steam bath. Wall Wall M12 Cable Connection Ethernet Cable Connection Audio Cable Connection Wall Back Side of Surface Side View of Surface Mount Control Mount Control THERMASOL.COM 800.776.0711...
- Page 7 Wellness Steam Package Connecting ThermaTouch to Generator 110v T T C S L S M8 Cable M12 Cable Connecting ThermaTouch to Serenity Light, Sound, Rainhead 110v M12 Cable Audio Cable T T C S L S M12 Cable THERMASOL.COM 800.776.0711...
- Page 8 Wellness Steam Package Connecting ThermaTouch to Digital Shower 110v M12 Cable Audio Cable T T C S L S M12 Cable Connecting Total Wellness Package 110v M12 Cable Audio Cable T T C S L S M8 Cable M12 Cable THERMASOL.COM 800.776.0711...
- Page 9 Use 1/2” brass pipe or copper tubing from unit to down turns; pitch/angle towards steam room after any up or down steamhead rough-in fitting as permitted by code. and avoid perfectly level plumbed lines. Shown installed in attic Steam Line 6" 24" THERMASOL.COM 800.776.0711...
- Page 10 It is very Insert protective cap Insert installation tool and into housing tighten housing into place with a 1" socket and driver Steamhead rough-in fitting to be installed flush and sealed to finished wall THERMASOL.COM 800.776.0711...
- Page 11 Verify control panel lights up and test operation. Note: Initial power-on phase takes several minutes for generator to heat up steam. Please direct the home owner to visit www.thermasol.com/solution and click on the “I’m the home owner” button to learn about set-up and programing (in order to set up the clock and any other options if applicable).
- Page 12 HydroVive Installation Manual For Tutorials and Troubleshooting visit www.thermasol.com/solutions HVLSRSQ-XX OVER 60 YEARS OF STEAM SHOWER INNOVATION...
- Page 13 NEVER ATTEMPT TO FILL AROMA RESERVOIR ON THE STEAMHEAD WHEN UNIT IS IN THE "ON" POSITION. SEVERE BURNS WILL OCCUR. DO NOT USE THERMASOL AROMATHERAPY OILS, SKIN CARE PRODUCTS OR ANY PRODUCT ASSOCIATED WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
- Page 14 Tile Cutter with shut off valve Joist Mounting Bracket + 4x #4 Flat Head Screw Plywood Waterproof Backing Mortar Finished #10 Flat Head Screw Shower Surface RTV Silicone Sealant O-Ring (-016) Screw Cover (Fig. 1) Installation Profile View THERMASOL.COM 800.776.0711...
- Page 15 25' Yellow M12 Cable single ThermaTouch Control. Item 03-7149-25 ThermaTouch Control sold separately Yellow M12 Cable Item 03-7149-25 ships with ThermaTouch control PDM Sold and ships with ThermaTouch control THERMASOL.COM 800.776.0711...
-
Page 16: Mounting Brackets
Please be cautious and practice ladder safety. Connecting HydroVive NOTE: Make sure electrical power is off to all ThermaSol devices prior to making any connections. Align the notches at the top of the mounting guides with the mounting brackets and slip them over to firmly secure the HydroVive in place while the connections are made. -
Page 17: Complete Installation
NOT OVERTIGHTEN! Once the HydroVive is in position and the silicone seal is created, no further clamping force is necessary. Complete Installation Install the Screw Covers with O-Rings by hand. Allow the silicone to dry for 24 hours before use. THERMASOL.COM 800.776.0711... - Page 18 ThermaSol Product Registration Dear ThermaSol End User: Please register your product at www.thermasol.com/warranty so we can assist you much quicker if you ever need to contact our Technical Support Department. In addition we’ll keep you informed about your product and time to time we’ll update you about new products and other company announcements.
- Page 19 THIS PAGE INTENTIONALLY LEFT BLANK THERMASOL.COM 800.776.0711...
- Page 20 1958 STEAM WAY ROUND ROCK, TX 78665 PHONE: 800.776.0711 | FAX: 800.556.5257 | WWW.THERMASOL.COM 81241_NC...
