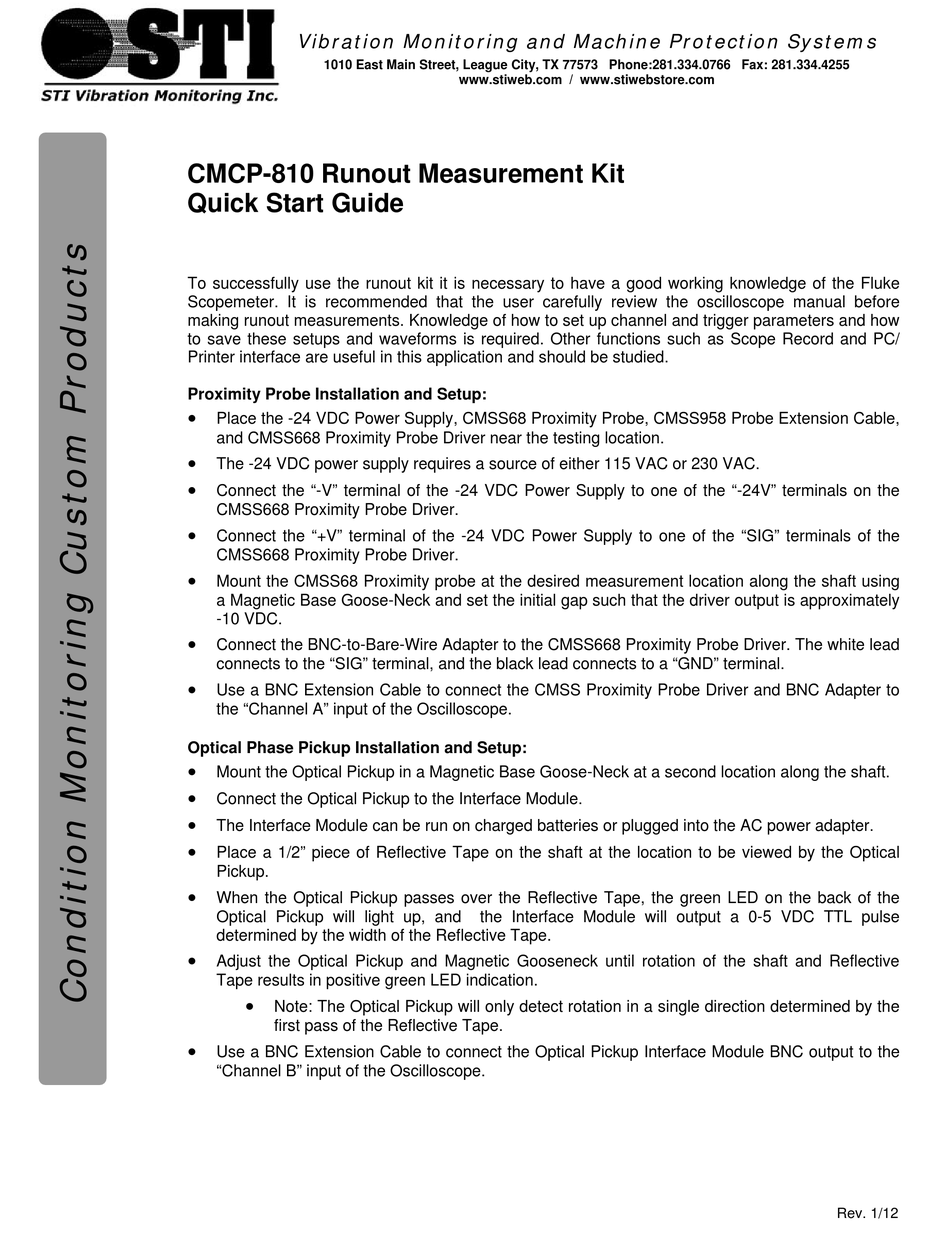

CMCP-810 Runout Measurement Kit
Quick Start Guide
To successfully use the runout kit it is necessary to have a good working knowledge of the Fluke
Scopemeter. It is recommended that the user carefully review the oscilloscope manual before
making runout measurements. Knowledge of how to set up channel and trigger parameters and how
to save these setups and waveforms is required. Other functions such as Scope Record and PC/
Printer interface are useful in this application and should be studied.

Proximity Probe Installation and Setup:


Place the -24 VDC Power Supply, CMSS68 Proximity Probe, CMSS958 Probe Extension Cable,
and CMSS668 Proximity Probe Driver near the testing location.

The -24 VDC power supply requires a source of either 115 VAC or 230 VAC.

Connect the "-V" terminal of the -24 VDC Power Supply to one of the "-24V" terminals on the
CMSS668 Proximity Probe Driver.

Connect the "+V" terminal of the -24 VDC Power Supply to one of the "SIG" terminals of the
CMSS668 Proximity Probe Driver.

Mount the CMSS68 Proximity probe at the desired measurement location along the shaft using
a Magnetic Base Goose-Neck and set the initial gap such that the driver output is approximately
-10 VDC.

Connect the BNC-to-Bare-Wire Adapter to the CMSS668 Proximity Probe Driver. The white lead
connects to the "SIG" terminal, and the black lead connects to a "GND" terminal.

Use a BNC Extension Cable to connect the CMSS Proximity Probe Driver and BNC Adapter to
the "Channel A" input of the Oscilloscope.

Optical Phase Pickup Installation and Setup:


Mount the Optical Pickup in a Magnetic Base Goose-Neck at a second location along the shaft.

Connect the Optical Pickup to the Interface Module.

The Interface Module can be run on charged batteries or plugged into the AC power adapter.

Place a 1/2" piece of Reflective Tape on the shaft at the location to be viewed by the Optical
Pickup.

When the Optical Pickup passes over the Reflective Tape, the green LED on the back of the
Optical Pickup will light up, and
determined by the width of the Reflective Tape.

Adjust the Optical Pickup and Magnetic Gooseneck until rotation of the shaft and Reflective
Tape results in positive green LED indication.

Note: The Optical Pickup will only detect rotation in a single direction determined by the
first pass of the Reflective Tape.

Use a BNC Extension Cable to connect the Optical Pickup Interface Module BNC output to the
"Channel B" input of the Oscilloscope.
www.stiweb.com / www.stiwebstore.com
the Interface Module will output a 0-5 VDC TTL pulse
