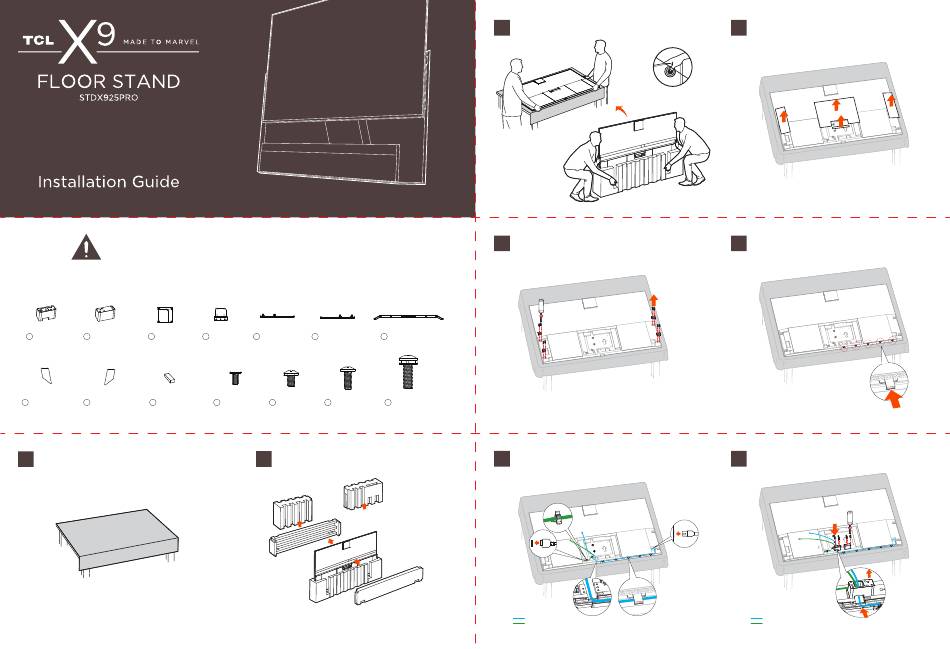

TCL X9 Installation Manual

•
Notes:
If the floor stand has been assembled, disregard instructions below.
•
Follow the instructions accordingly based on the floor stand supplied to you.
•
Graphics contained within this publication are for representation only.
•
Keep the screws and plastic parts away from grease and organic solvents to avoid damage, especially during the assembly process.
•
During installation, lay some soft materials below the screen to avoid scratch and damage to the screen.
•
When the TV is faced down, keep sharp edges away from the screen.
What's in the box
1 Left Connector 2 Right Connector 3 Stand Plate
(X1) (X1) (X1)
Left Stand Footpad
8 9 Right Stand Footpad 10 Sound Bar Footpad
(X1)
(X1) (X2)
Prepare a clean, padded surface like a table covered by a soft cloth. The size
1
should be at least 6.5 ft x 4 ft (2 m x 1.2 m). This will prevent scratches and
damages to the TV screen.
4 Linking Plate 5 Left Stand Bracket 6 Right Stand Bracket 7
(X2) (X1) (X1)
11 M3X6mm Screw 12 M4X6mm Screw 13 M4X10mm Screw
(X12) (X4) (X6)
Open the package, and remove the protection polyfoams as illustrated.
2
Keep the honeycomb panel attached while taking out the TV from the box.
3
Screw off the 8 M5X15mm screws, then remove the four decorative covers to
5
uncover the stand holes.
Bottom Stand Bracket
(X1)
14 M5X15mm Screw
(X18)
Connect the Sound Bar connection cable and TV power cable to the TV and
7
arrange them well as illustrated.
TV power cable
Sound Bar connection cable
Remove the four magnetic glass covers as illustrated.
4
Don't press on the screen!
Take five buckles out of the TV's accessory bag and put them into the
6
groove of the TV bottom as illustrated.
Put the two connectors at the bottom and get the Sound Bar connection
8
cable and the TV power cable out through the left connector as illustrated.
Then fix the two connectors with 6 M5X15mm screws.
TV power cable
Sound Bar connection cable
